AR40.20-P-0325RT Check Toe-Out On Turns



AR40.20-P-0325RT Check toe-out on turns

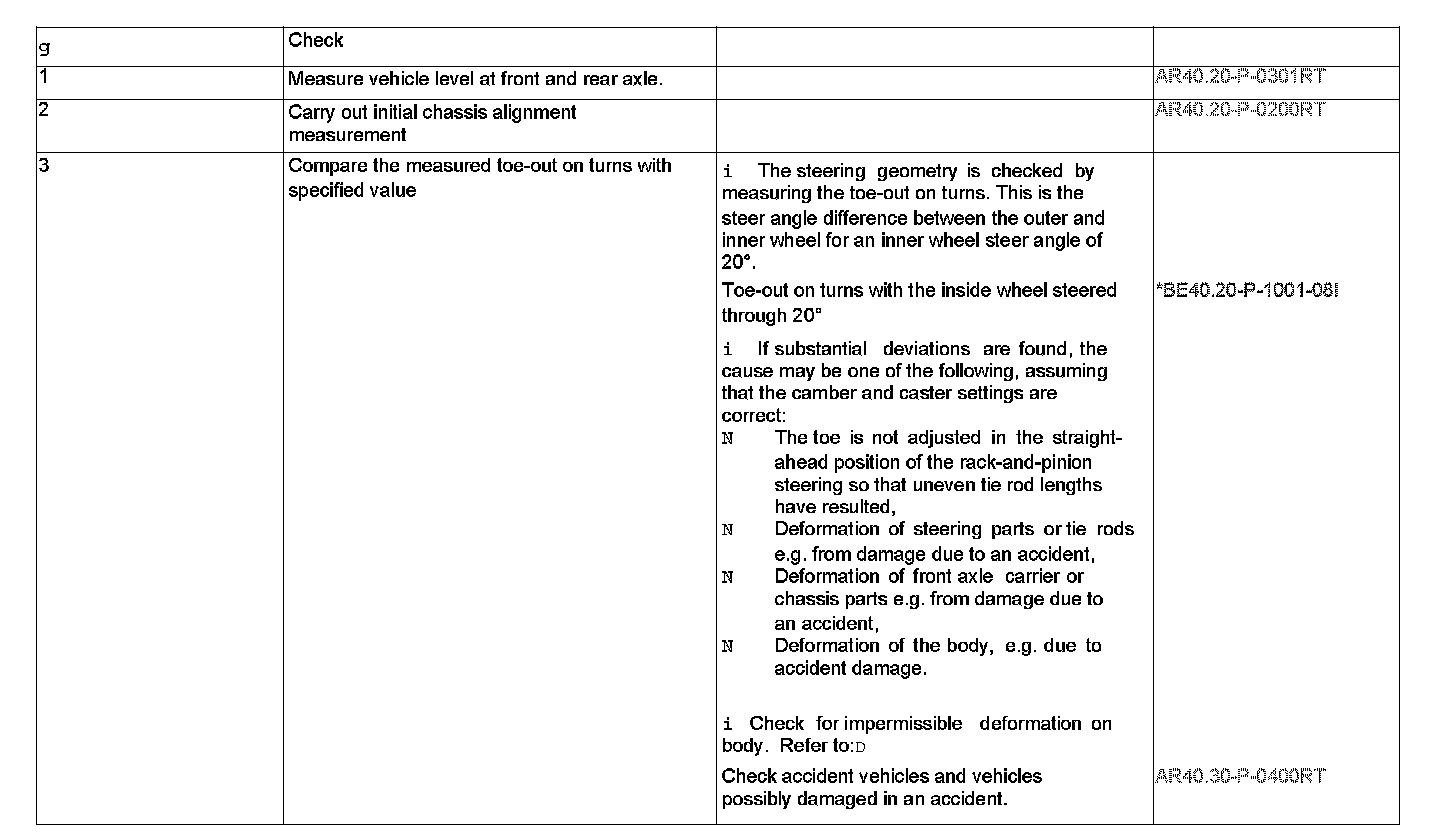

Steps 1-3:

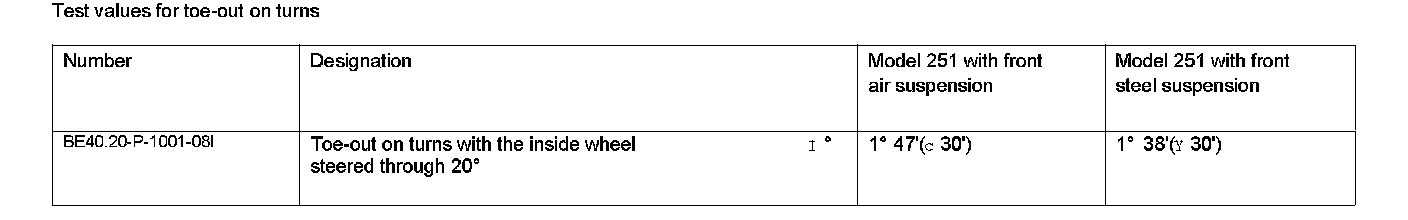

Test values for toe-out on turns:
