AR40.20-P-0200RT Perform Chassis Alignment
AR40.20-P-0200RT Perform Chassis Alignment
AR40.20-P-0200RT Perform chassis alignment

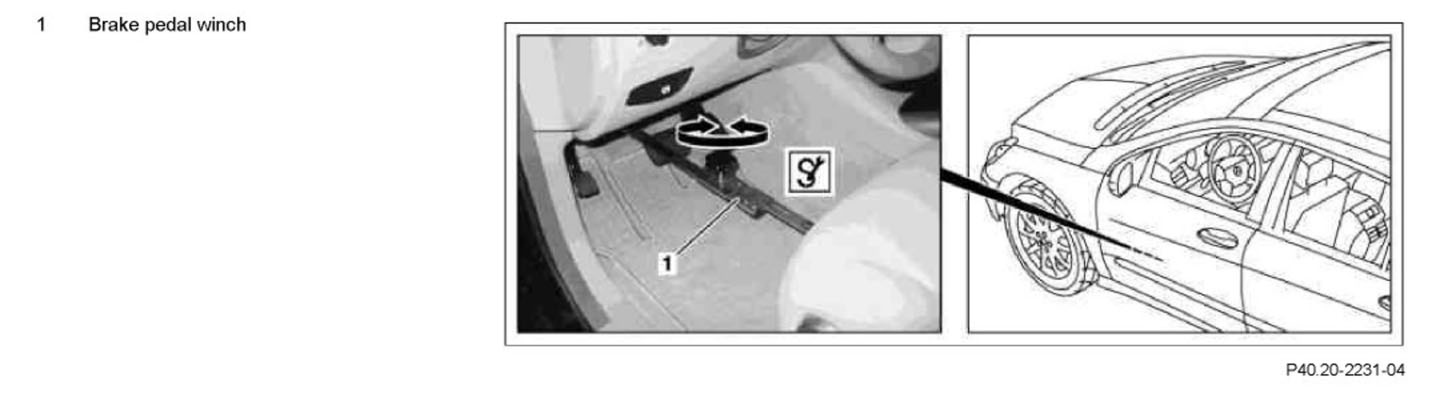

Component Identification:

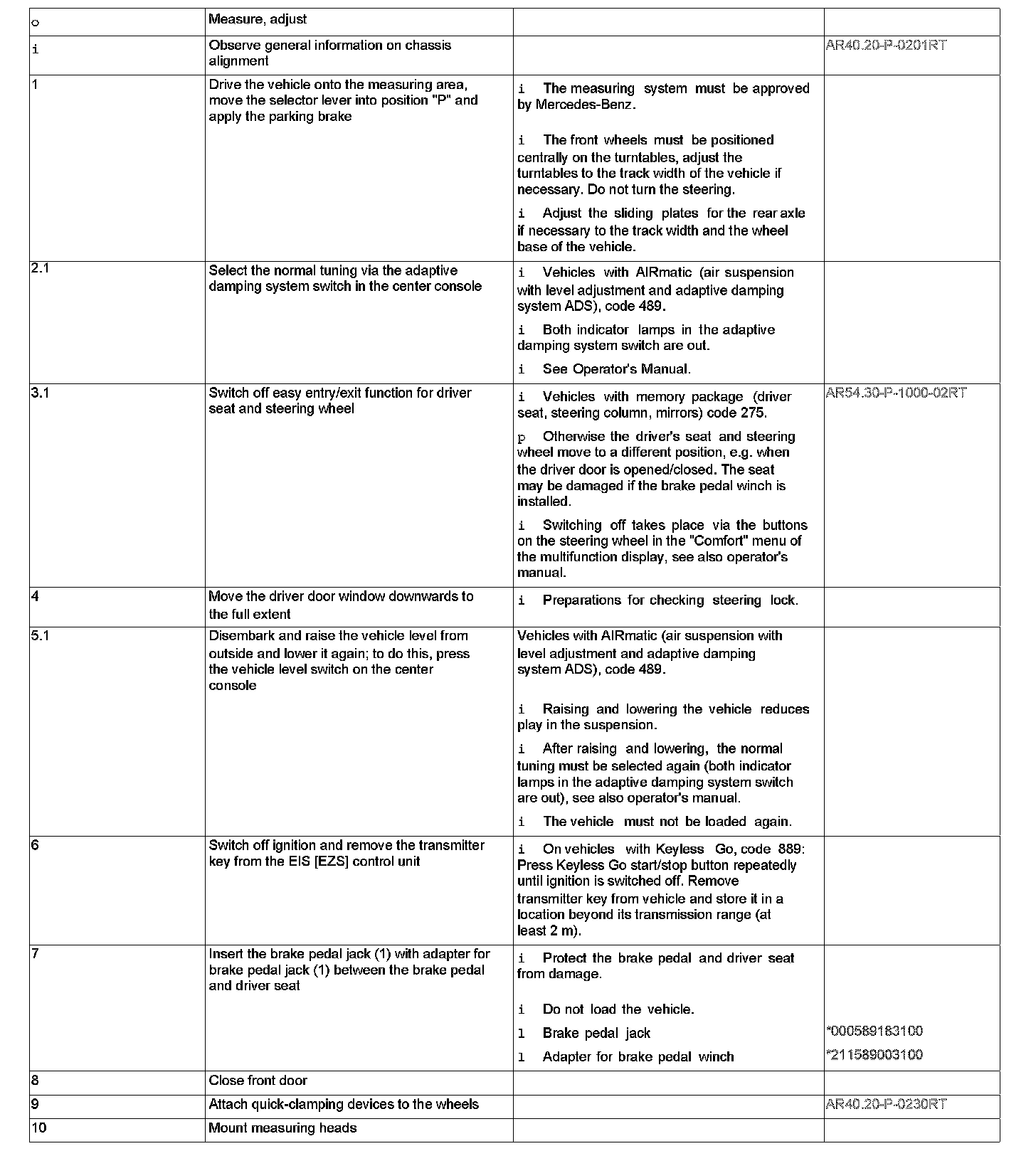

Steps 1-10:

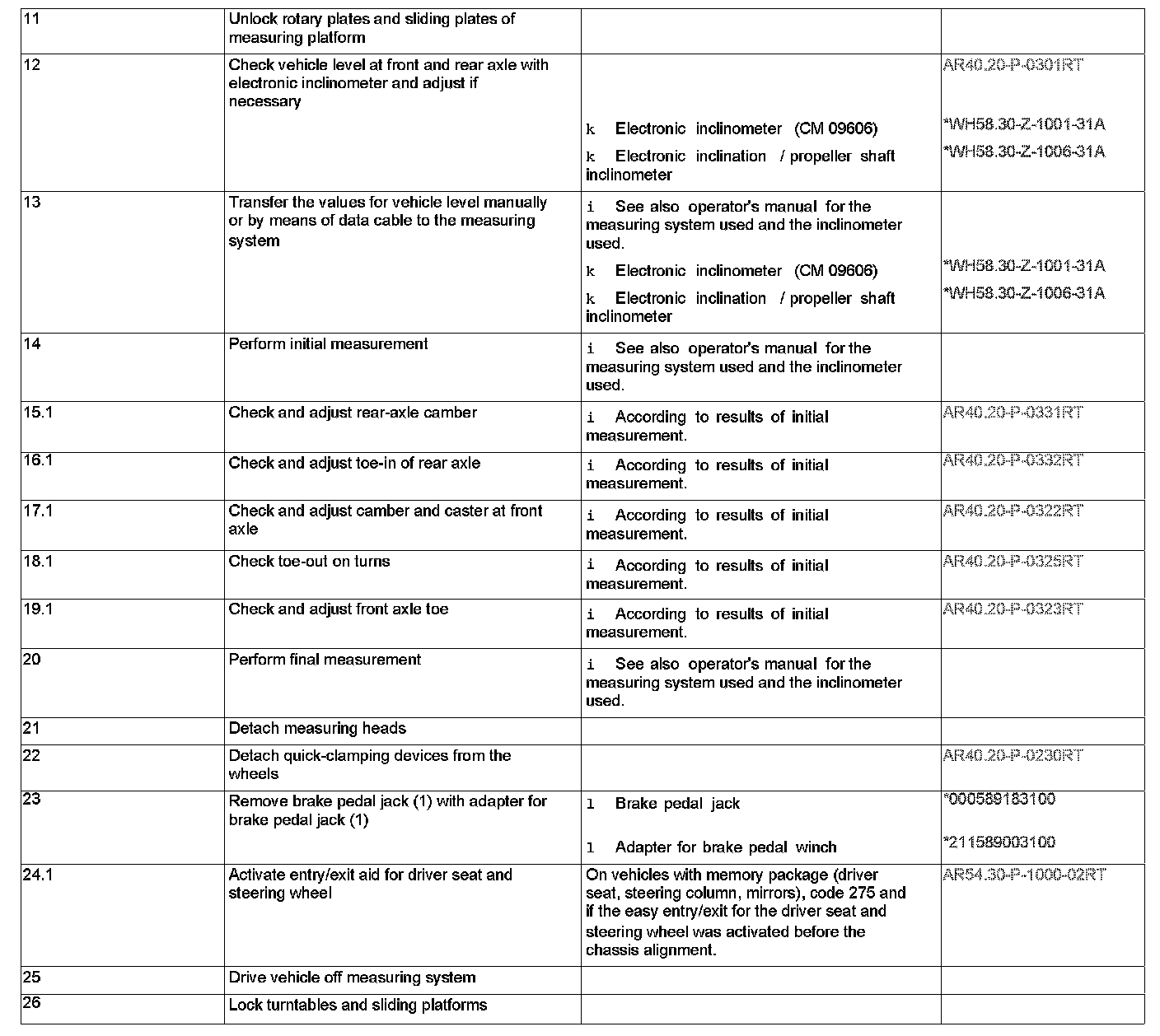

Steps 11-26:

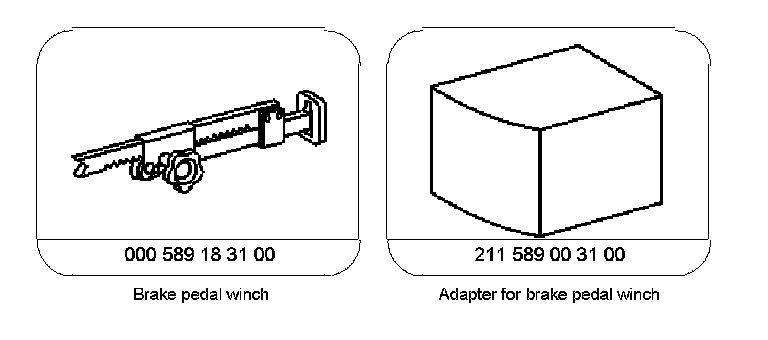

Special Tools:

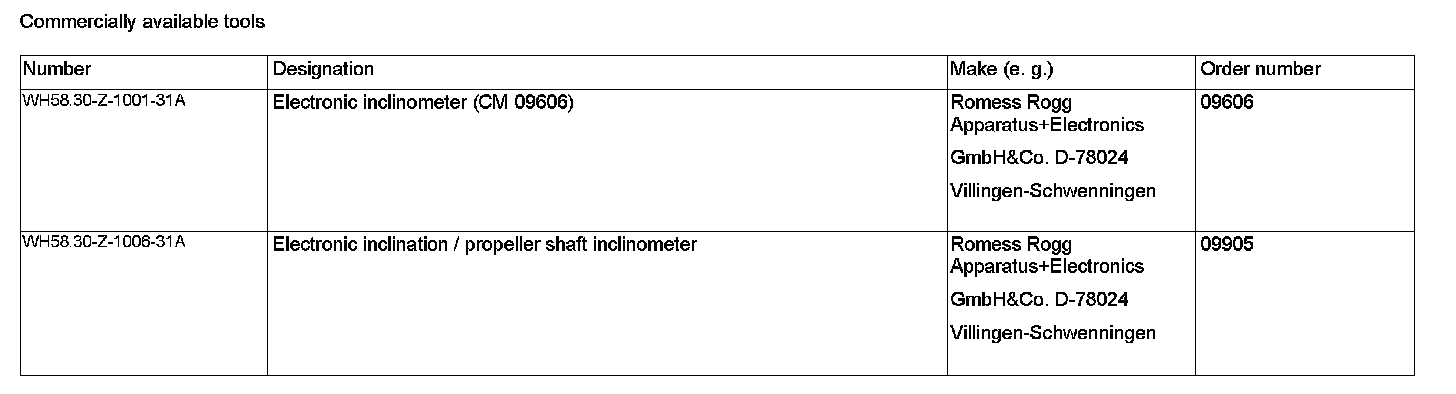

Commercially available tools:
