Brake Rotor/Disc: Service and Repair

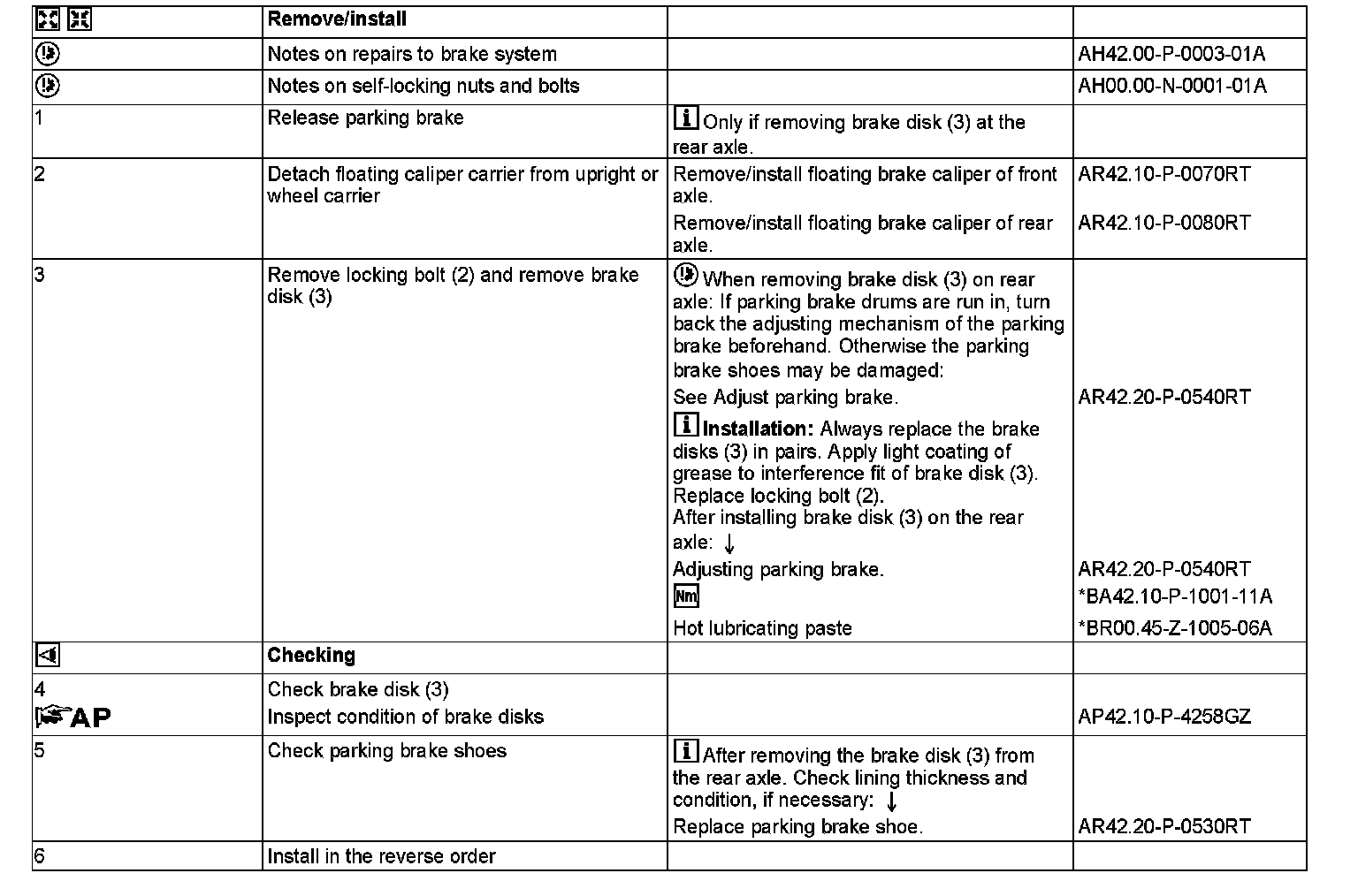

AR42.10-P-0220RT Remove/Install Brake Disc

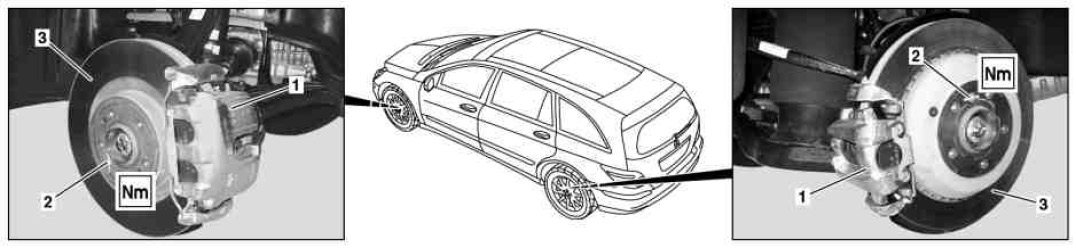

MODEL 251





1 Floating caliper
2 Security bolt
3 Brake disk
