AR42.10-P-0070RT Remove/Install Front Axle Brake Caliper



Remove/Install Front Axle Brake Caliper

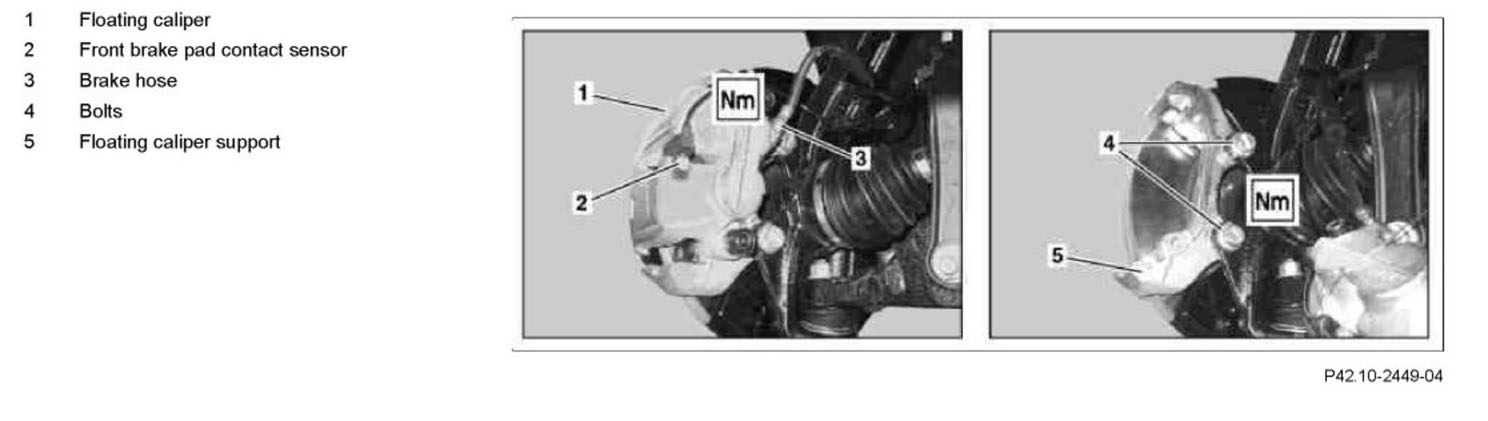

Component Identification:

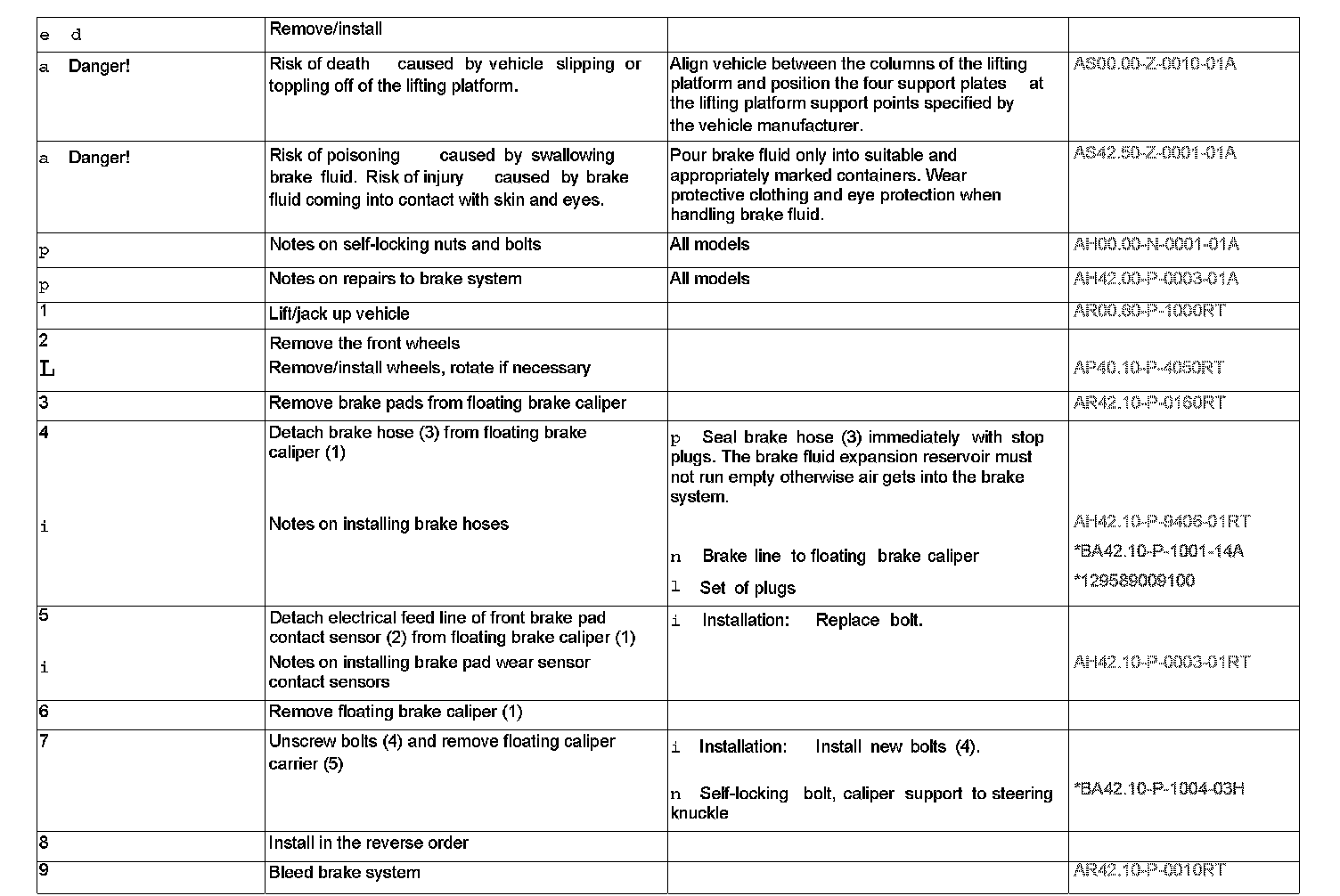

Steps 1 - 9:

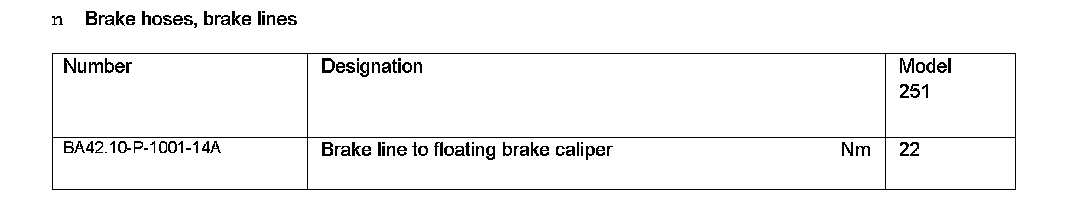

Brake Hoses, Brake Lines:

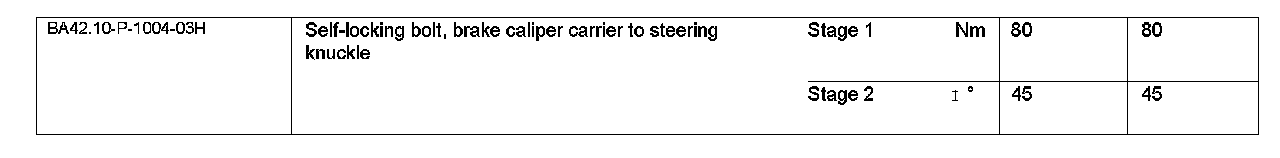

Front Axle Floating Caliper:




Front Axle Floating Caliper:




Special Tools:
