Structural Brace: Service and Repair
AR61.10-P-5138RT Remove/Install Diagonal Strut
- with CODE (413) Panoramic glass roof with top sliding roof

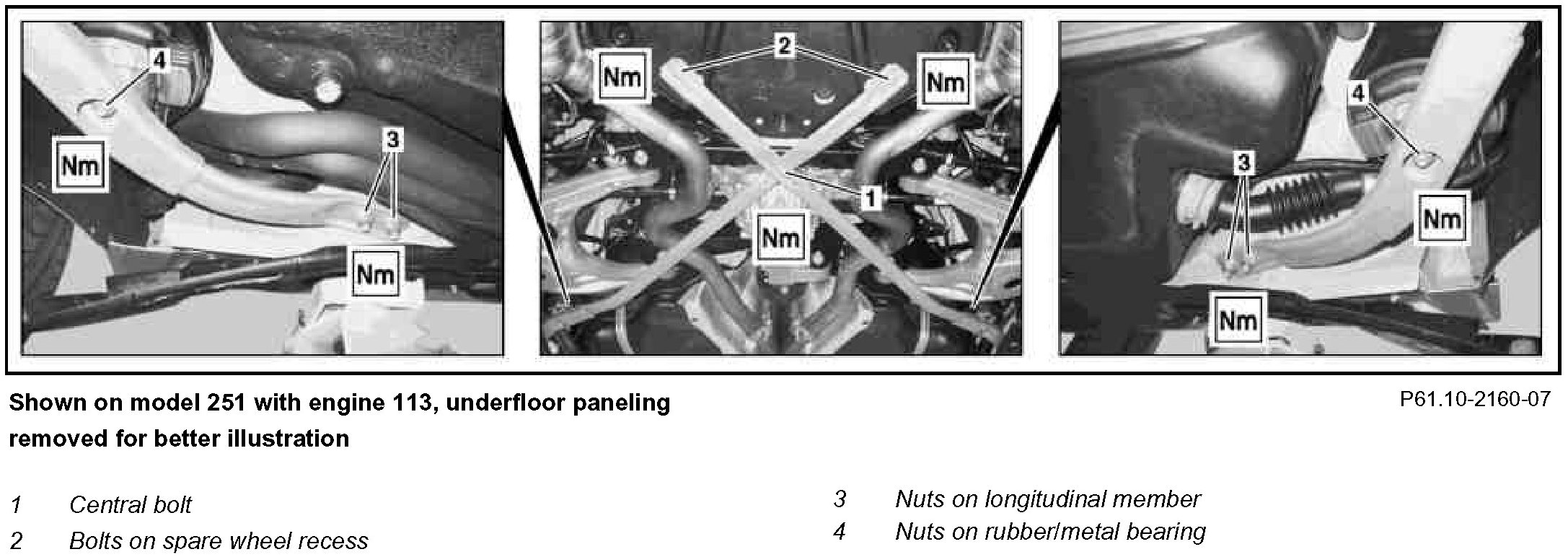

Component Identification:

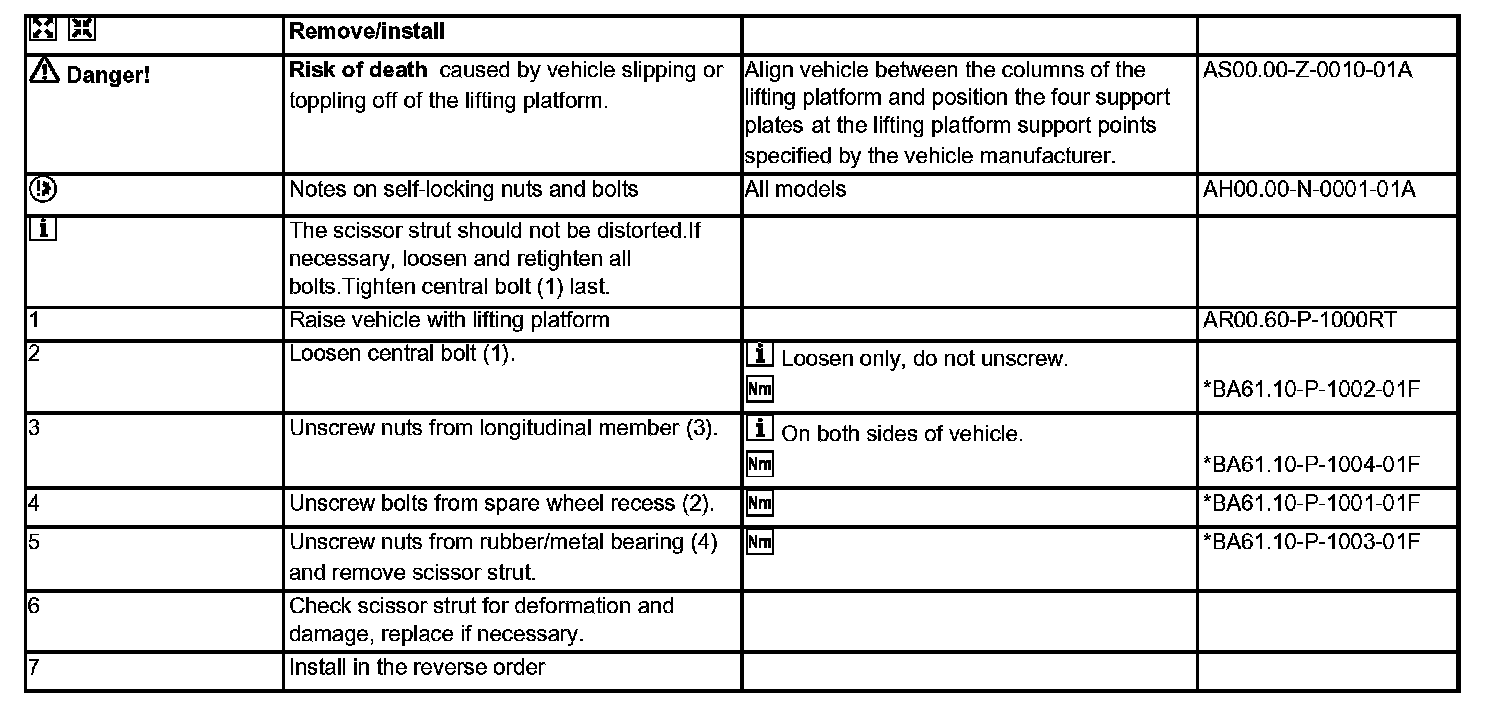

Steps 1 - 7:

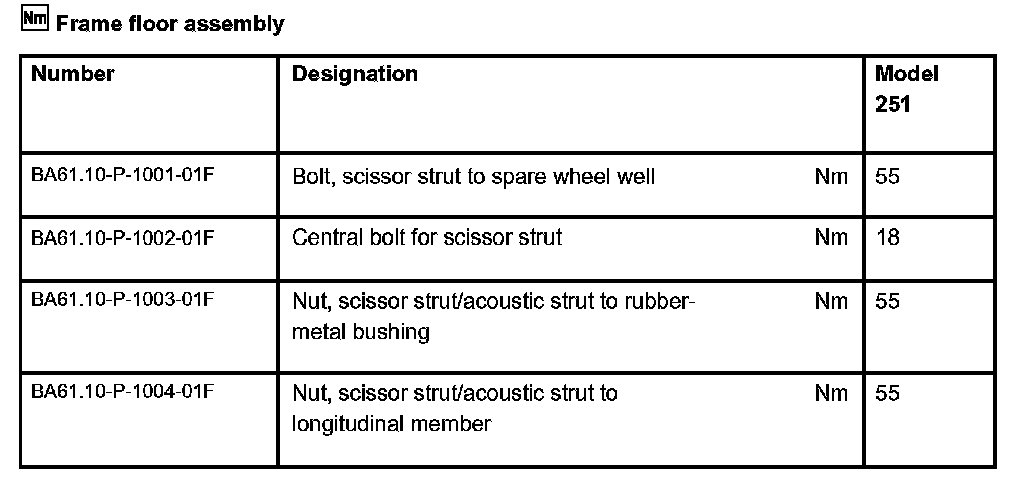

Frame Floor Assembly:
