AR83.40-P-6350RT Remove and Install Control and Operating Unit



AR83.40-P-6350RT Remove And Install Control And Operating Unit

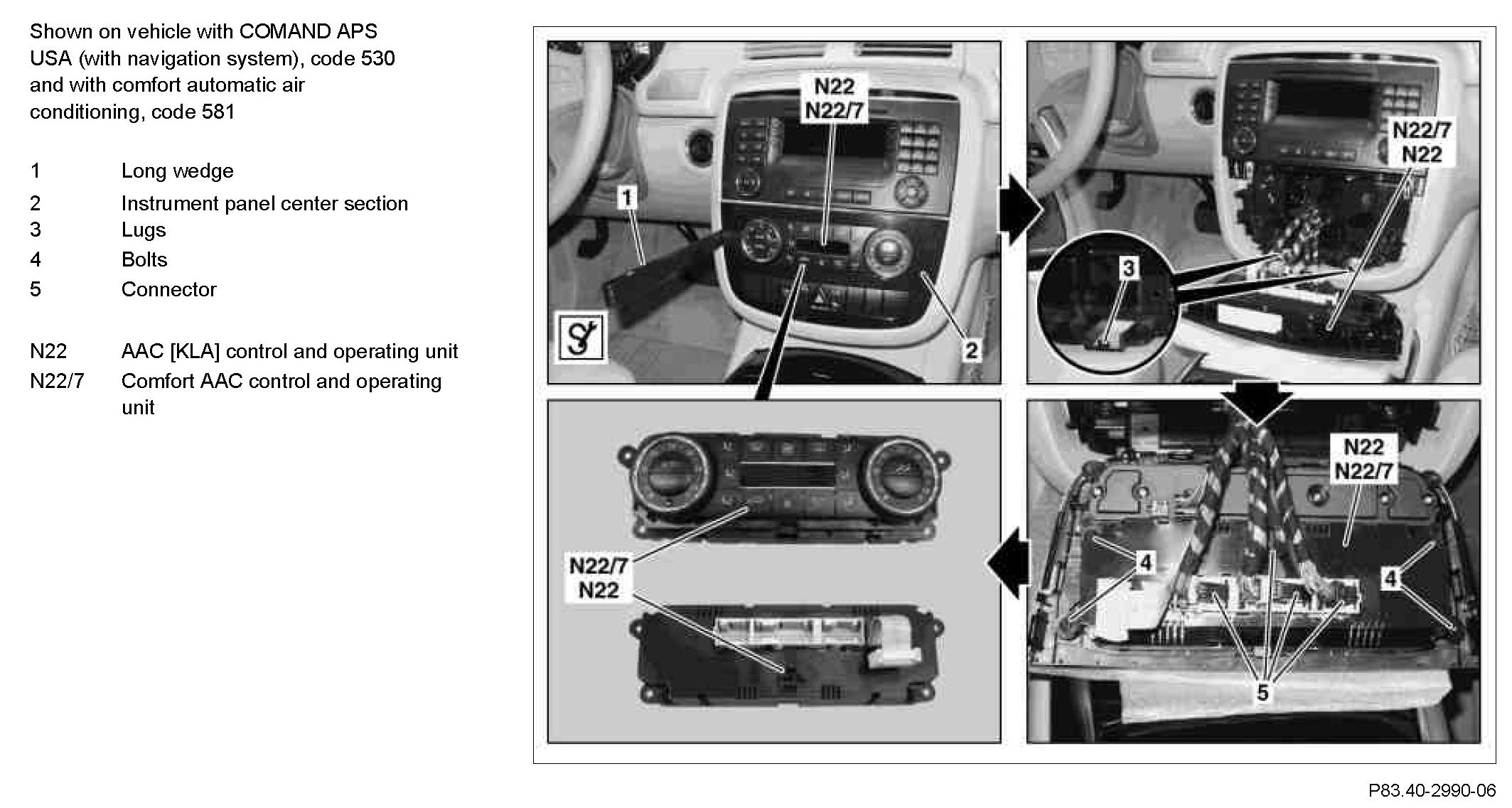

Component Identification:

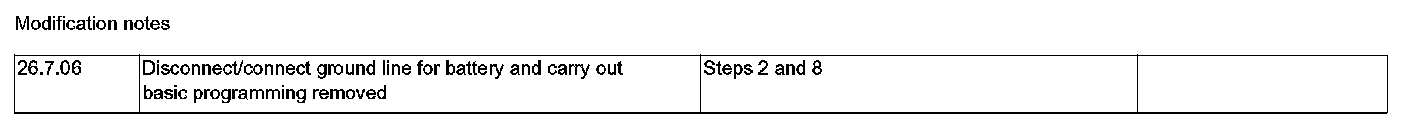

Modification Notes:

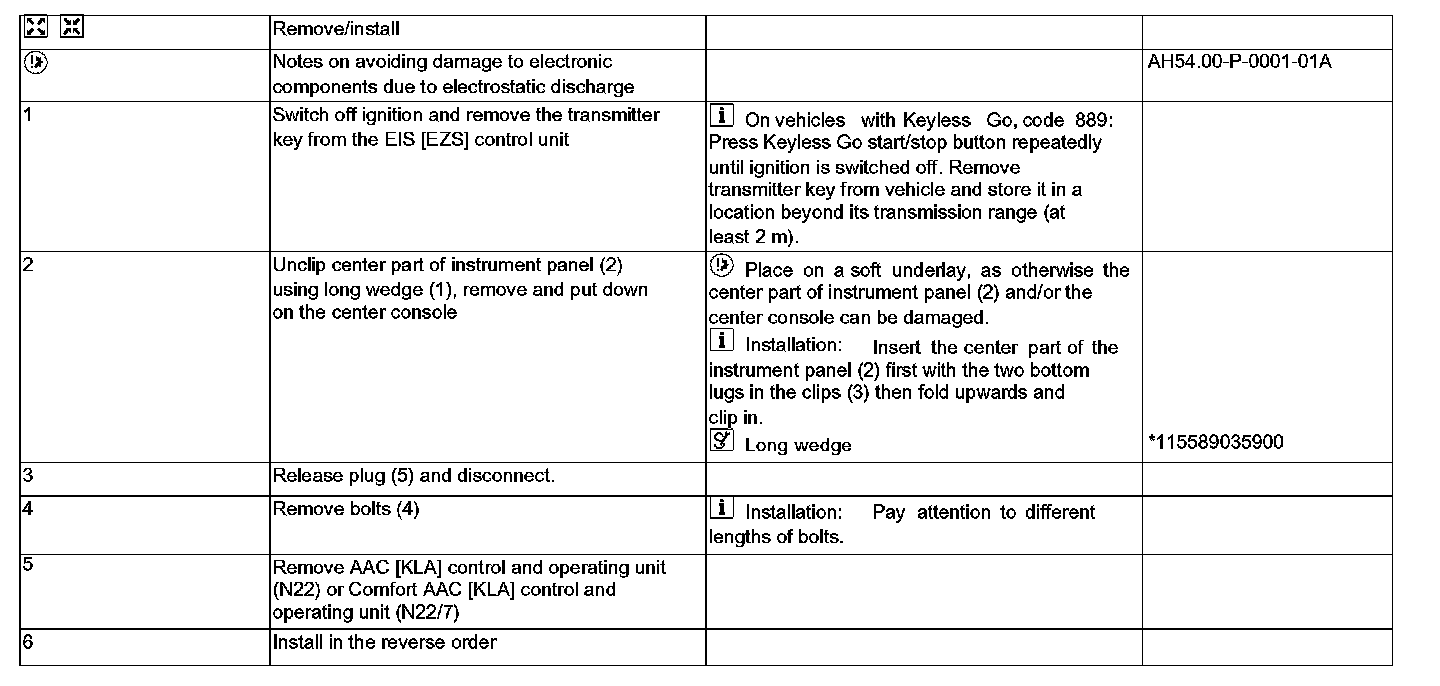

Steps 1 - 6:

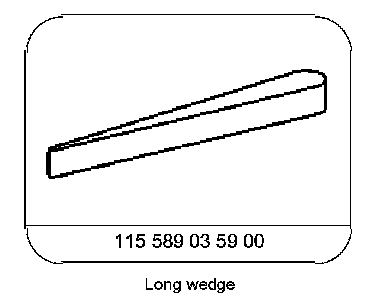

Special Tools:
