Starter Motor: Service and Repair

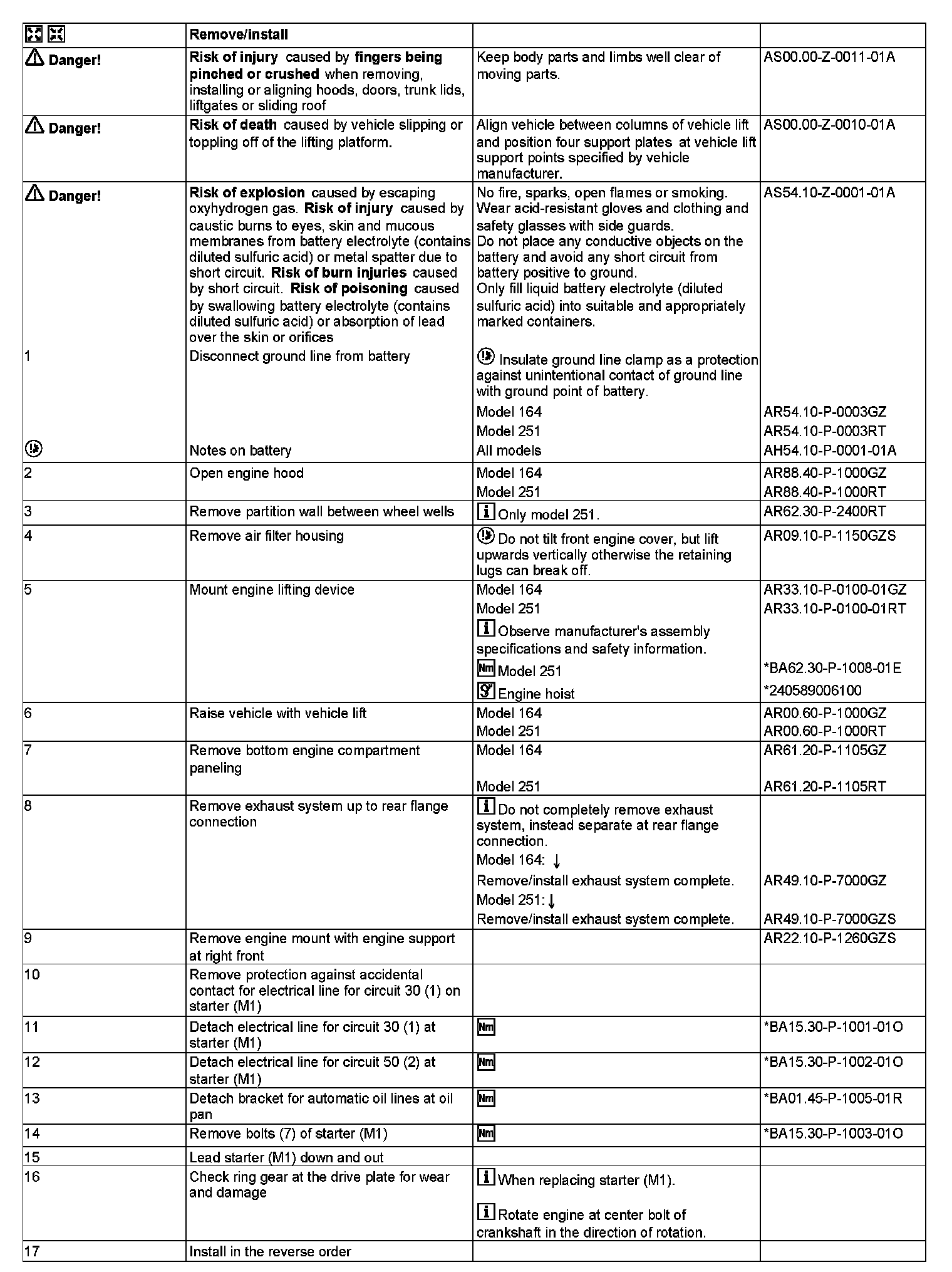

AR15.30-P-7100GZS Remove/Install Starter
ENGINES 156 in MODEL 164, 251

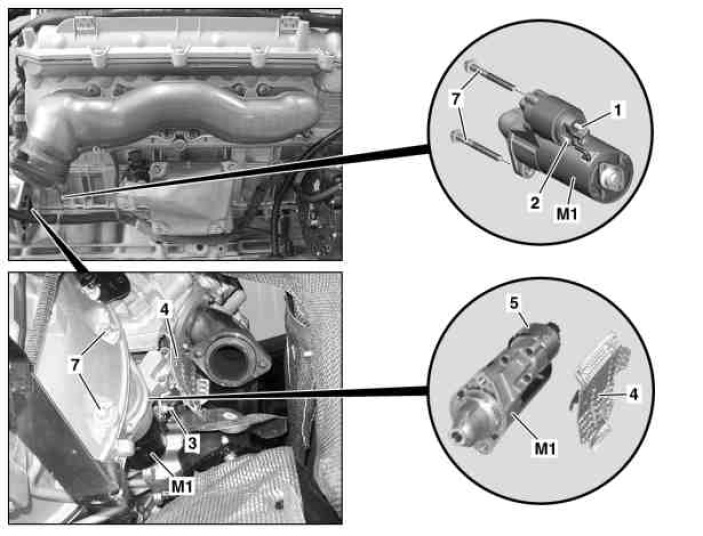

1 Terminal 30
2 Circuit 50
3 Nut
4 Shield
5 Securing clamp
7 Bolts

M1 Starter




















240 589 00 61 00
Engine lifting fixture
