AR15.40-P-5009GZS Prerequisites For Testing Alternator




AR15.40-P-5009GZS Prerequisites For Testing Alternator
ENGINE 156 in MODEL 164, 251

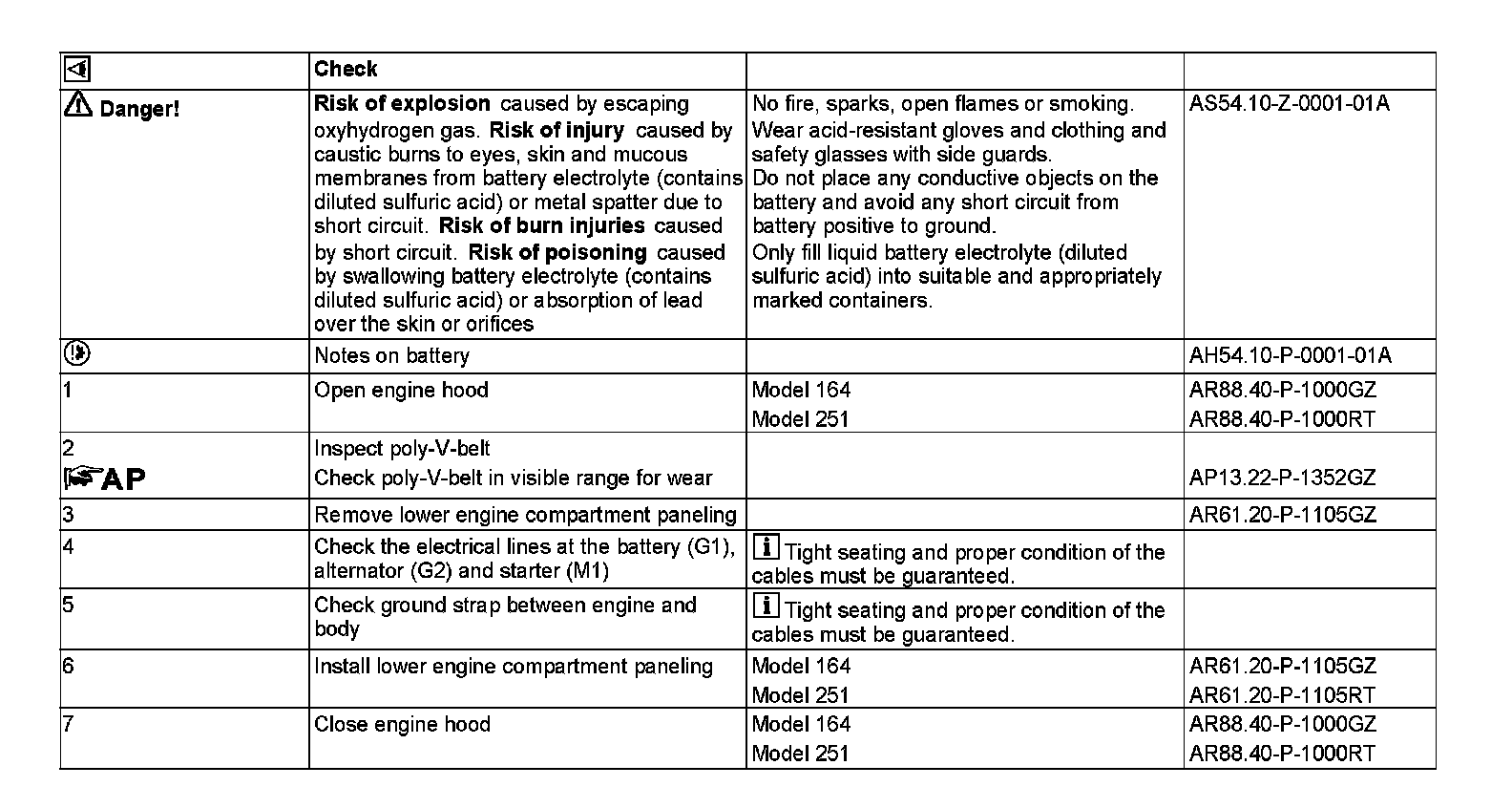

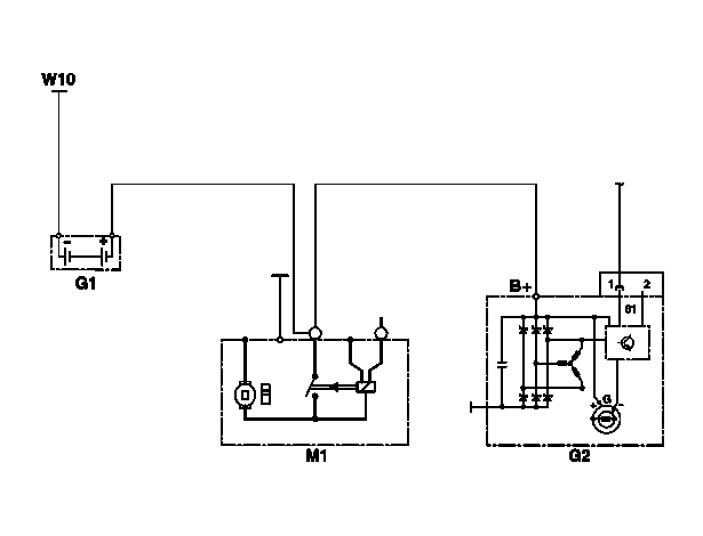

Connection diagram

B Charging current connection
G1 Battery
G2 Alternator
M1 Starter
W10 Ground (battery)
