Alternator: Service and Repair

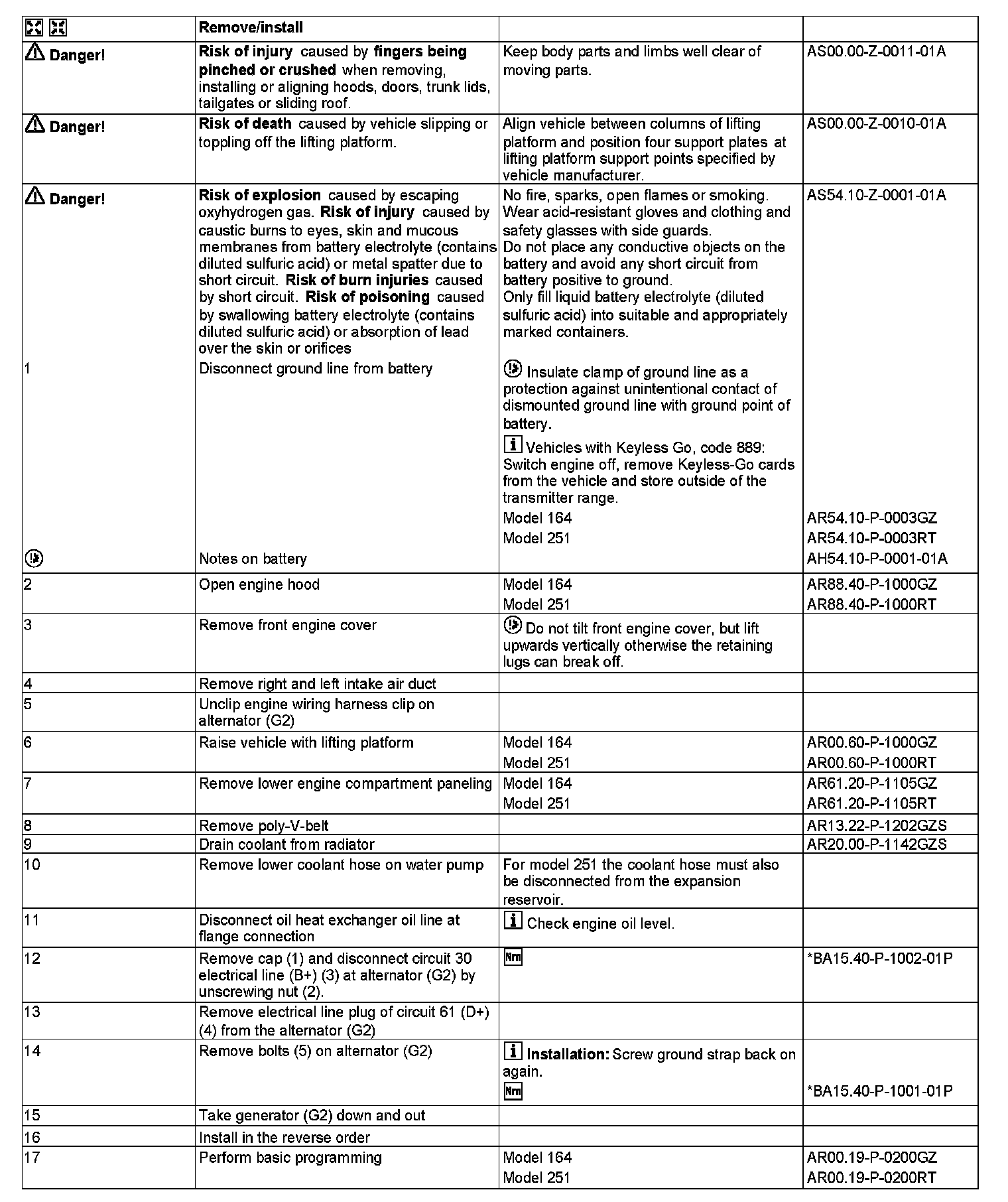

AR15.40-P-5032GZS Remove/Install Alternator
ENGINE 156 in MODEL 164, 251

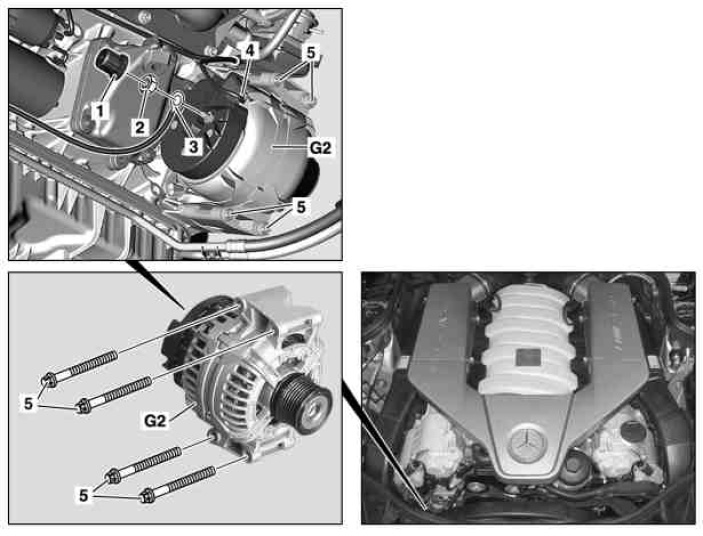

1 Cap
2 Nut
3 Electric cable, circuit 30 (B+)
4 Circuit 61 electrical line (D+) connector
5 Bolts

G2 Alternator
