AR15.12-P-1010GZS Remove/Install Spark Plugs
AR15.12-P-1010GZS Remove/Install Spark Plugs
AR15.12-P-1010GZS Remove/install
spark plugs

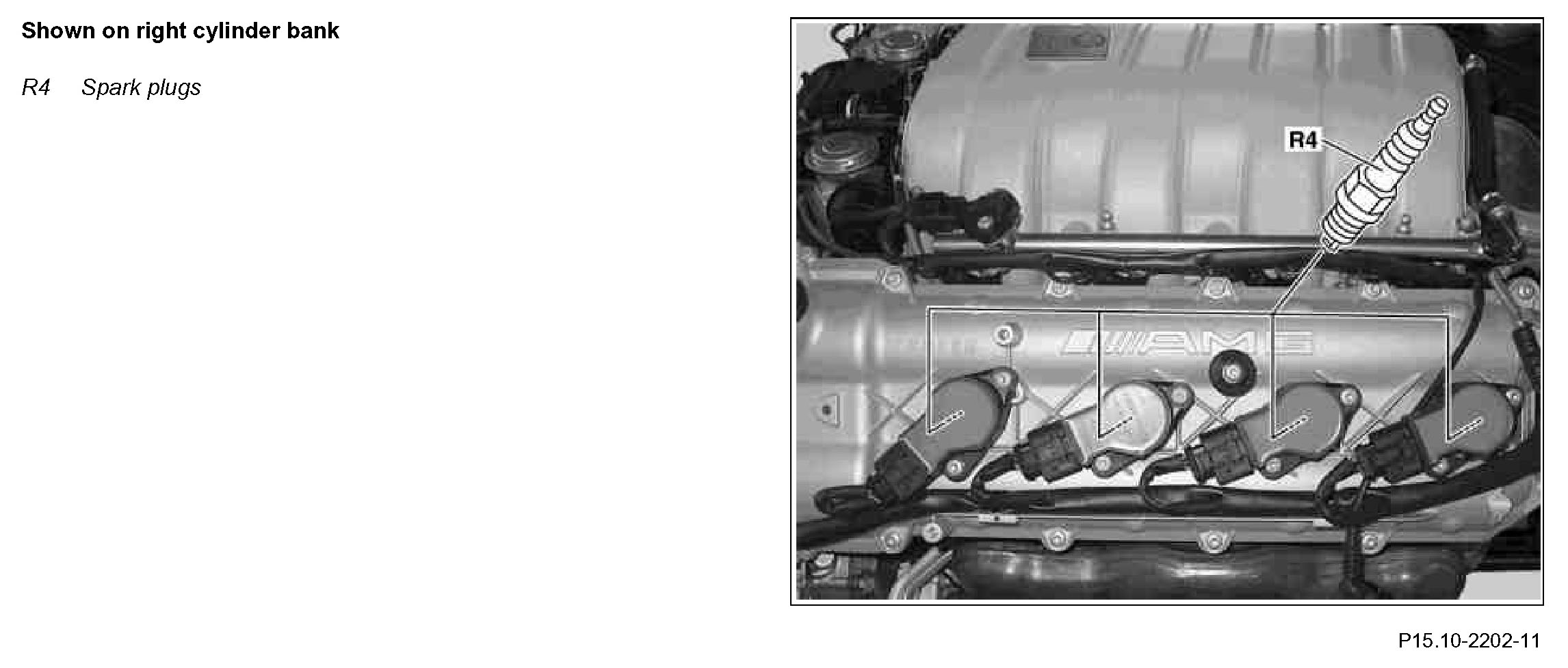

Component Identification:

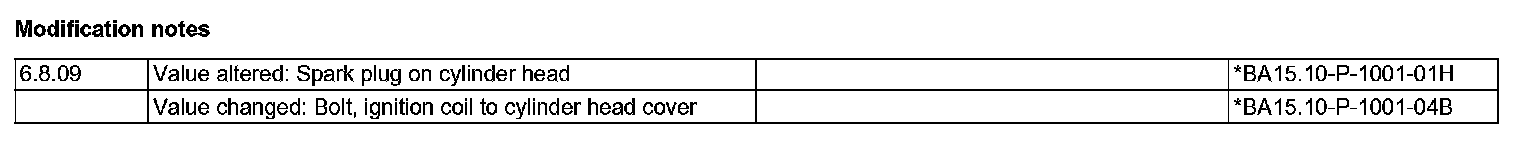

Modification notes:

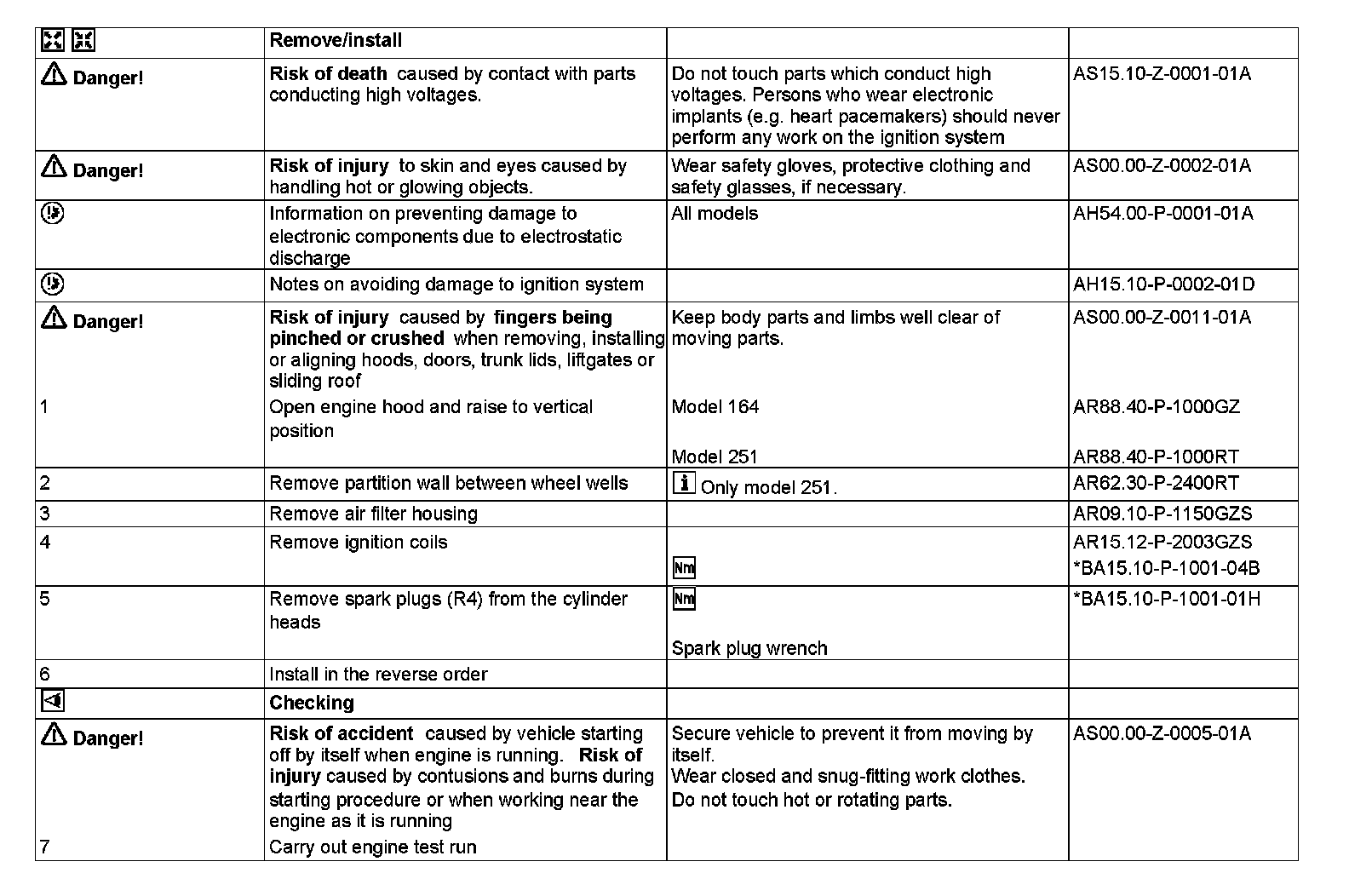

Steps 1-7:

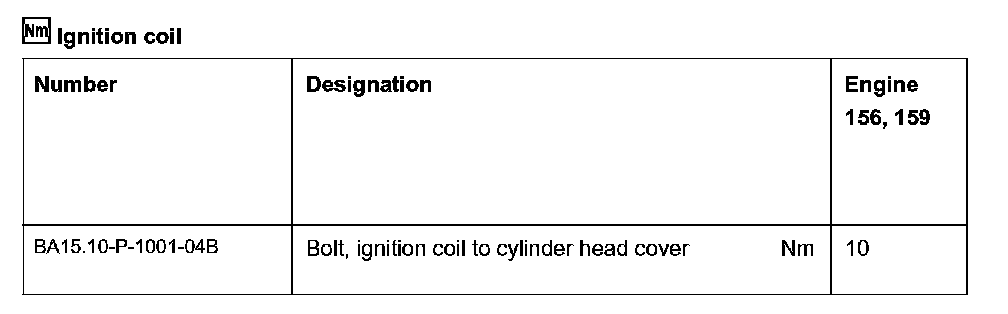

Ignition coil:

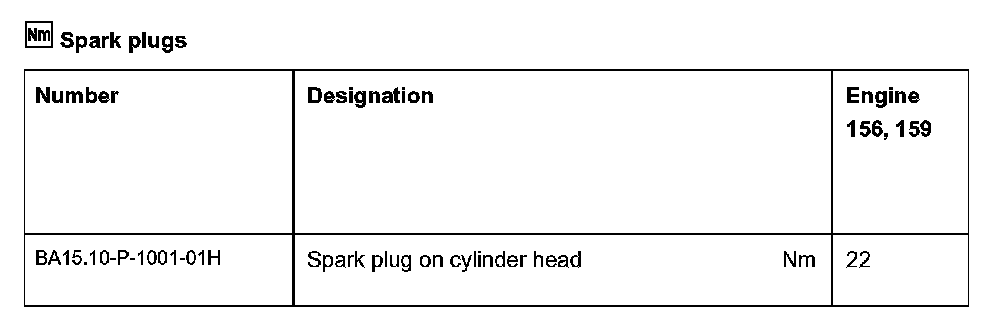

Spark plugs:
