PE07.61-U-2101MAF ME-SFI Fuel Injection and Ignition System Control Module

PE07.61-U-2101MAF ME-SFI Fuel Injection and Ignition System Control Module

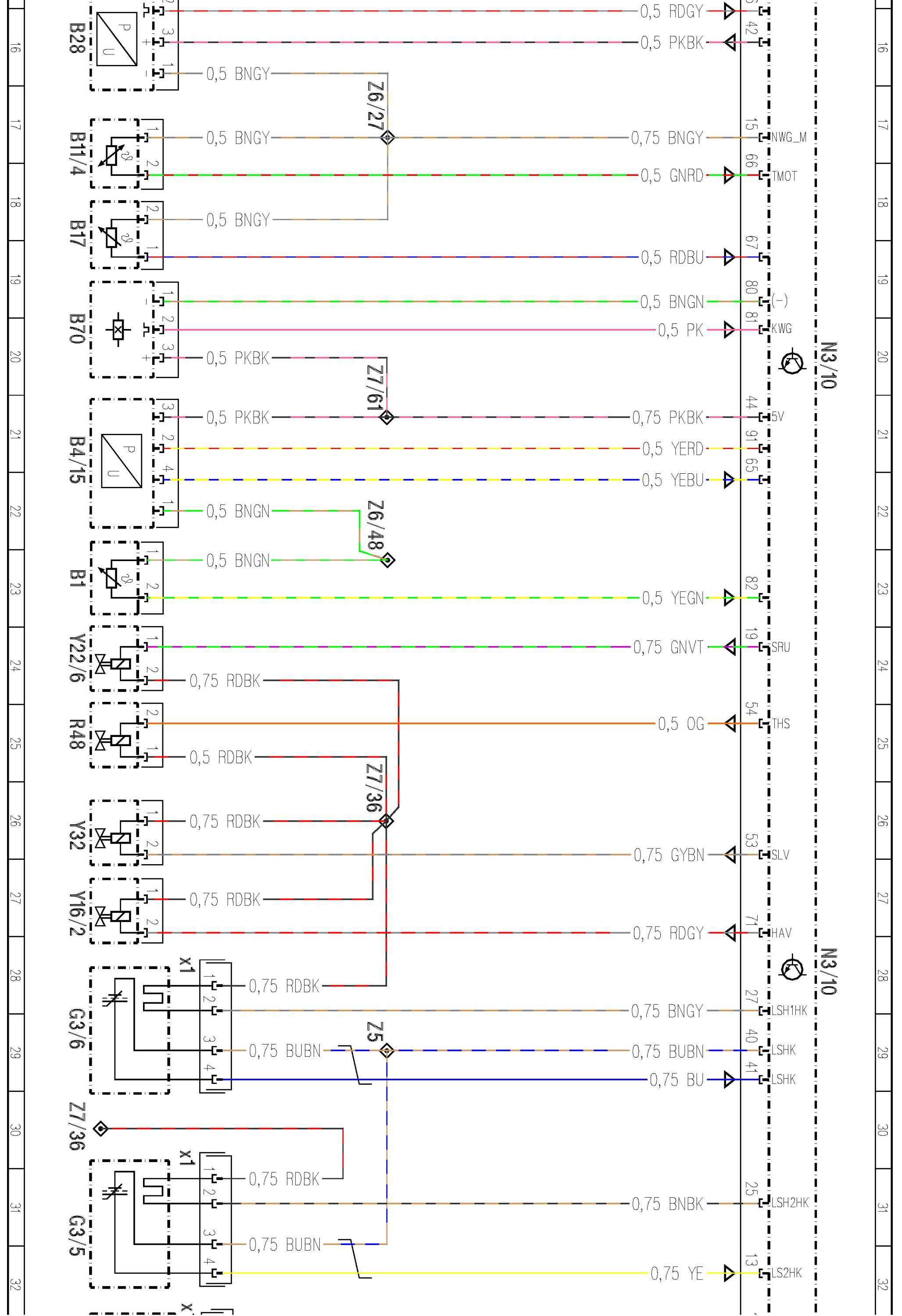

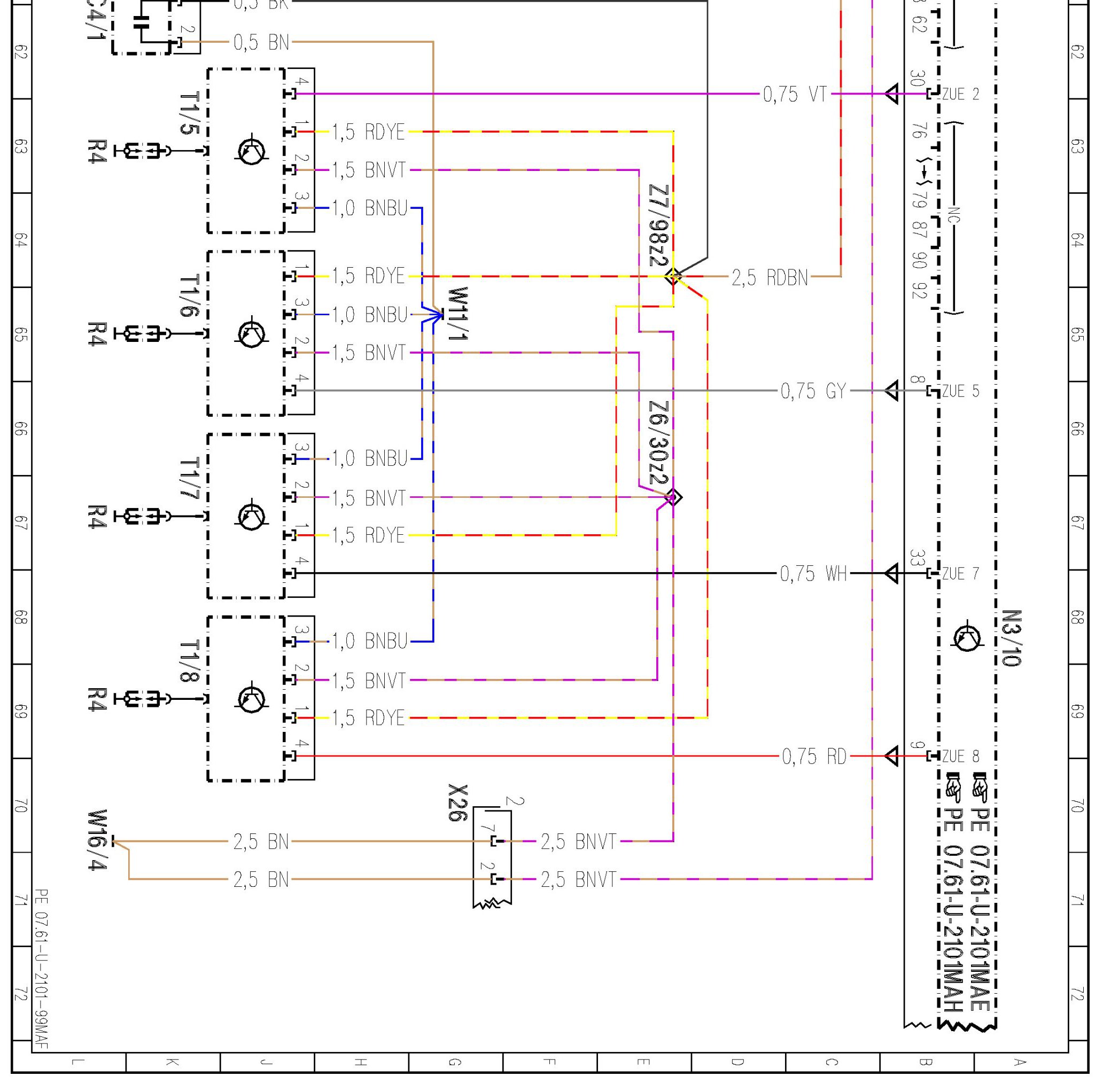

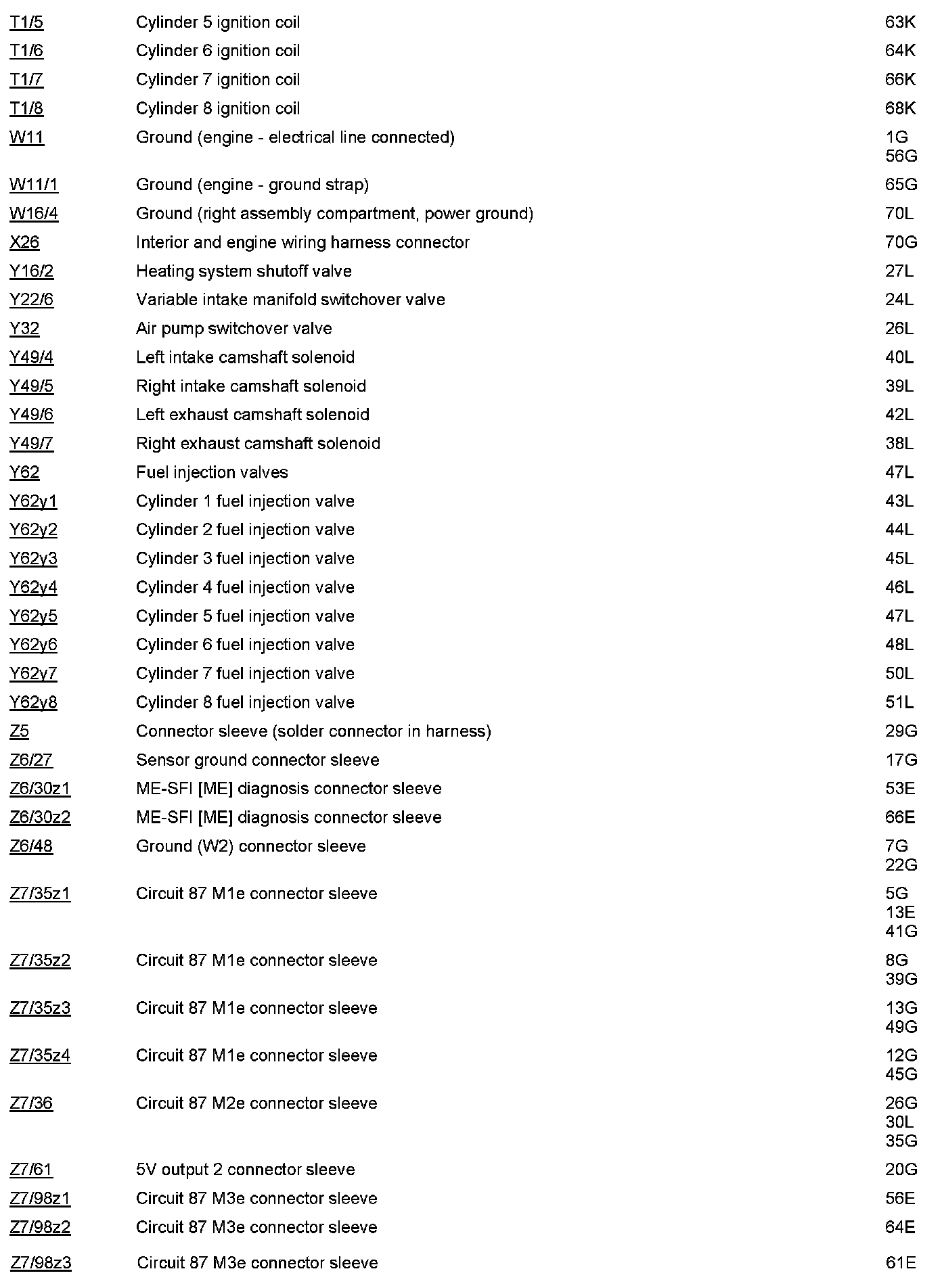

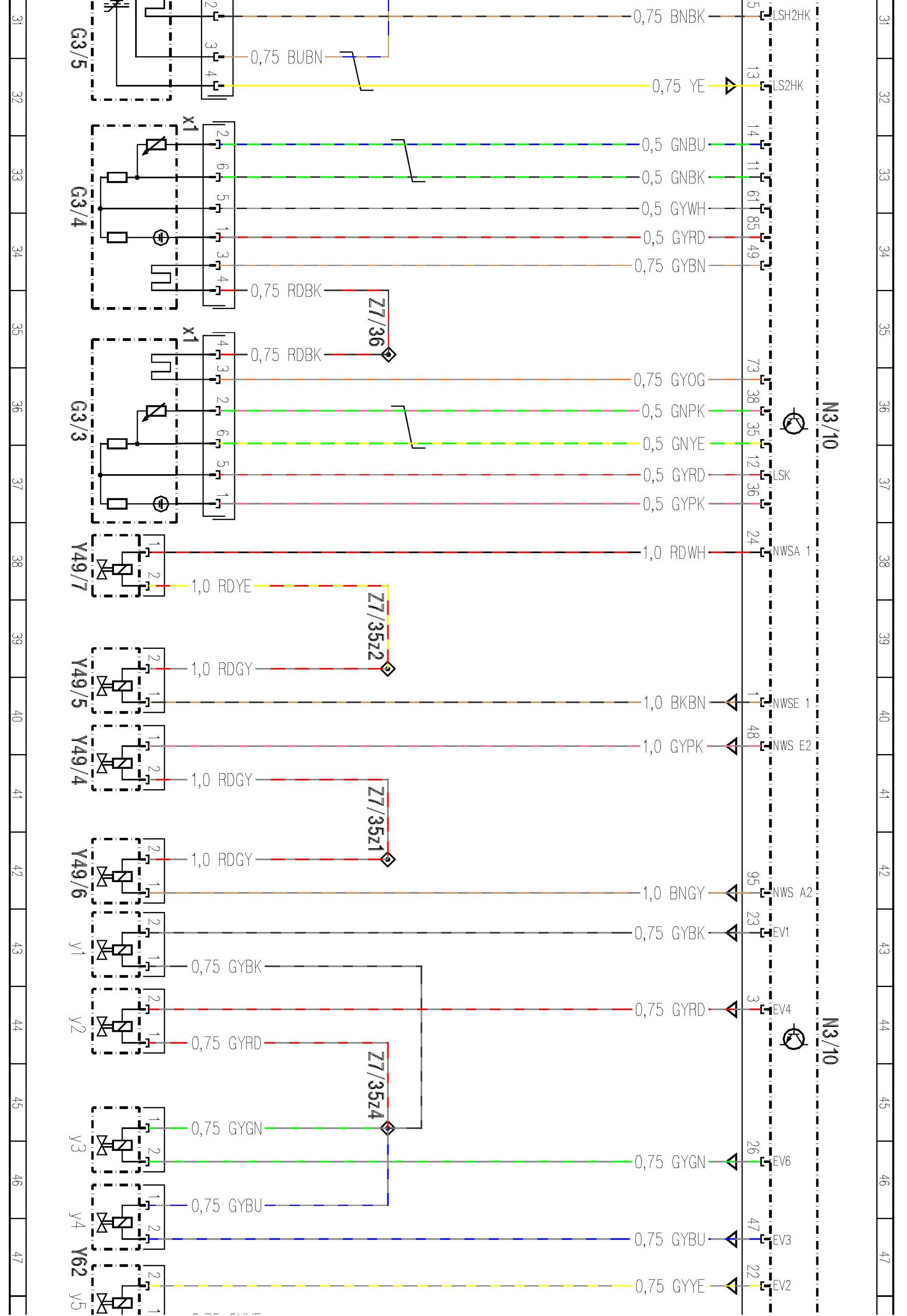

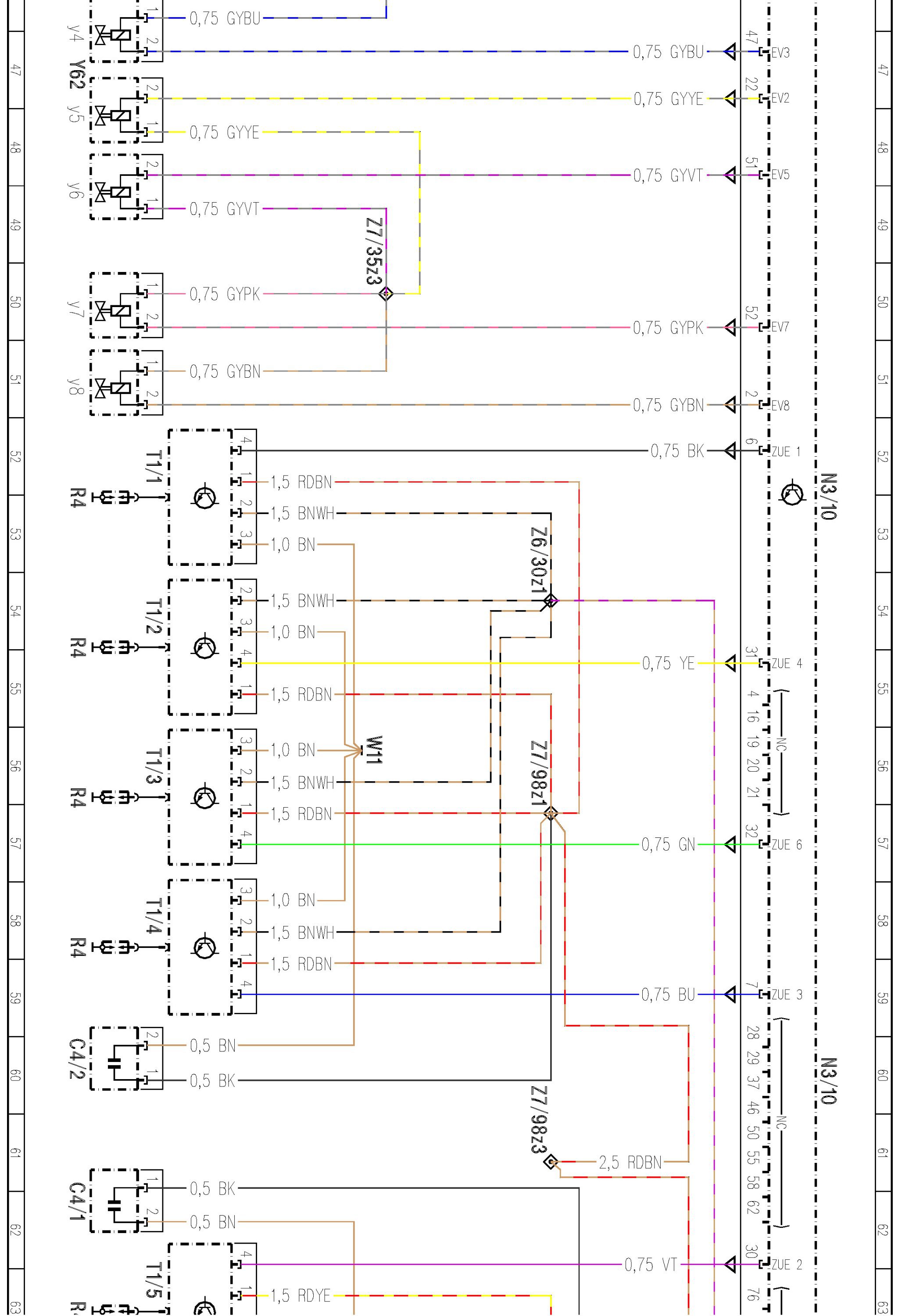

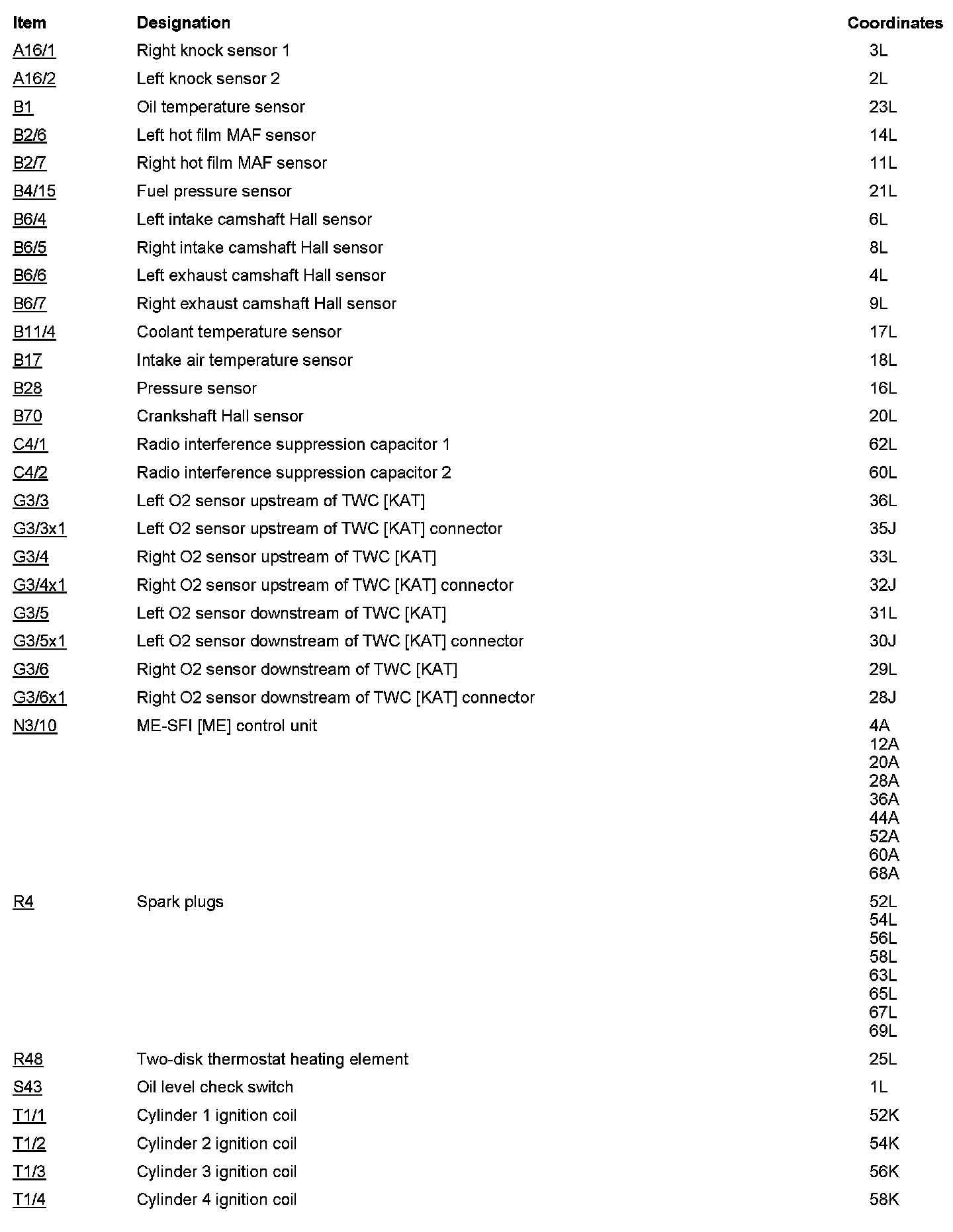

- ME 9.7, control unit N3/10, sheet 2































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
