Campaign - ASSYST(R) System Control Module Coding

FILE:
SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER

Campaign No. 2008040003, May 2008

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT:
MODELS 164 AND 251 WITH ENGINE 156, MODEL YEARS 2007 - 2008

RECODE ENGINE TYPE IN ASSYST (MAINTENANCE SYSTEM) CONTROL MODULE

This Service Campaign has been initiated because DAG has determined that the ASSYST system may not have been coded correctly. As a result, the low oil level light may not illuminate in the instrument cluster in cases of low oil level. The dealer will recode the ASSYST and top off the engine oil level on the affected vehicles to correct this situation during the next workshop visit.

Prior to performing this Service Campaign:

^ Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.

^ Please review the entire Service Campaign bulletin and follow the repair procedure exactly as described.

Please note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.

Approximately 12 vehicles are affected.

Procedure

Note:
Prior to starting the procedure ensure to:

^ Use DAS 03/08 with all associated patches or higher.

^ Follow steps exactly as described in DAS.

1. Connect Star Diagnosis to vehicle.

2. Code ASSYST (Maintenance System) Central Gateway control module by navigating through the following screen menus: Control Units/Information and communication/ ASSYST Active Service System/Control unit adaptations/Engine type (perform coding of engine model).





Note:

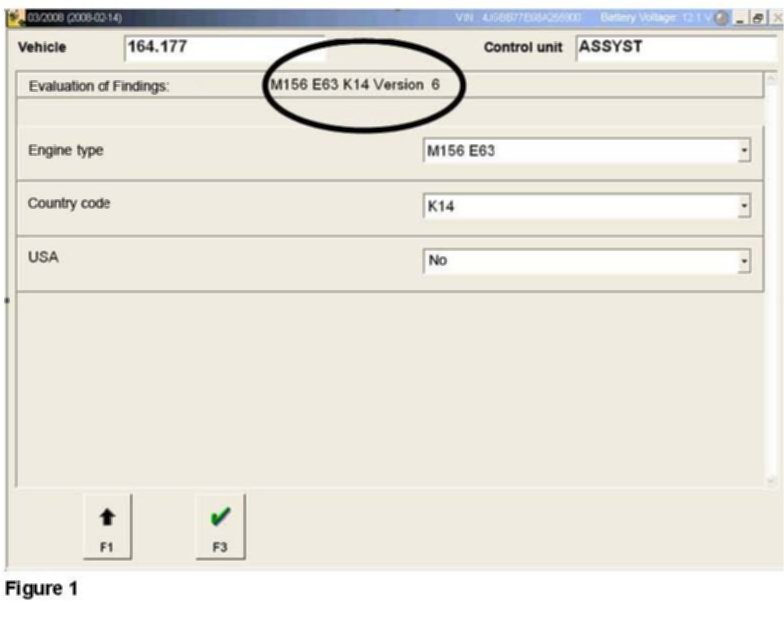

Select: All values as shown on screen print above (Figure 1). DAS screen for mode 164 shown.

3. Check coding of engine model in ASSYST (Figure 1): Version 6 or higher must be shown.

4. Disconnect Star Diagnosis.

5. Check engine oil, correct if necessary.

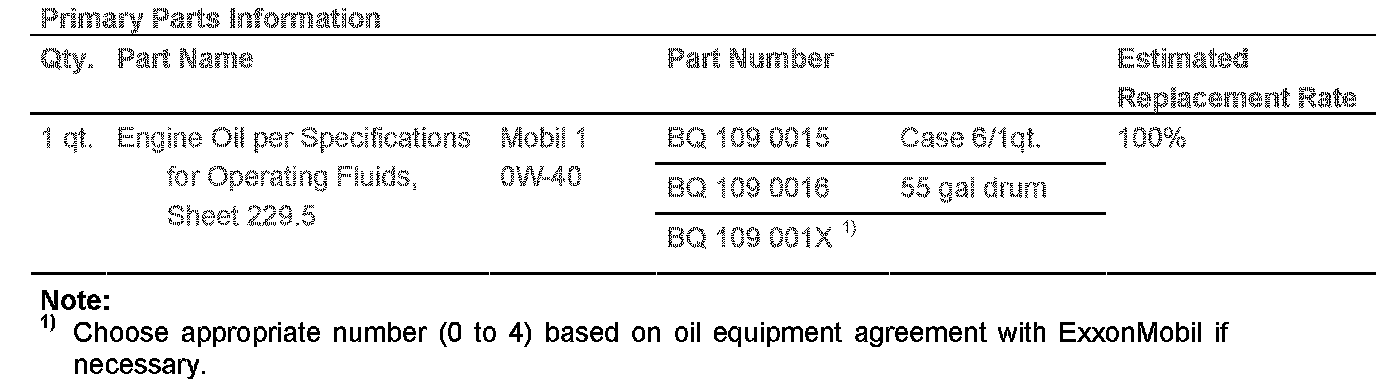

Parts Information

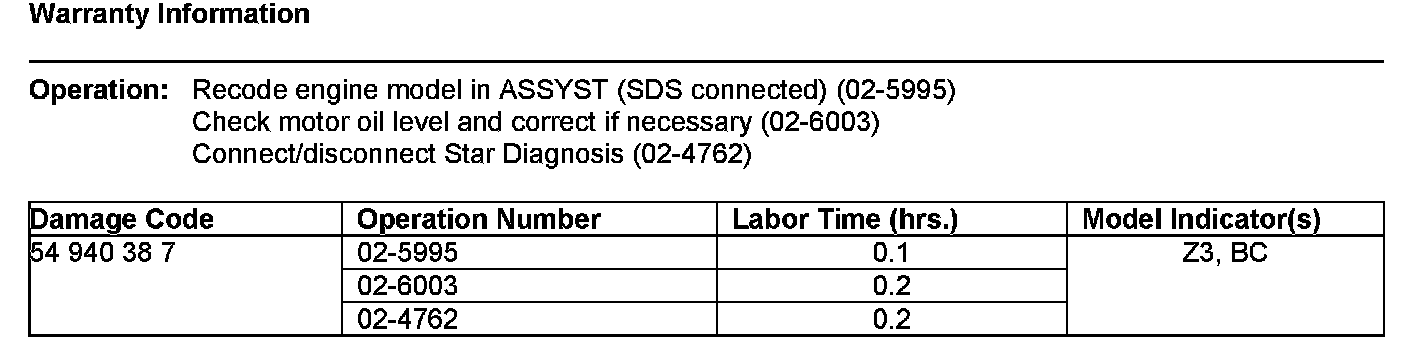

Warranty Information

Note:
Please be aware that only the part number(s) referenced in the Campaign Bulletin is/are approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.





The allowable labor operation table above should be used when submitting a warranty claim for this repair.
