Receiver Dryer: Service and Repair



AR83.30-P-6520RT Remove/Install Fluid Reservoir
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

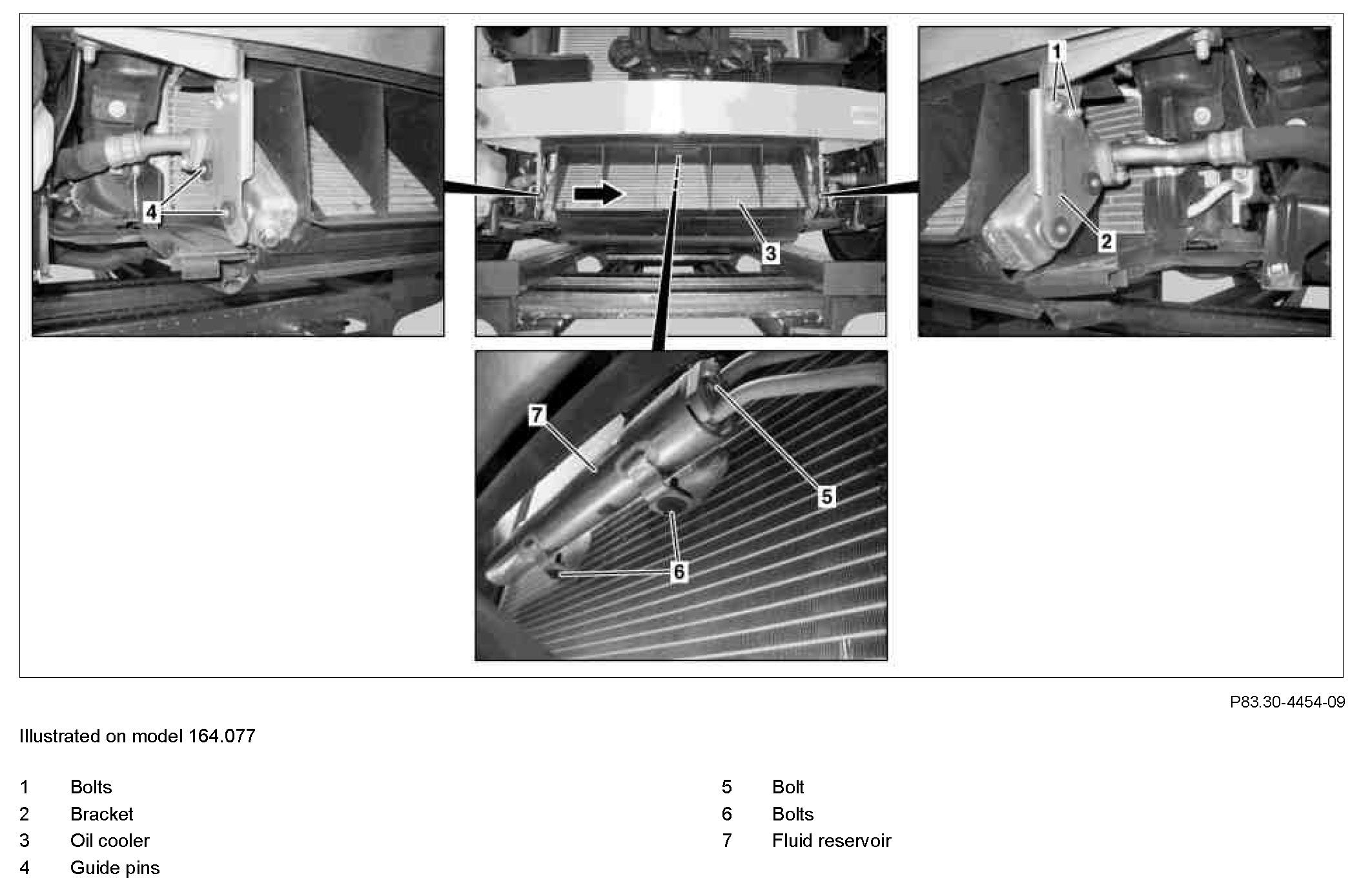

Component Identification:

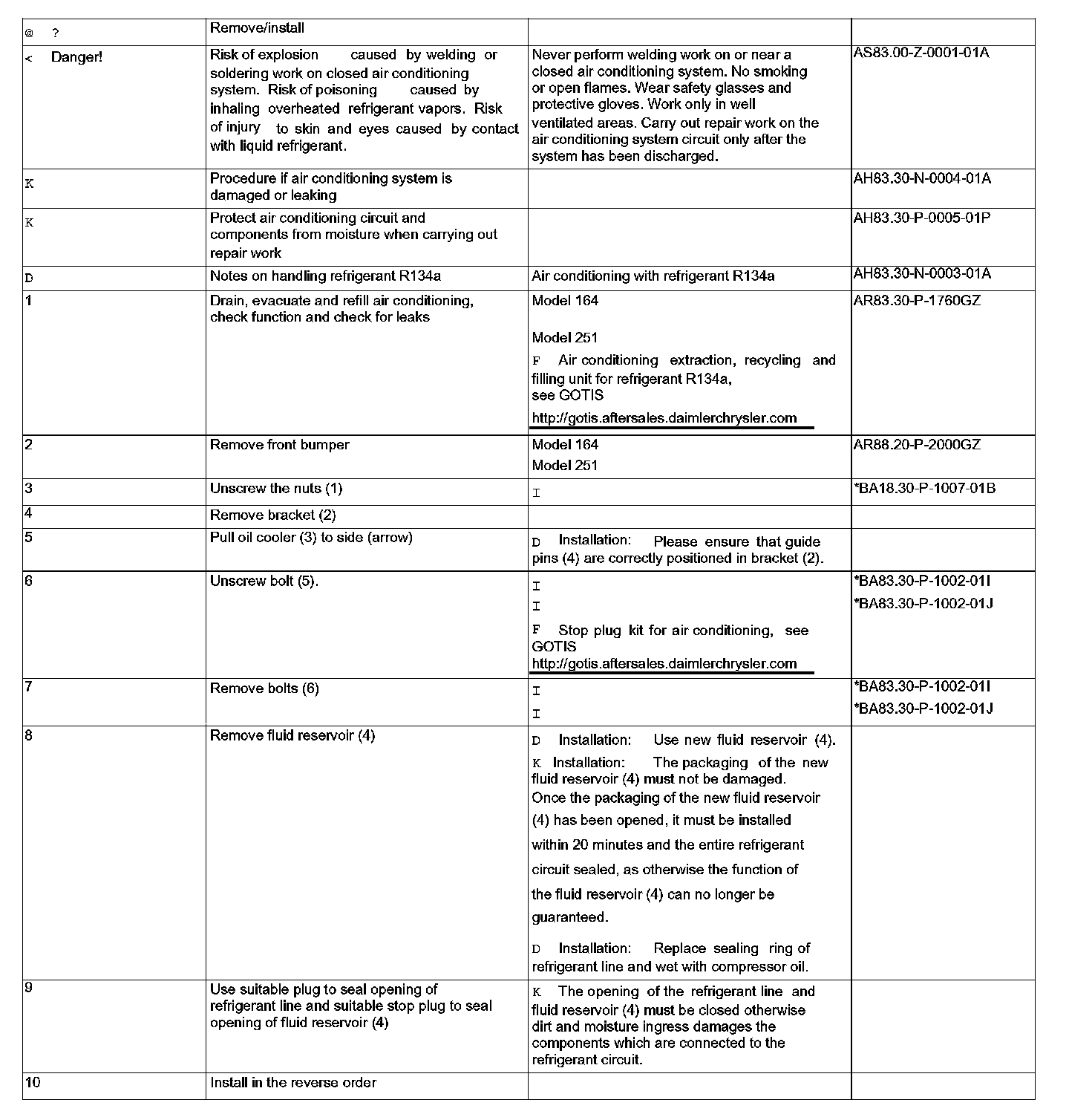

Steps 1 - 10:




Oil Cooling System:

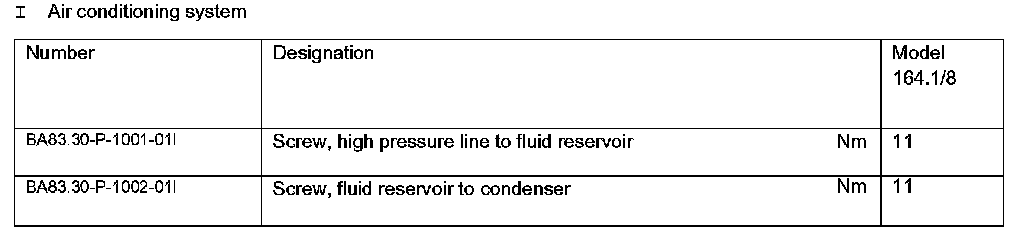

Air Conditioning System:

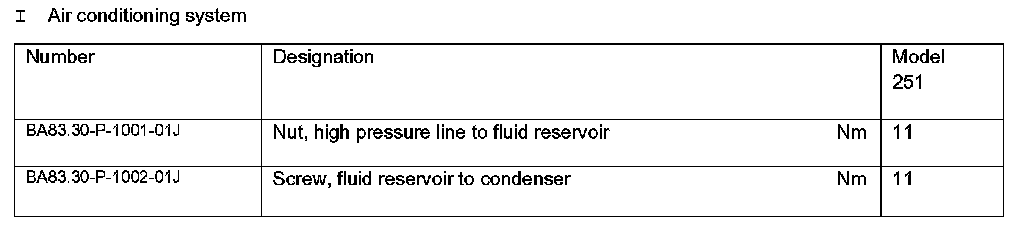

Air Conditioning System:
