Timing Chain Guide: Service and Repair



AR05.10-P-8500GZS Remove and install tensioning rail and slide rail in timing case cover

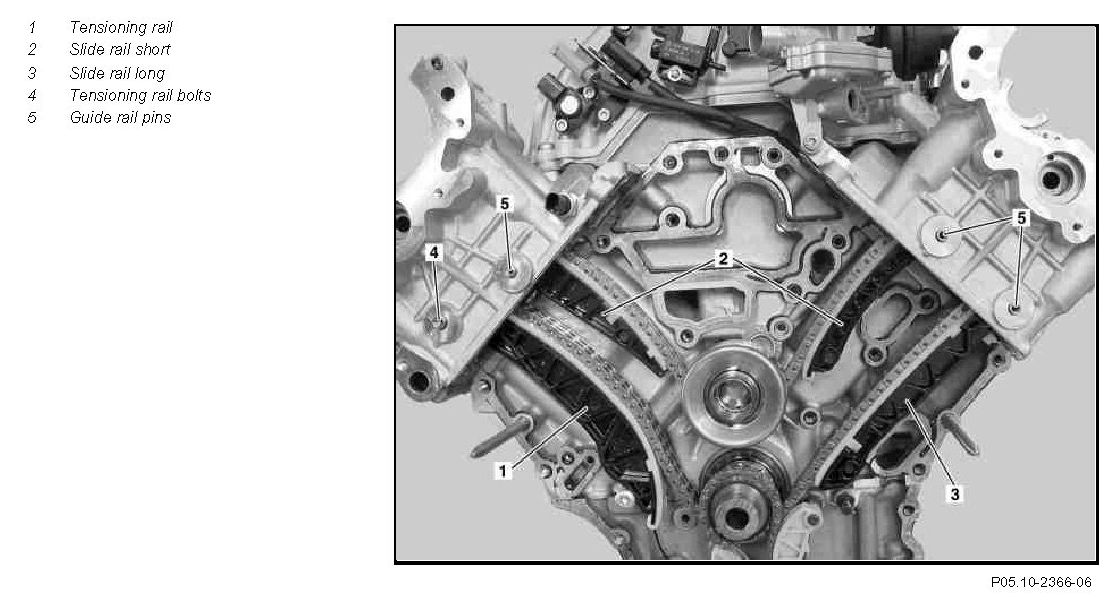

Component Identification:

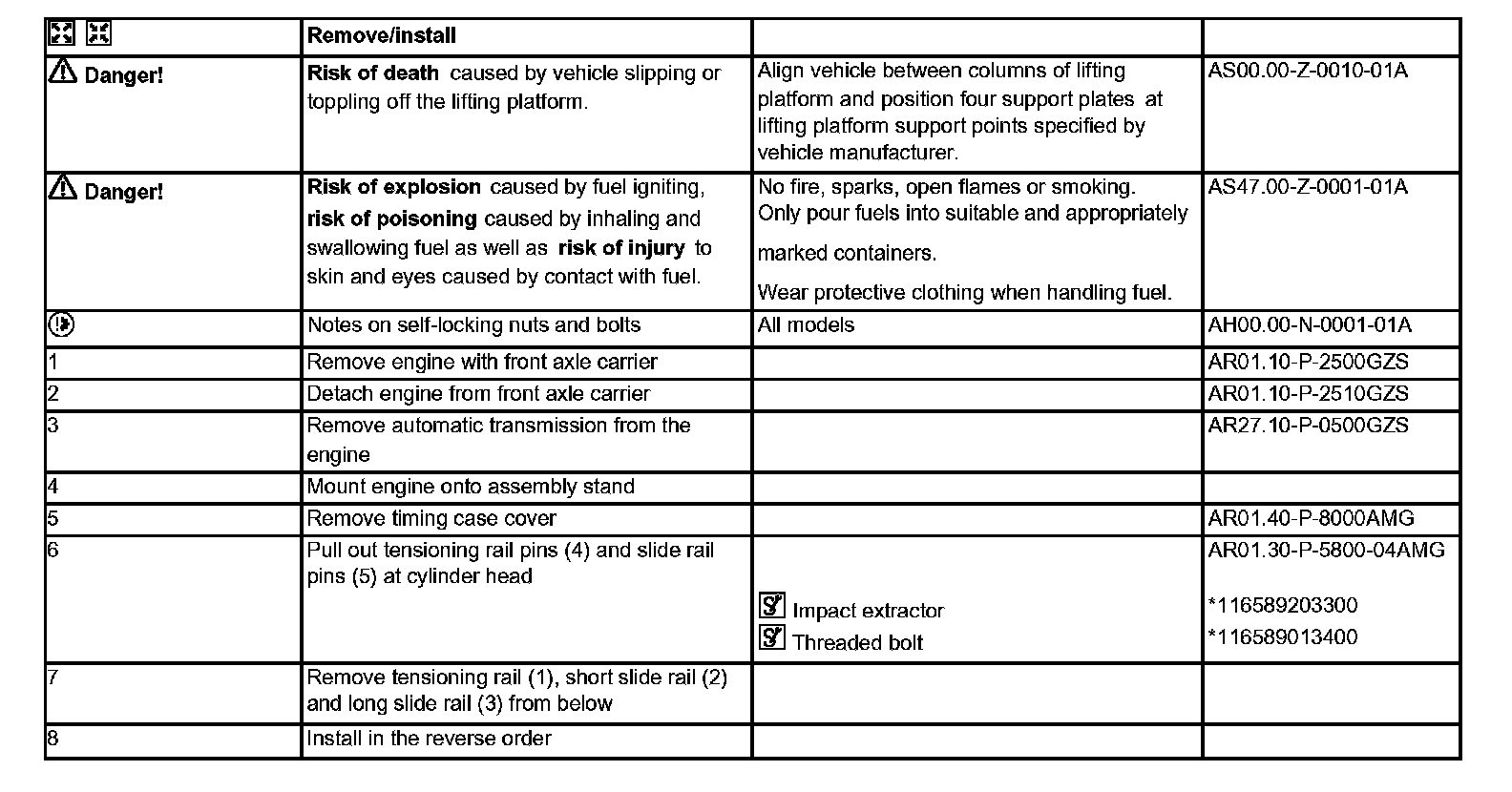

Remove/install Steps 1-8:

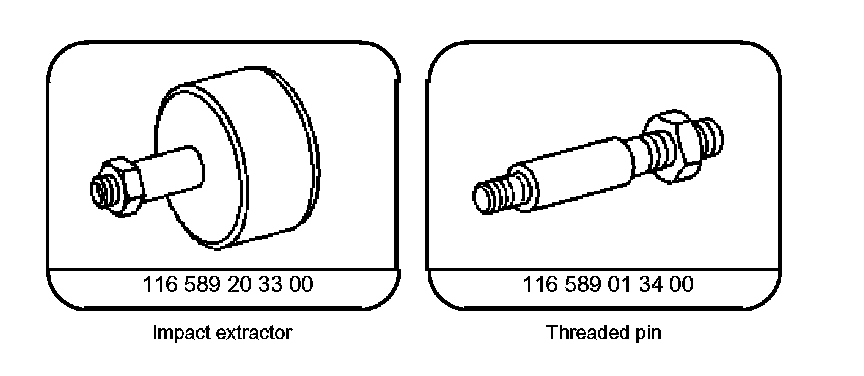

Special Tools:
