Oil Level Sensor: Service and Repair



AR18.40-P-5113GZS Remove/install oil level check switch

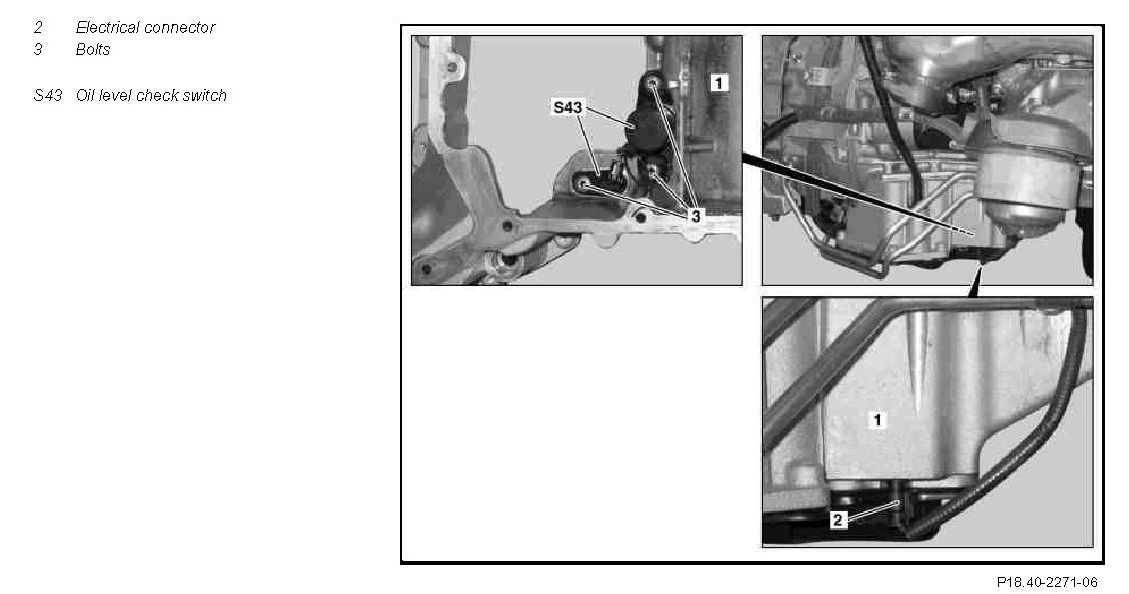

Component Identification:

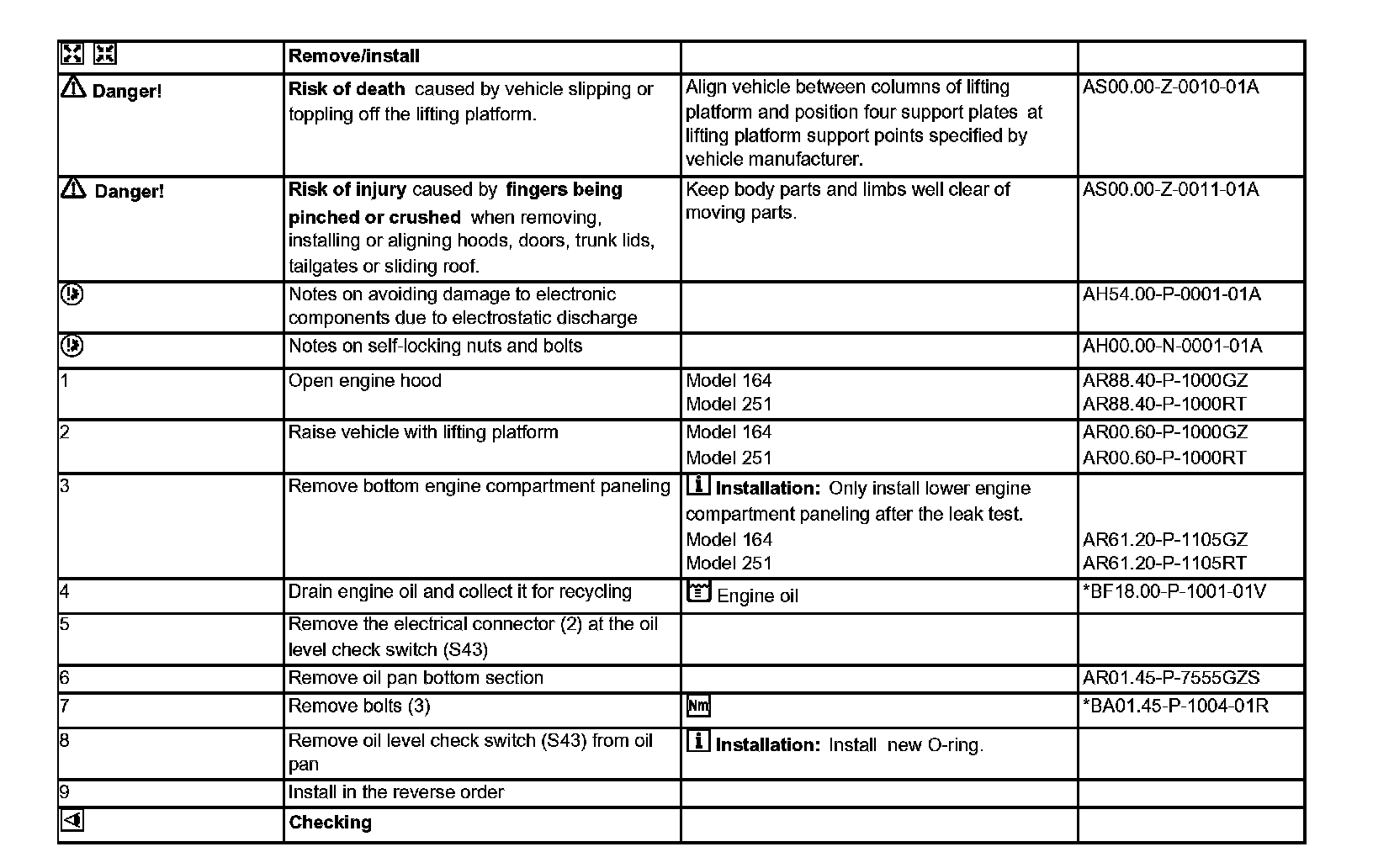

Remove/install Steps 1-9:

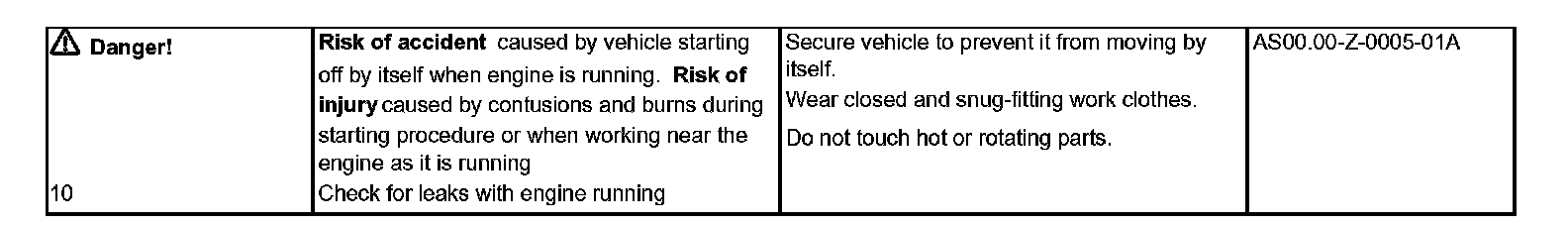

Remove/install Step 10:

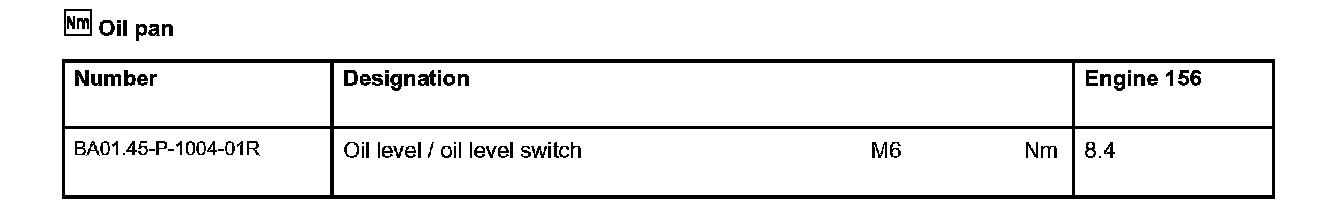

Oil pan:

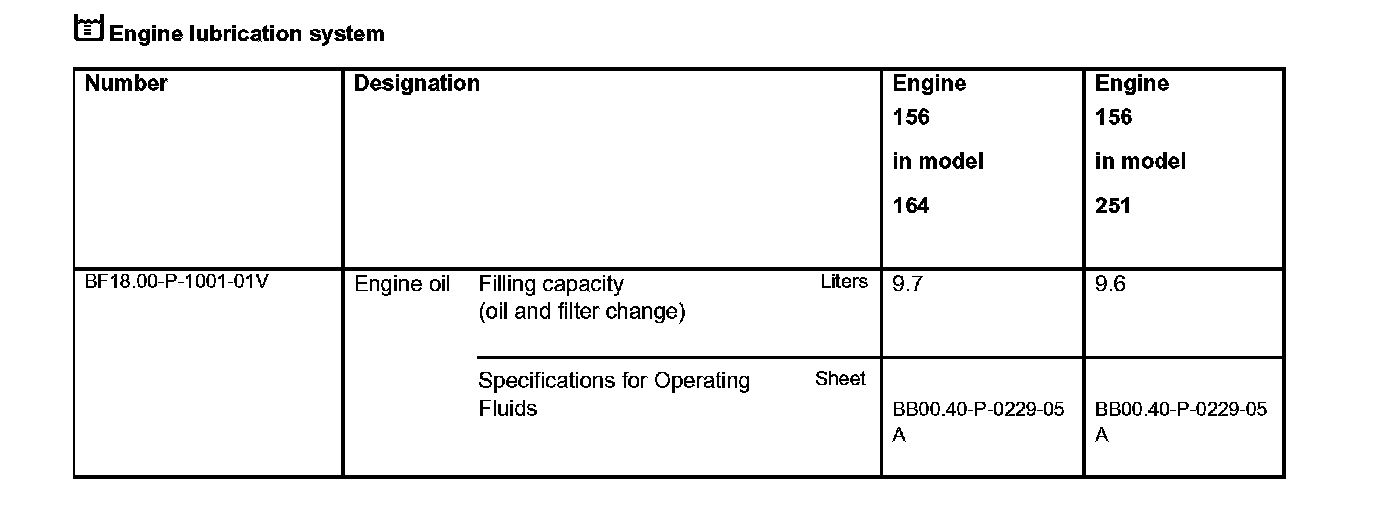

Engine lubrication system:
