Starter Motor: Service and Repair



AR15.30-P-7100GZ Removing/installing the starter

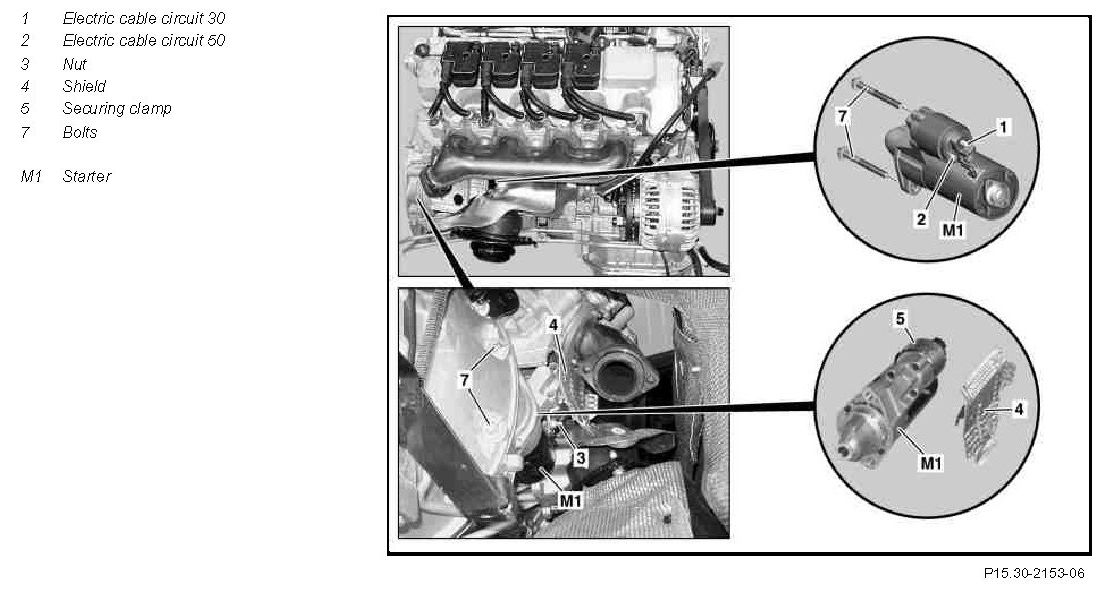

Component Identification:

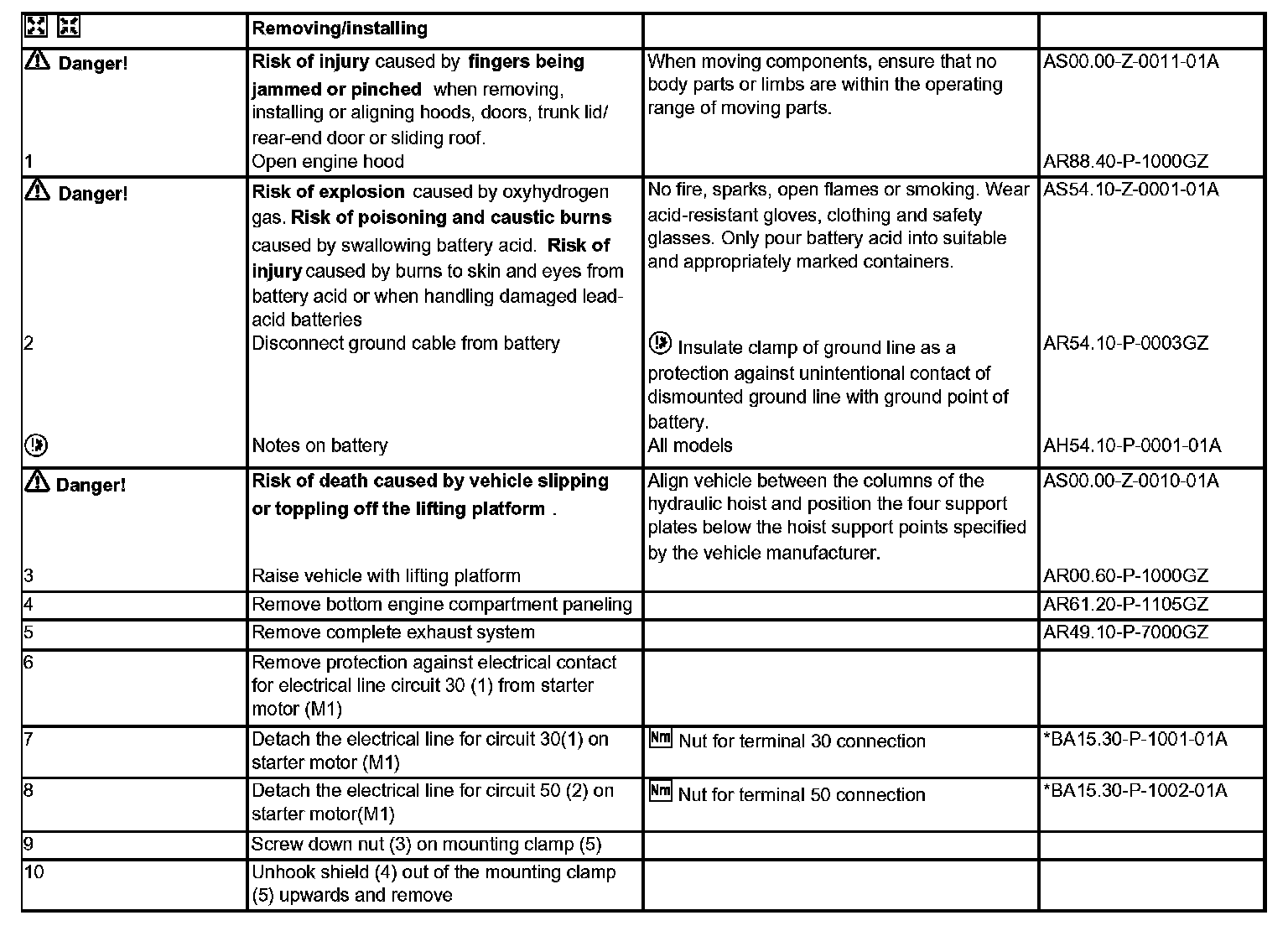

Remove/install Steps 1-10:

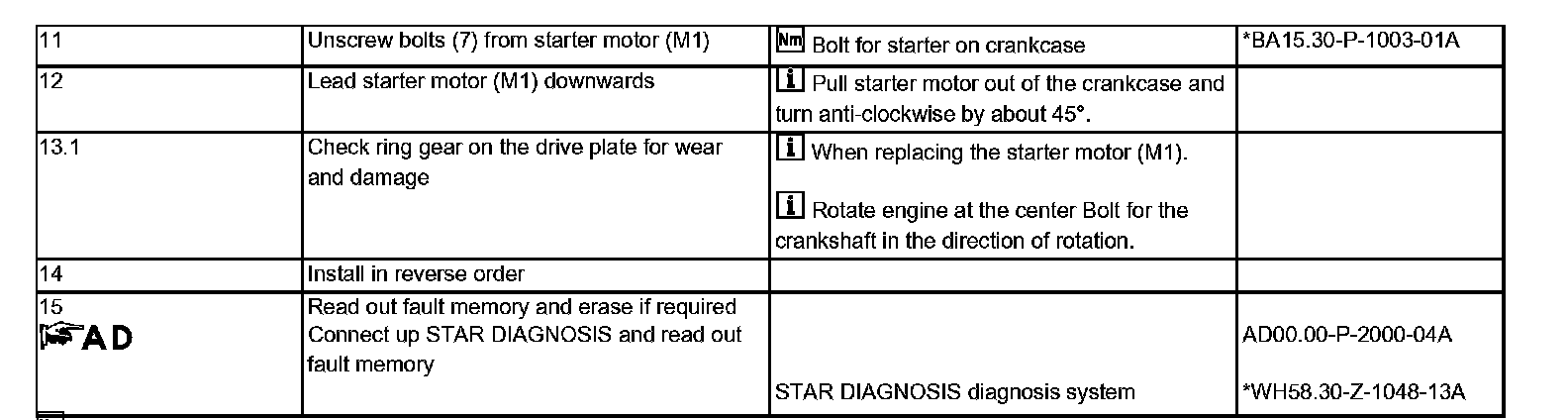

Remove/install Steps 11-15:

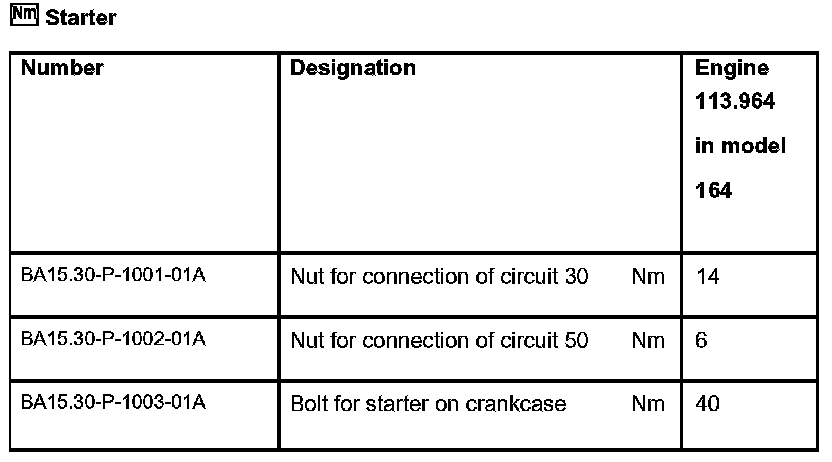

Starter:

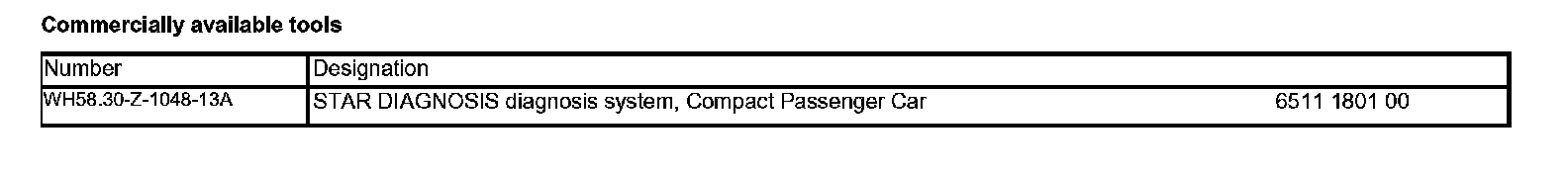

Commercially available tools:
