Alternator: Service and Repair
AR15.40-P-5032GZ Remove/install
alternator

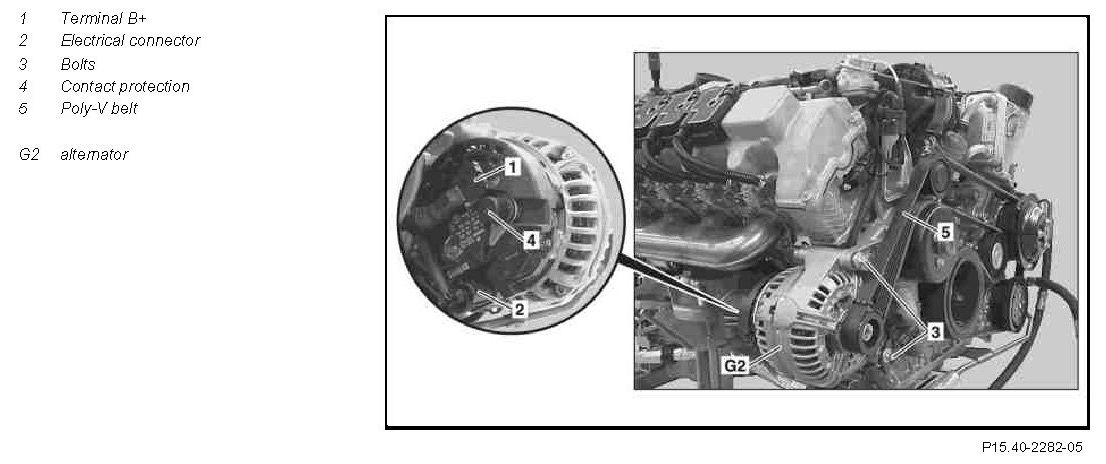

Component Identification:

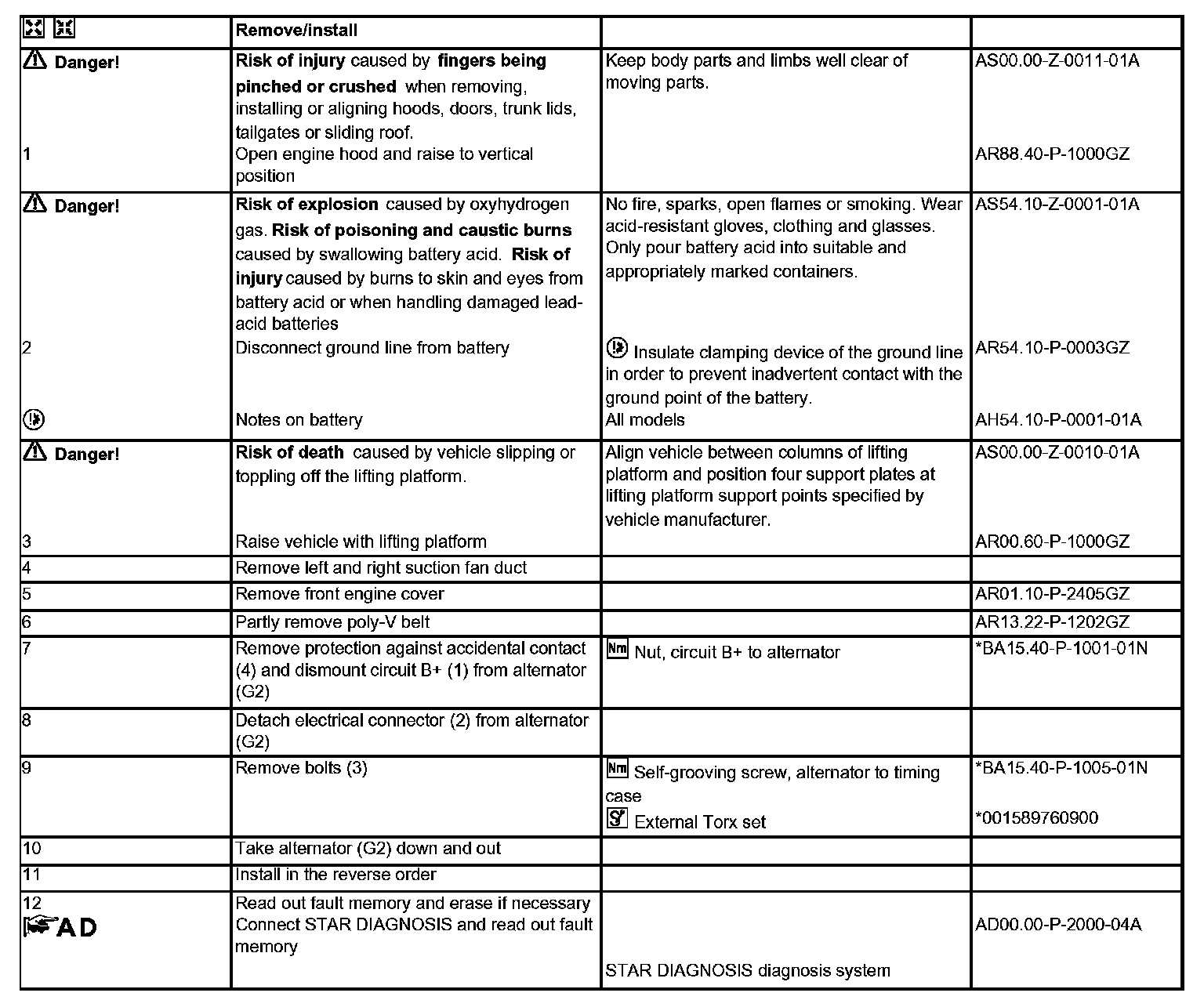

Remove/install Steps 1-12:

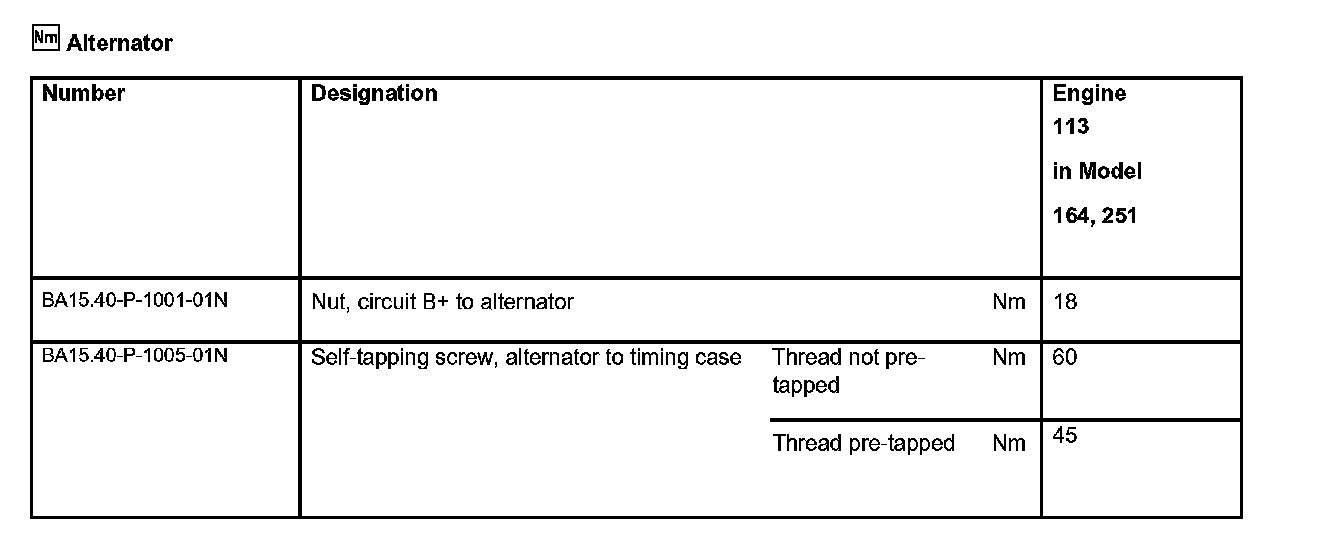

Alternator:

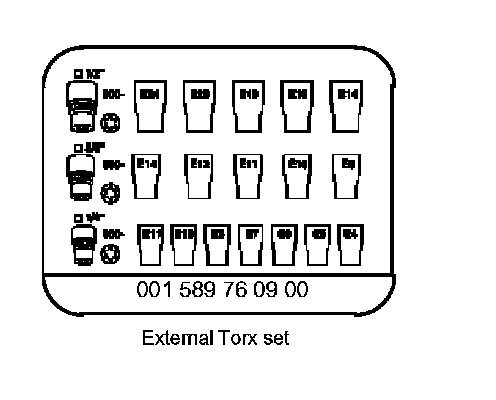

Special Tools:
