EGR Valve: Service and Repair

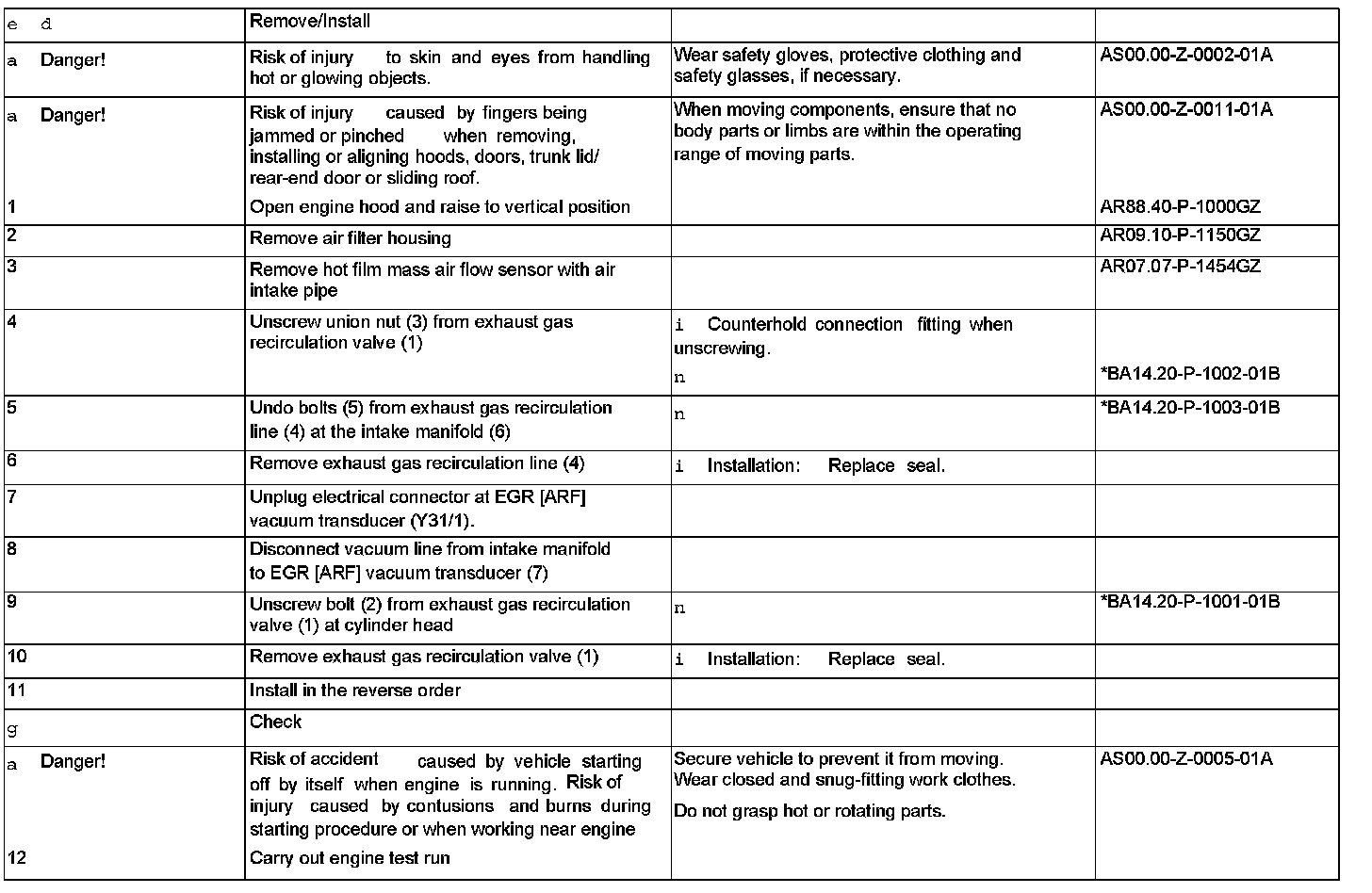

Remove/Install Exhaust Gas Recirculation Valve

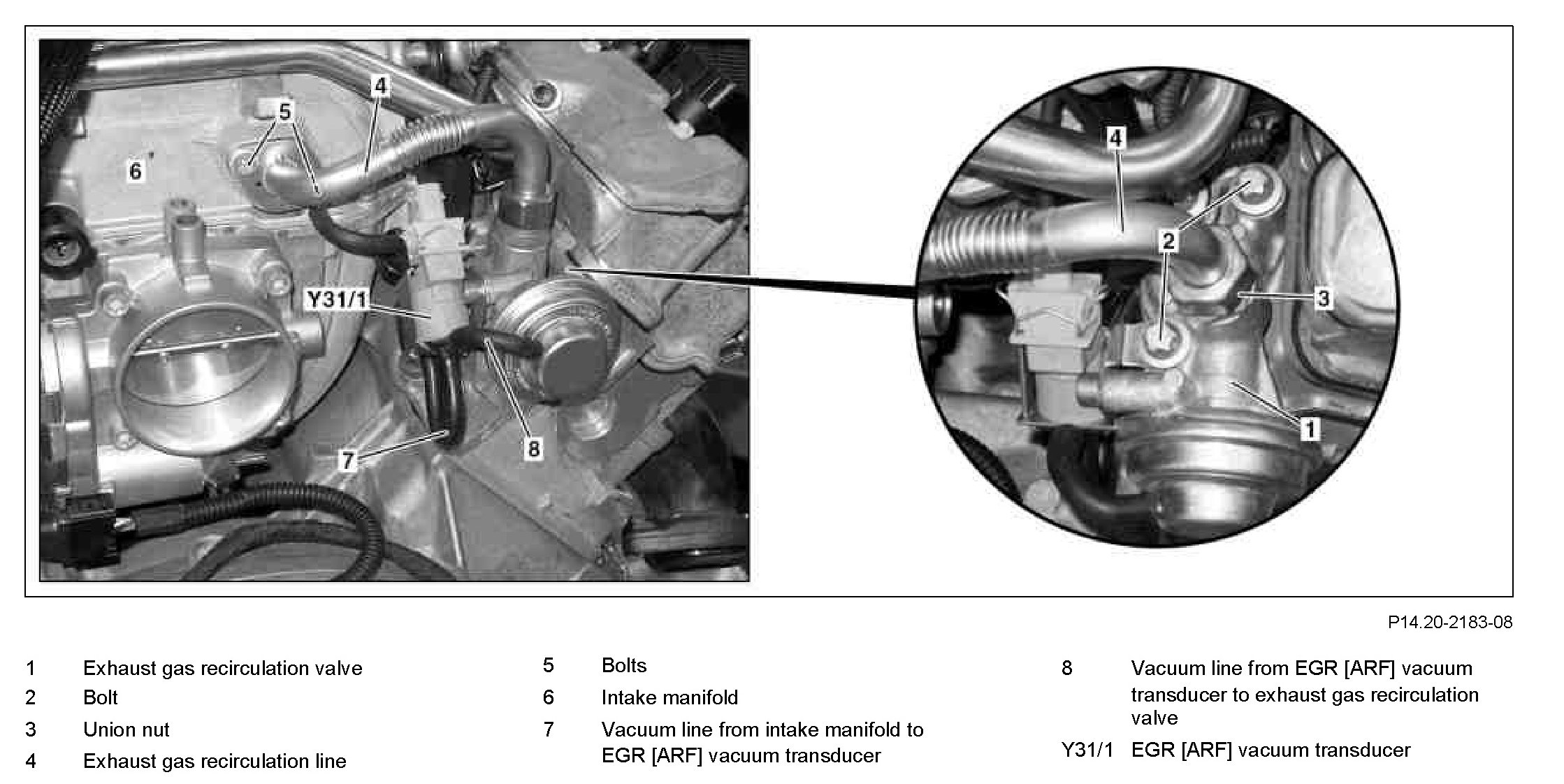

Component Identification:




Steps 1 - 12:

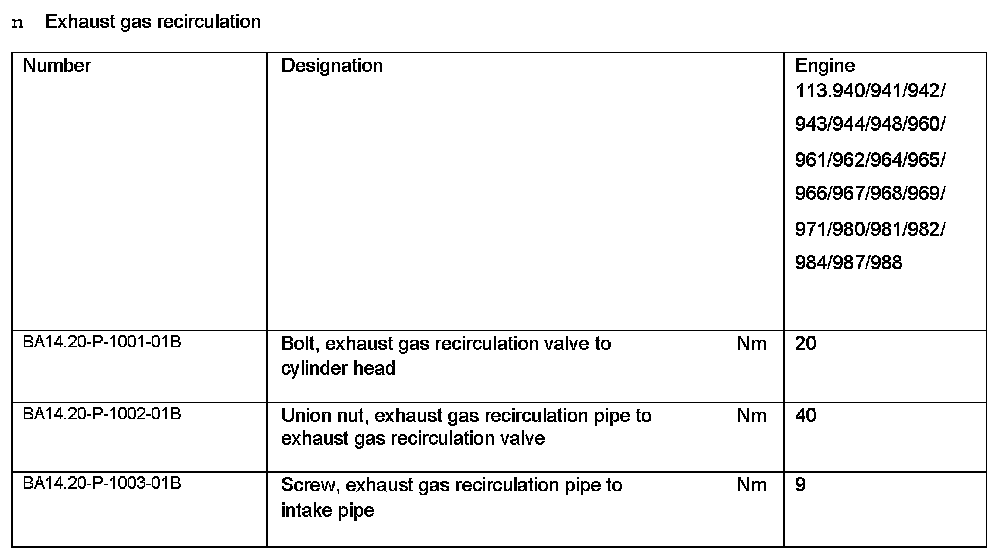

Exhaust Gas Recirculation:
