Procedures

AR82.30-P-6800-01GZ Move Wiper Motor To Parking Position

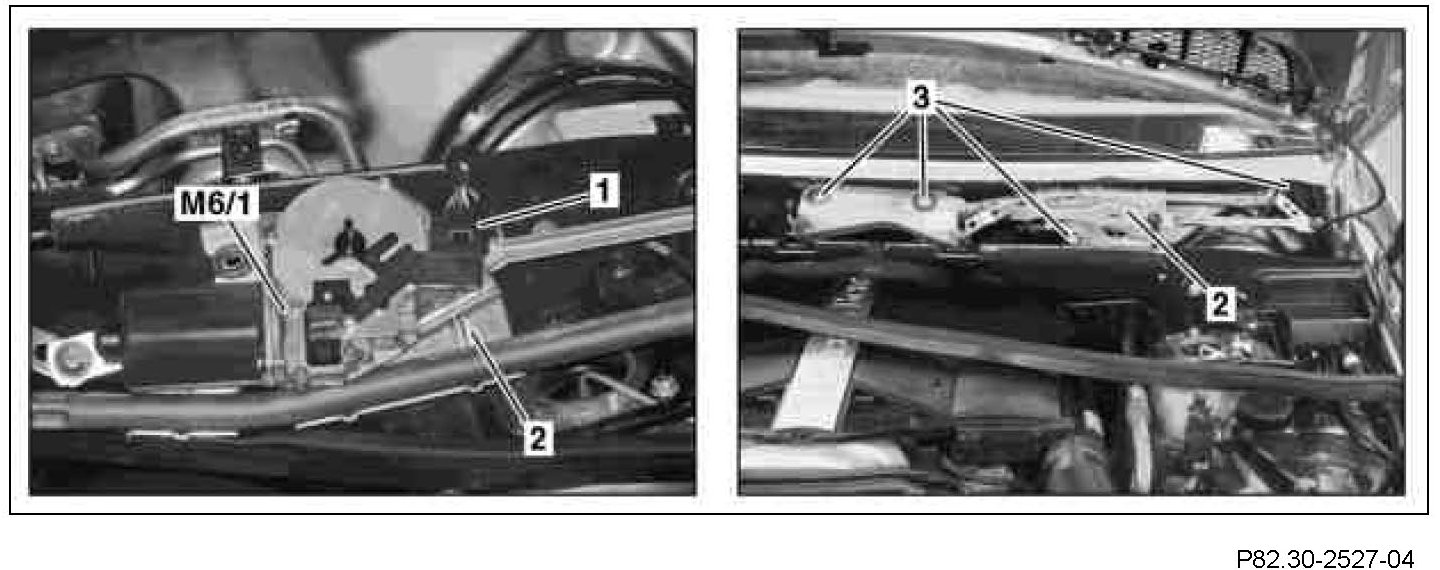

1 Plug the electrical connector (1) into the wiper motor (M6/1).
2 Fix wiper system (2) in position with the nuts (3).
3 Switch on the ignition, turn the combination switch to position 2 and turn it back to position 0. Switch off the ignition as soon as the wiper motor (M6/1) stops in park position.
