Starter Motor: Service and Repair

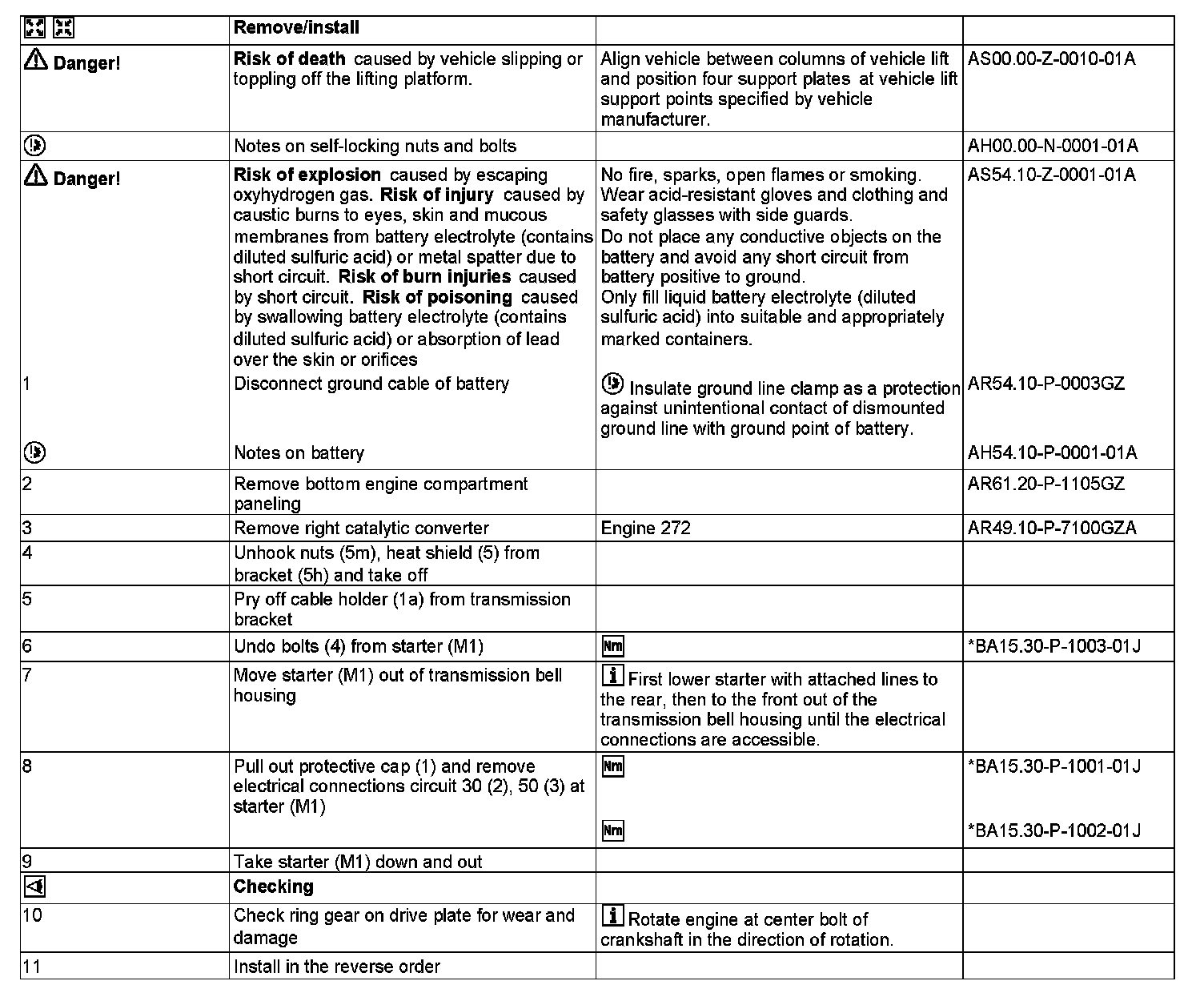

AR15.30-P-7100GZA Remove/Install Starter
ENGINE 272, 273 in MODEL 164

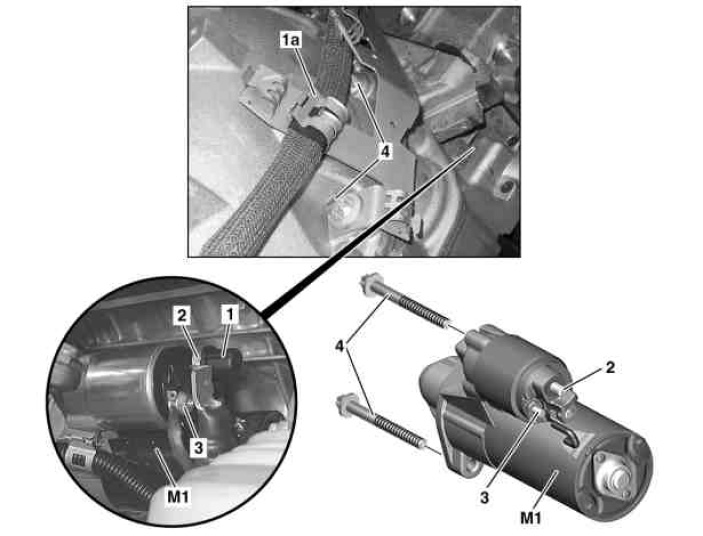

Shown on model 164.1

1 Protective cap
1a Cable holder
2 Electrical connection circuit 30
3 Electrical connection circuit 50
4 Bolts

M1 Starter

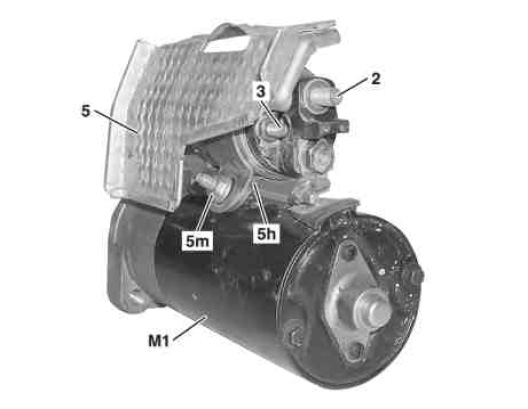

2 Electrical connection circuit 30
3 Electrical connection circuit 50
5 Heat shield
5h Bracket
5m Nut

M1 Starter
