Alternator: Service and Repair



AR15.40-P-5032GZA Remove/install alternator

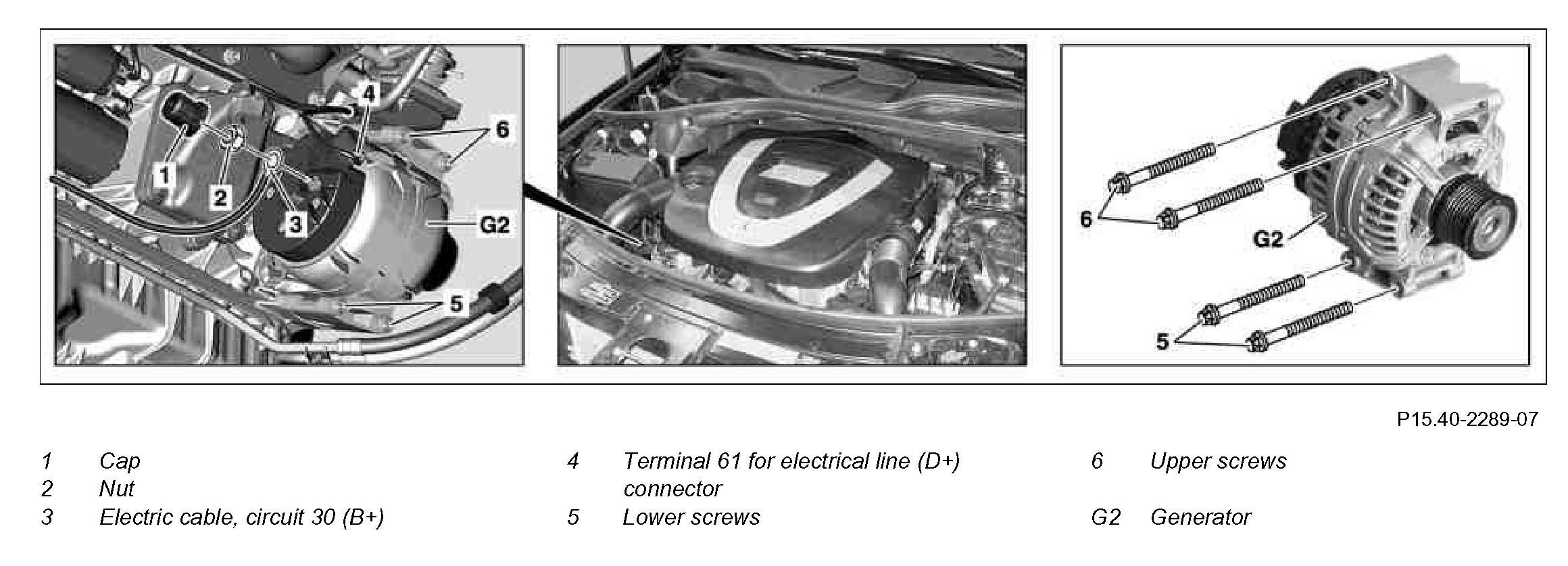

Component Identification:

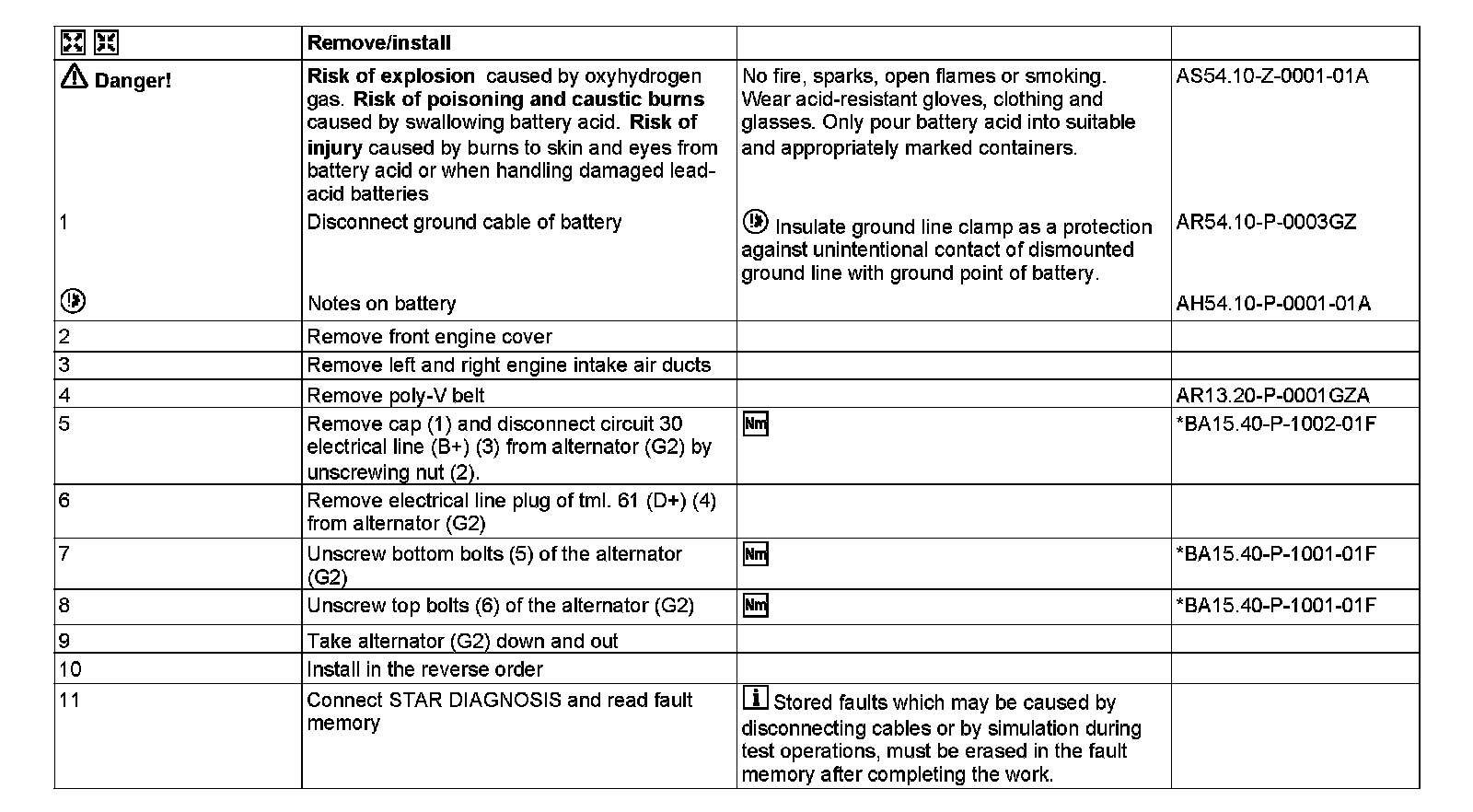

Steps 1-11:

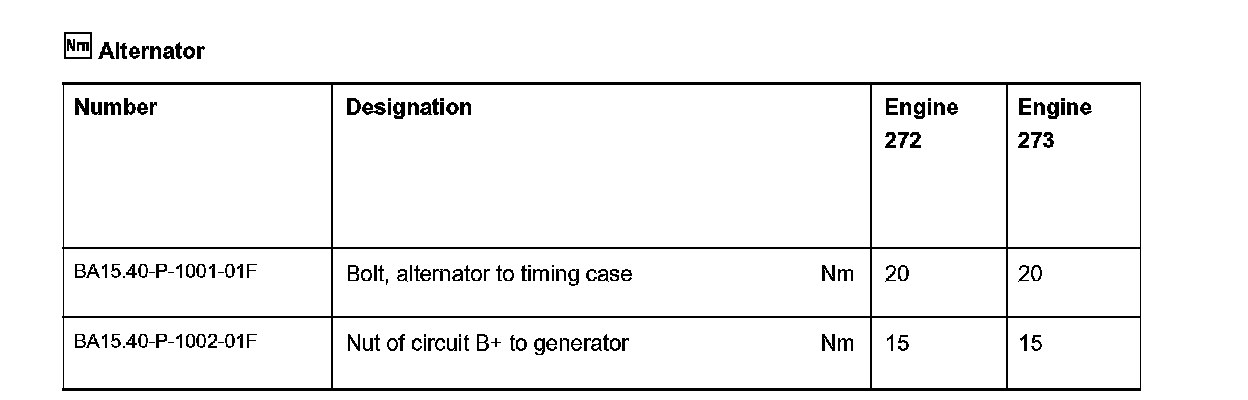

Alternator:
