BE40.20-P-1000-02M Vehicle Level - Front Axle



BE40.20-P-1000-02M Vehicle level - front axle

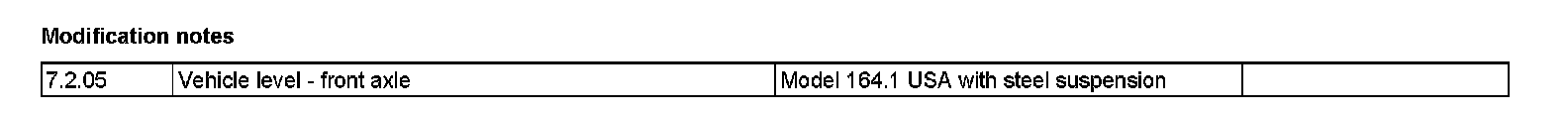

Modification Notes:

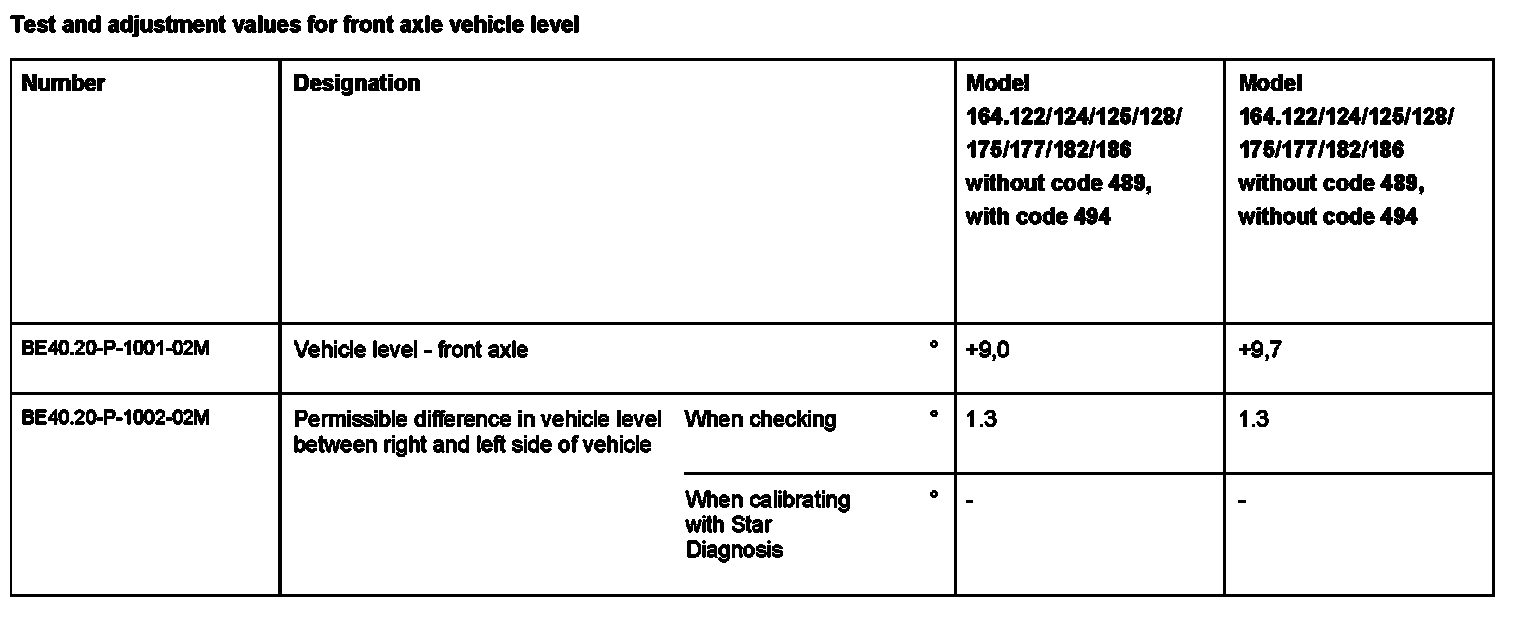

Test And Adjustment Values For Vehicle Level At Front Axle:

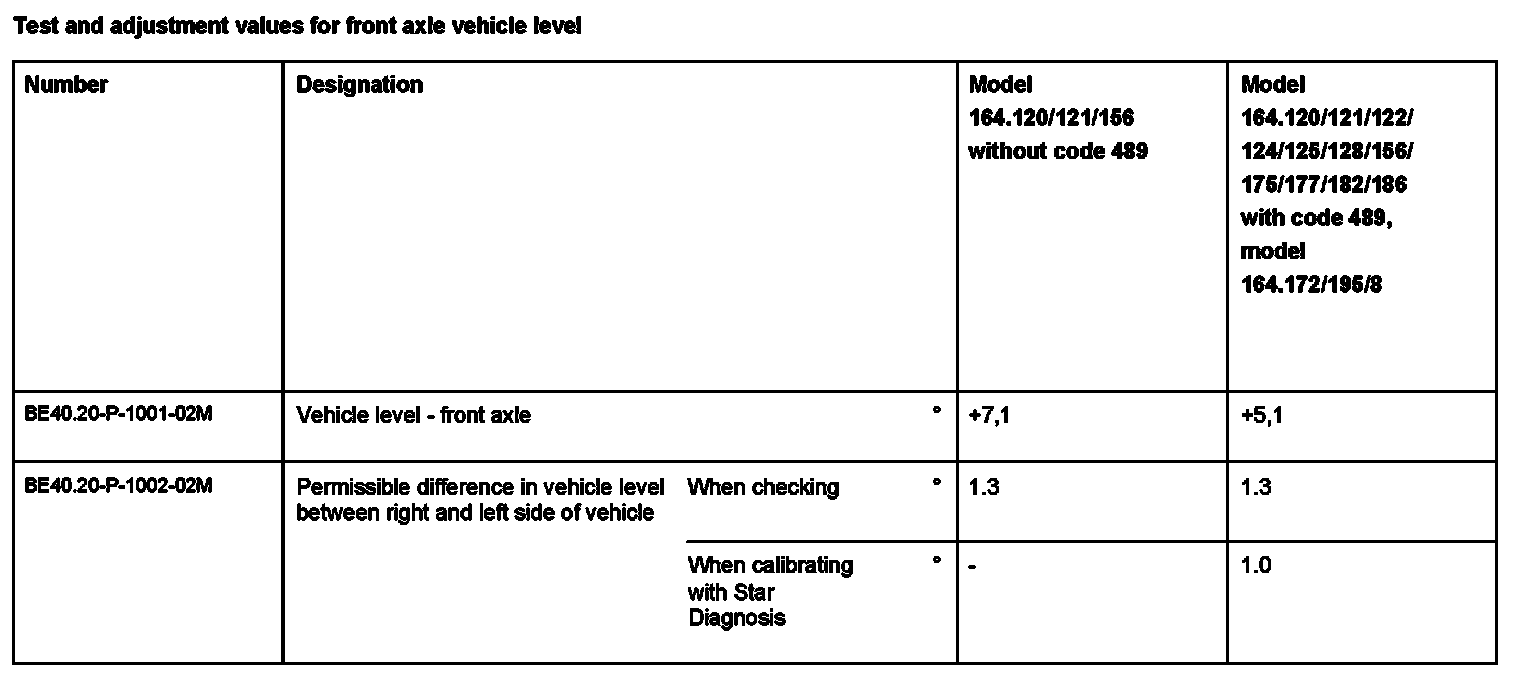

Test And Adjustment Values For Vehicle Level At Front Axle:
