Air Injection Pump: Service and Repair



AR14.30-P-7251GZA Remove/install air pump

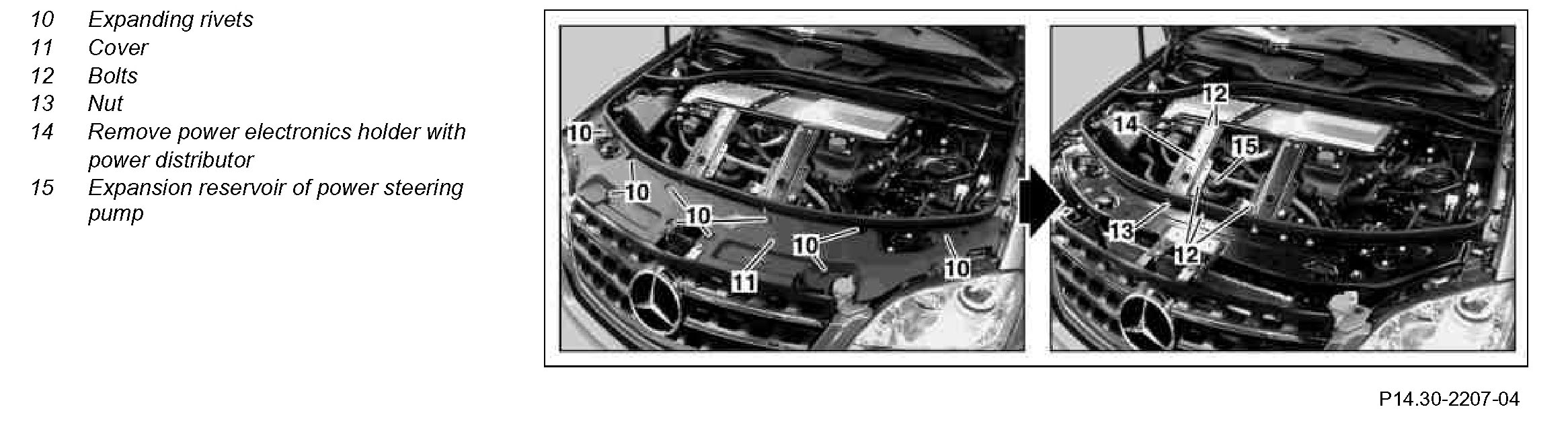

Component Identification:

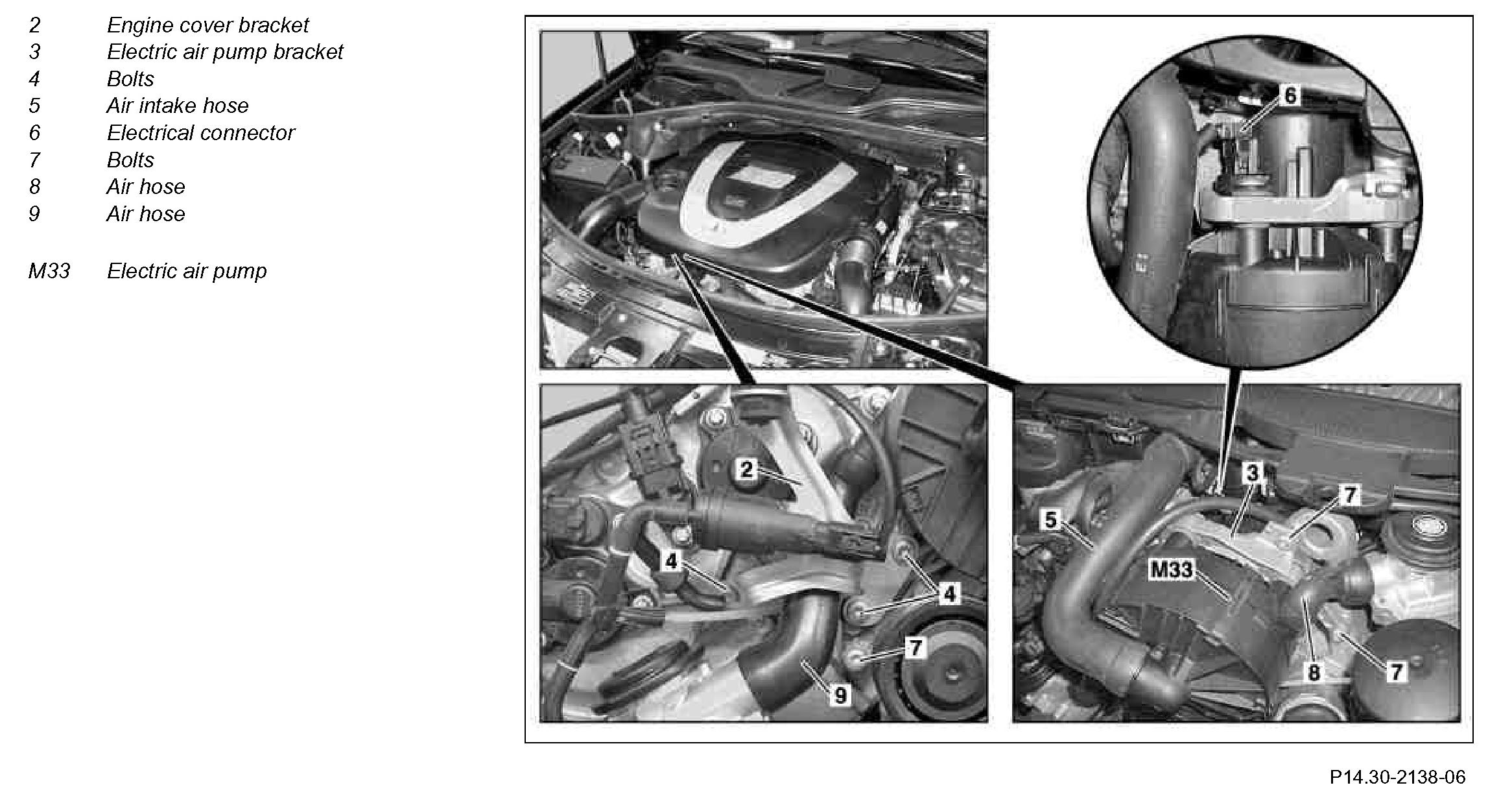

Component Identification:

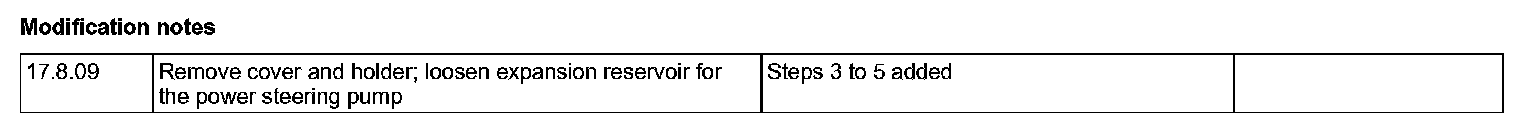

Modification notes:

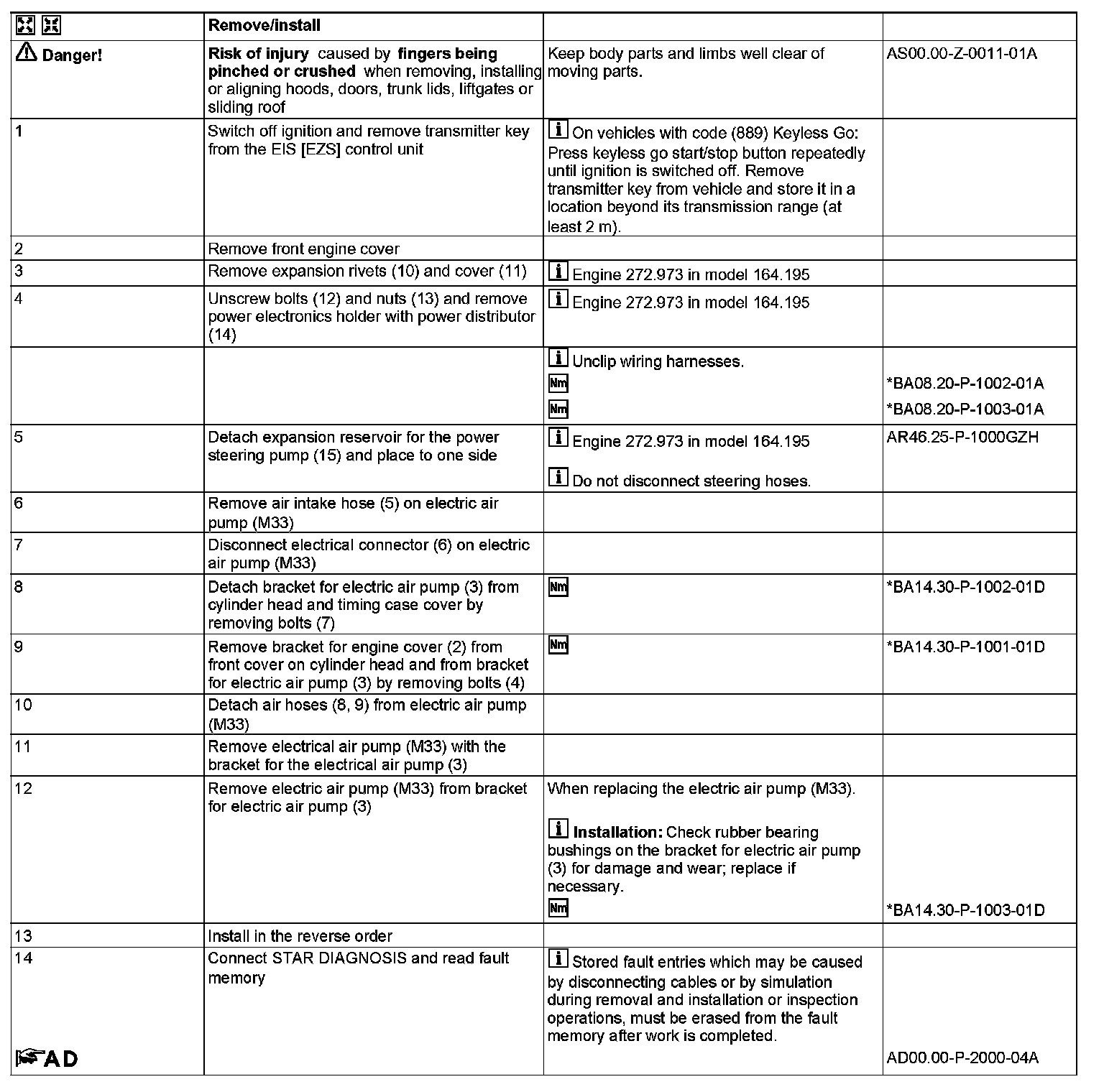

Steps 1-14:




Air pump:

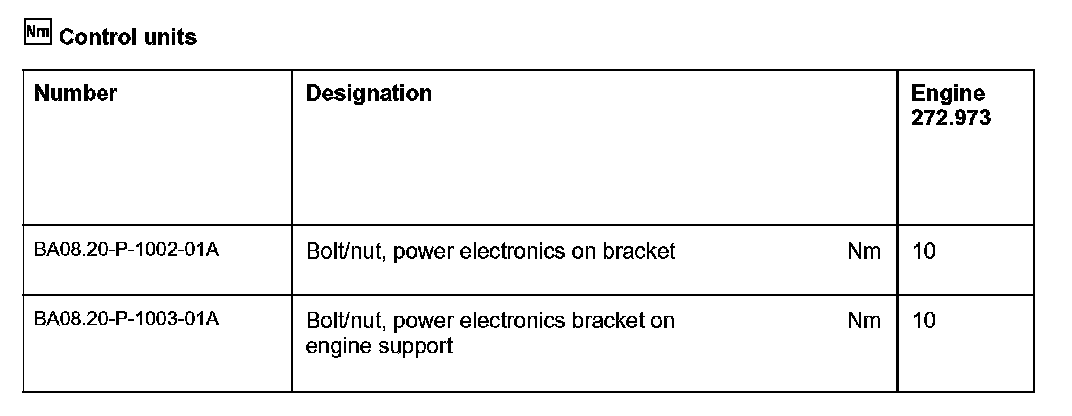

Control units:
