Home >> Mercedes Benz Truck >> 2007 >> ML 350 4MATIC (164.186) V6-3.5L (272.967) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Diagrams >> PE82.00-U-2710MAA MOST Bus

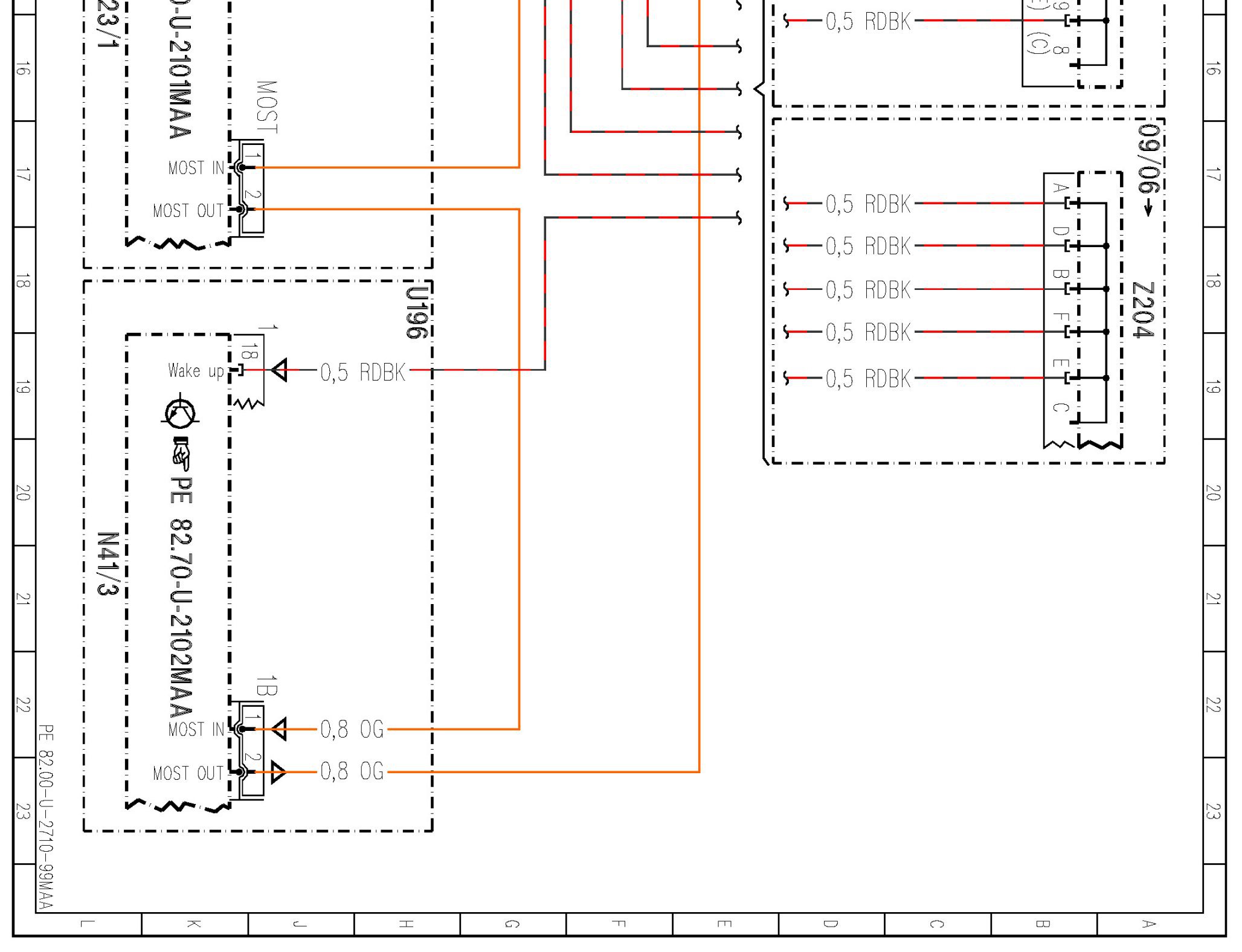

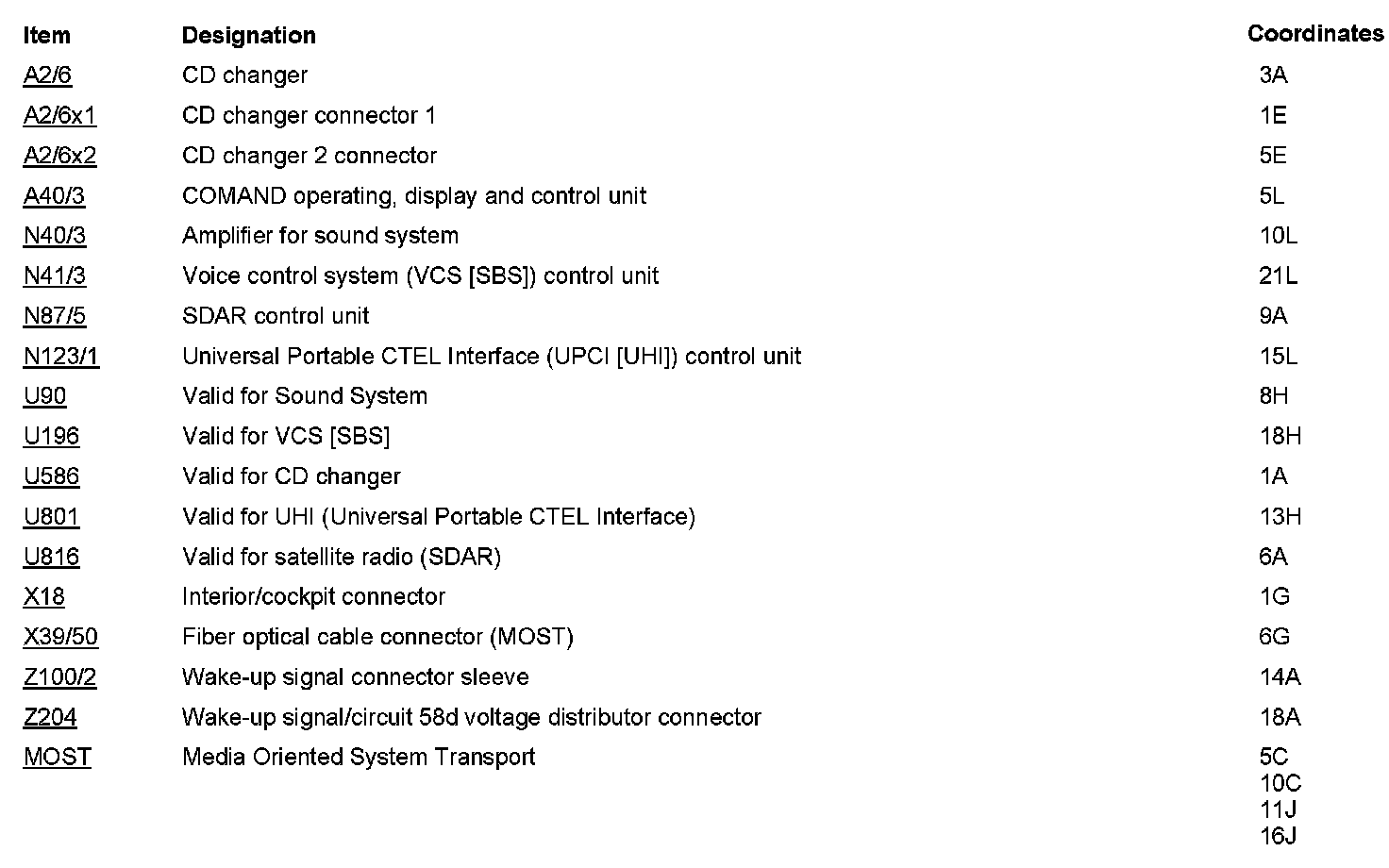

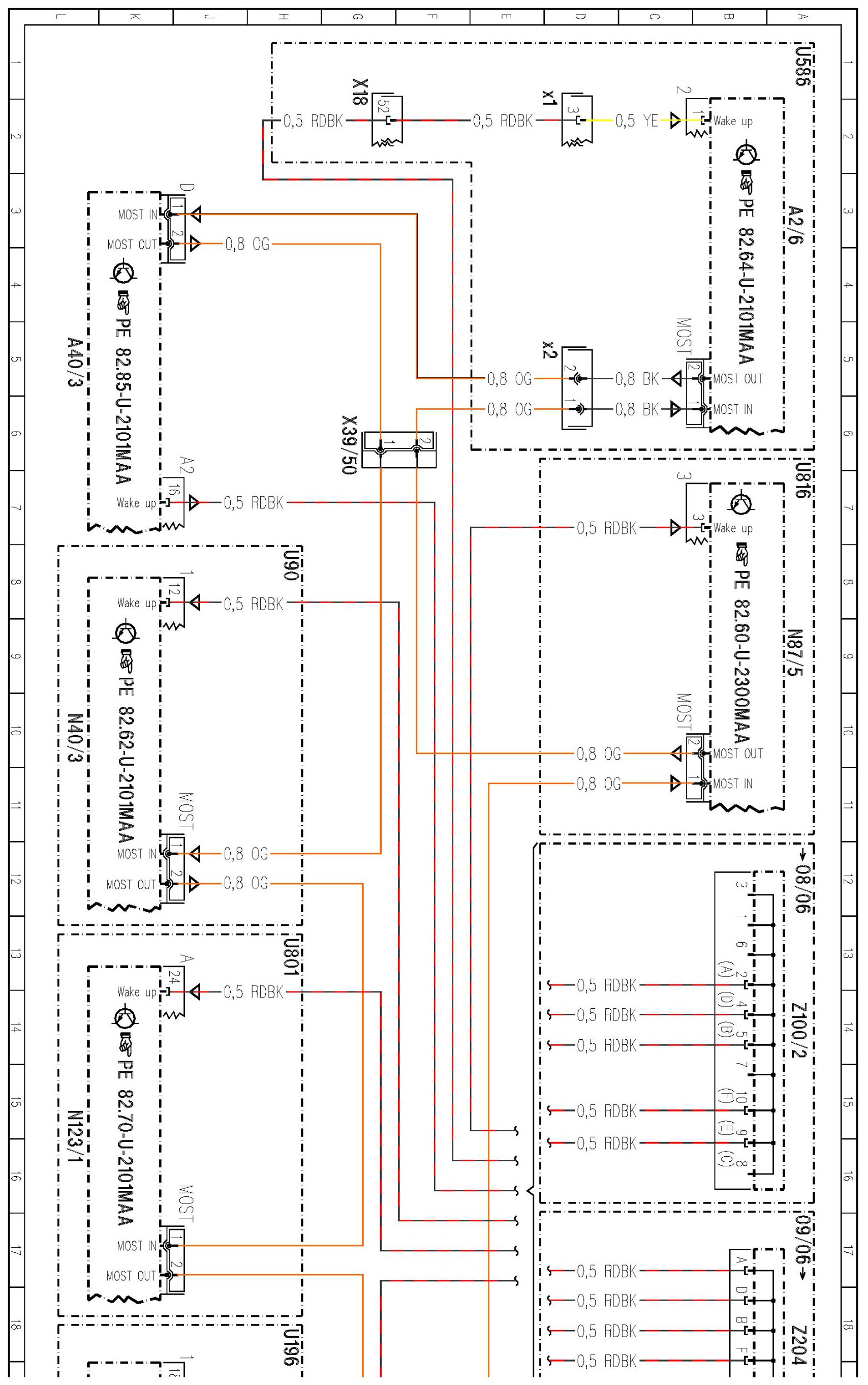

PE82.00-U-2710MAA MOST Bus



PE82.00-U-2710MAA MOST Bus















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
