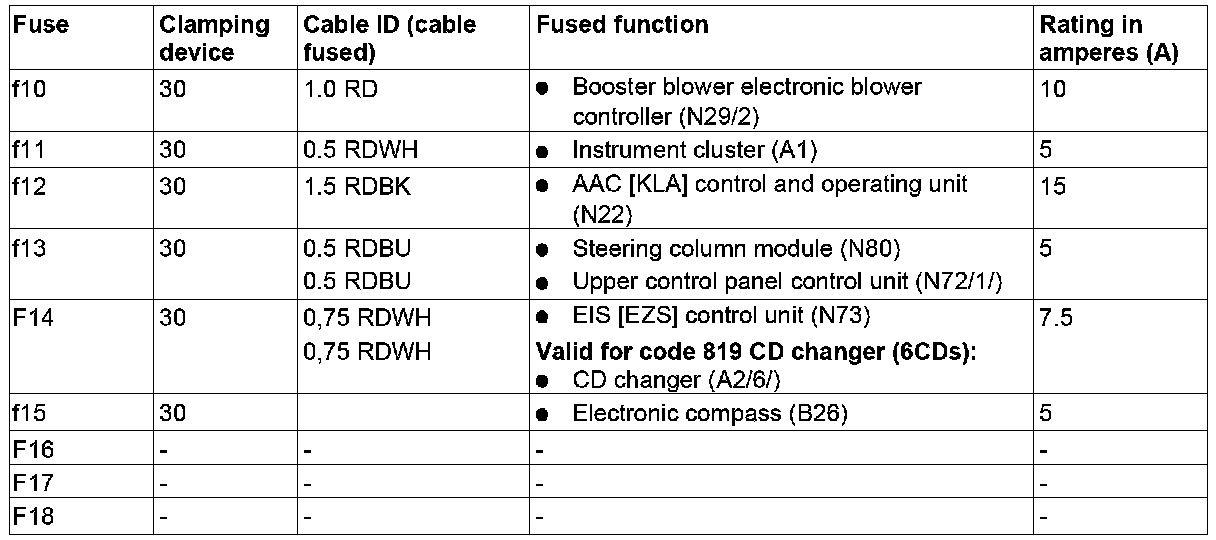

GF54.15-P-1256-16GZ Fuse Assignment of Fuse Box In Cockpit

GF54.15-P-1256-16GZ Fuse Assignment Of Fuse Box In Cockpit
- up to model year 08

Component Identification:

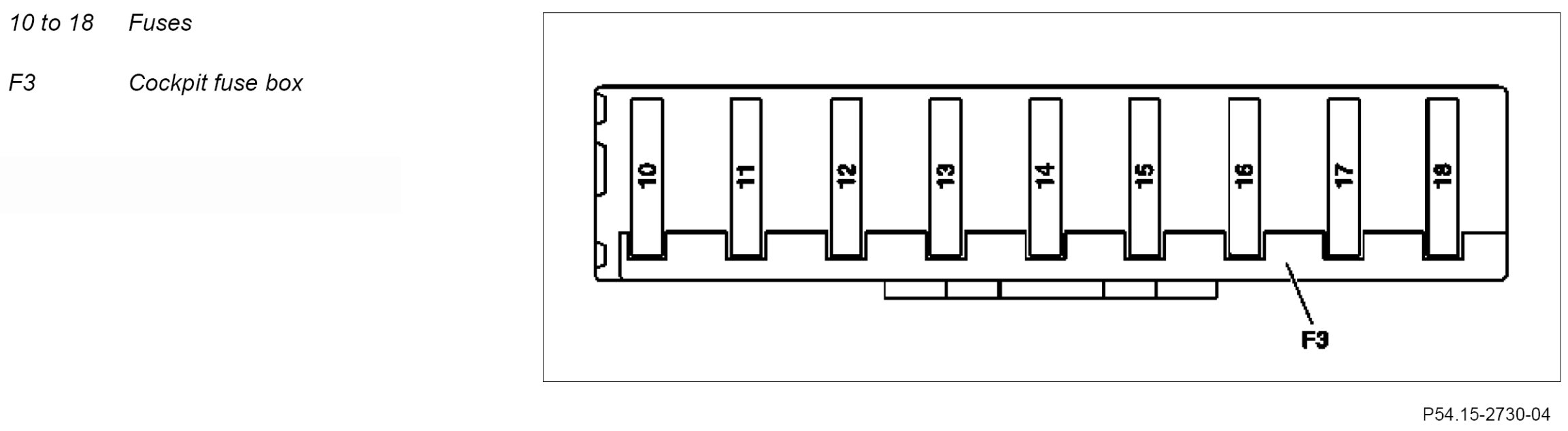

The cockpit fuse box is located in the cockpit on the passenger-side.
