AR40.20-P-0332GZ Check and Adjust Toe On Rear Axle

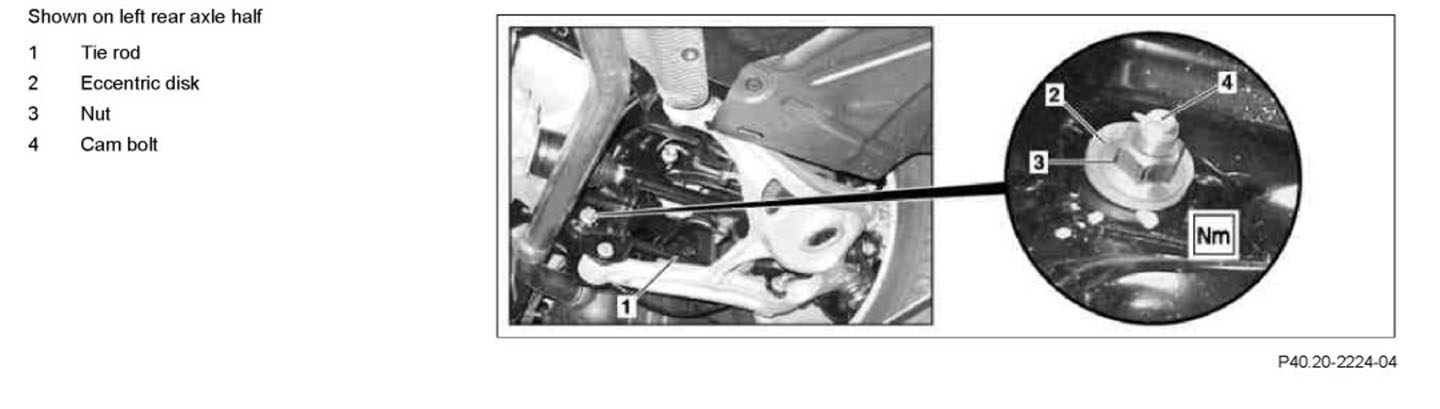

AR40.20-P-0332GZ Check and adjust toe on rear axle

Commercially available tools:

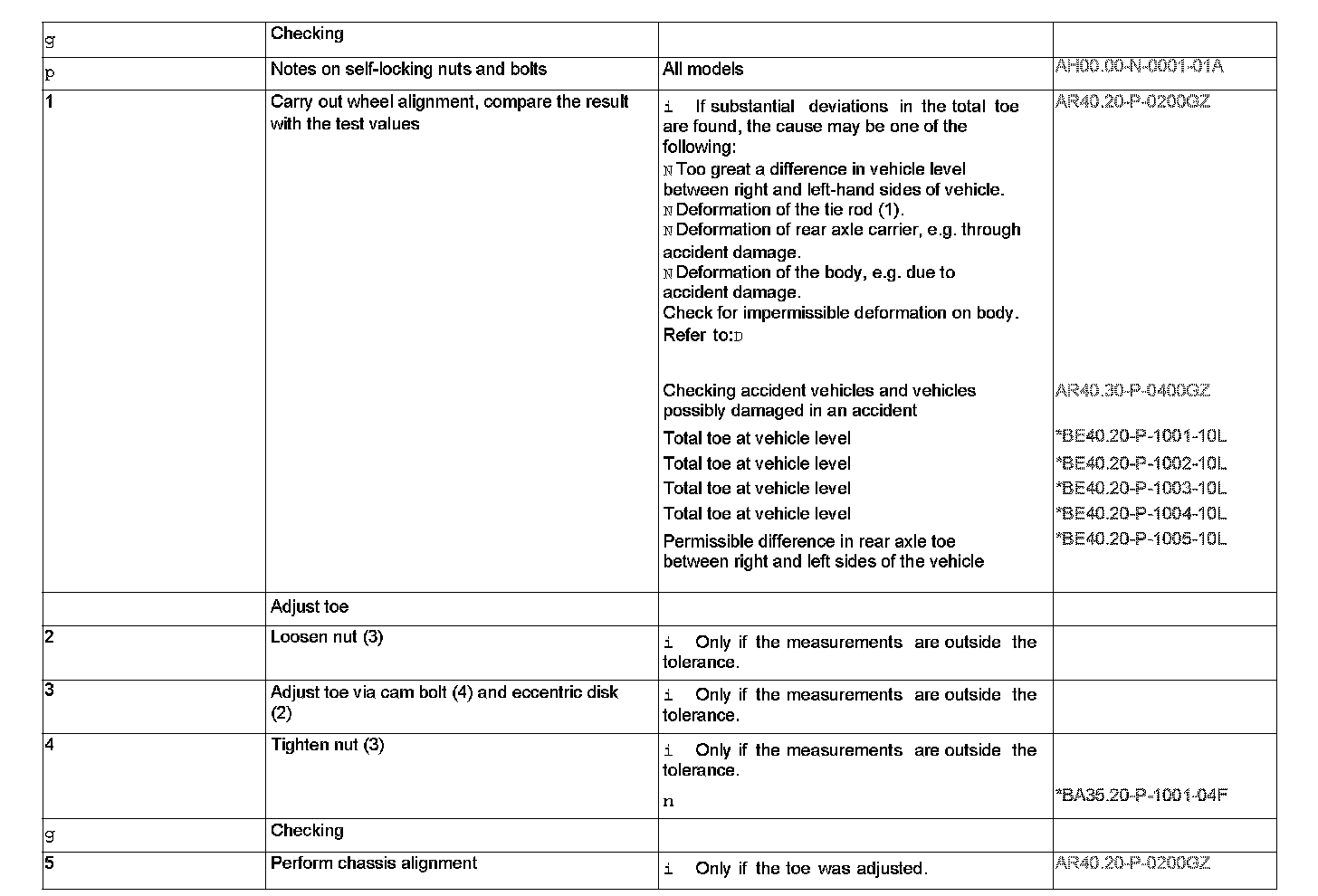

Steps 1-5:

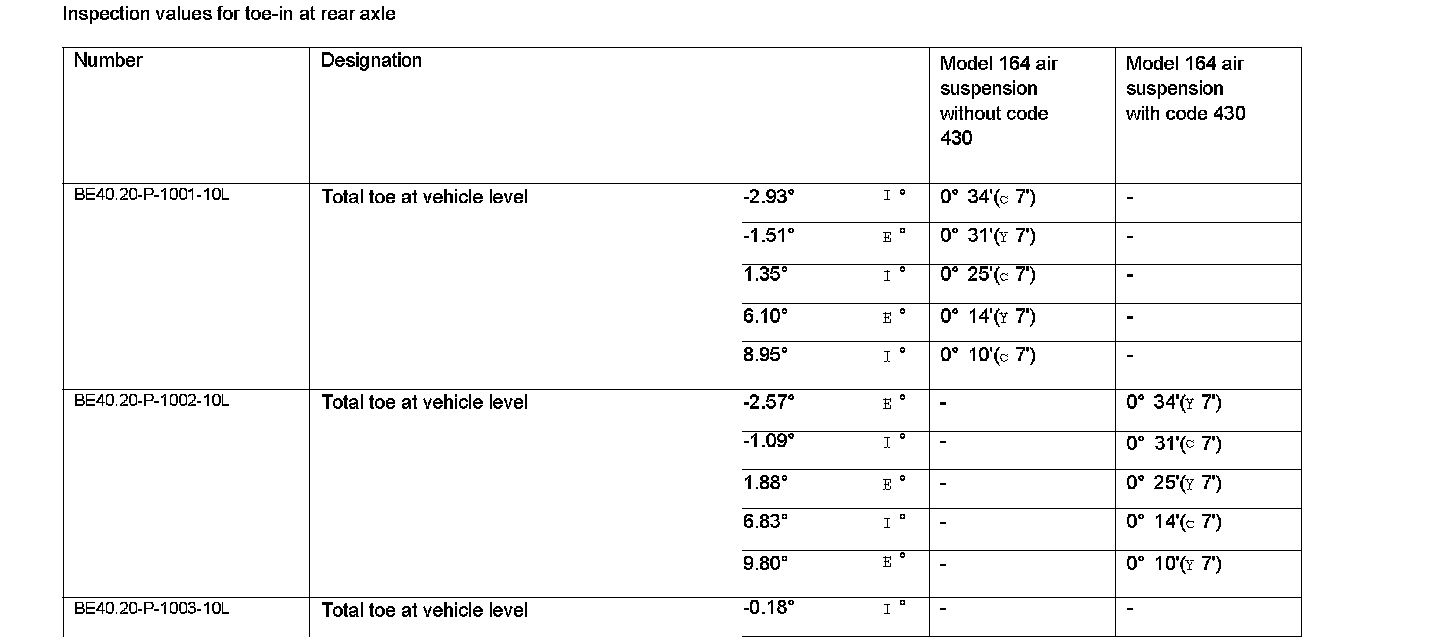

Inspection values for toe-in at rear axle:

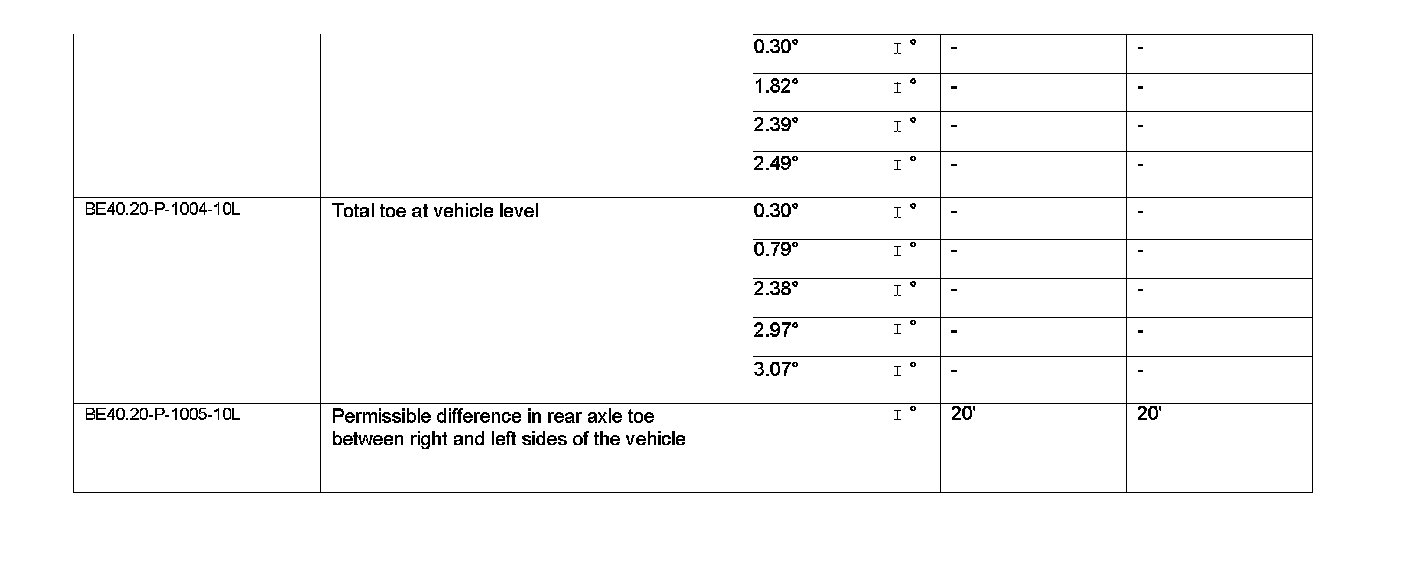

Inspection values for toe-in at rear axle:

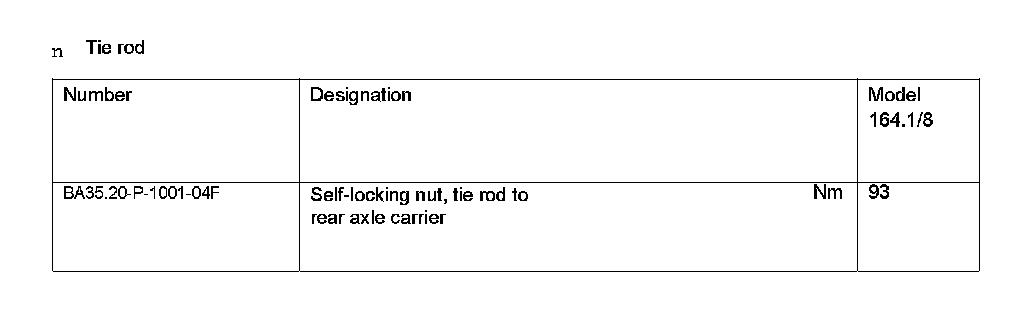

Tie Rod:
