Home >> Mercedes Benz Truck >> 2007 >> ML 350 4MATIC (164.186) V6-3.5L (272.967) >> Repair and Diagnosis >> Maintenance >> Alignment >> Service and Repair >> AR40.20-P-0325GZ Check Toe-Out On Turns

AR40.20-P-0325GZ Check Toe-Out On Turns

AR40.20-P-0325GZ Check toe-out on turns

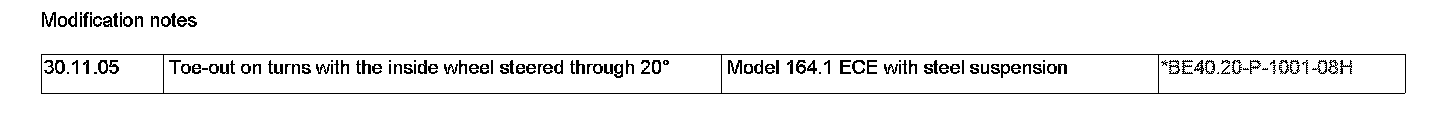

Modification notes:

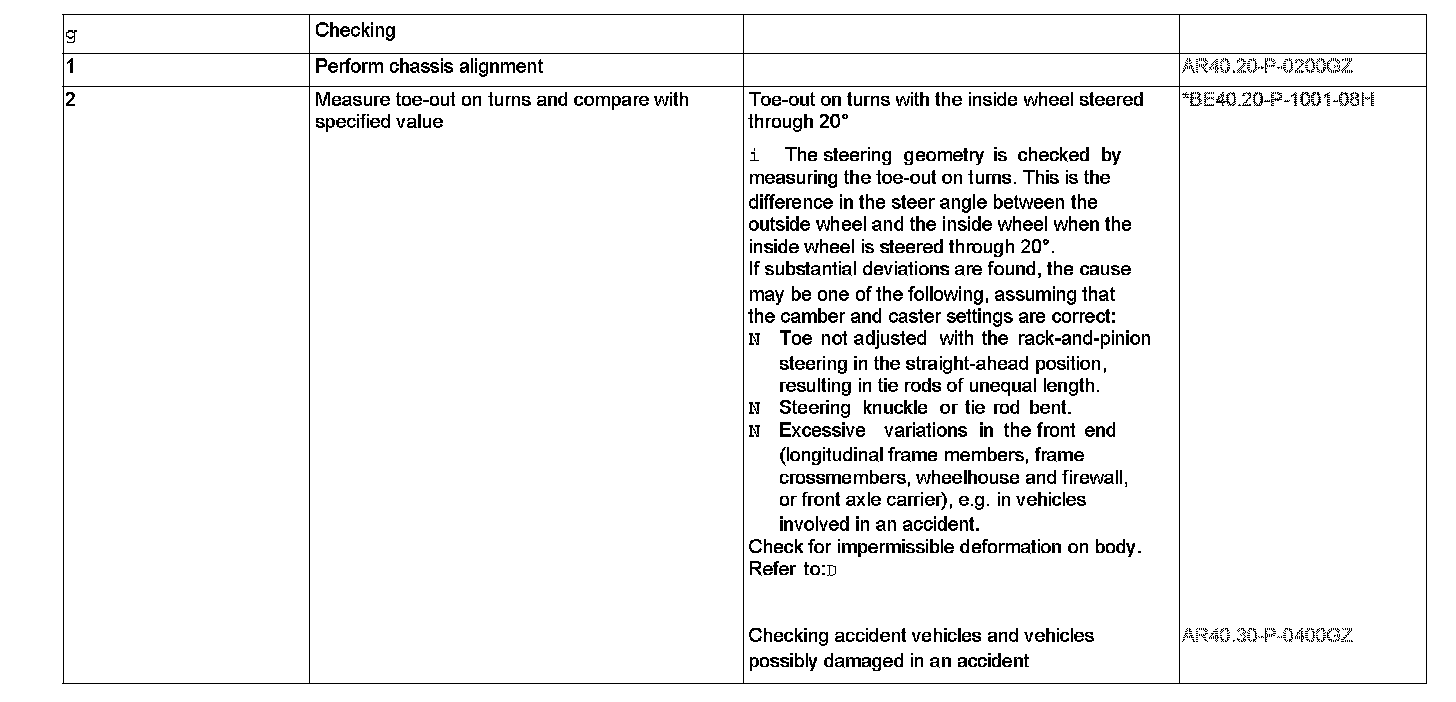

Steps 1-2:

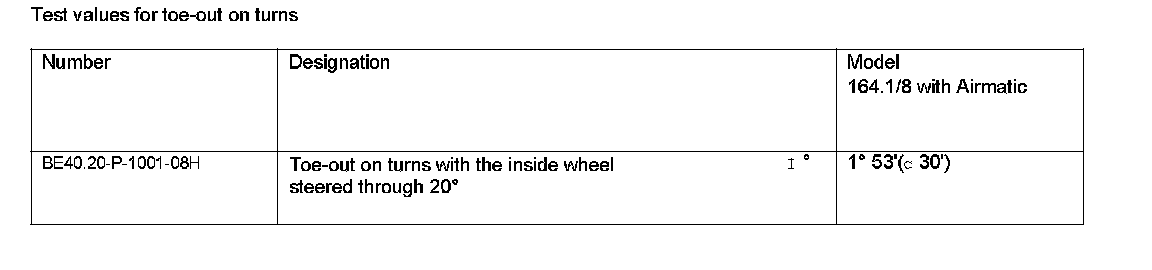

Test values for toe-out on turns:

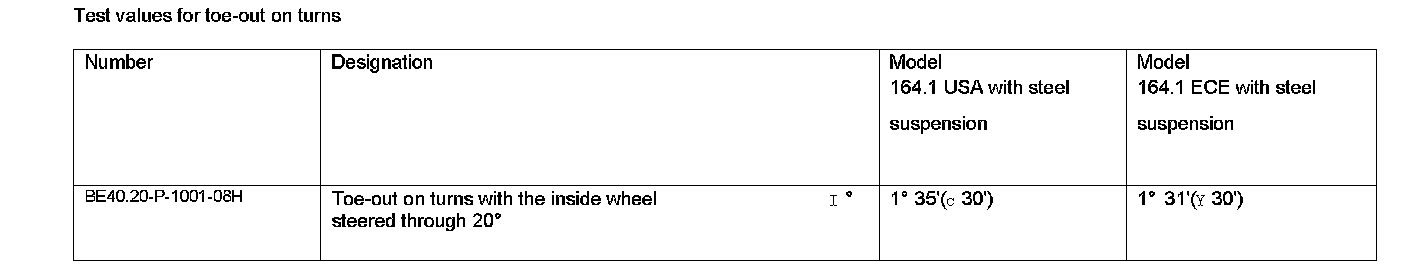

Test values for toe-out on turns:
