AR83.30-P-6522GZ Remove/Install Service Valve



AR83.30-P-6522GZ Remove/Install Service Valve
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

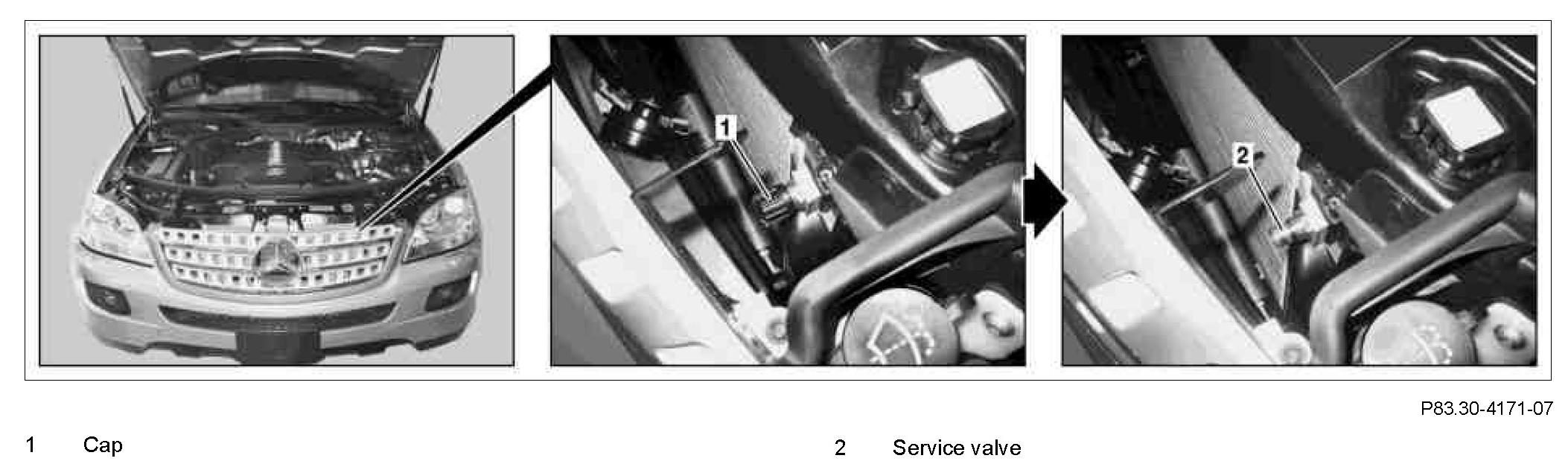

Component Identification:

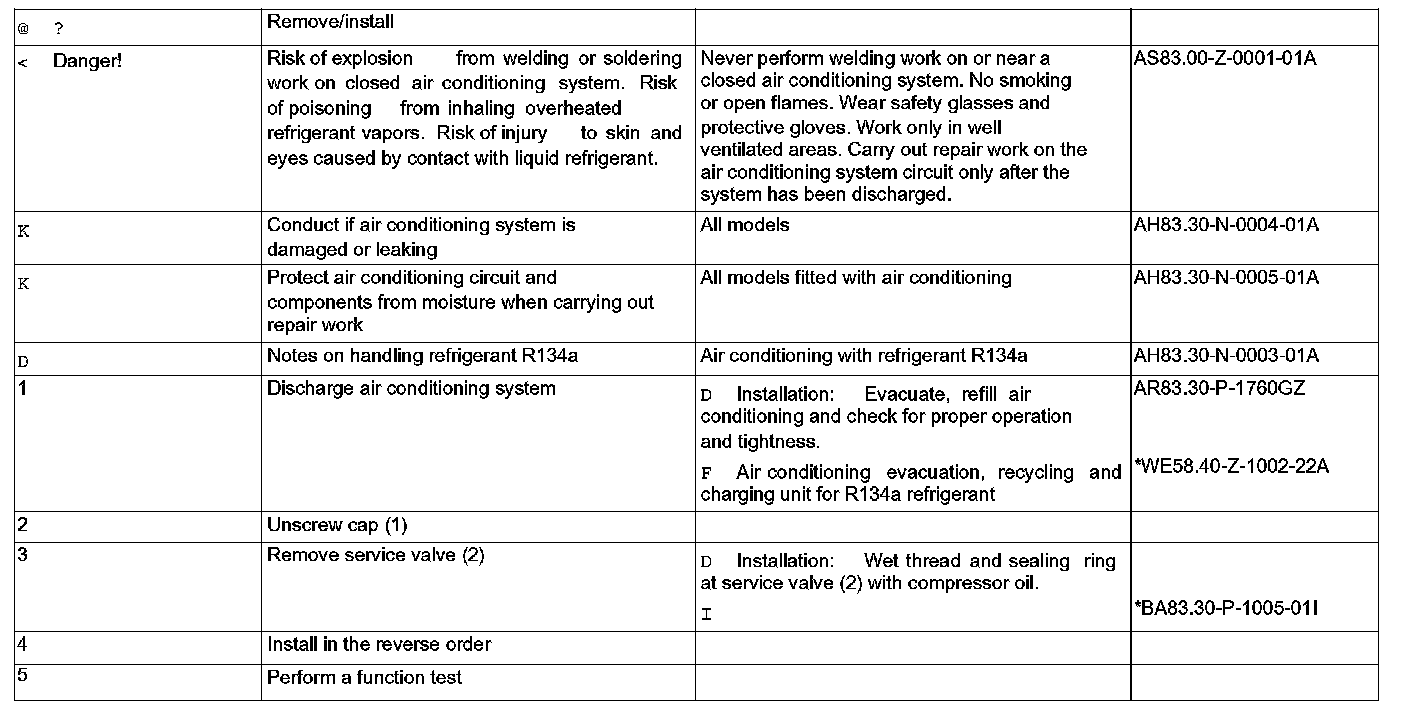

Steps 1 - 5:

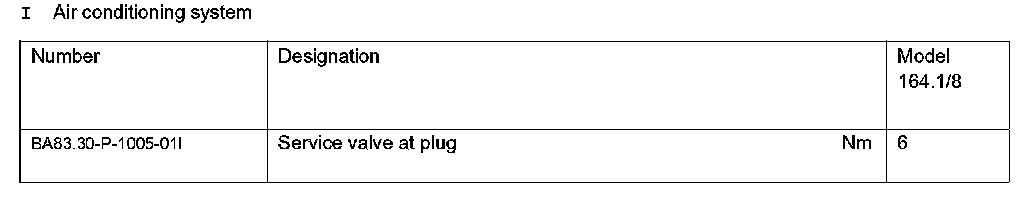

Air Conditioning System:




Workshop Equipment:
