Removal and Replacement

AR83.30-P-5200GZ Remove/Install AC Housing
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

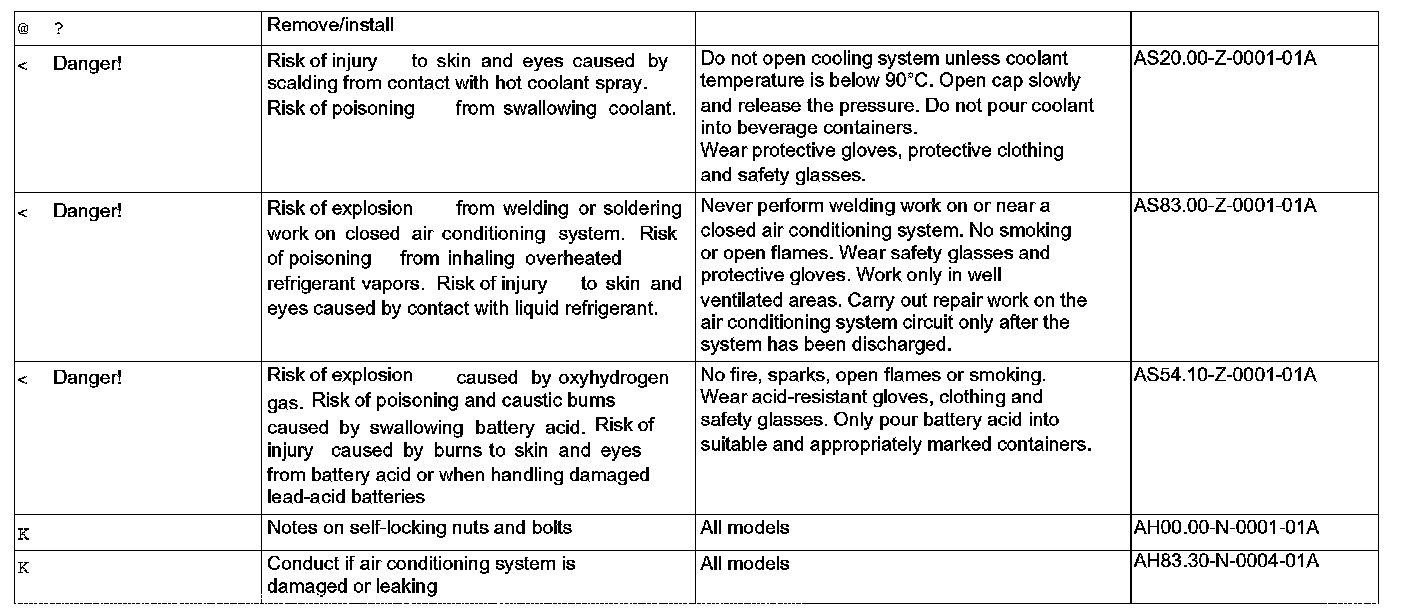

Component Identification:

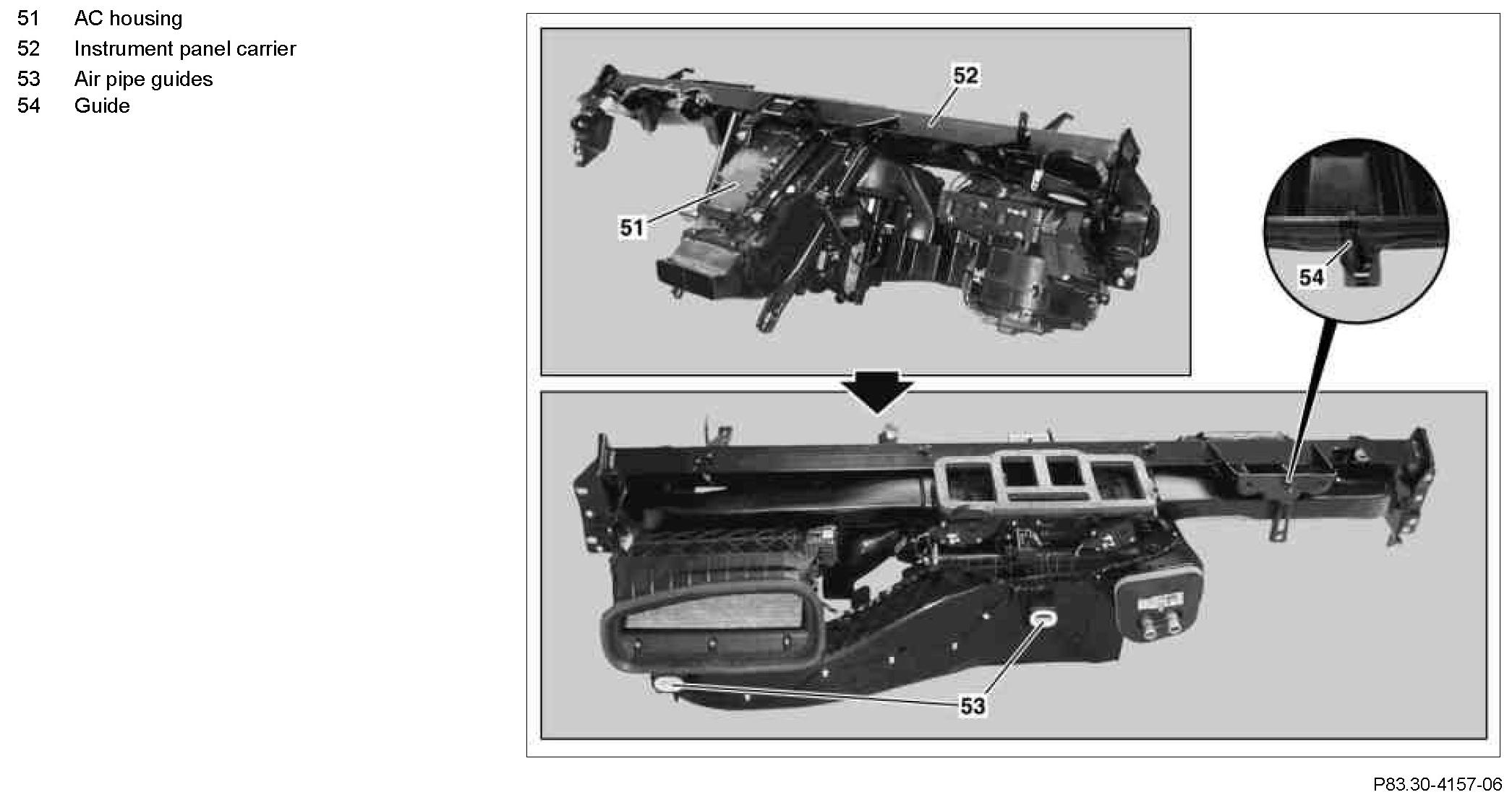

Component Identification:

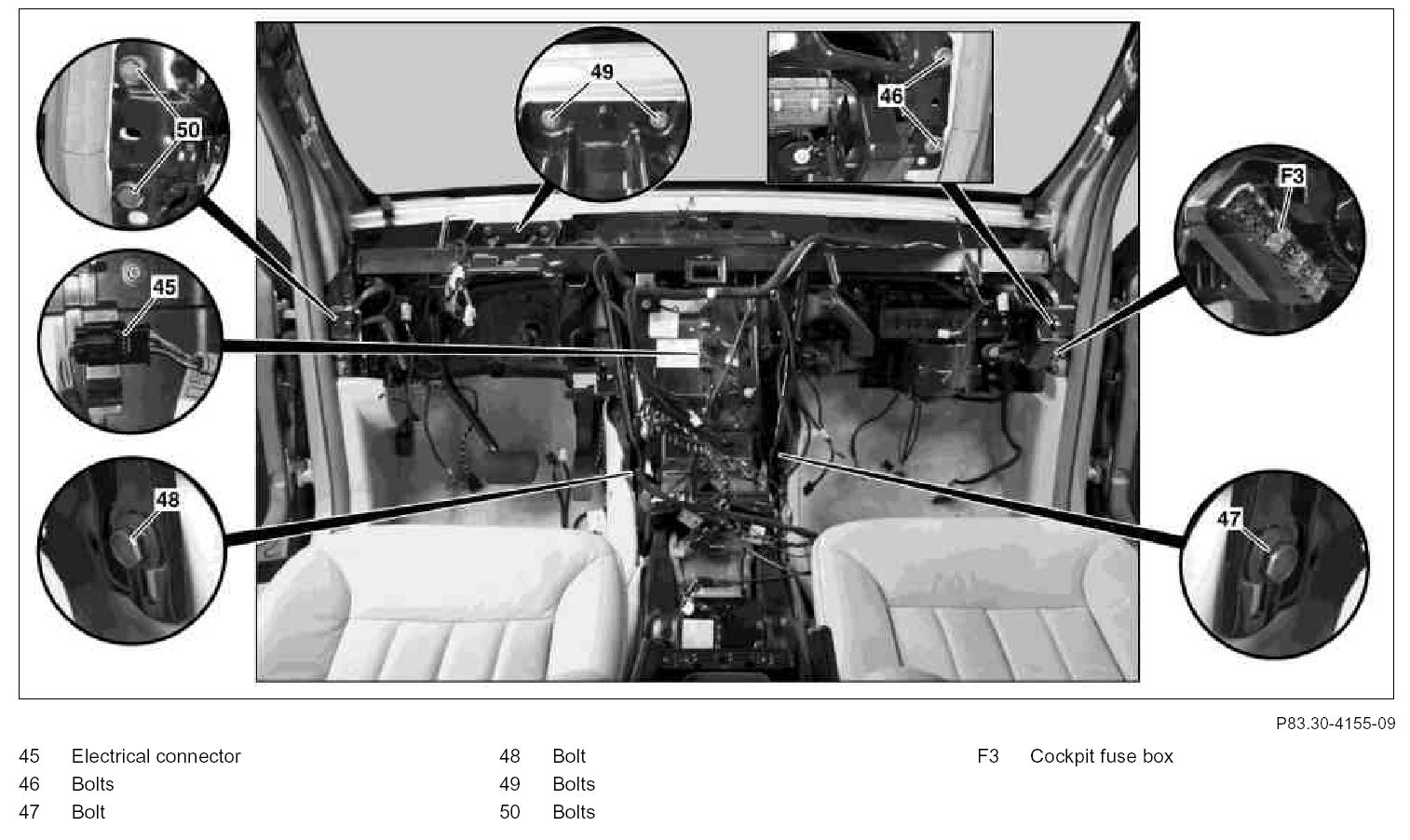

Component Identification:

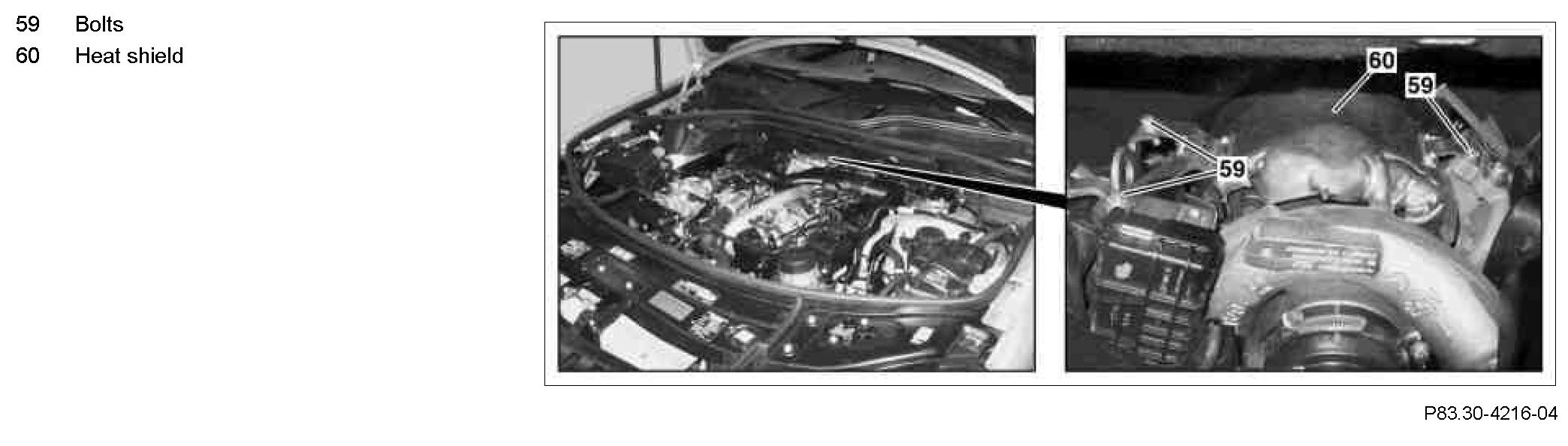

Component Identification:

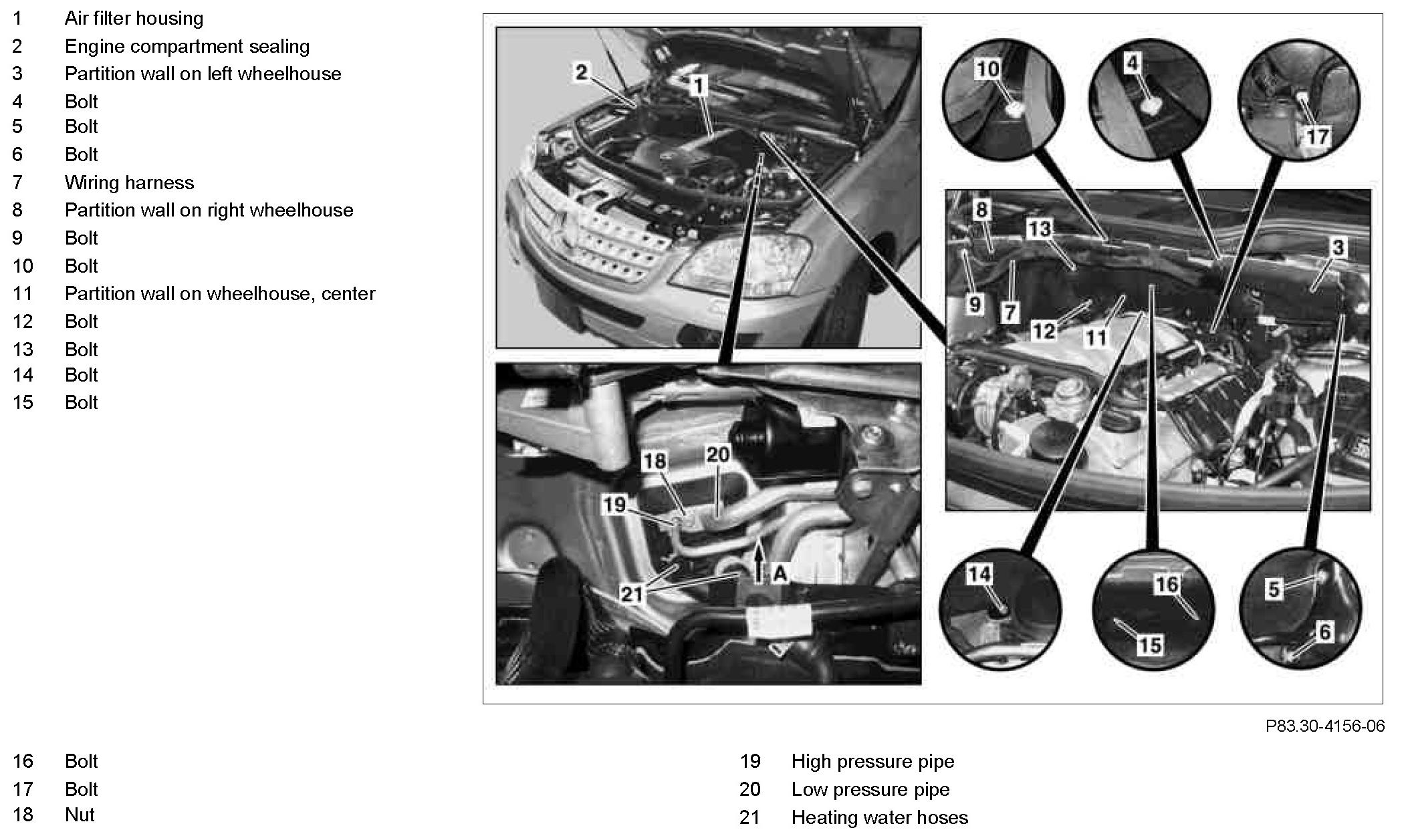

Component Identification:

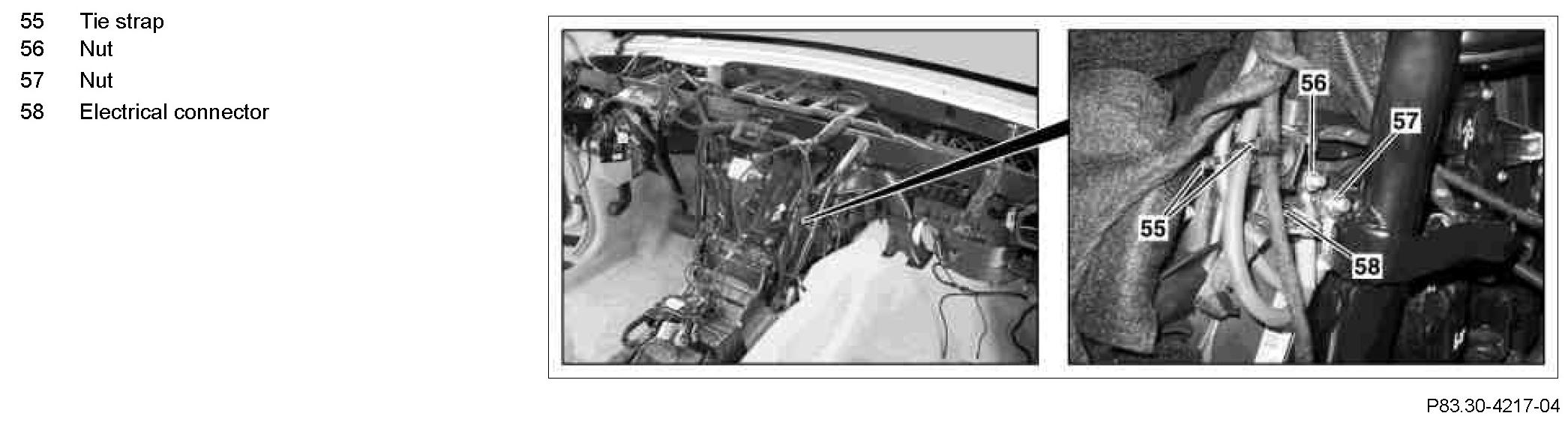

Component Identification:

Component Identification:

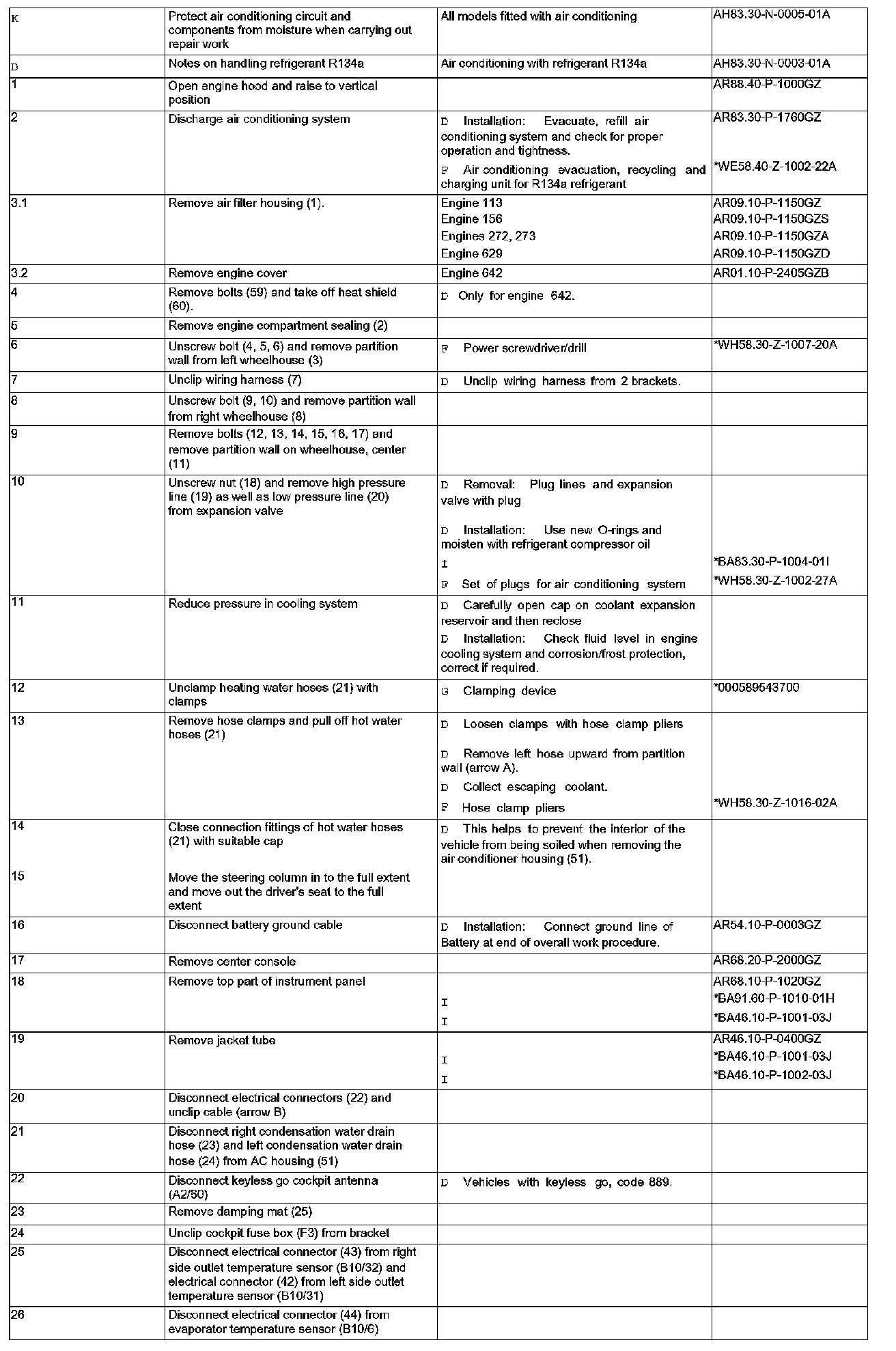

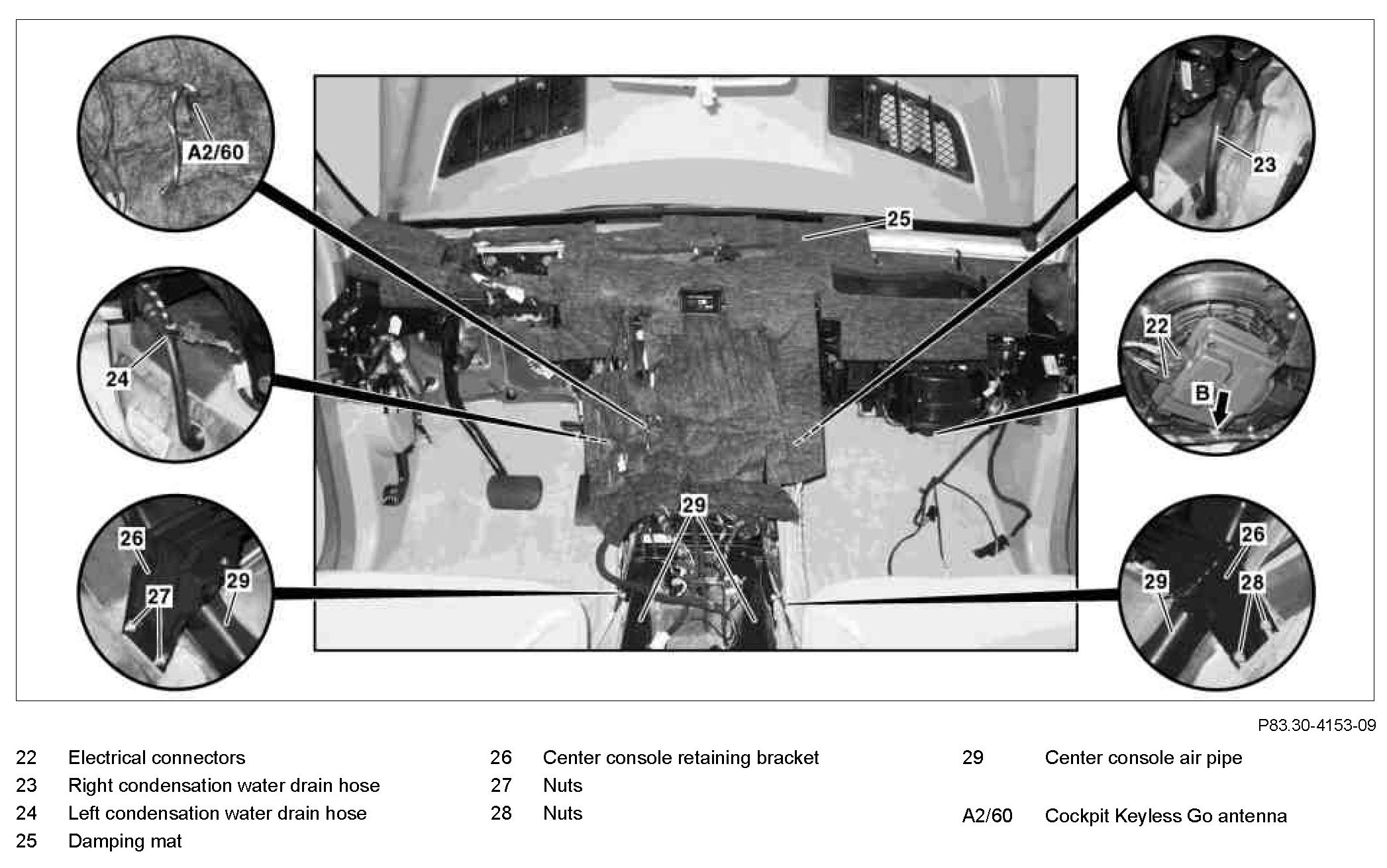

Steps 1 - 26:

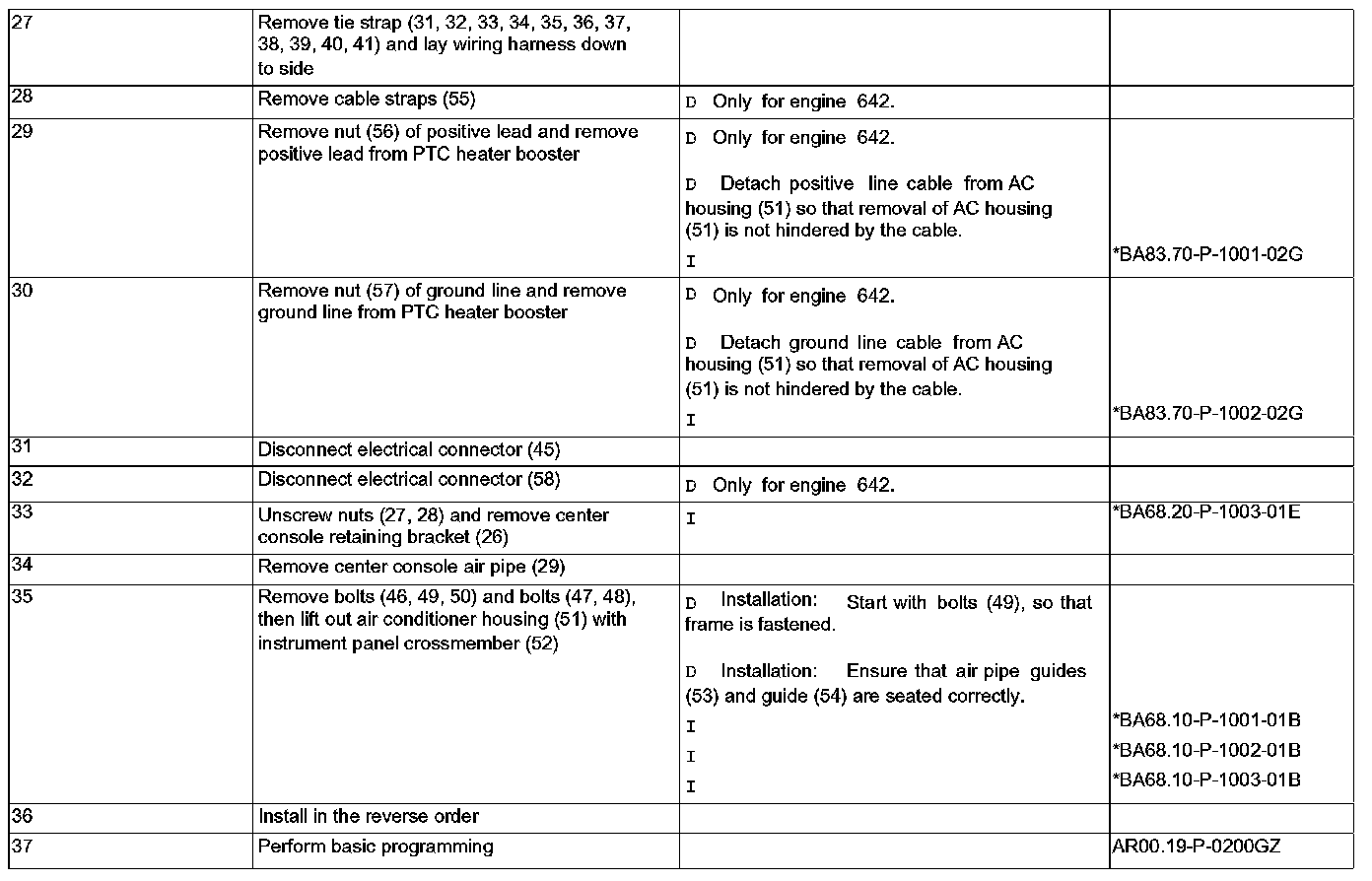

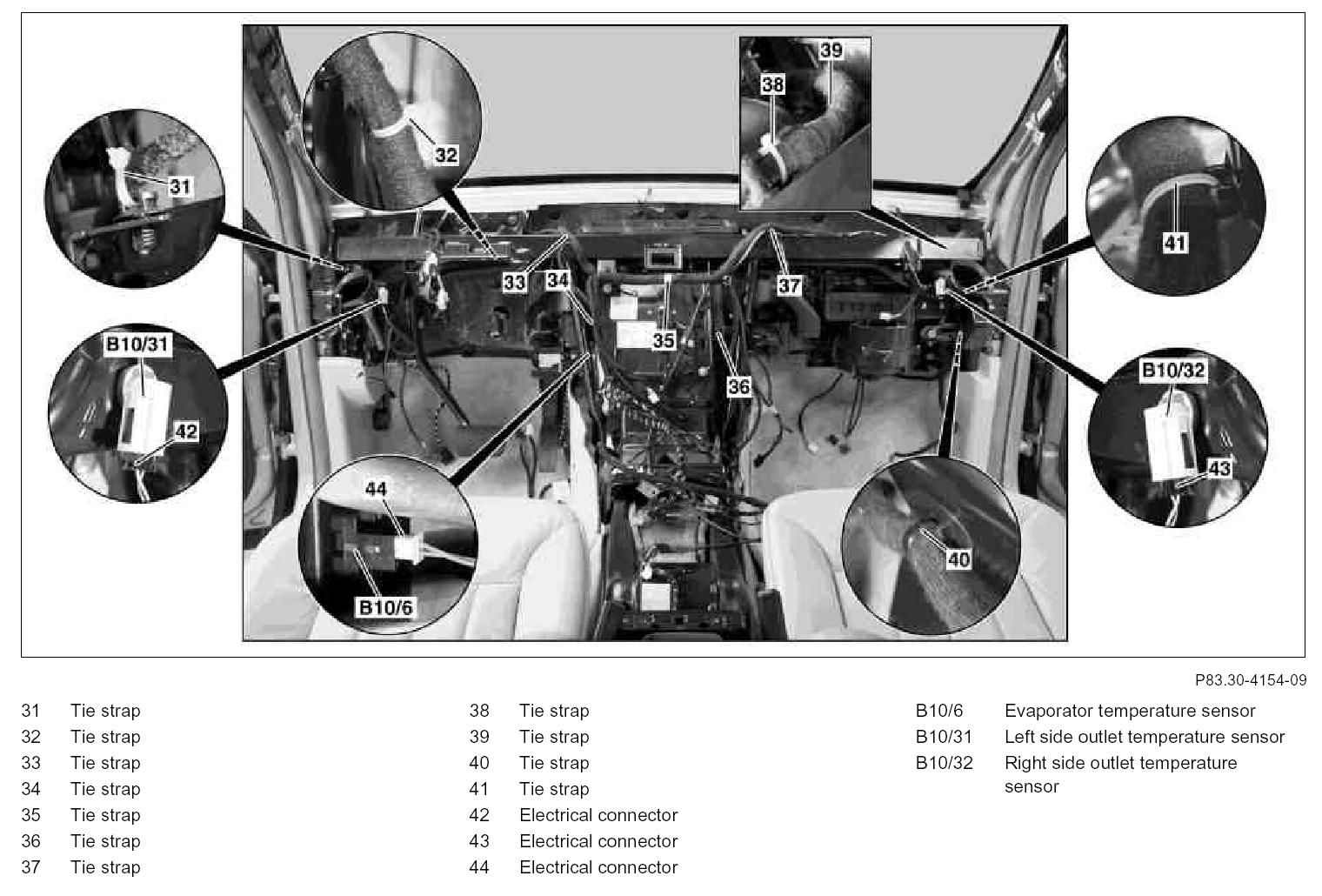

Steps 27 - 37:

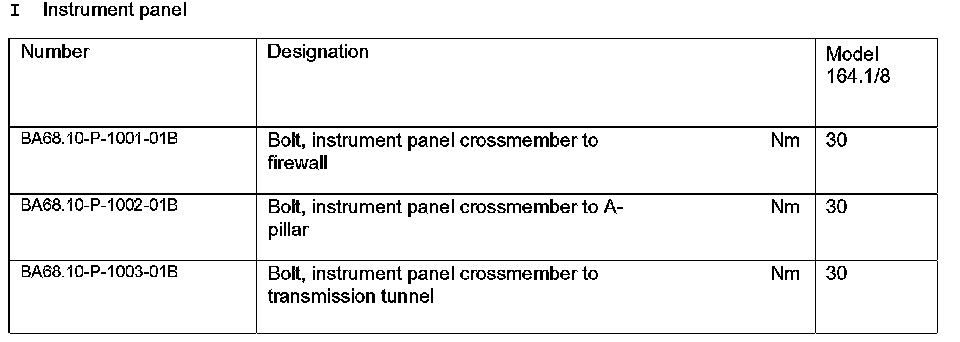

Instrument Panel:

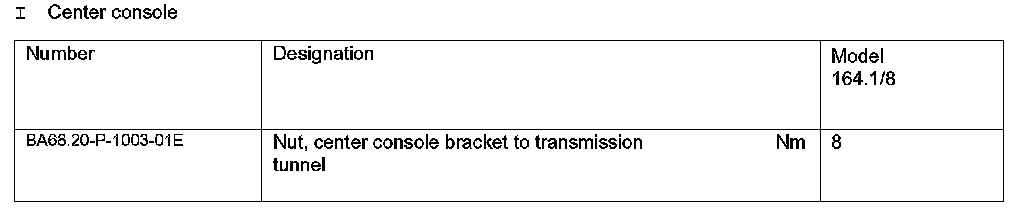

Center Console:

Airbag:

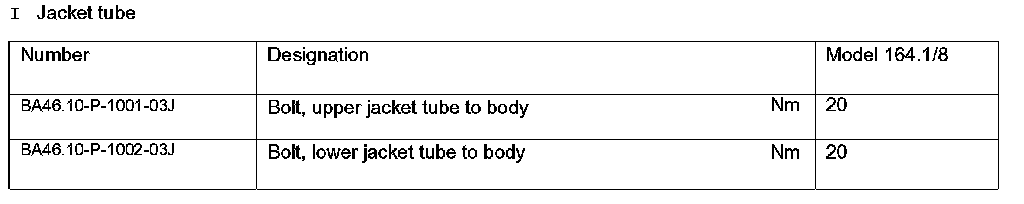

Jacket Tube:

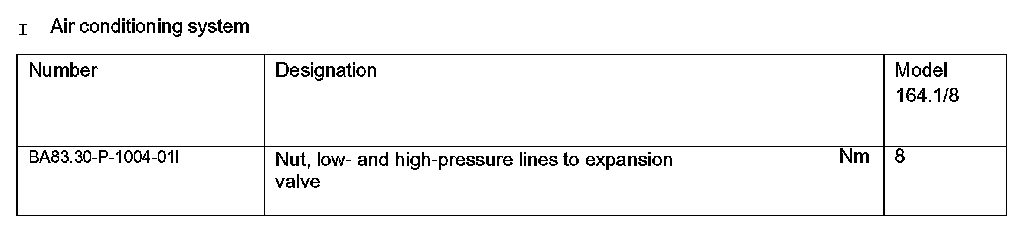

Air Conditioning System:

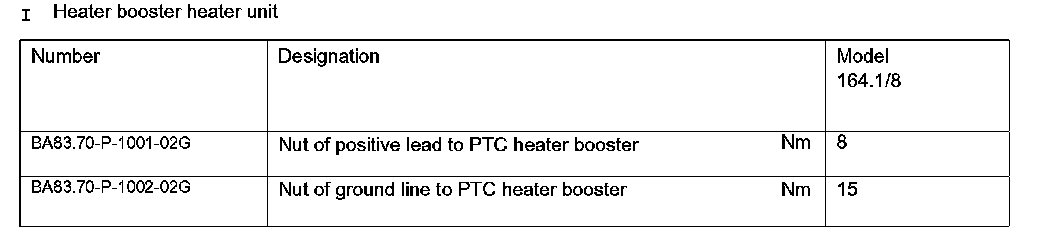

Heater Booster Heater Unit:

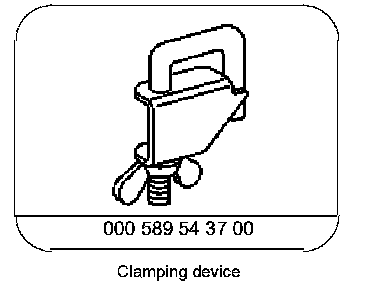

Special Tools:

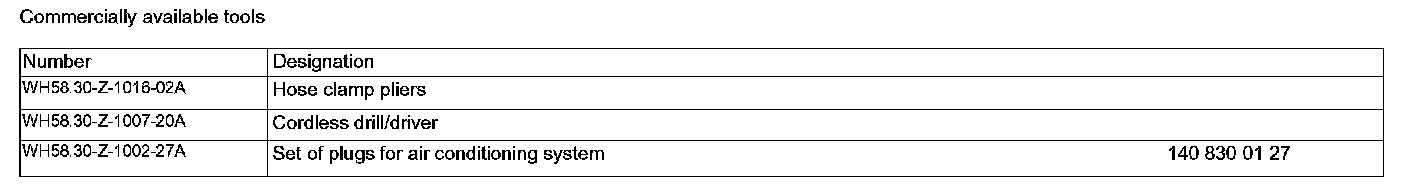

Commercially Available Tools:

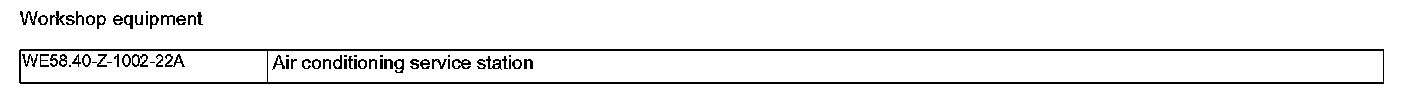

Workshop Equipment:
