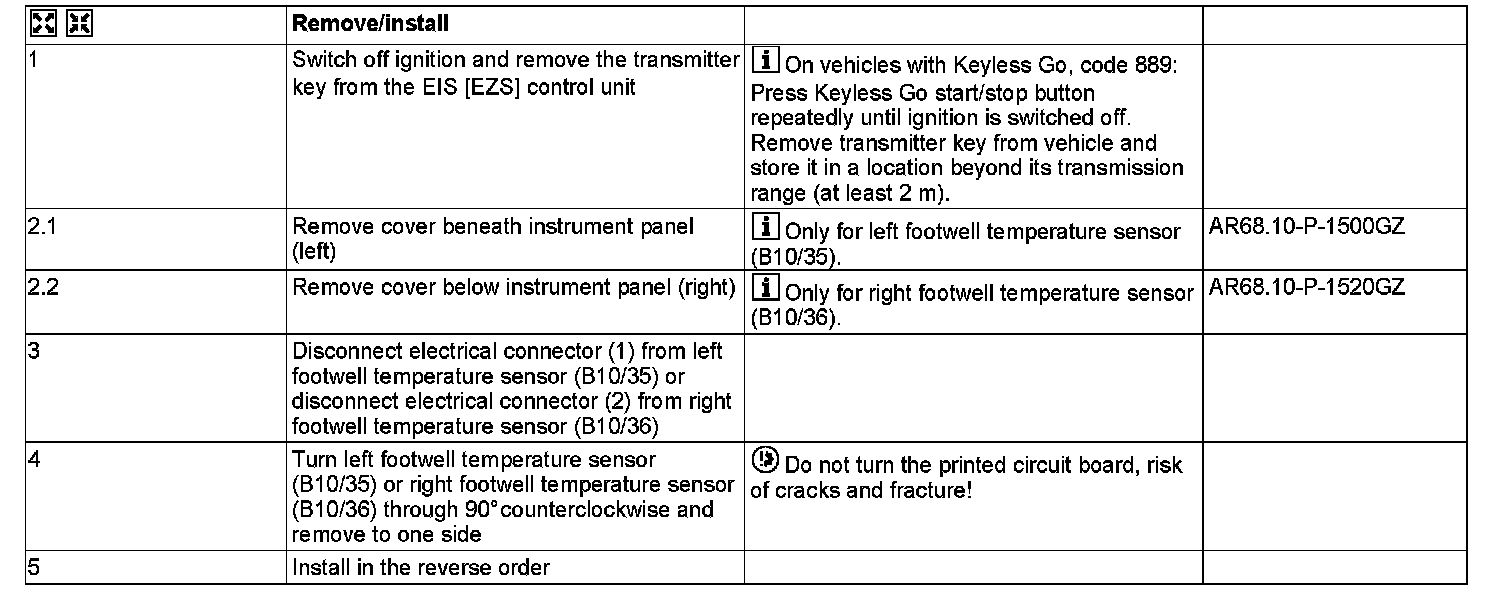

AR83.30-P-8087GZA Remove/Install Air Outlet Temperature Sensor

AR83.30-P-8087GZA Remove/Install Air Outlet Temperature Sensor

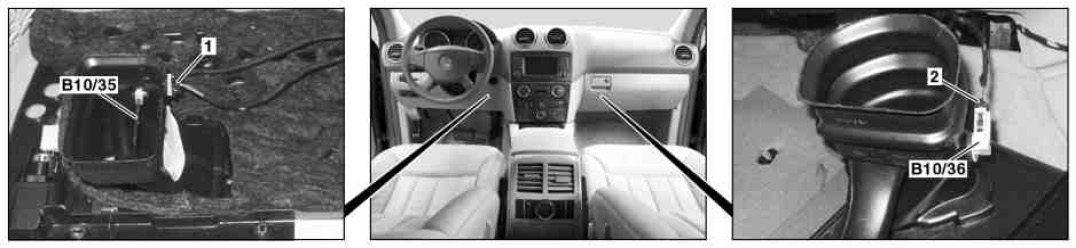

MODEL 164 footwell





Shown on model 164.1
1 Electrical connector
2 Electrical connector
B10/35 Left footwell temperature sensor
B10/36 Right footwell temperature sensor
