Intake Manifold: Service and Repair
AR09.20-P-1961GZA Remove, install the resonance intake manifold

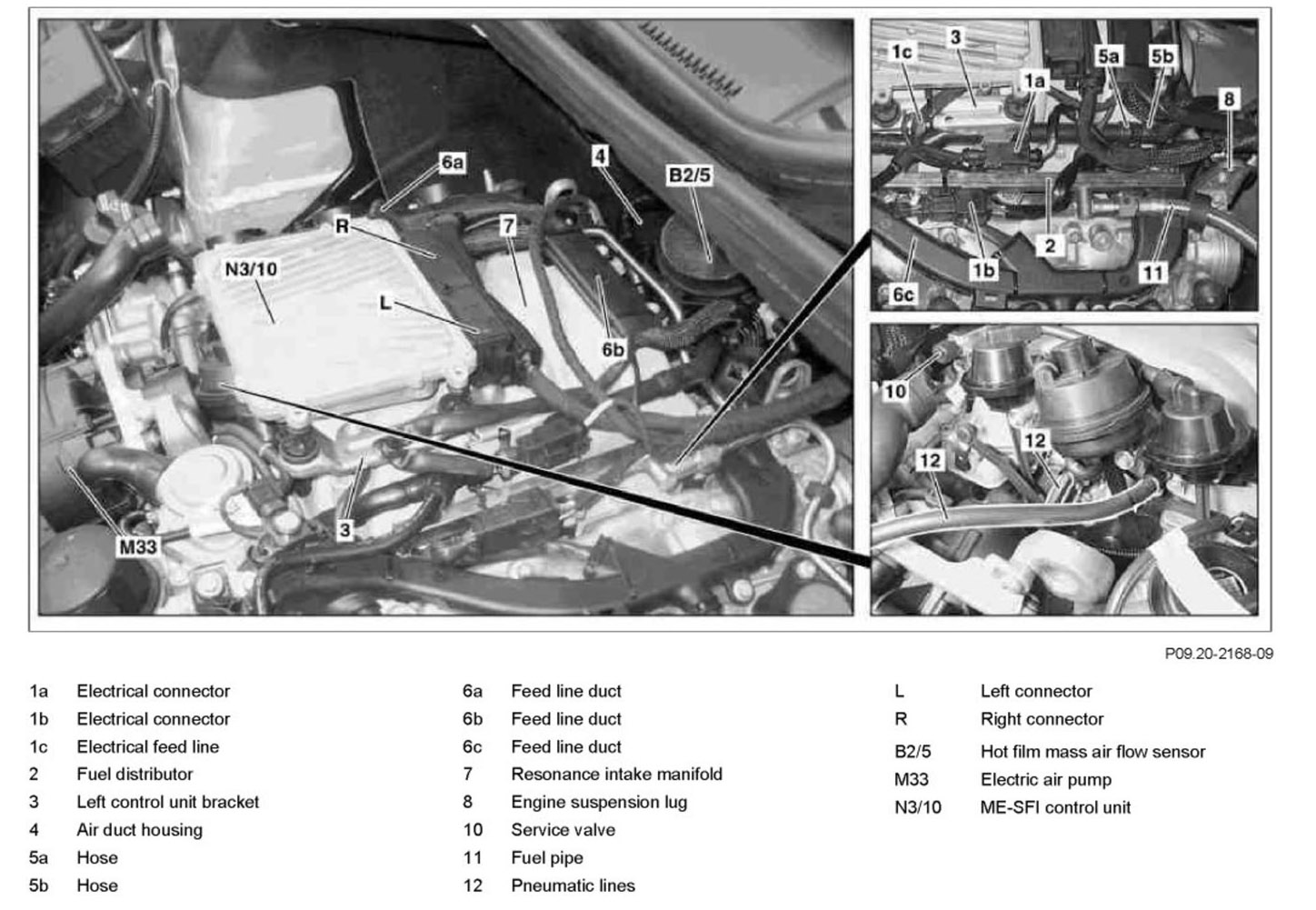

Component Identification:

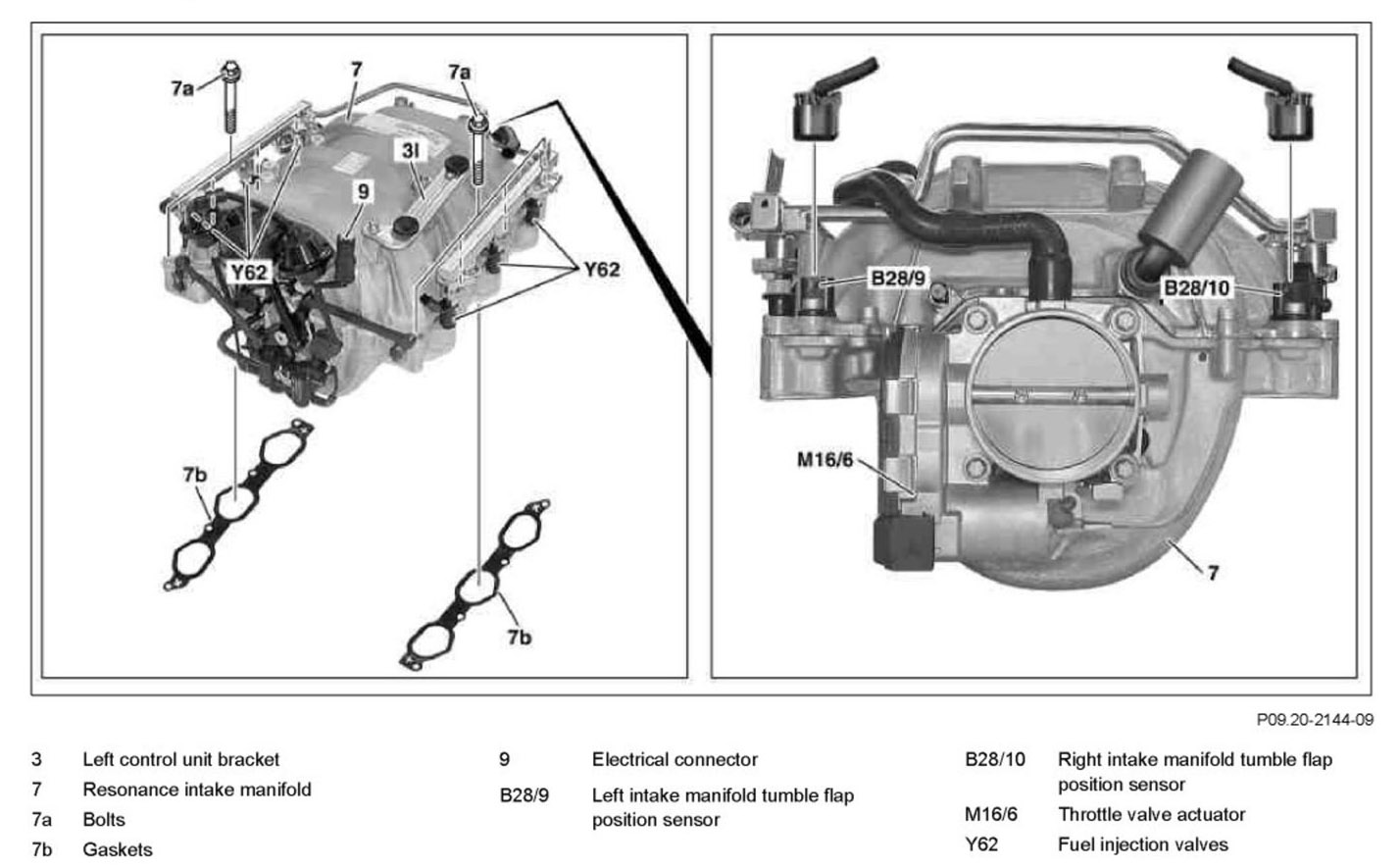

Component Identification:

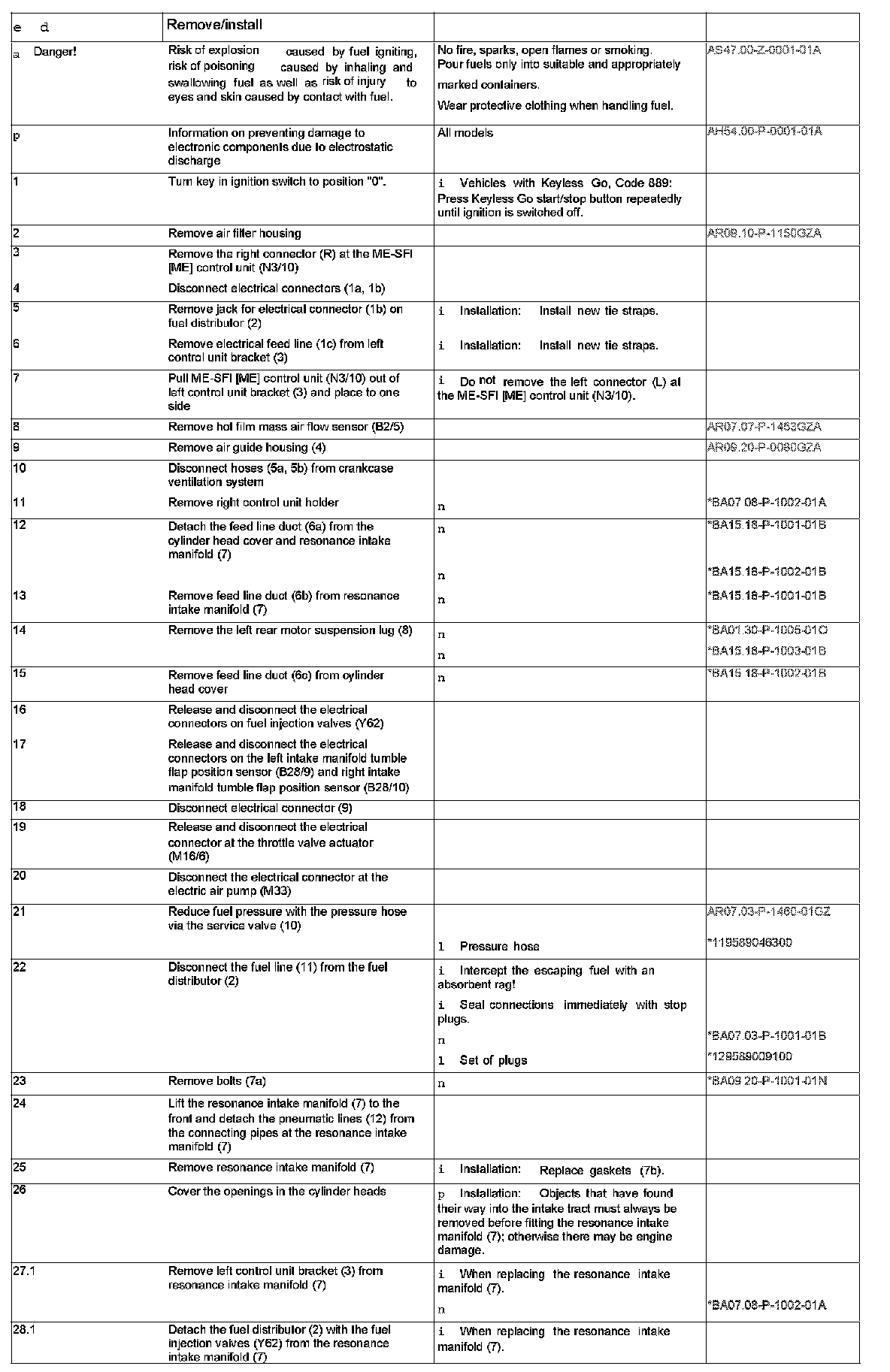

Steps 1 - 28.1:

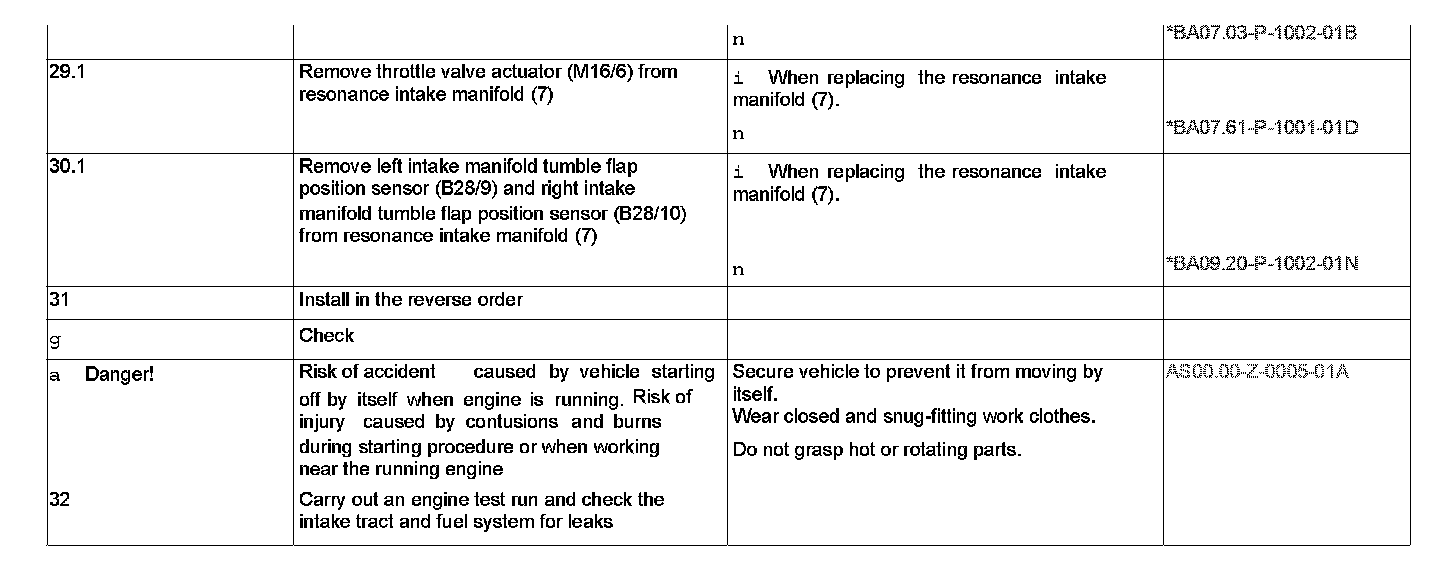

Steps 29.1 - 32:
Control Unit:

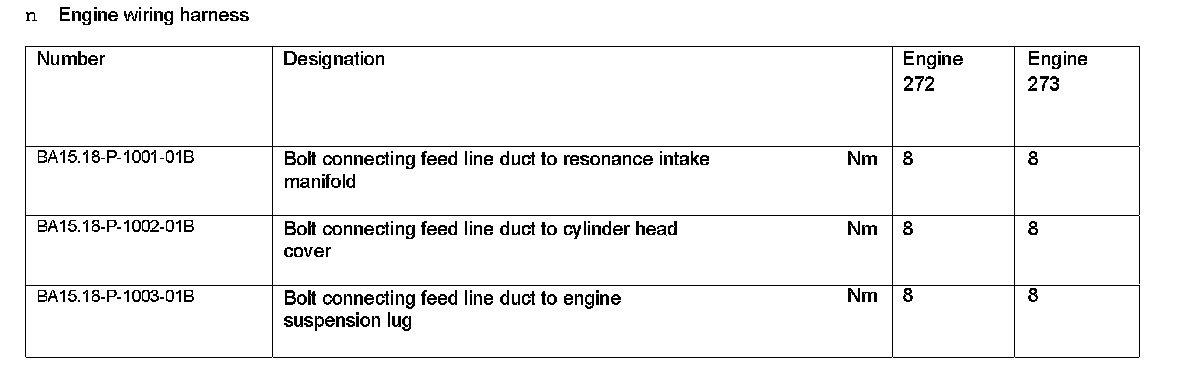

Engine Wiring Harness:

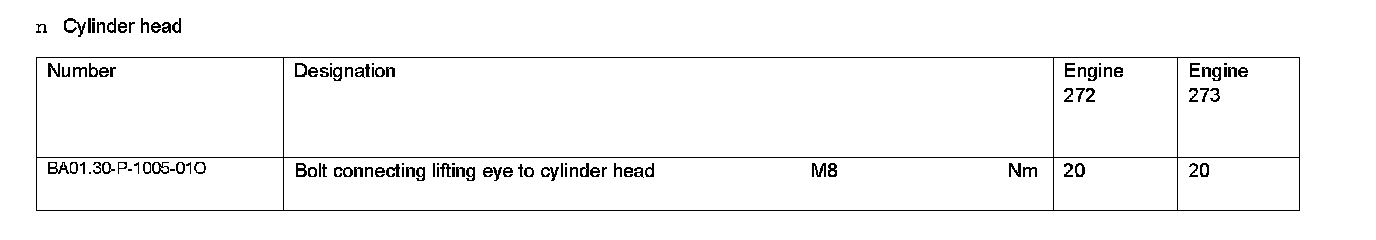

Cylinder Head:

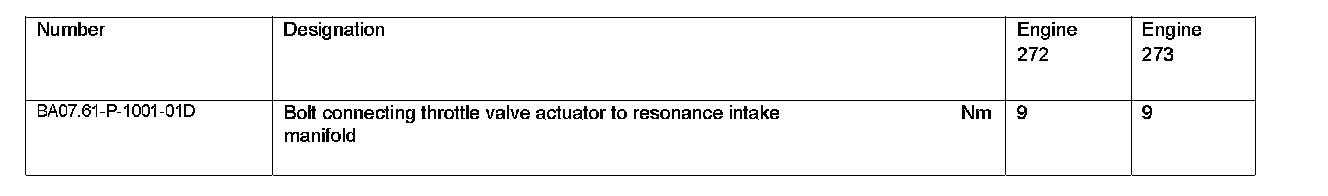

Injection Nozzles, Injection Valves, Lines:

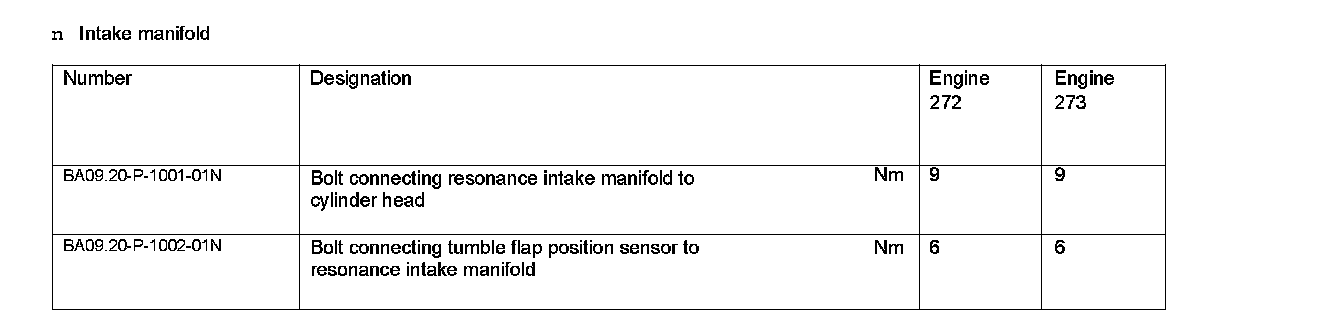

Intake Manifold:
ME-SFI Fuel Injection And Ignition System:

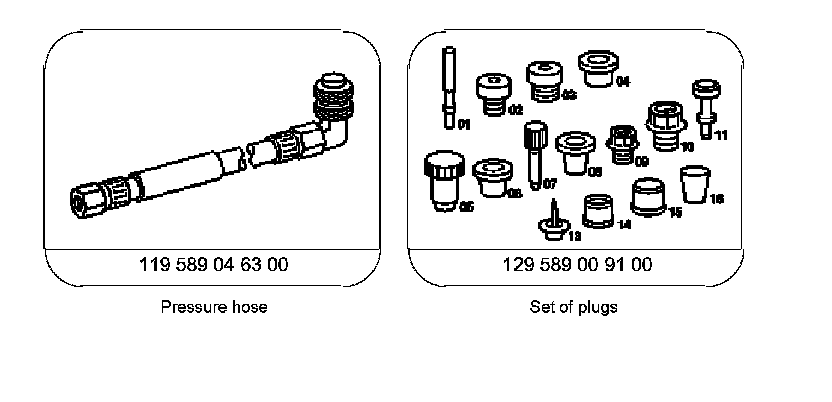

Special Tools:
