Brake Rotor/Disc: Service and Repair

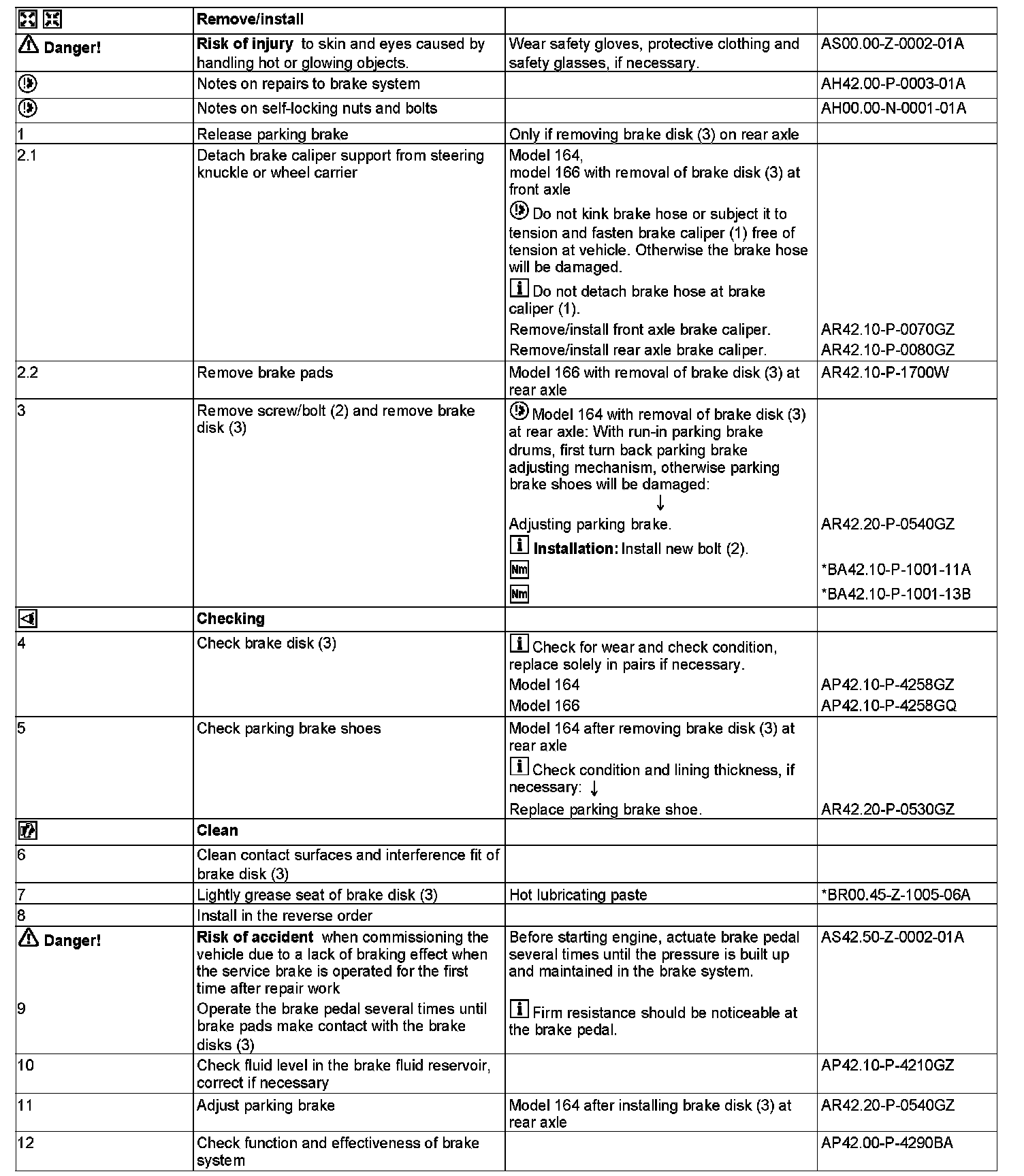

AR42.10-P-0220GZ Remove/Install Brake Disc
MODEL 164, 166

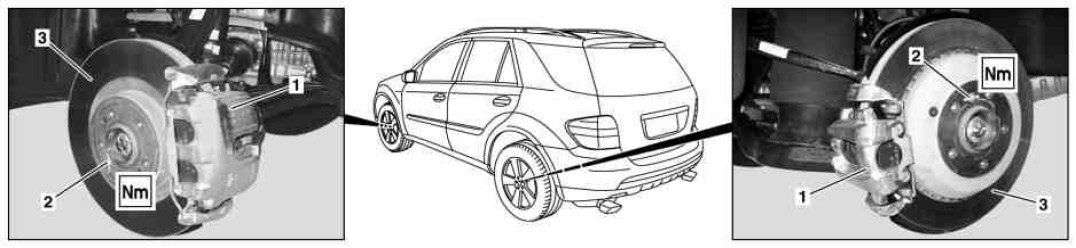

Shows model 164

1 Brake caliper
2 Screw
3 Brake disk
