Procedures

AZ88.30-P-0009GZ Retrofit Optical Underride Guard
- except CODE (U89) Offroad appearance package
- except CODE (772) AMG styling package - front spoiler, side skirts and rear apron

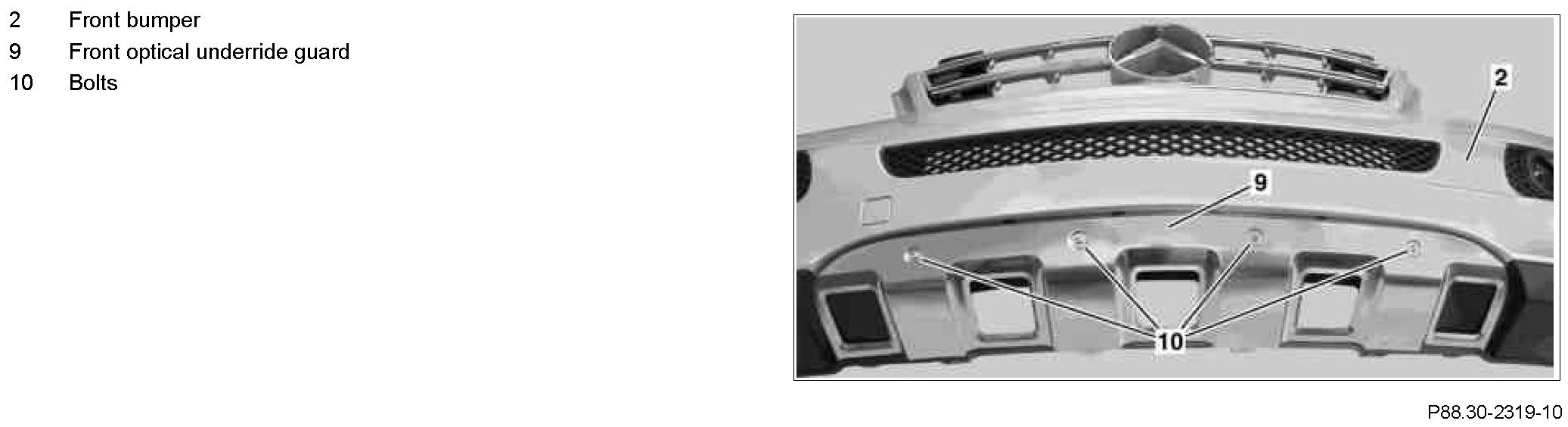

Component Identification:

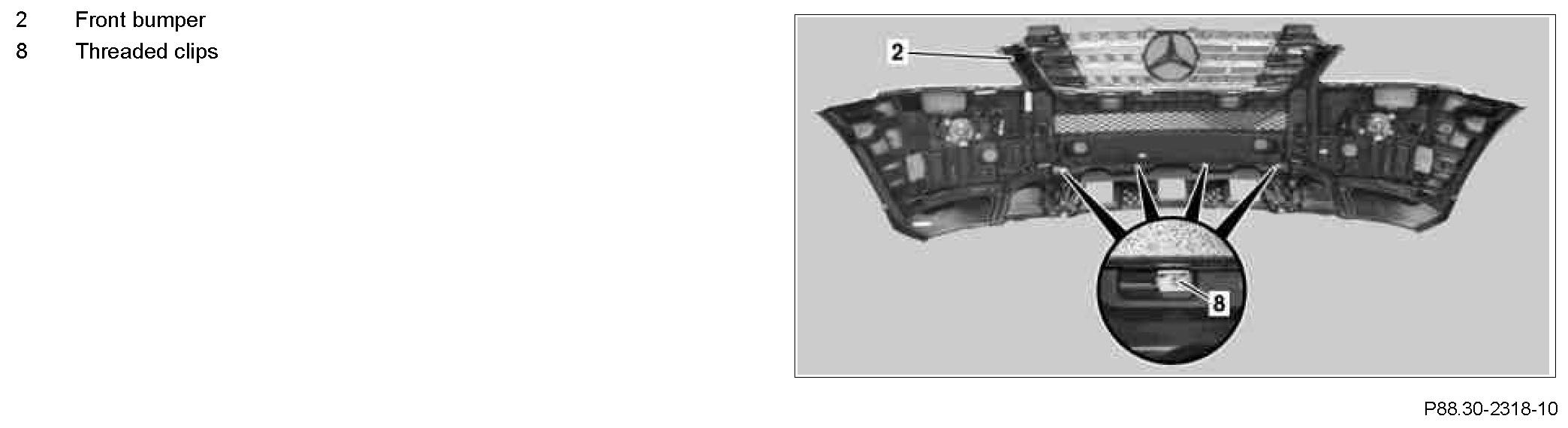

Component Identification:

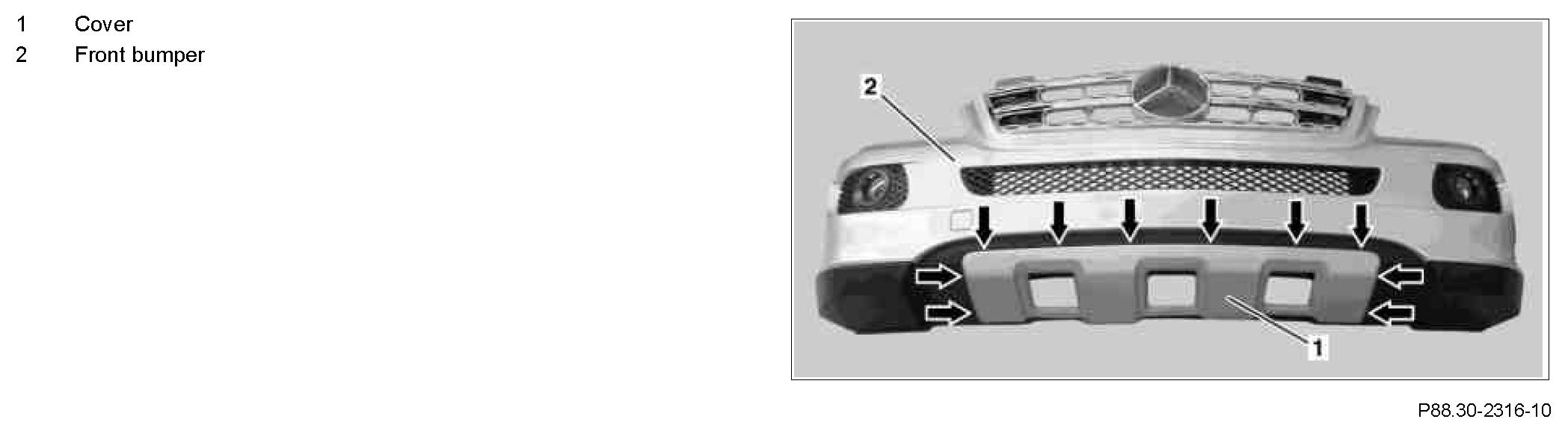

Component Identification:

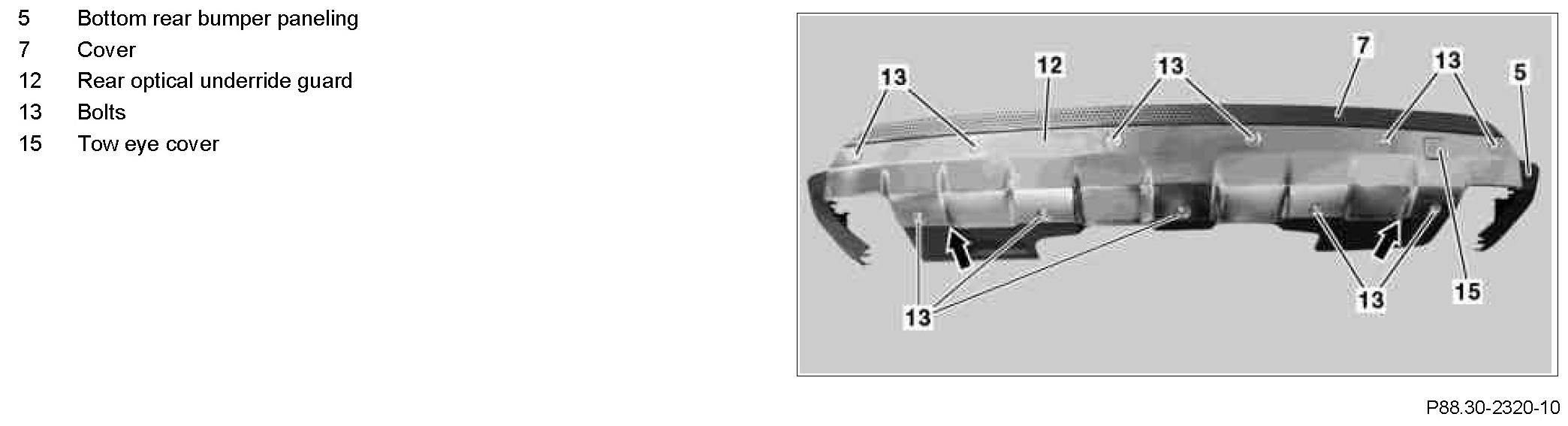

Component Identification:

Component Identification:

Component Identification:

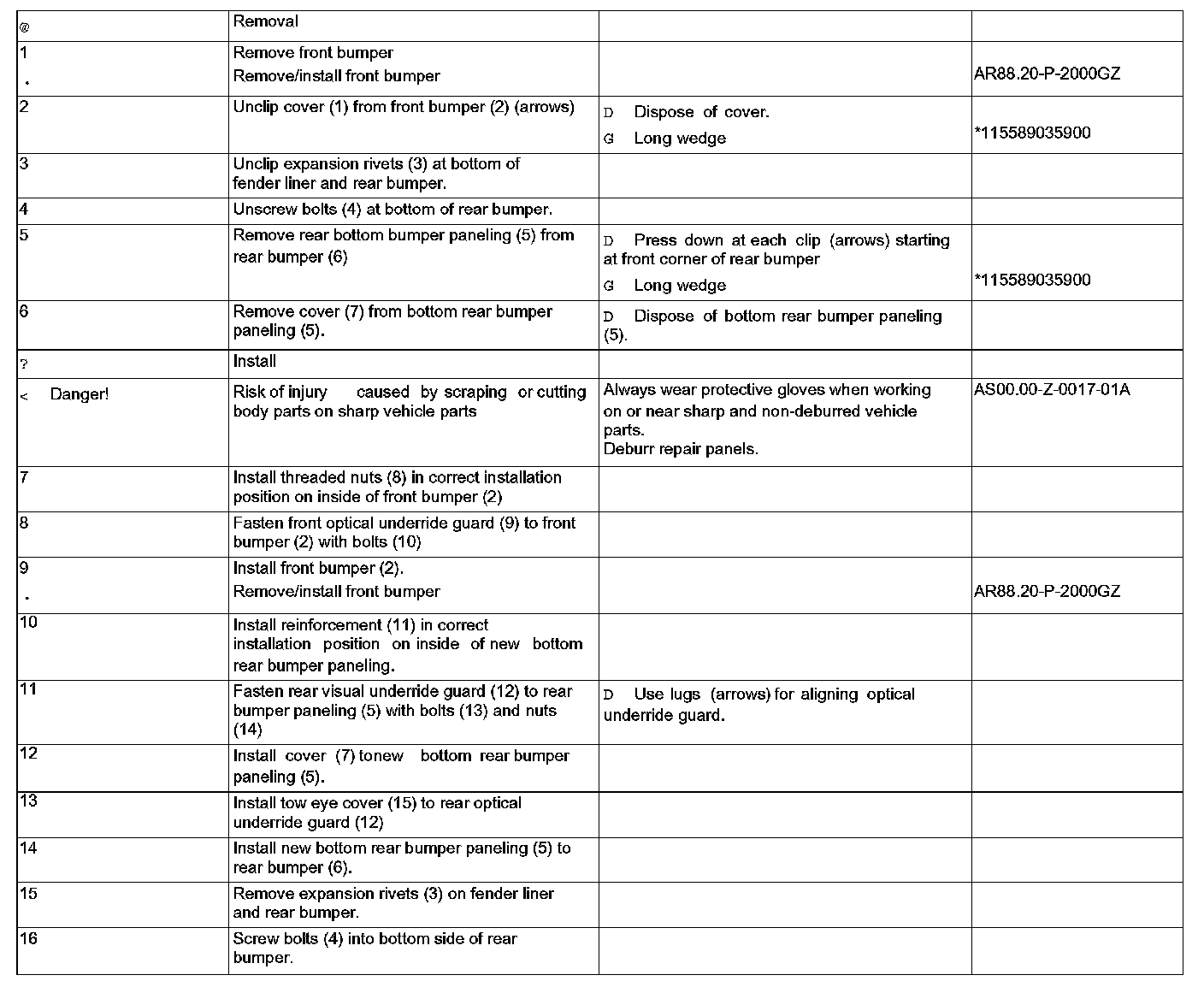

Steps 1 - 16:

Special Tools:

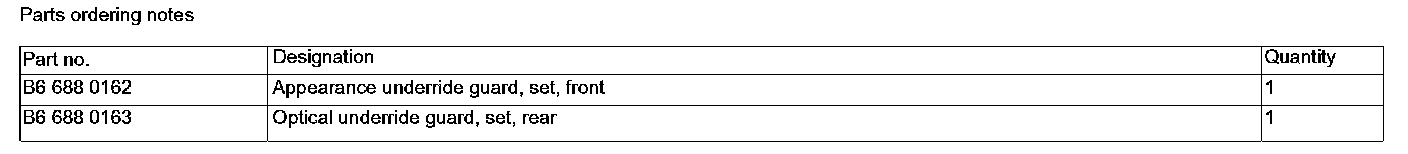

Parts Ordering Notes:
