Front Fender: Service and Repair
AR88.10-P-1000GZ Remove/Install Front Fenders

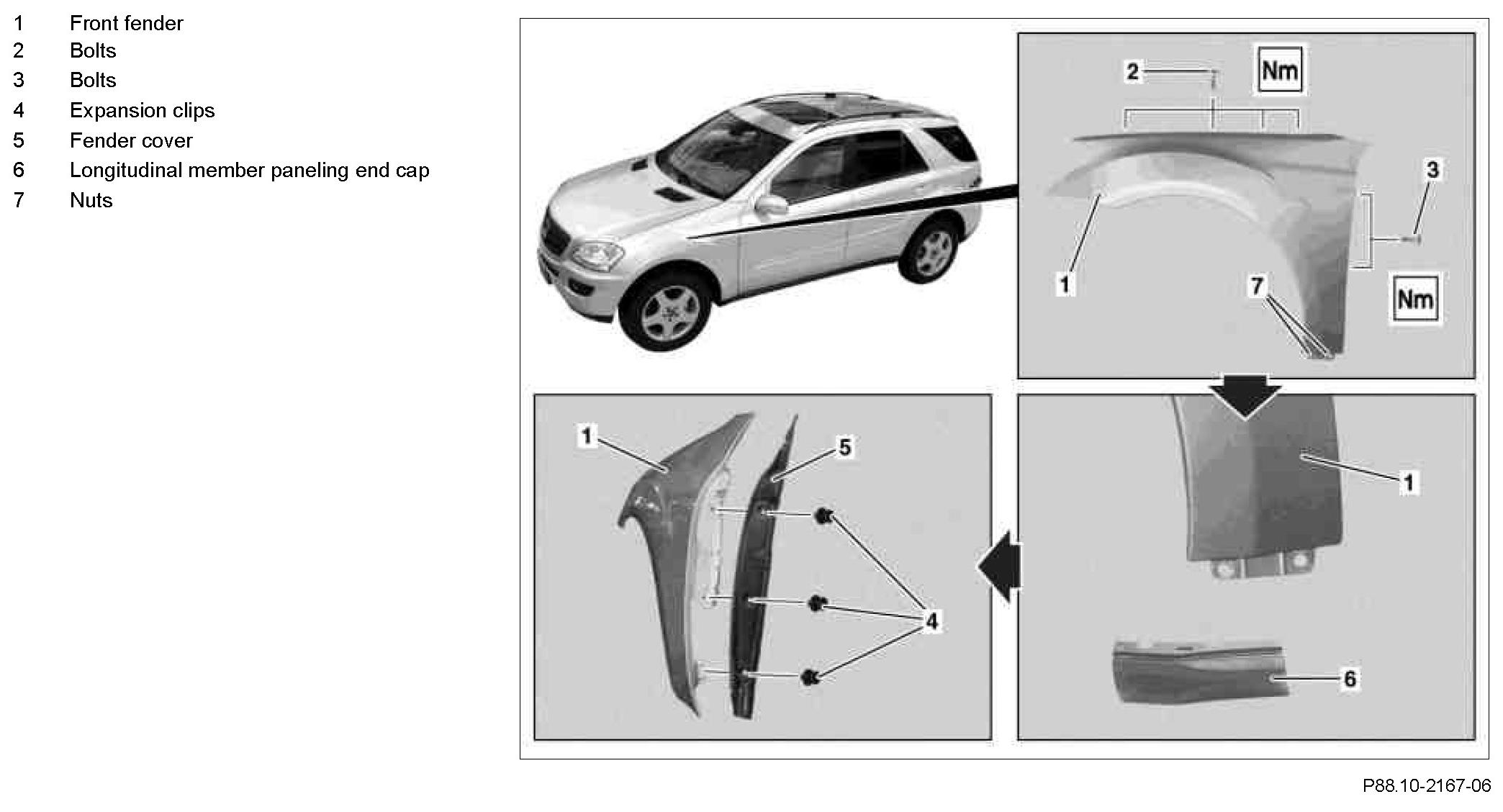

Component Identification:

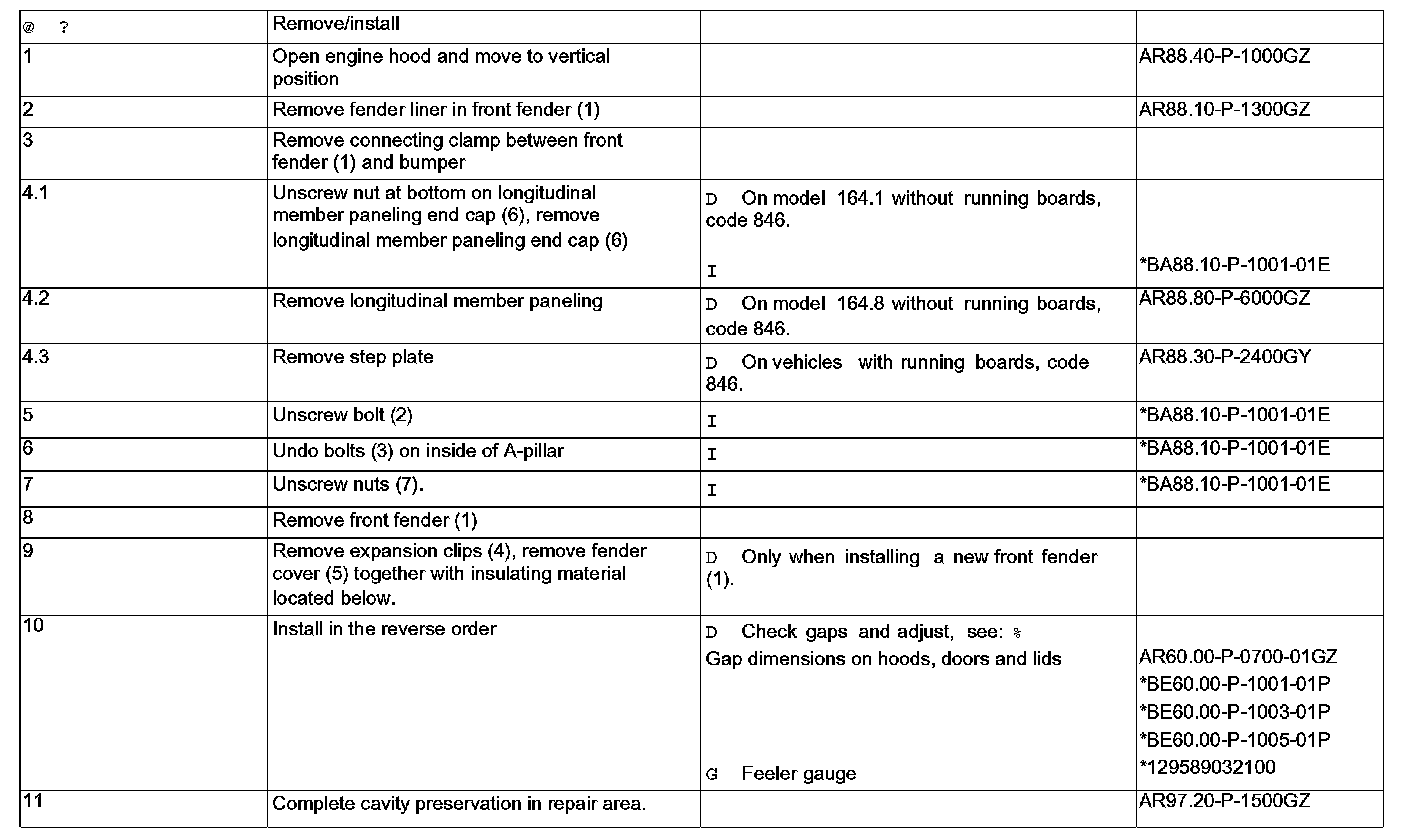

Steps 1 - 11:

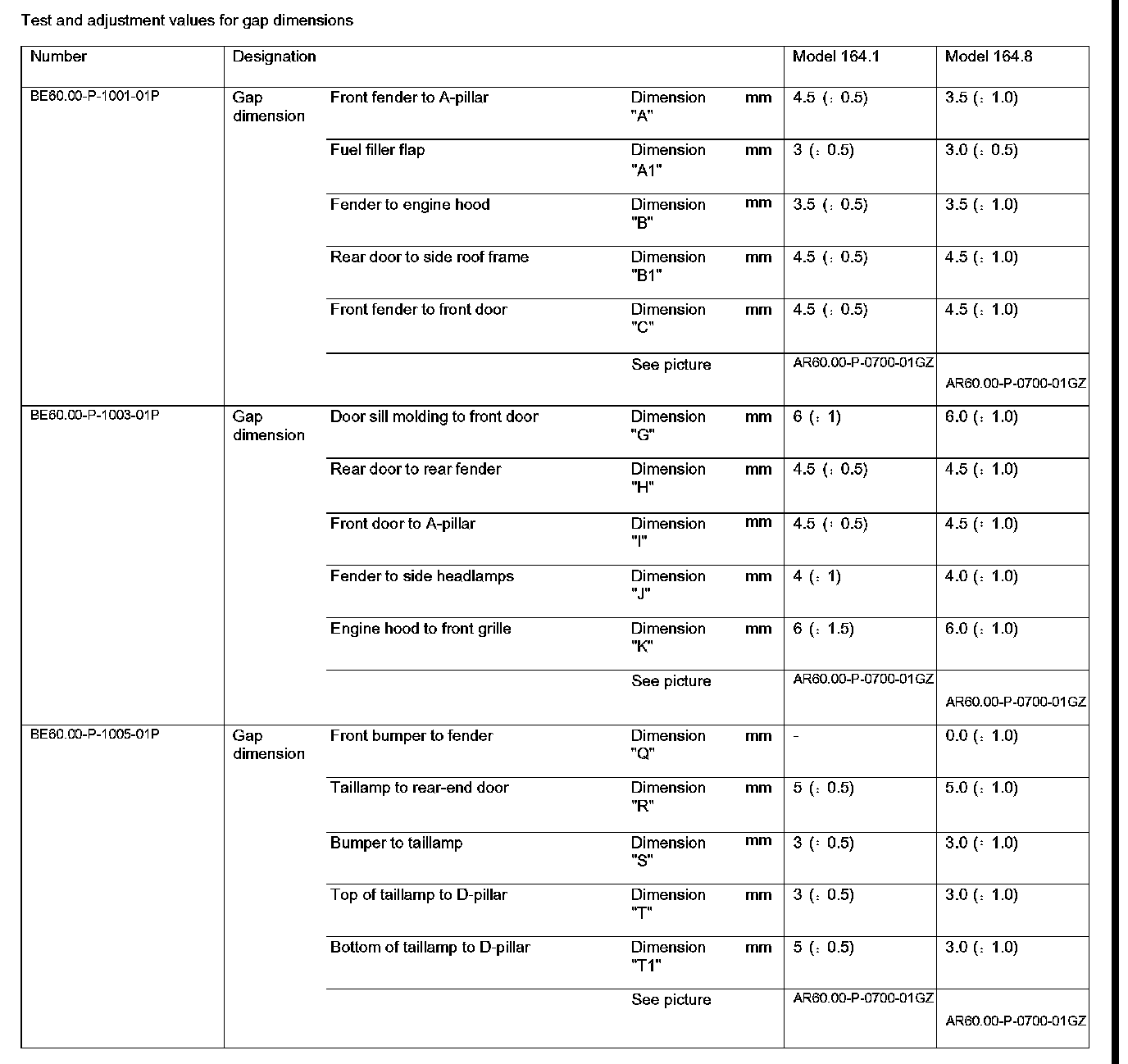

Test And Adjustment Values For Gap Dimensions:

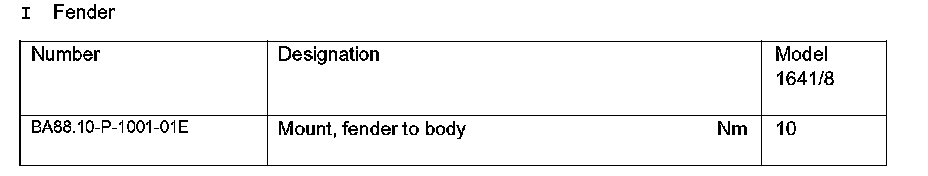

Fender:

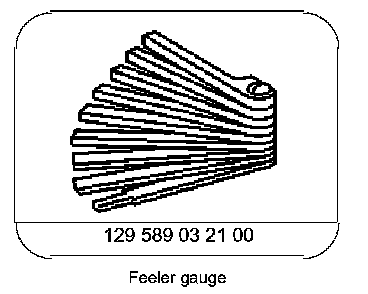

Special Tools:
