AR88.10-P-1310GZ Remove/Install Fender Liner Front Section In Front Fender



AR88.10-P-1310GZ Remove/Install Fender Liner Front Section In Front Fender

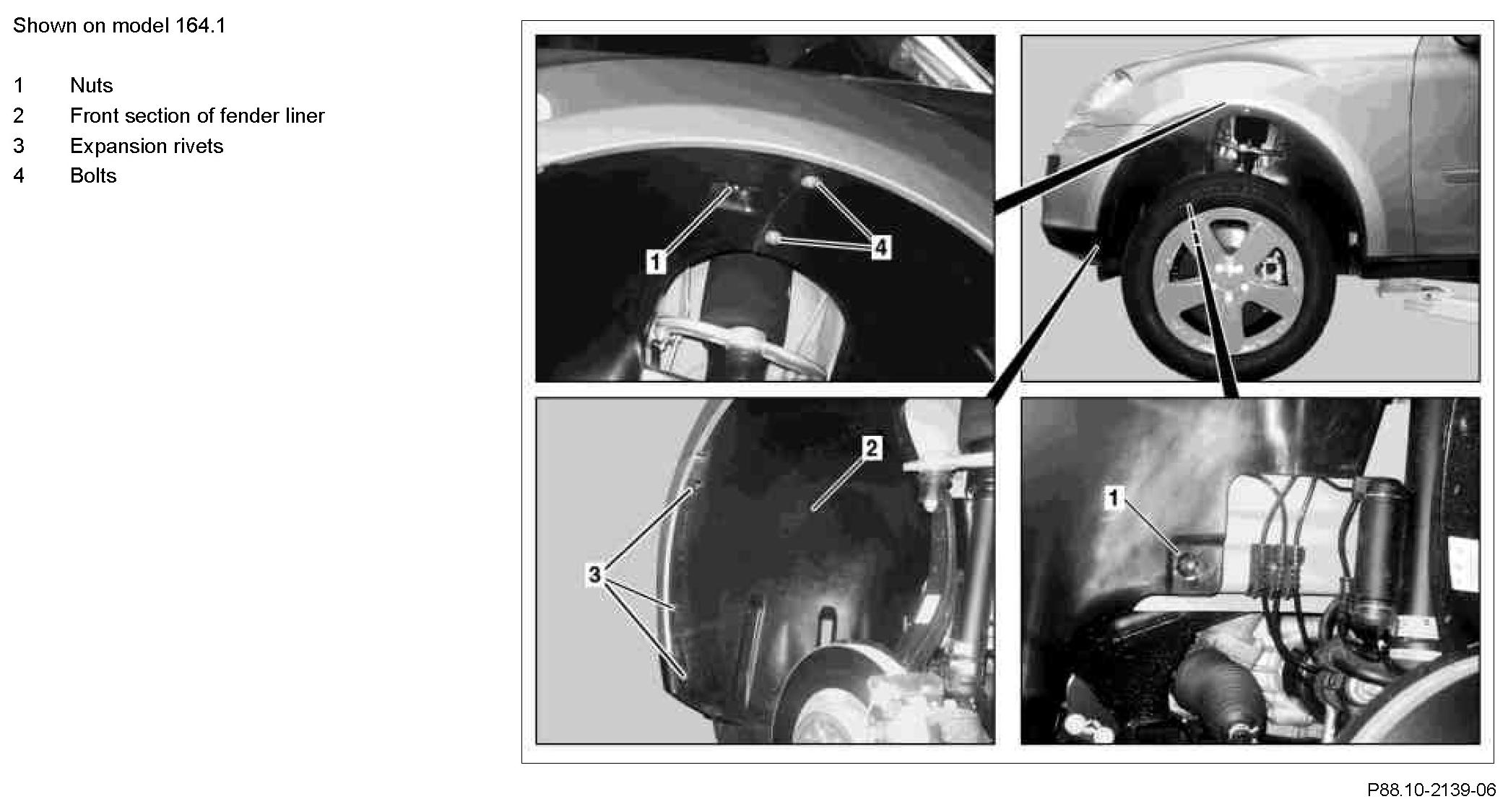

Component Identification:

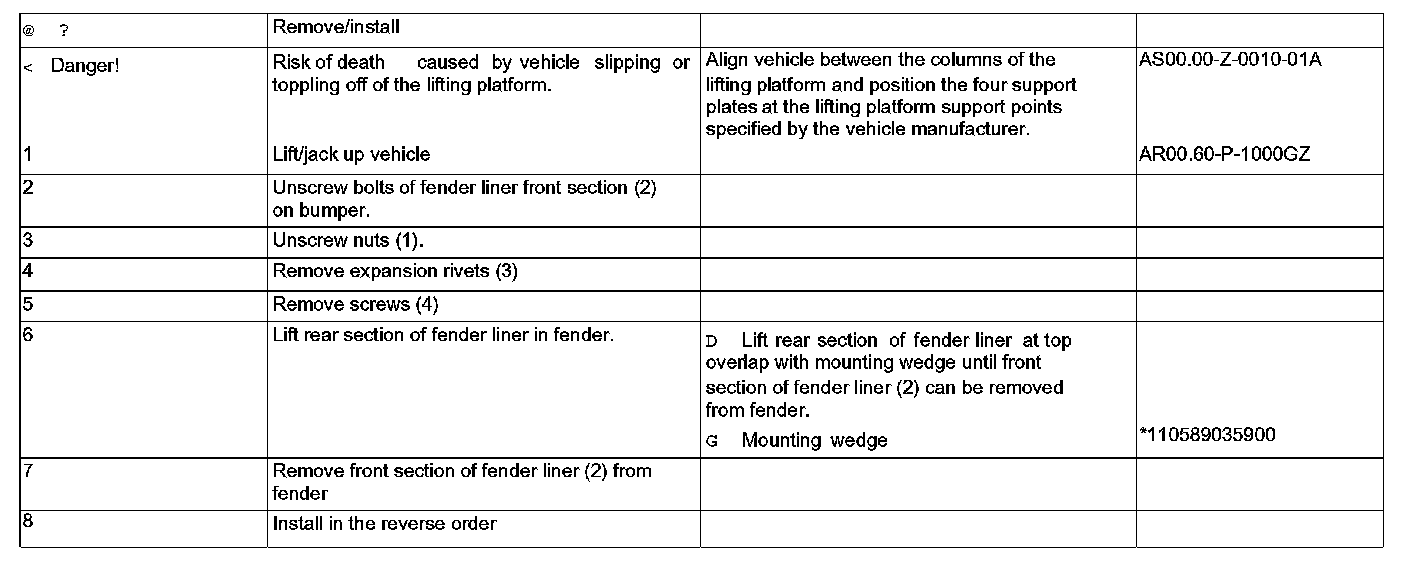

Steps 1 - 8:

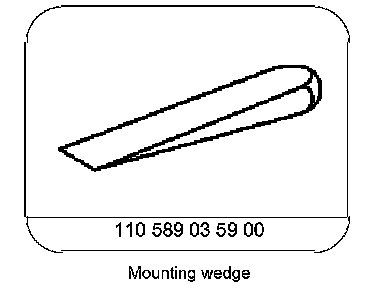

Special Tools:
