Starter Motor: Service and Repair

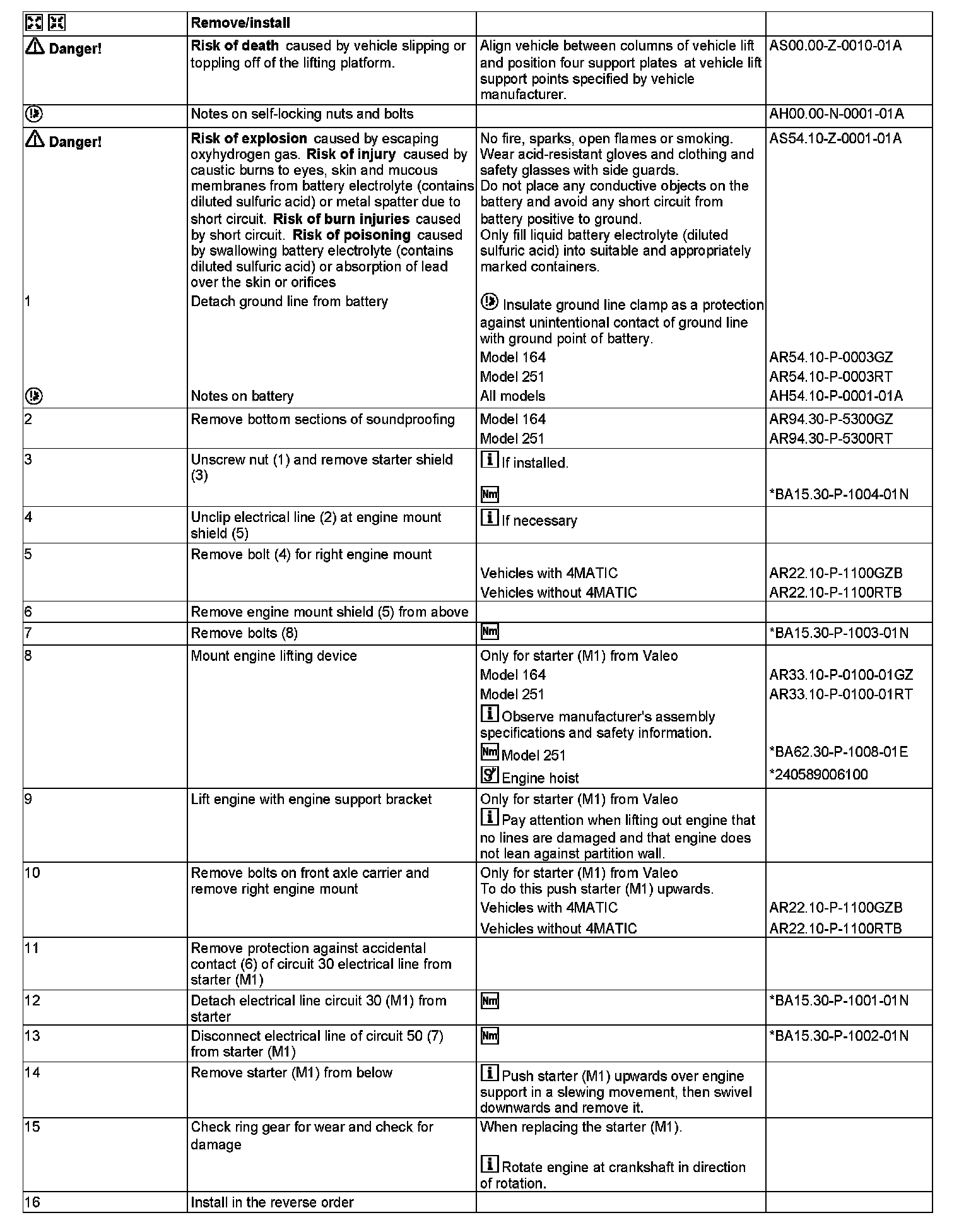

AR15.30-P-7100GZB Remove/Install Starter
ENGINES 642 in MODEL 164, 251

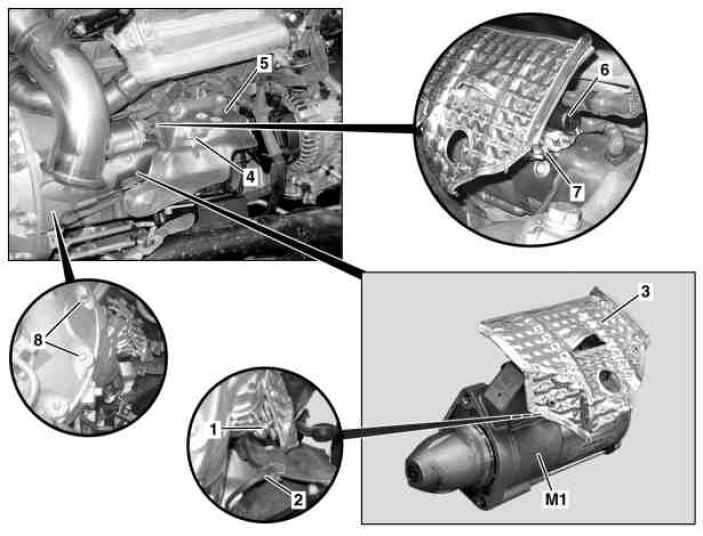

1 Nut
2 Electrical line
3 Starter shield
4 Screw
5 Engine mount shield
6 Contact protection
7 Electric cable circuit 50
8 Bolts

M1 Starter

















240 589 00 61 00
Engine lifting fixture
