AR15.20-P-4111GZB Remove/Install Glow Plugs



AR15.20-P-4111GZB Remove/install glow plugs

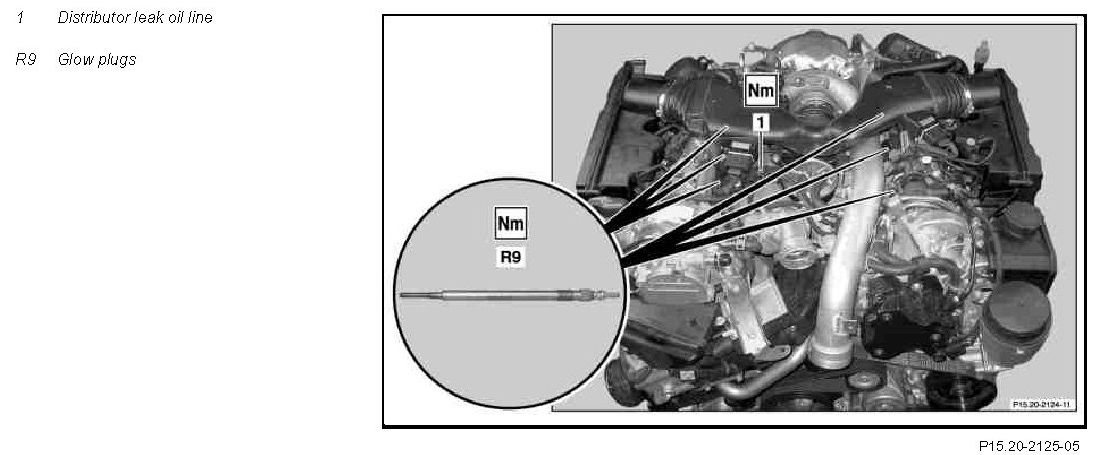

Component Identification:

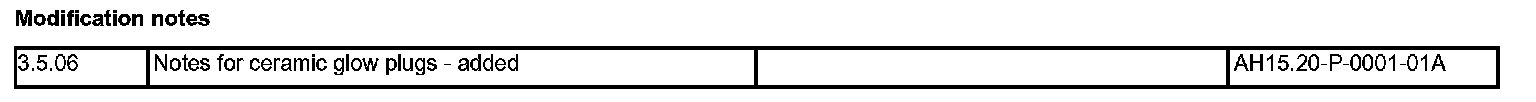

Modification notes:

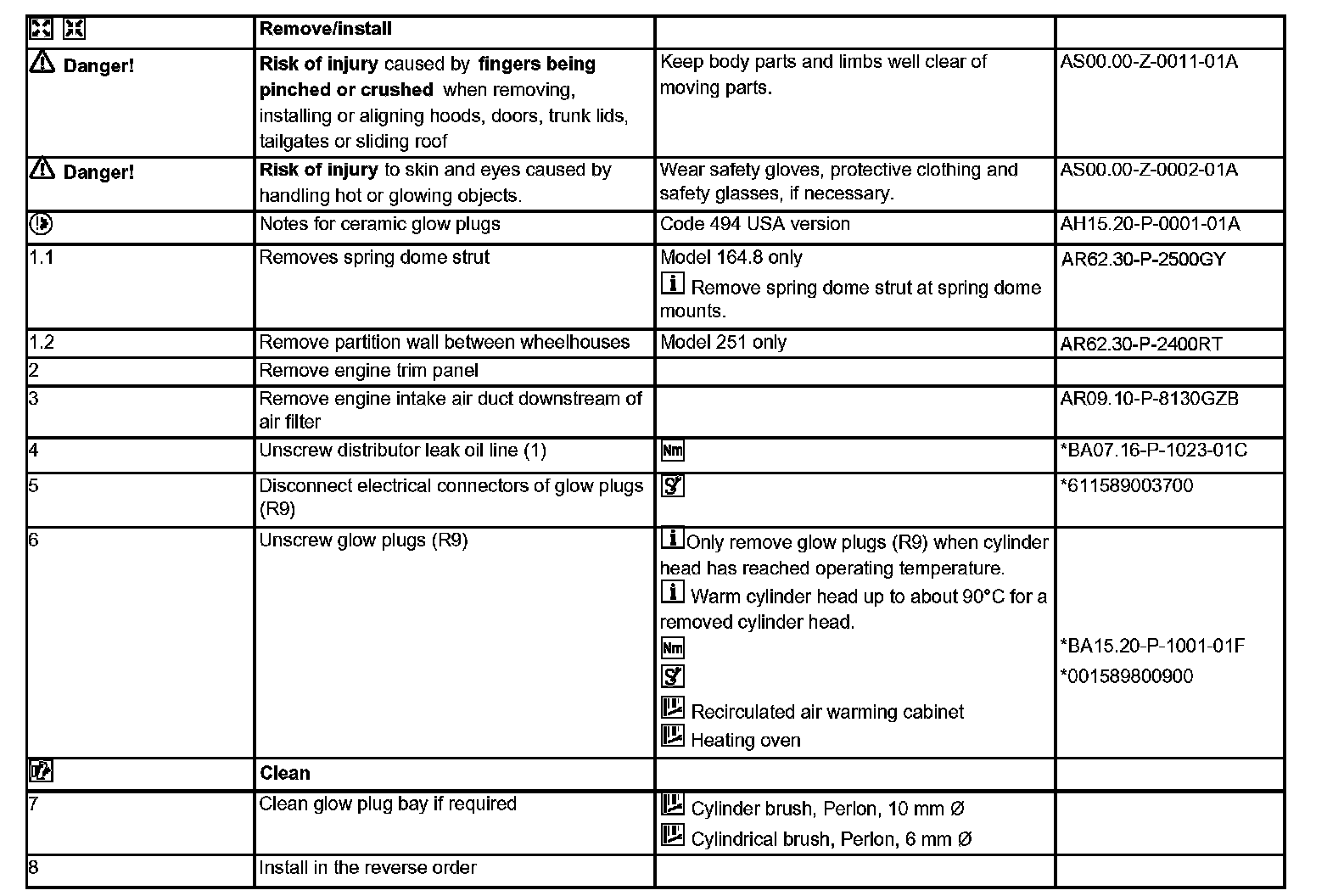

Remove/install Steps 1.1-8:




Preglow system:

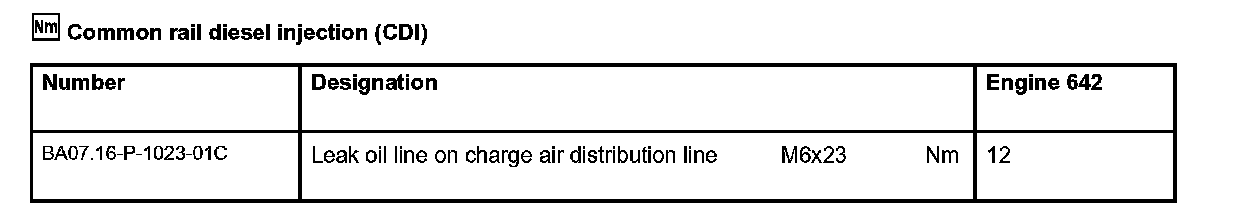

Common rail diesel injection (CDI):

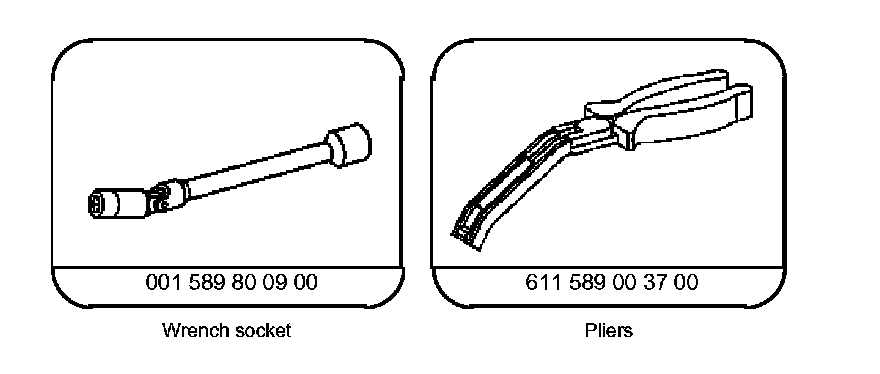

Special Tools:
