EGR Cooler: Service and Repair



AR14.20-P-7665GZB Remove/install exhaust gas recirculation cooler

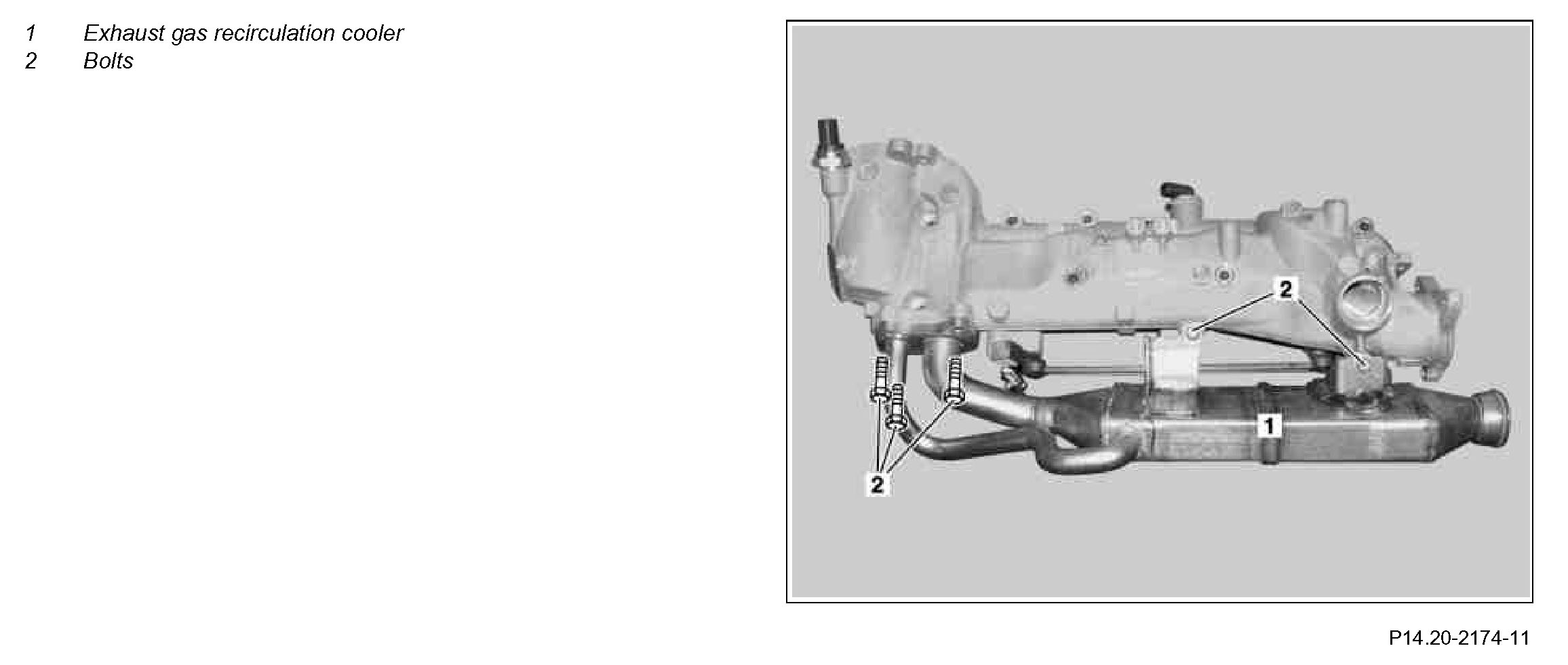

Component Identification:

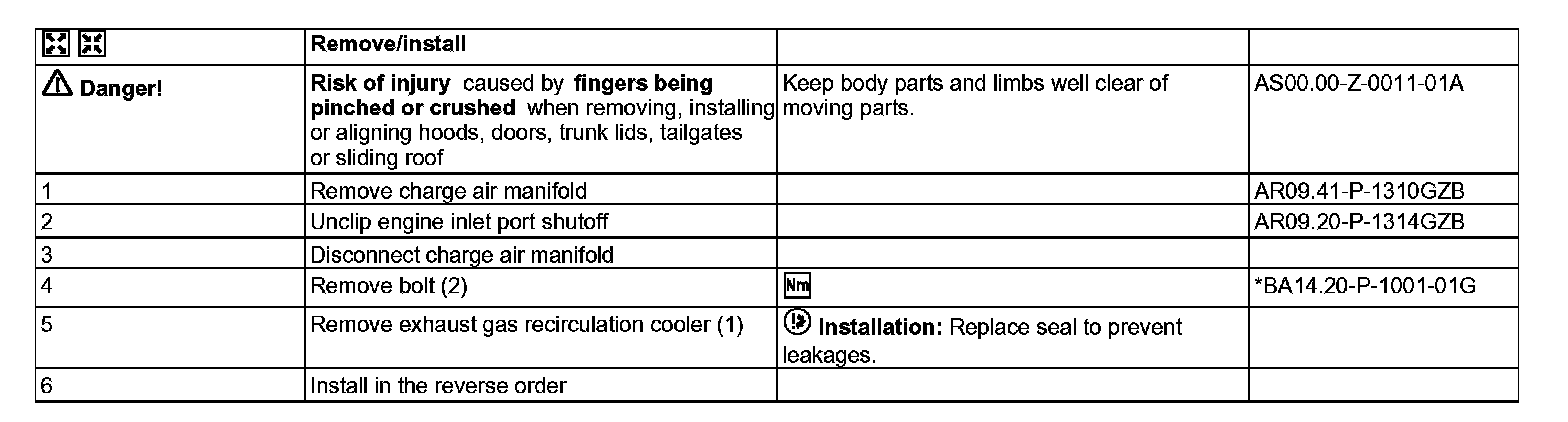

Steps 1-6:

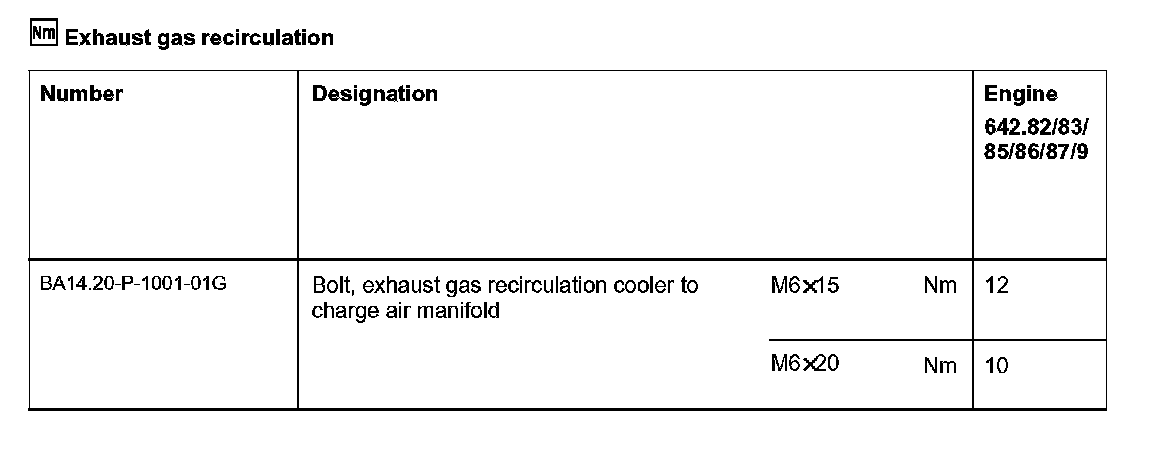

Exhaust gas recirculation:
