AR14.40-P-2014GZB Remove/Install Adblue Tank

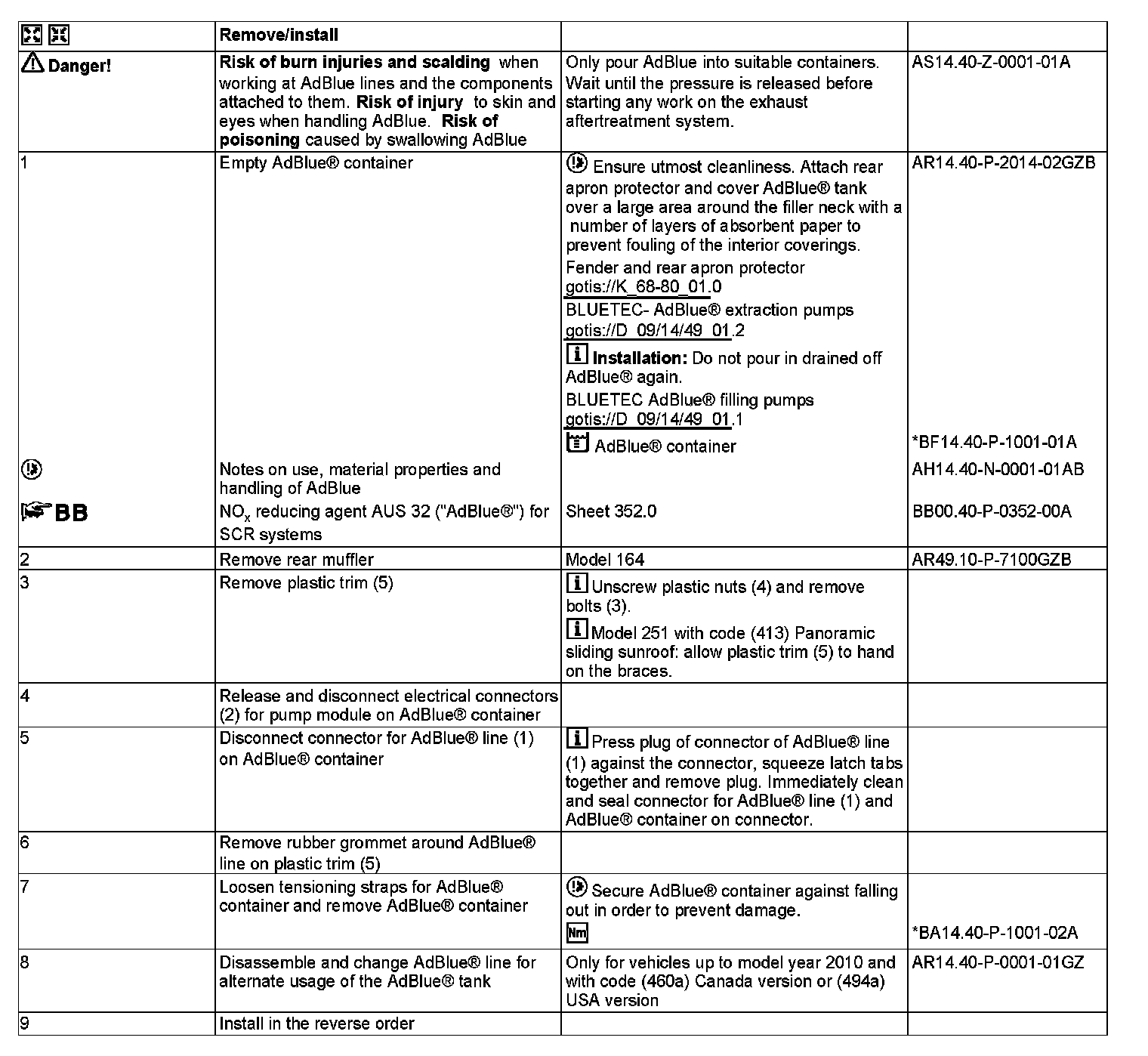

AR14.40-P-2014GZB Remove/Install AdBlue Tank
ENGINES 642 in MODEL 164, 251
- with CODE (U42) BlueTEC (SCR) diesel exhaust treatment

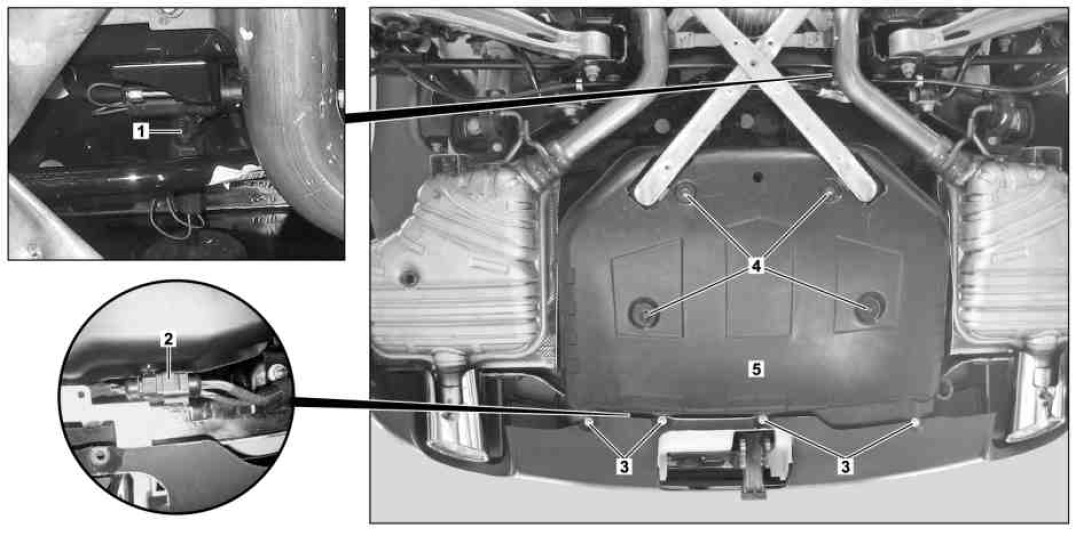

1 Connection for AdBlue(R) line
2 Electrical connectors
3 Bolts
4 Plastic nuts
5 Plastic trim
