Removal and Replacement

AP18.00-P-0101TQ Engine oil and filter change

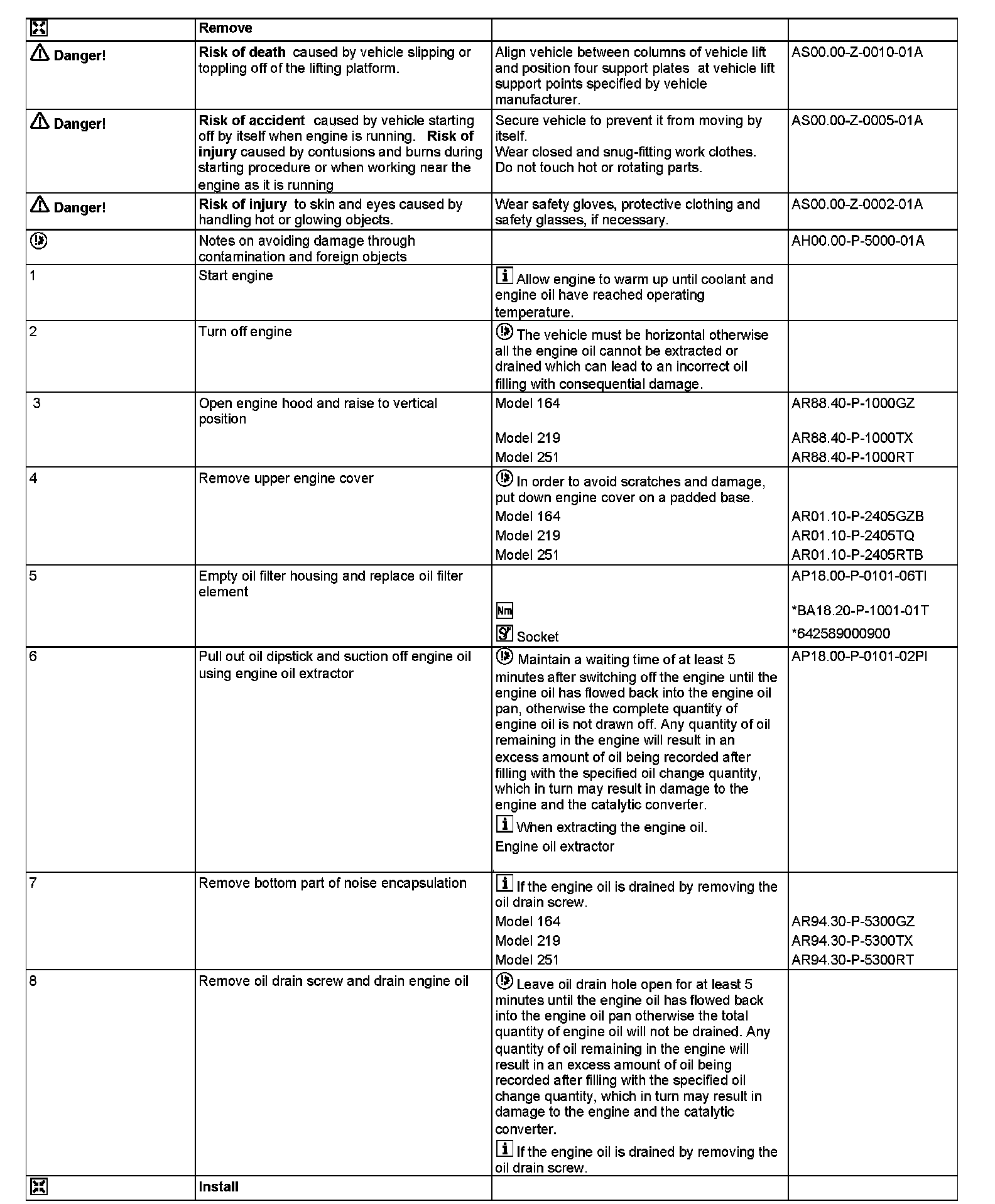

Steps 1-8:

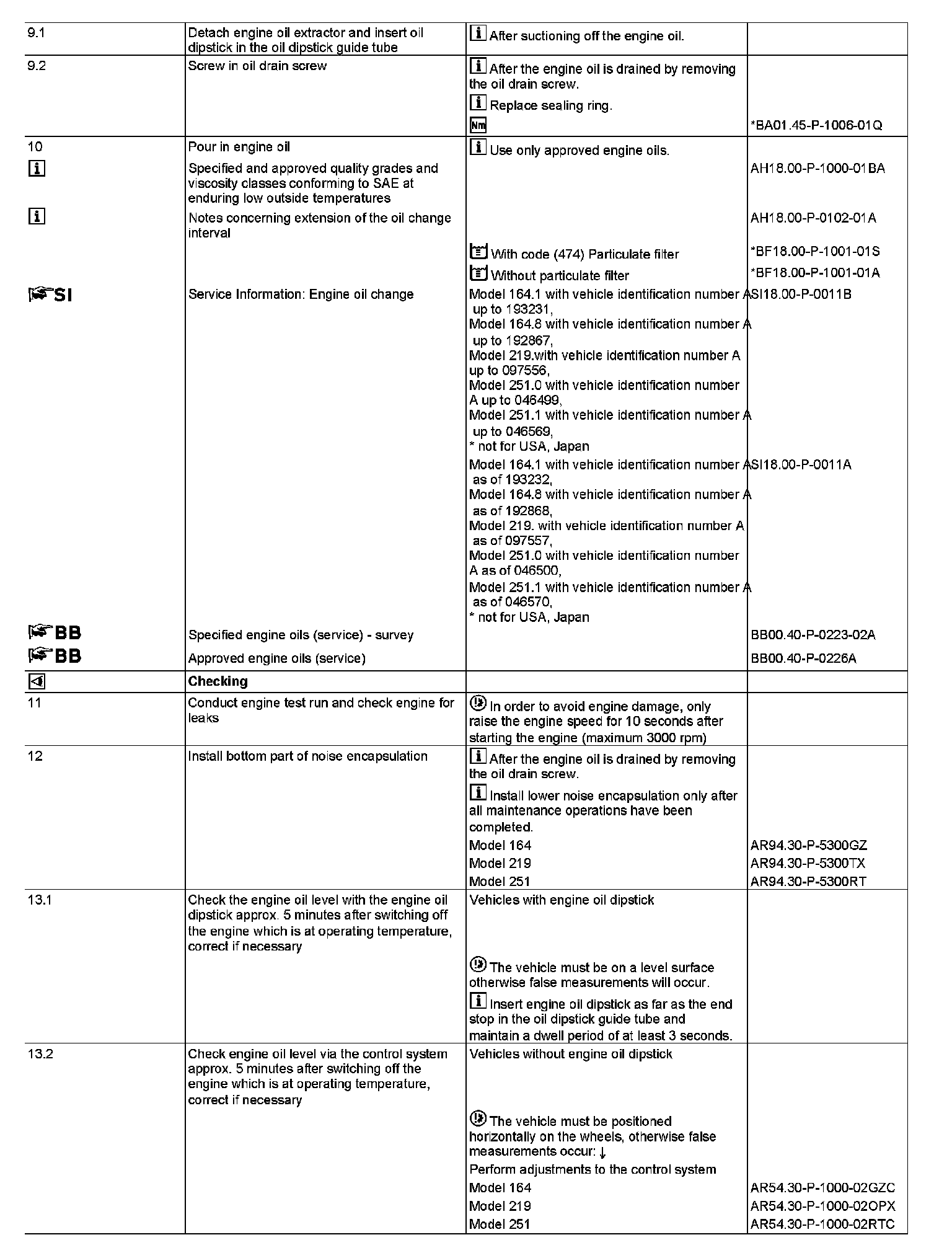

Steps 9.1-13.2:

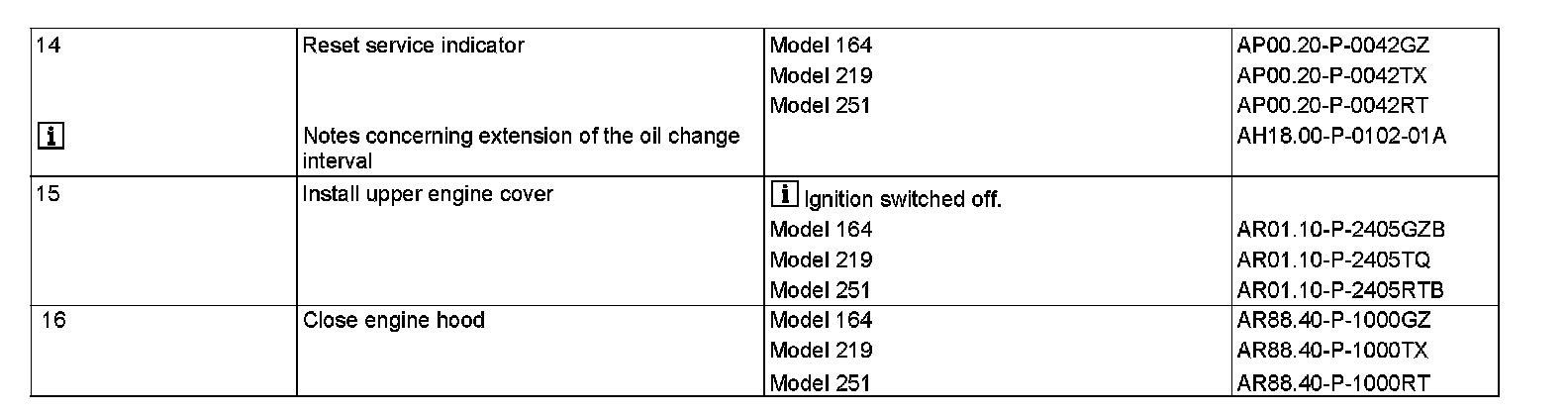

Steps 14-16:

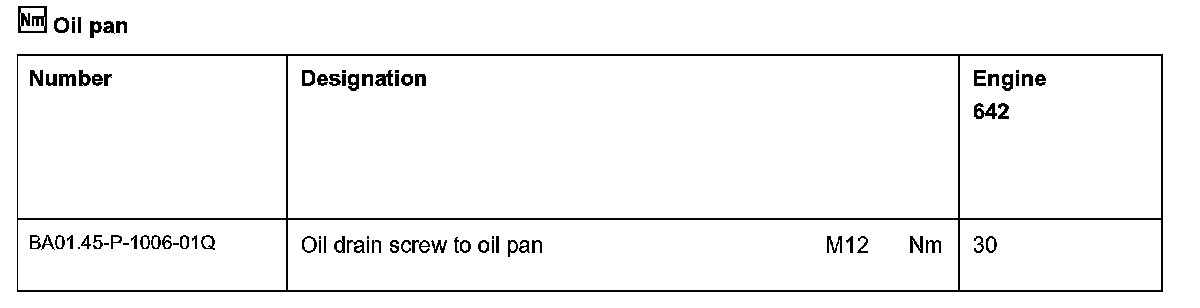

Oil pan:

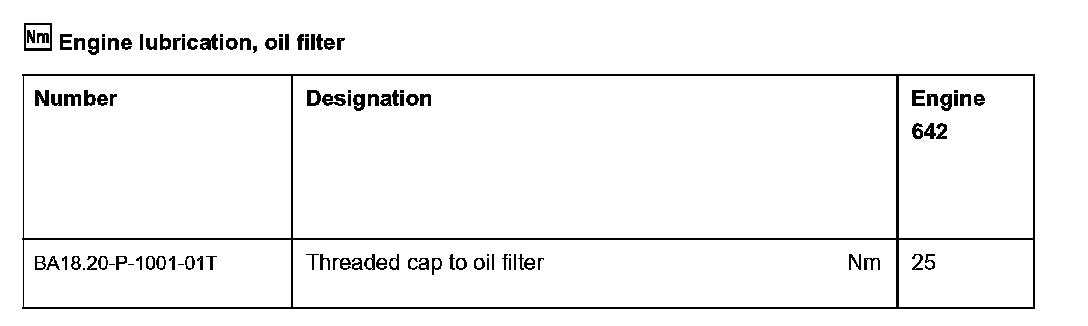

Engine lubrication, oil filter:

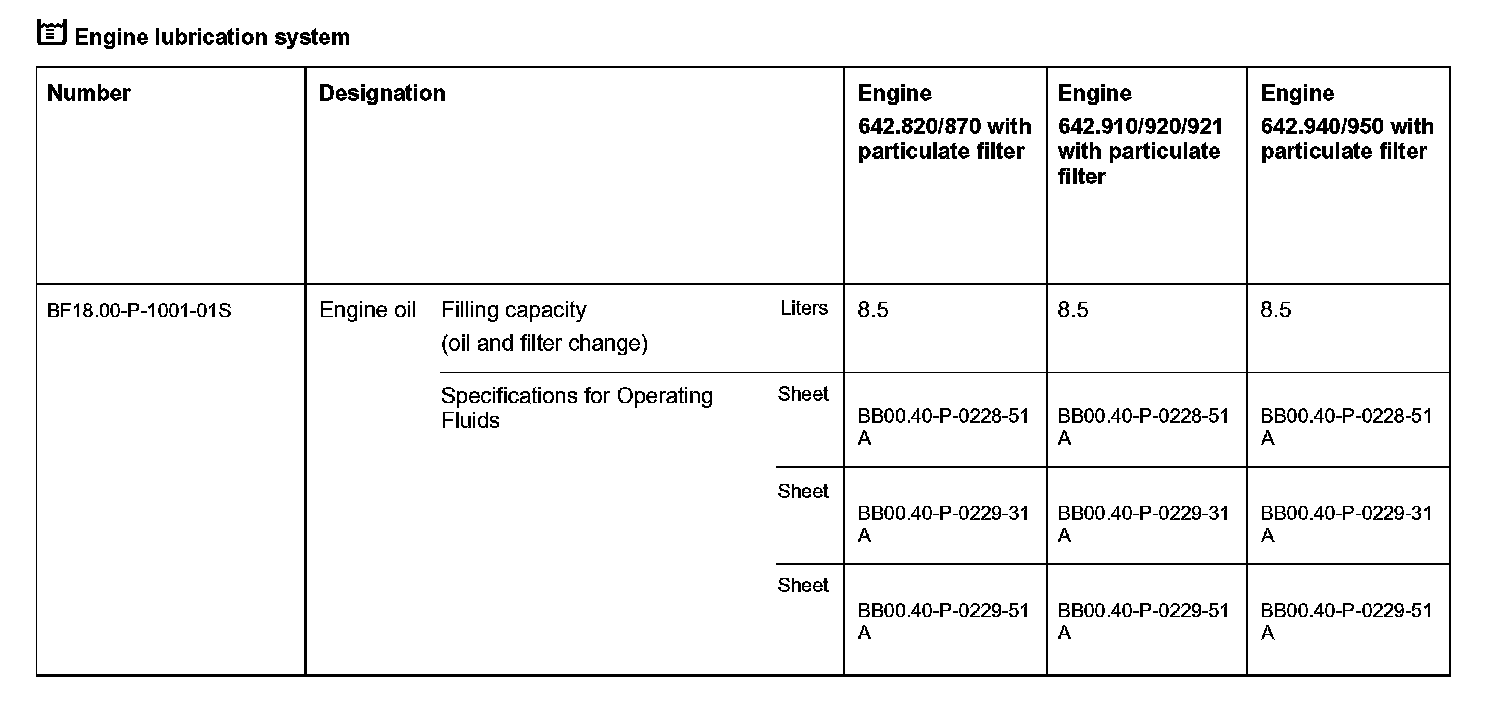

Engine lubrication system:

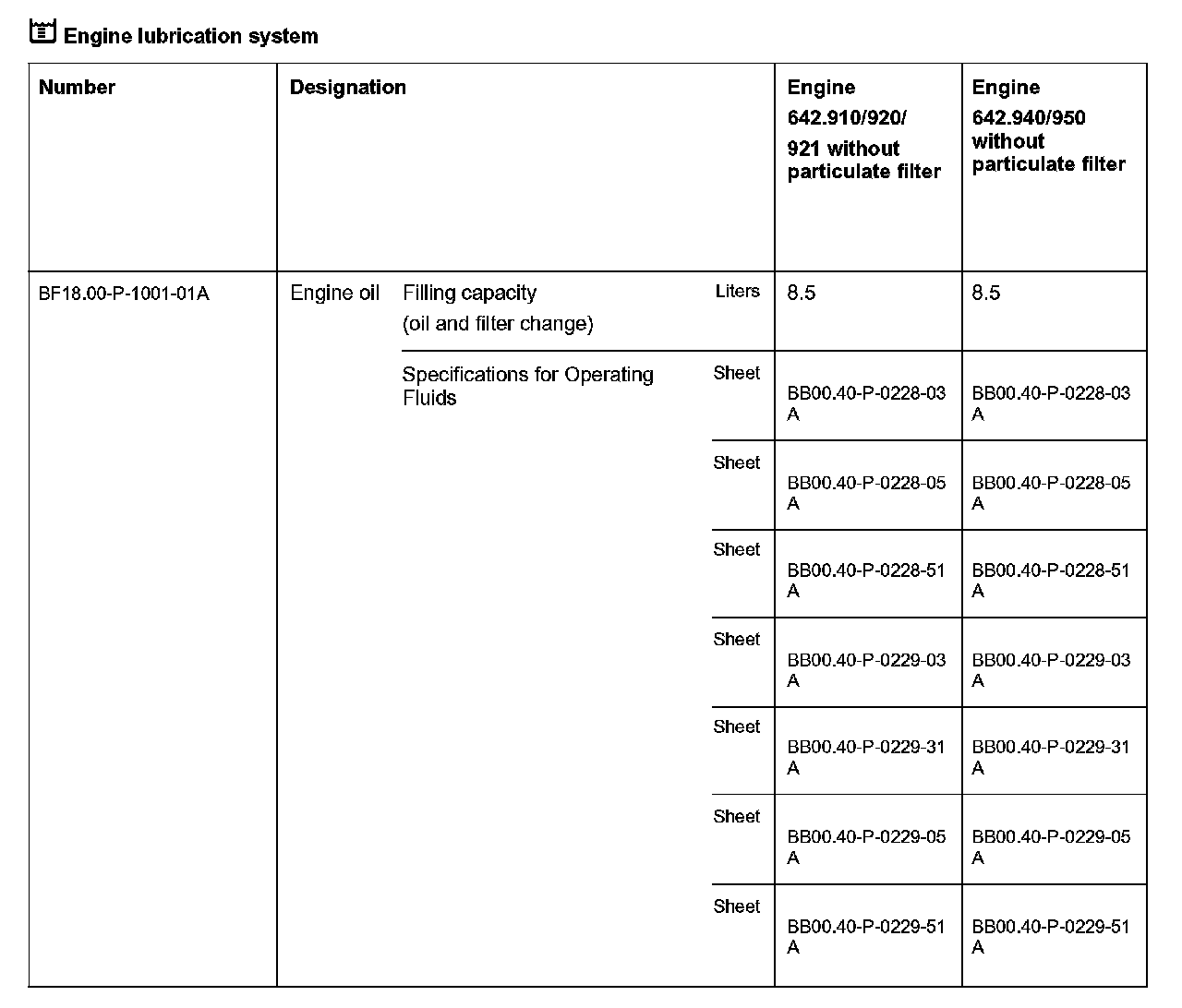

Engine lubrication system:

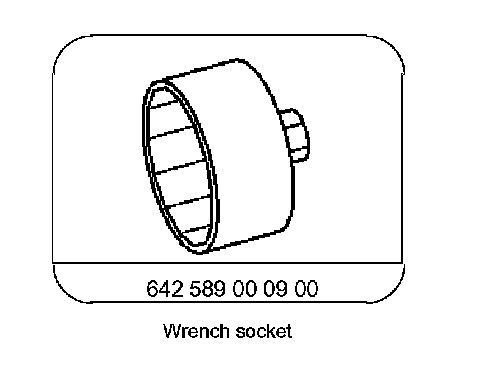

Special Tools:
