AR83.50-P-9070GY Remove/Install Rear Air Conditioning Pushbutton Control Unit



AR83.50-P-9070GY Remove/Install Rear Air Conditioning Pushbutton Control Unit
- with CODE (582) Rear air conditioner

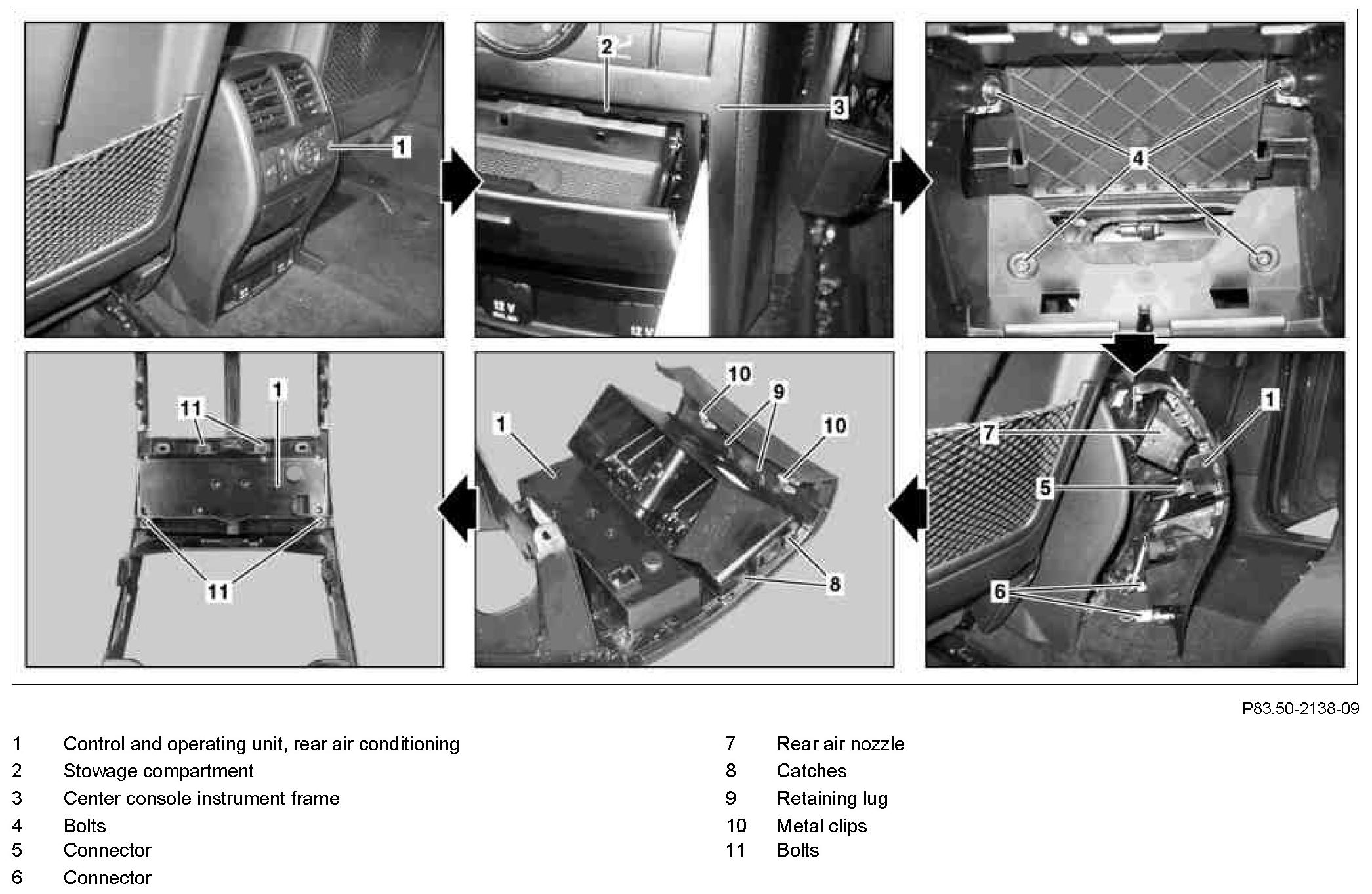

Component Identification:

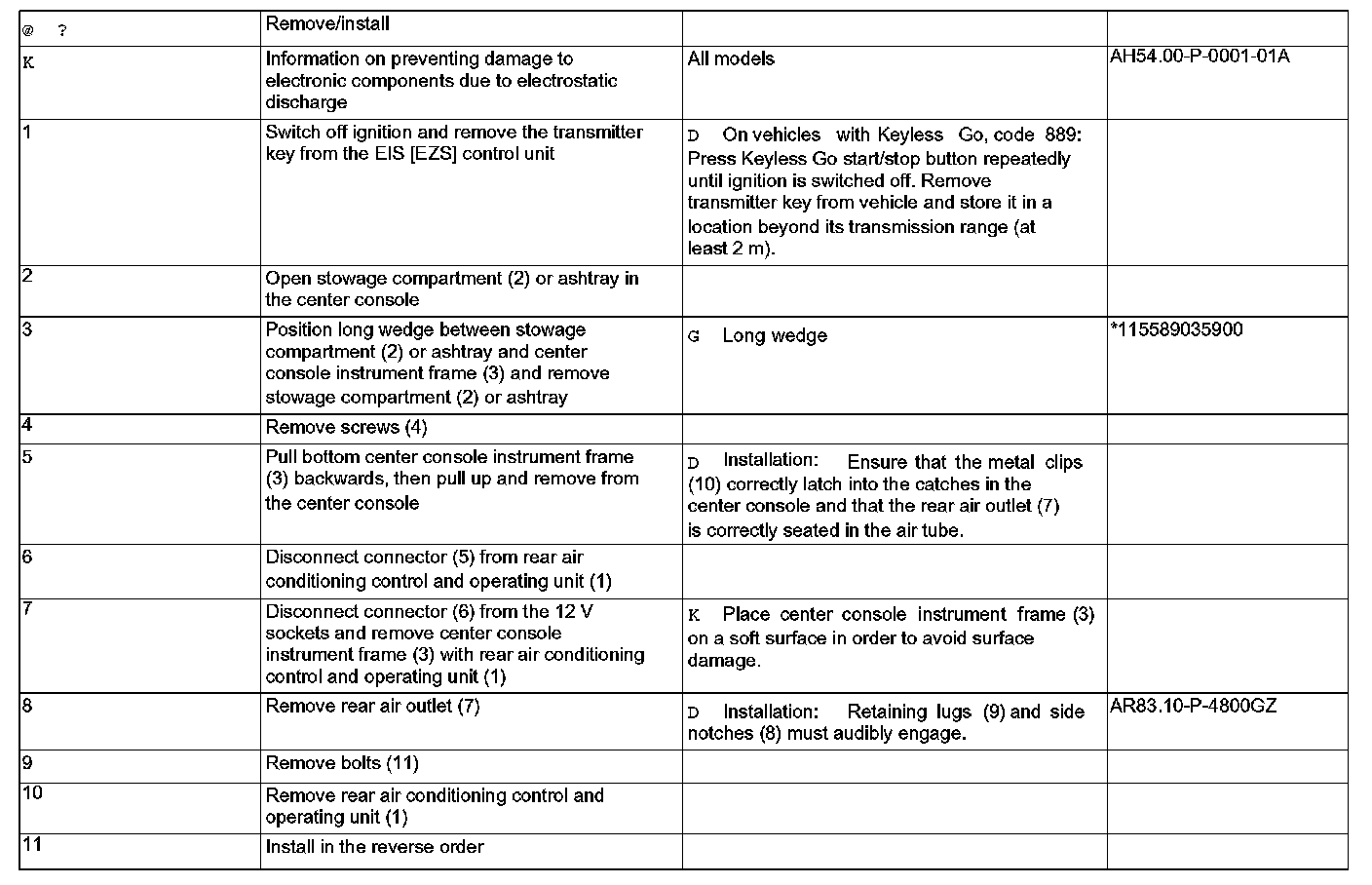

Steps 1 - 11:

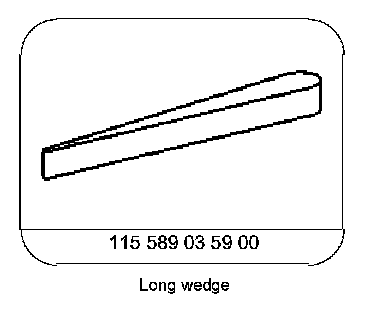

Special Tools:
