Starter Motor: Service and Repair

AR15.30-P-7100GX Remove Starter, Install
ENGINE 113.993 in MODEL 463.270 /271

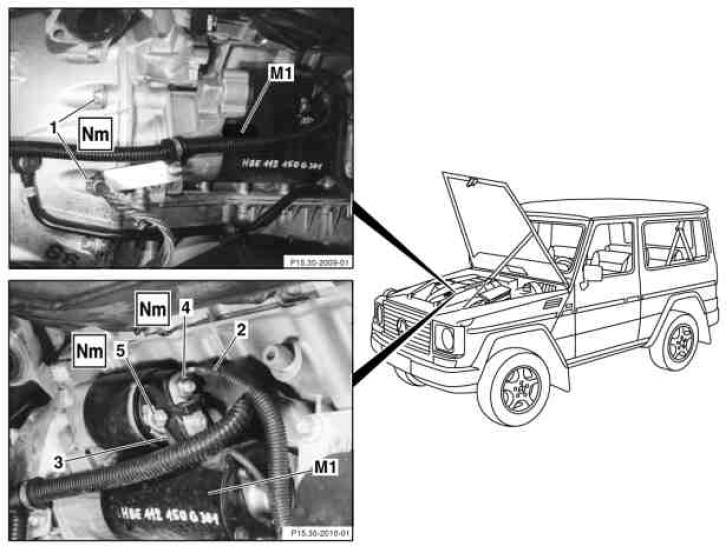

1 Screw
2 Electric cable circuit 30
3 Electric cable circuit 50
4 Nut
5 Nut
M1 Starter











001 589 76 09 00

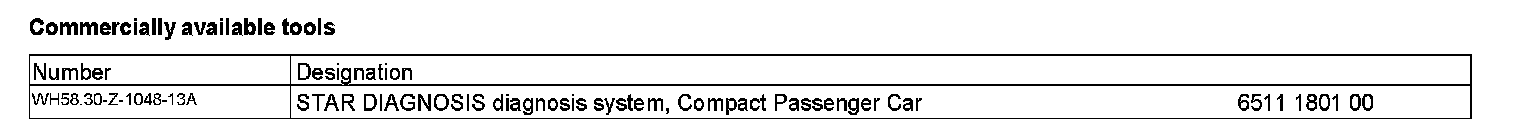

External Torx set
