ABS/TCS - ESP Won't Reactivate By Pushing Button Once
ESP CANNOT BE REACTIVATED BY PRESSING THE "ESP OFF" BUTTON ONCETopic Number LI82.00-P-047174
Version 1
Design Group 82.00 General
Date 06-30-2009
Validity Model 463 G55 AMG VIN end numbers: from 178234 to 179562
reason for change
Reason for block
Complaint:
ESP cannot be reactivated by pressing the "ESP OFF" button once.
To reactivate the ESP, the "ESP OFF" button must be pressed twice.
Cause:
Incorrect variant coding of upper control panel (UCP)
Remedy:
Check variant coding in UCP:
1. Access the body module "UCP - upper control panel"
2. Continue in UCP to item "Initial startup"
3. Perform "Initial startup with manual setting of new control unit"
4. Continue with item "GS engine variants"
5. Press button "F2" to start procedure.
6. When selecting the engine, specific menu item "M273" (even if an M113 is installed in the G55 AMG)
7. Initial startup was completed

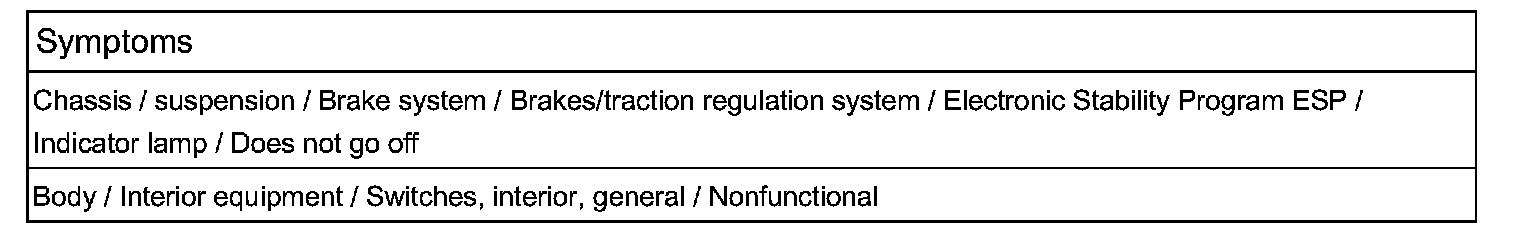

Symptoms

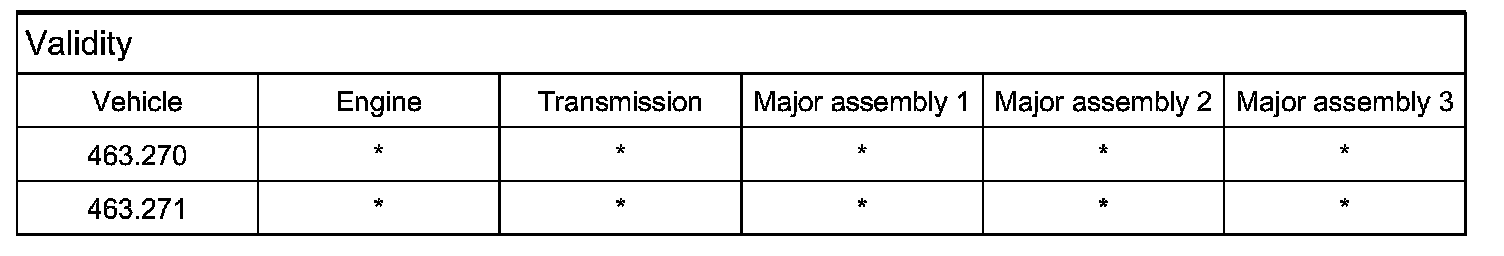

Validity
Note:

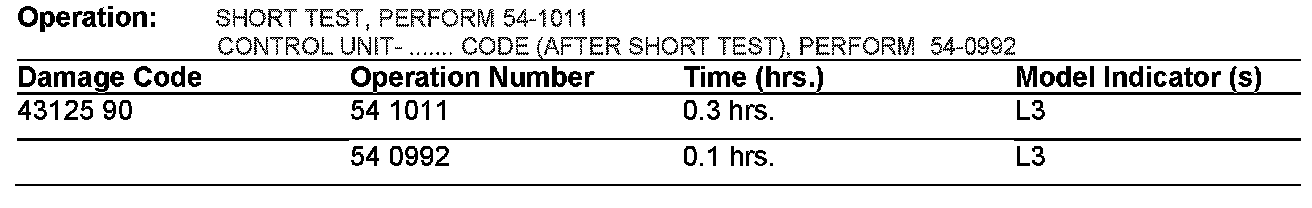

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on June 30, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.
In Case of Warranty, use the table above.
