Communications Control Module: Service and Repair

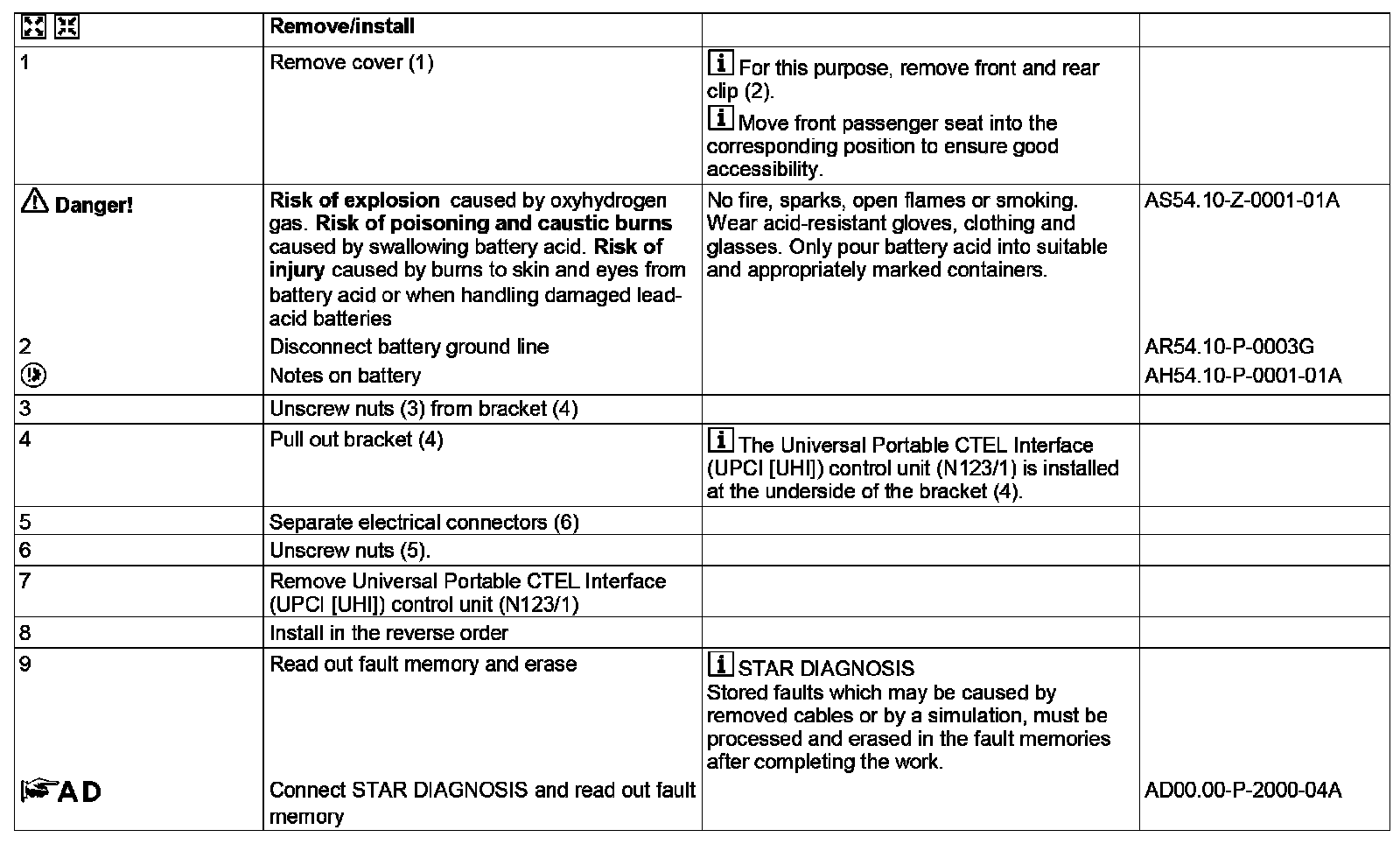

AR82.70-P-7010GY Remove/install Universal Portable CTEL Interface Control Unit
- MODEL 463.249 /271 as of 2.4.07

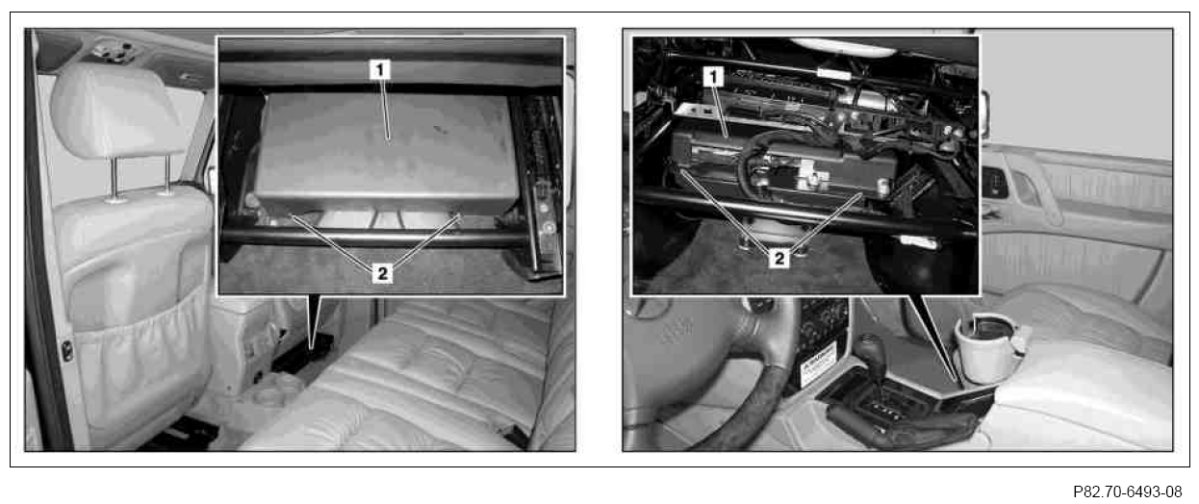

1 Cover
2 Clips

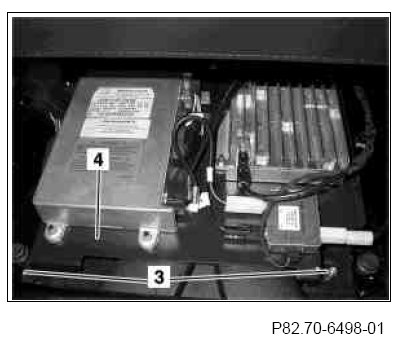

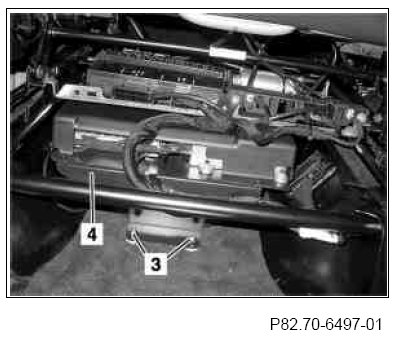

3 Nuts
4 Bracket






4 Bracket
5 Nuts

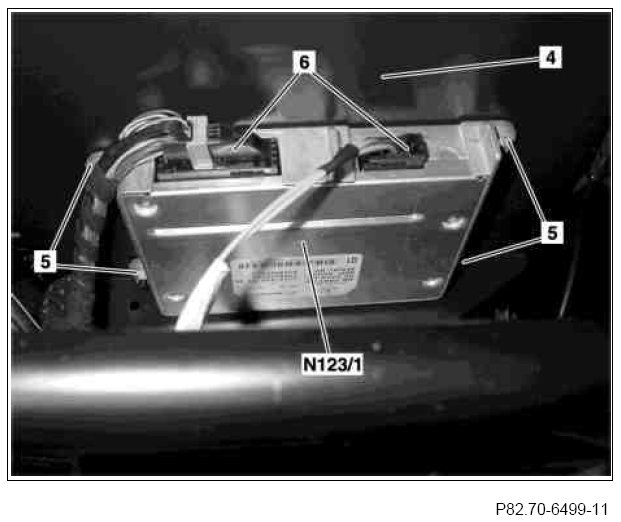

6 Electrical connectors
N123/1 Universal Portable CTEL Interface (UPCI [UHI]) control unit
