Fuel System - Fuel Tank Flow Noise/Splashing Sounds

Date: July 11, 2007

Order No.: T-B-47.10/47

Supercedes:

Group: 47

SUBJECT:
Model 463.271

Flow Noise from Fuel Tank at Engine Idle Speed and/or Fuel Splashing Noise

If you receive customer reports in the above model vehicles concerning a loud flow noise from the fuel tank at engine idle speed and/or fuel splashing due to overflowing fuel, the cause may be due to a faulty pressure sensor that actuates the fuel pump at idle with full on-board voltage.

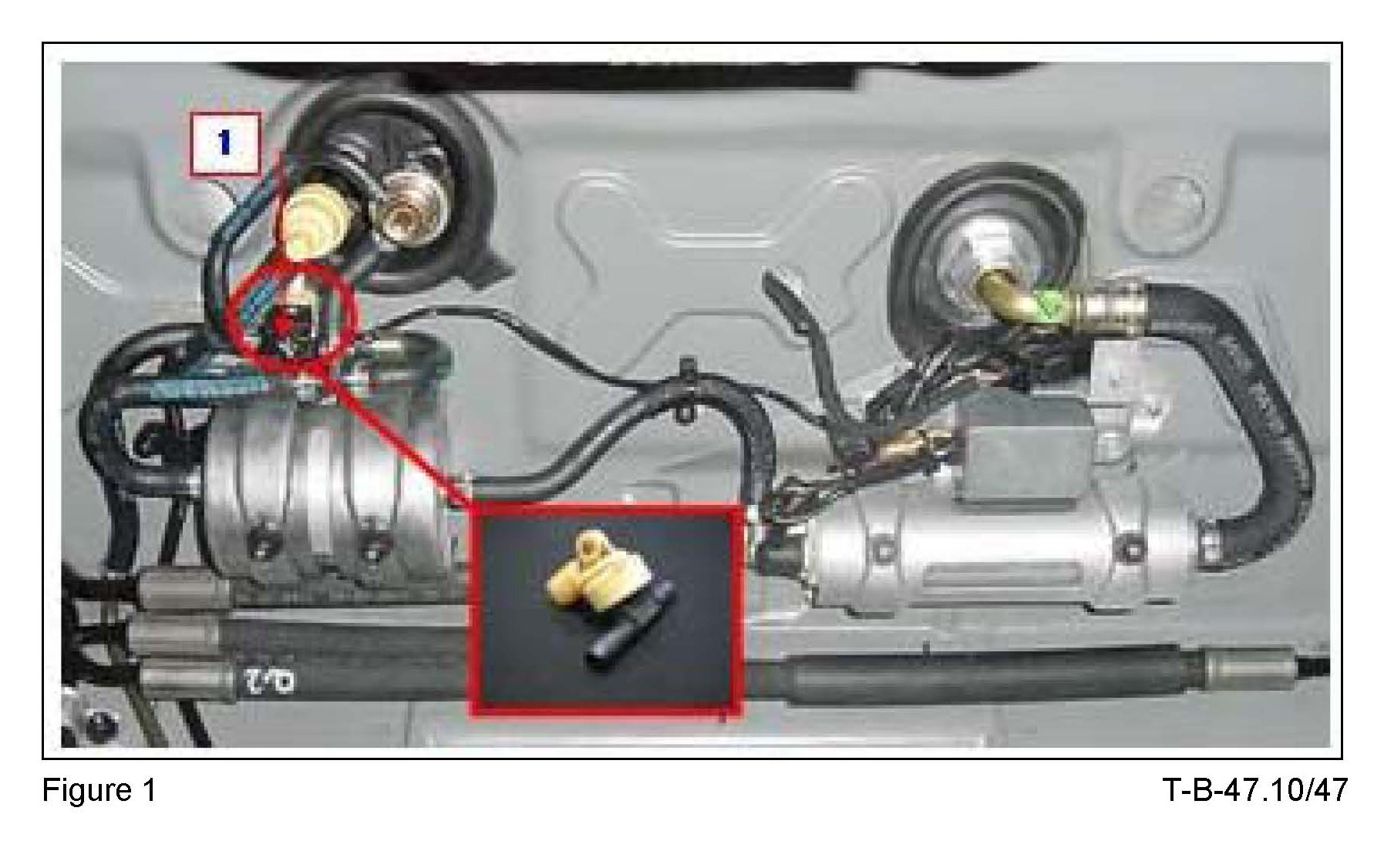

To resolve, check the voltage at the fuel pump connections at idle speed (specified value of 5 to 8 volts). If the voltage exceeds the specified value, replace the pressure sensor (Figure 1).

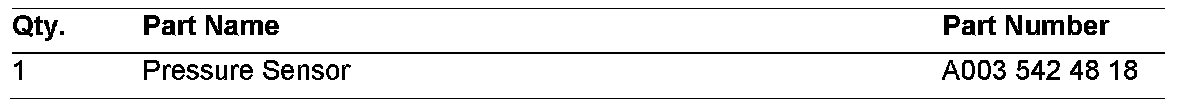

Parts Informtion

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on July 11, 2007. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.





In Case of Warranty, use the table.
