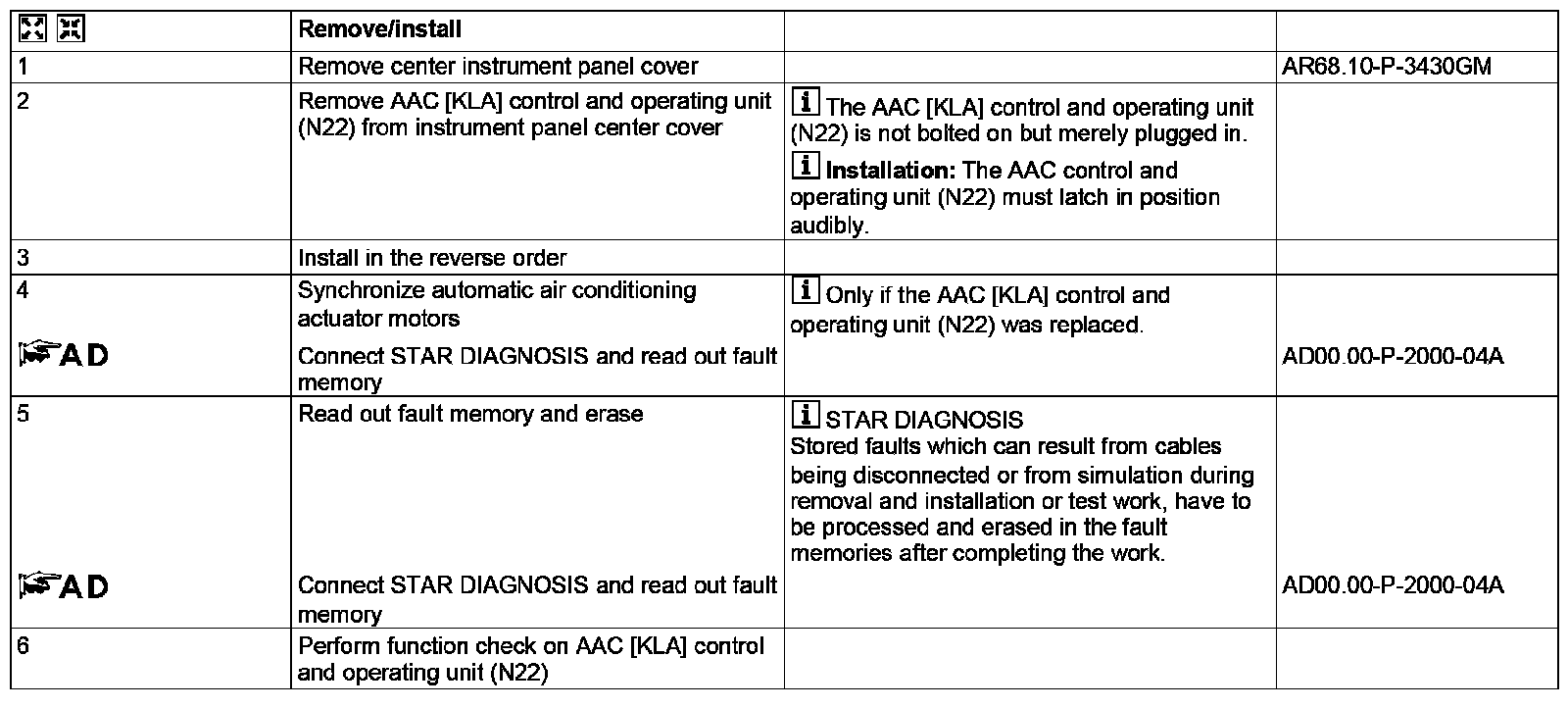

AR83.40-P-6350GM Remove And Install Control And Operating Unit




AR83.40-P-6350GM Remove And Install Control And Operating Unit
- MODEL 463.243 /244 /245 /246 /250 /309 /322 /323 /332 /333
- MODEL 463.247 /248 /254 /270 /271 /303 /340 /341 up to 1.4.07
- MODEL 463.249 up to 30.8.06

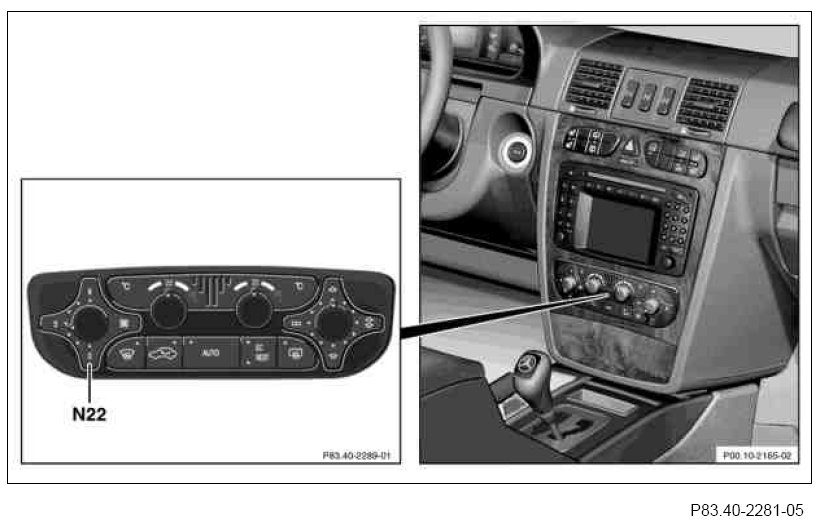

N22 AAC [KLA] control and operating unit
