Compressor HVAC: Service and Repair

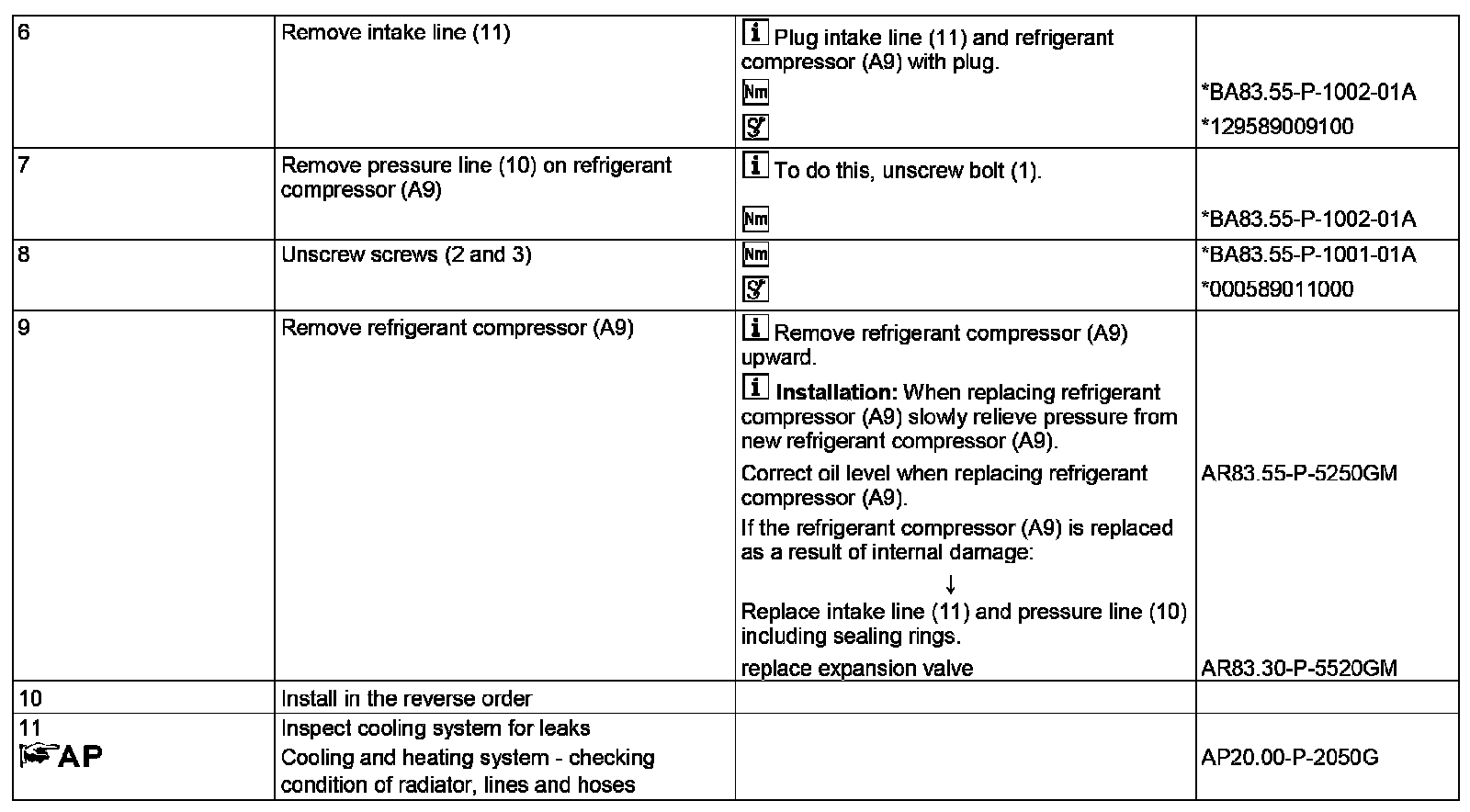

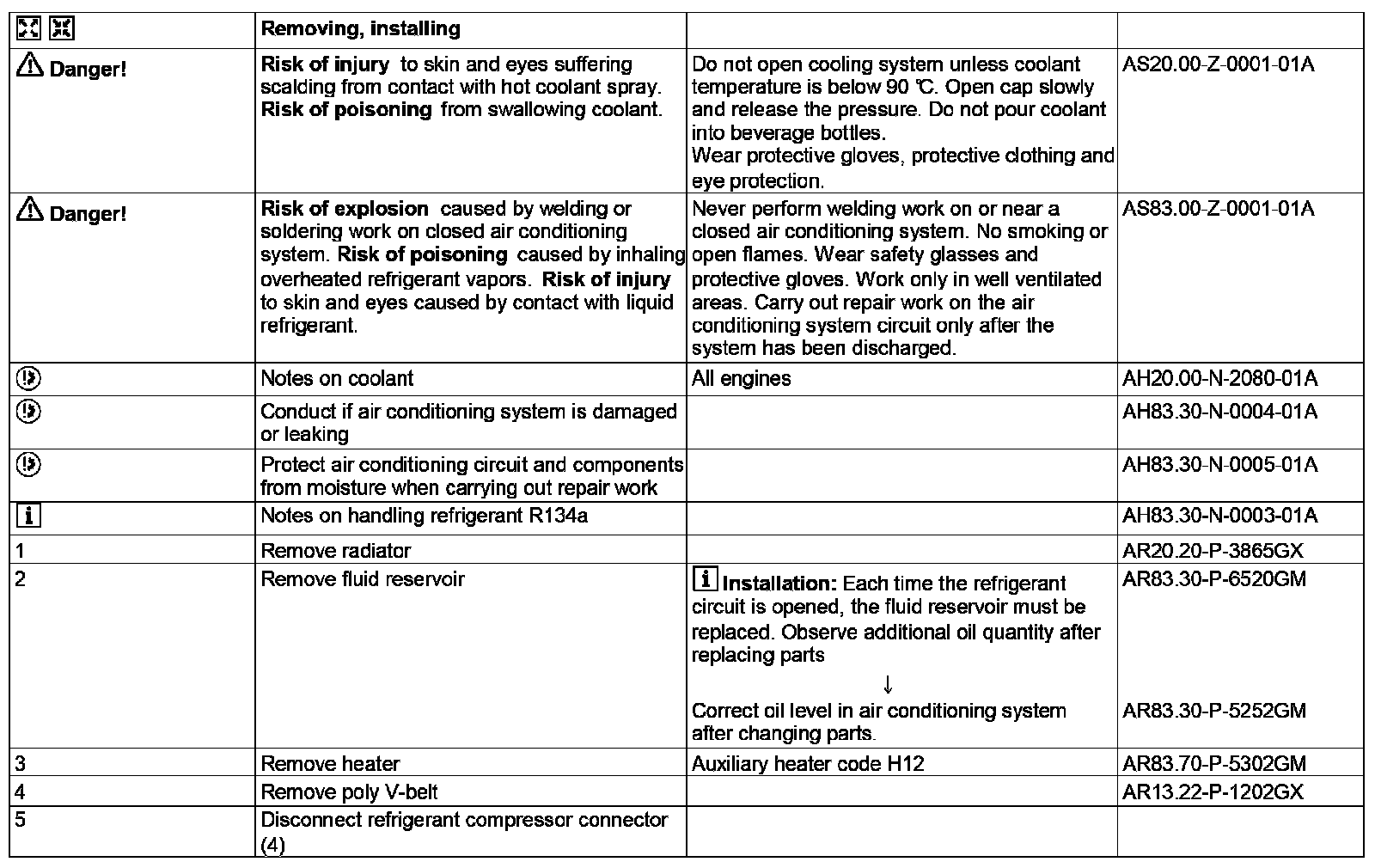

AR83.55-P-5300GX Remove/install Refrigerant Compressor
- ENGINE 113.993 in MODELS 463.270 /271

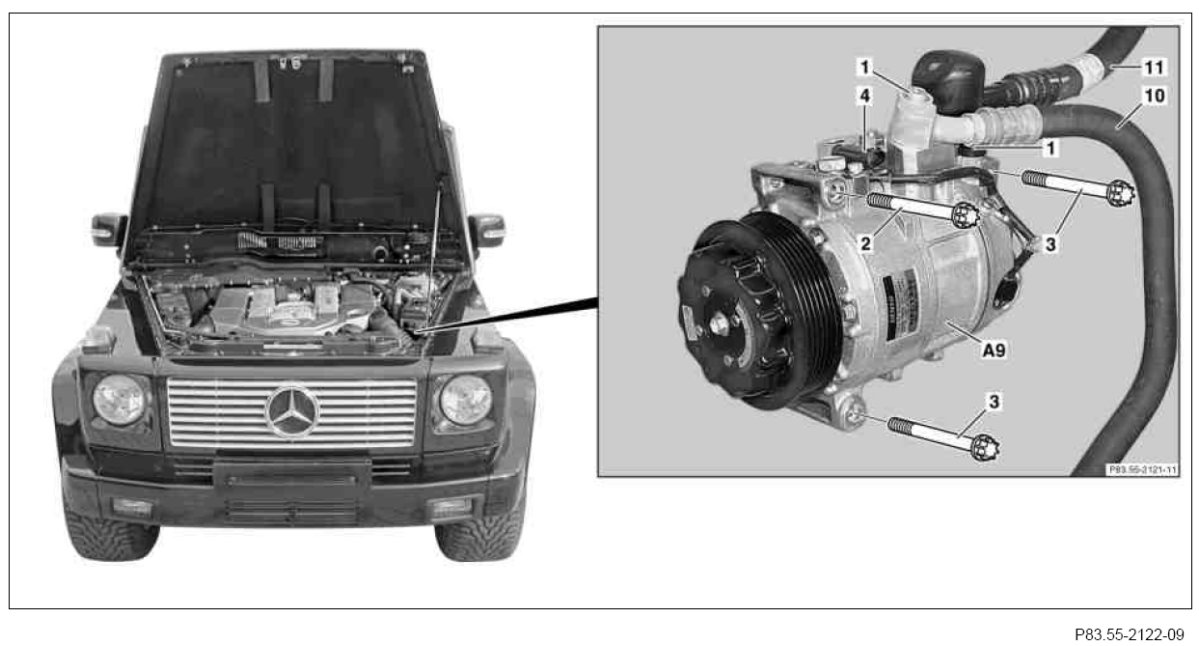

1 Screw
2 Screw
3 Screw
4 Refrigerant compressor connector
10 Pressure line
11 Suction pipe
A9 Refrigerant compressor



















000 589 01 10 00, Torx bit set






129 589 00 91 00, Set of stop plugs
