Timing Chain Guide: Service and Repair

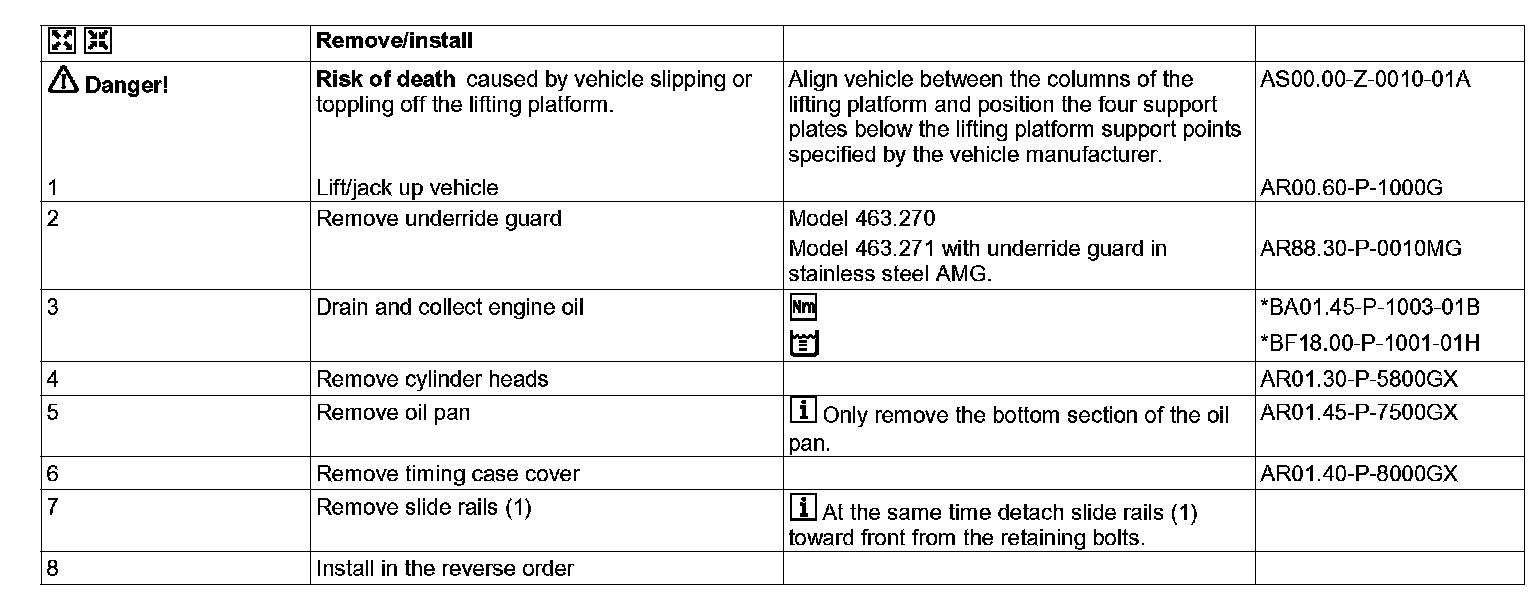

AR05.10-P-8484GX Remove/Install Slide Rail in Timing Case Cover
-ENGINE 113.993 in MODELS 463.270 /271

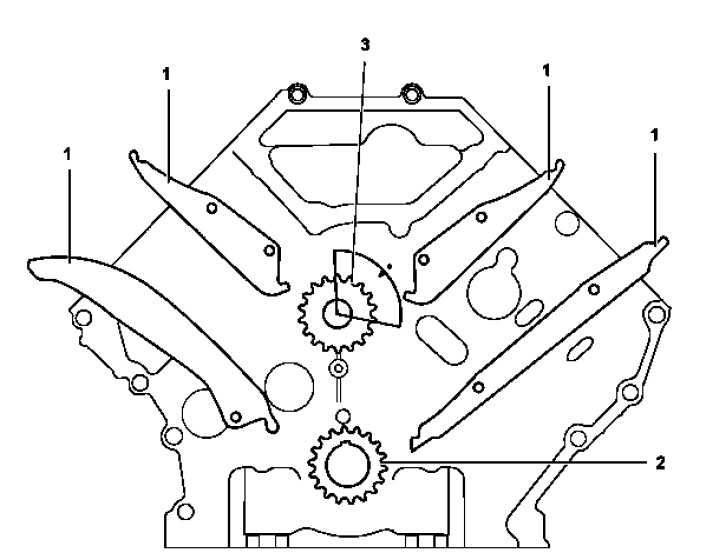

1 Slide rail
