Rear Subframe: Service and Repair

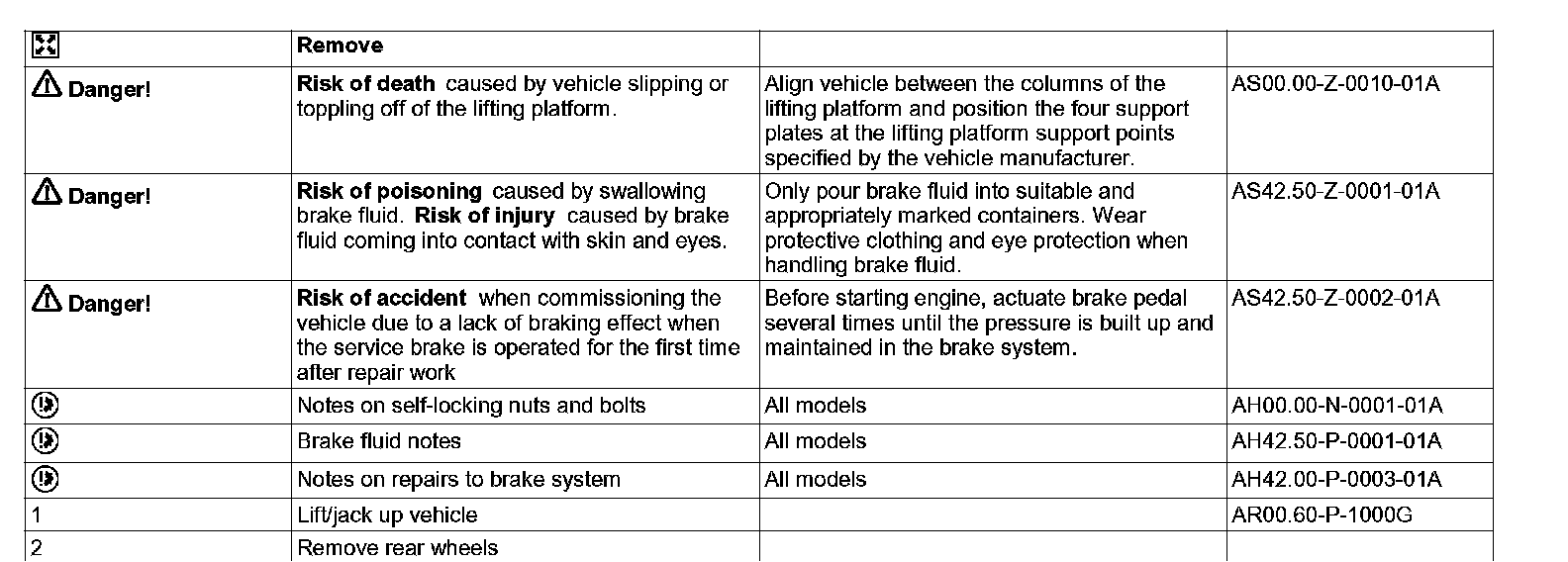

AR35.10-P-0010GX Remove/Install Complete Rear Axle
- MODEL 463.270 /271, 461.331

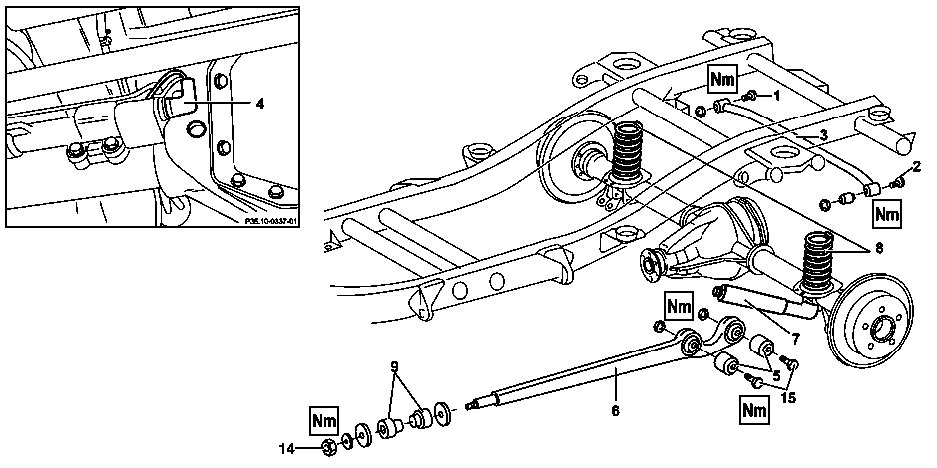

Shown on model 463.270

1 Screw
2 Screw
3 Transverse control arms
4 Electrical connector
5 Rubber bushing
6 Trailing arm
7 Shock absorber
8 Rear spring
9 Rubber bushing
14 Nut
15 Bolts





Illustrated on model 463.270

1 Screw
6 Trailing arm
7 Shock absorber
10 Bolt for damper

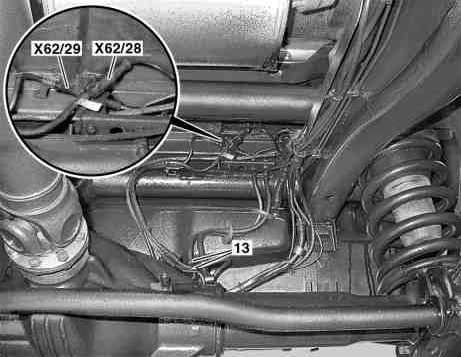

Illustrated on model 461.331

13 Hydraulic line
X62/28 Left rear ABS rpm sensor connector
X62/29 Right rear ABS rpm sensor connector

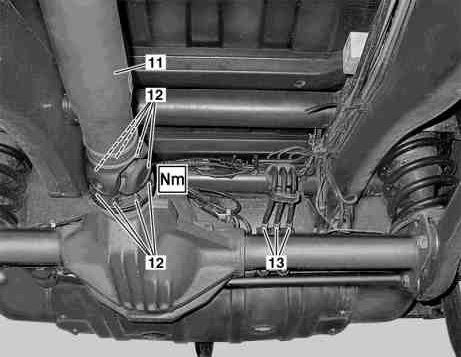

Illustrated on model 463.270

11 Propeller shaft
12 Nut
13 Hydraulic line






























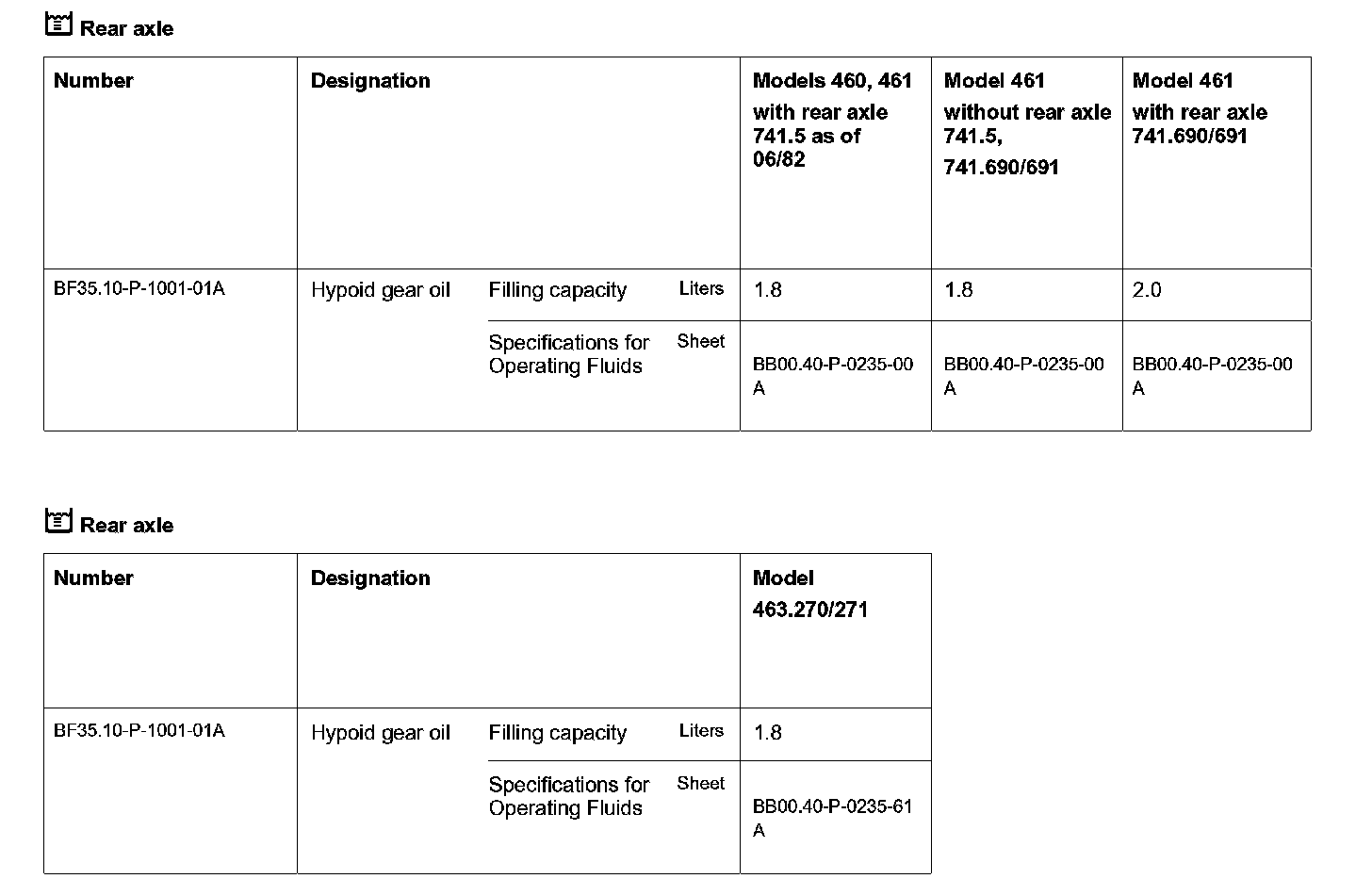

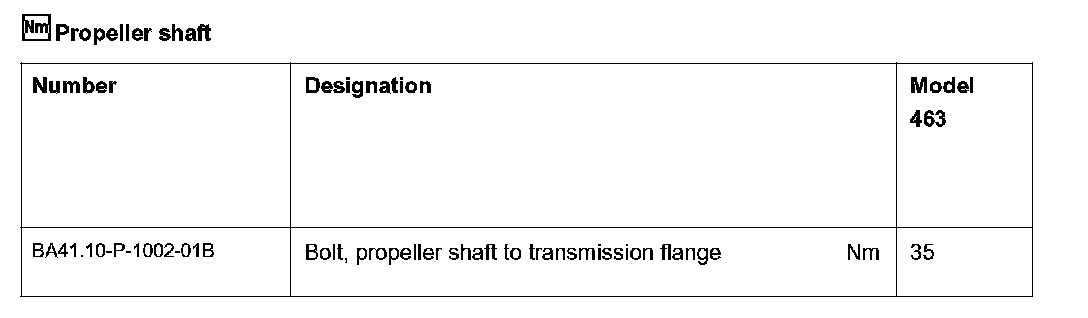

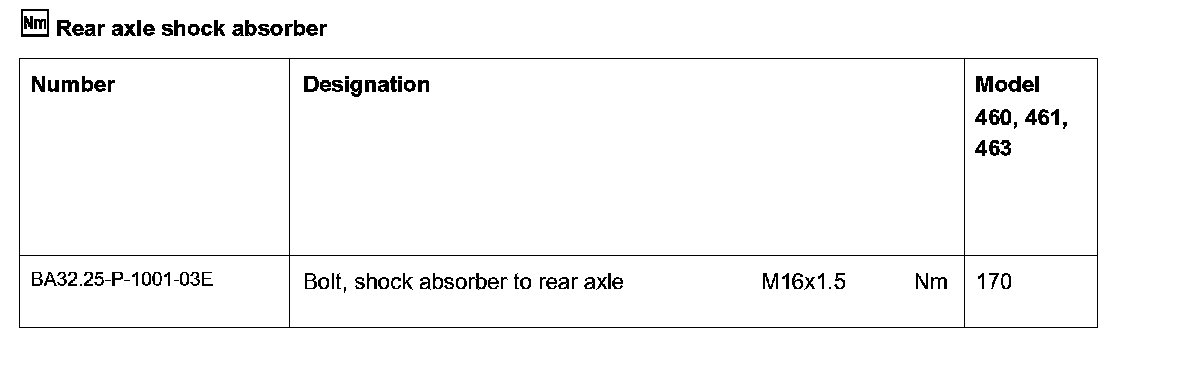

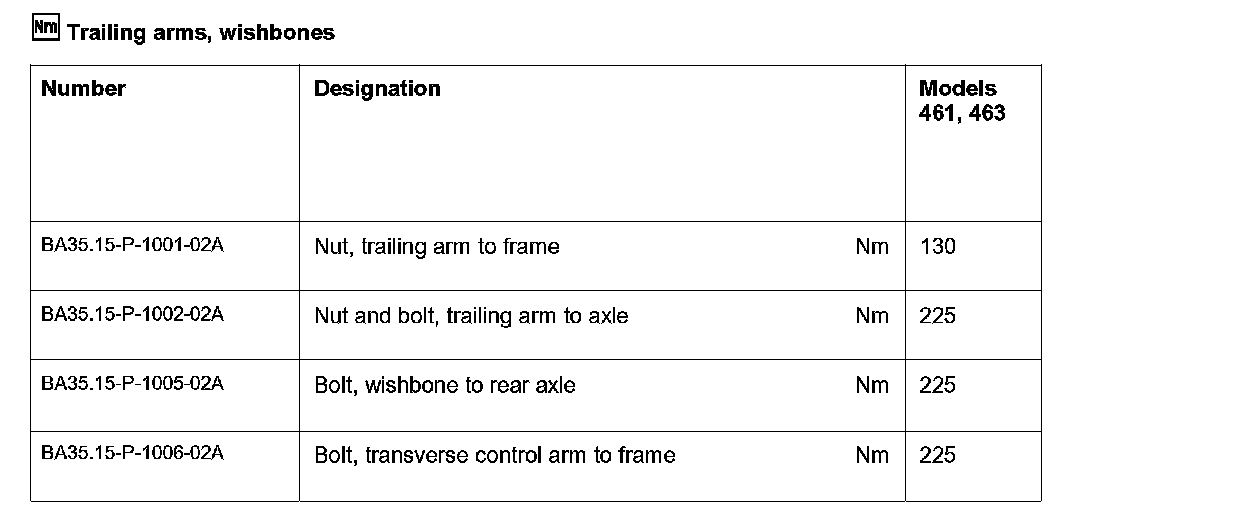

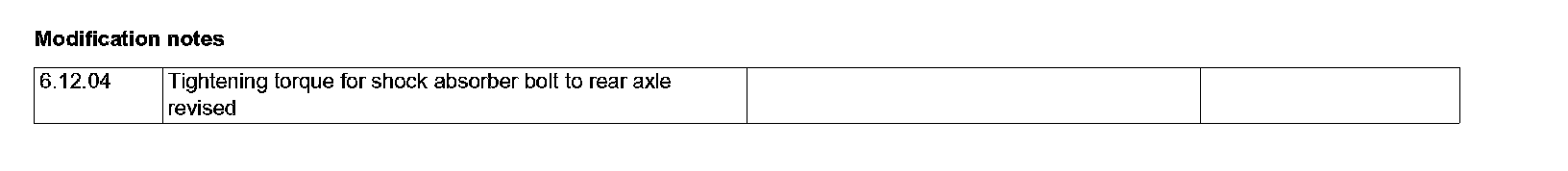

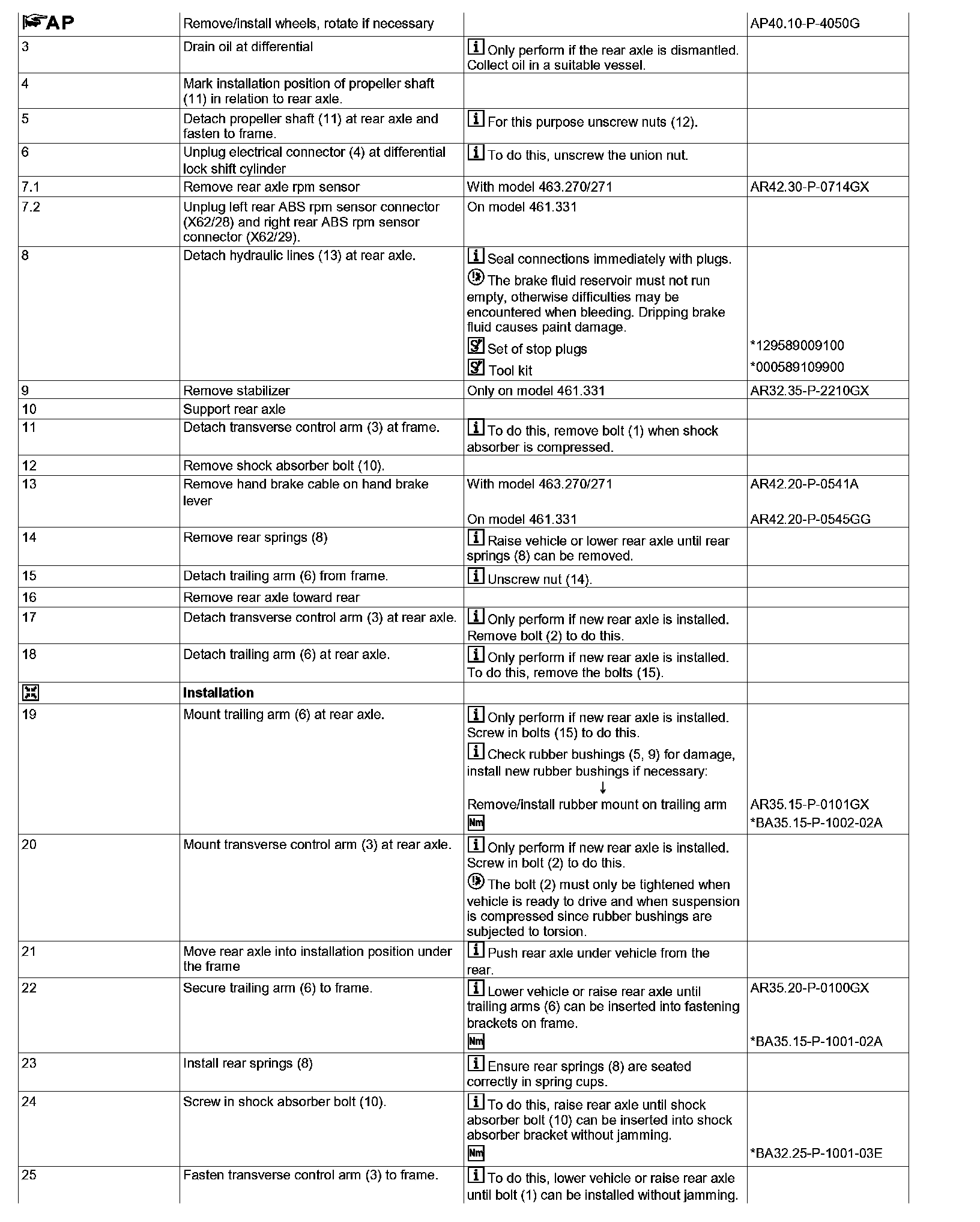

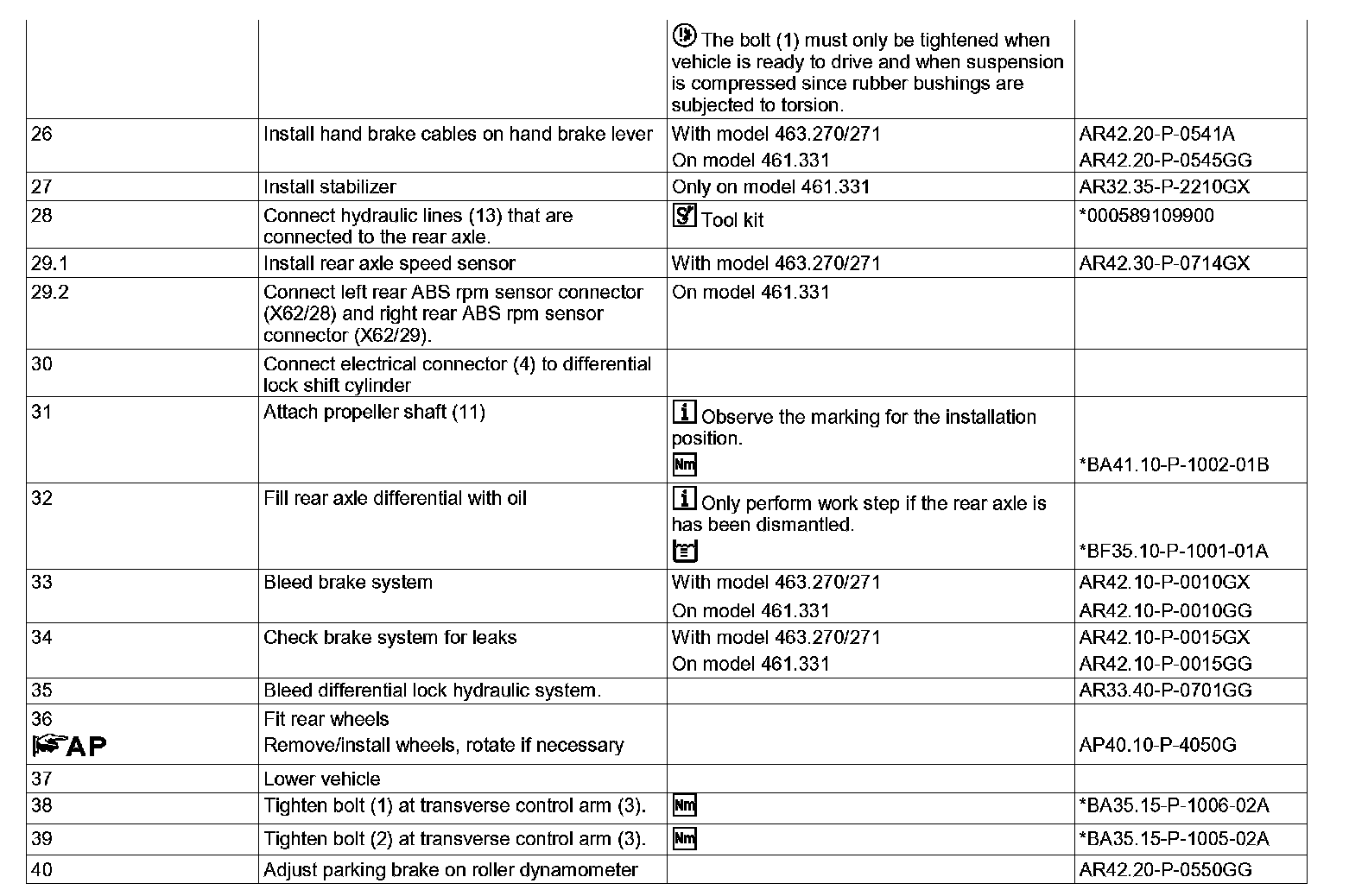

129 589 00 91 00
Set of stop plugs





000 589 10 99 00
Tool kit
