Home >> Mercedes Benz Truck >> 2004 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> ETP - Electrical Test Program >> Component Locations - Section 21 >> Figure 6 - Engine Compartment

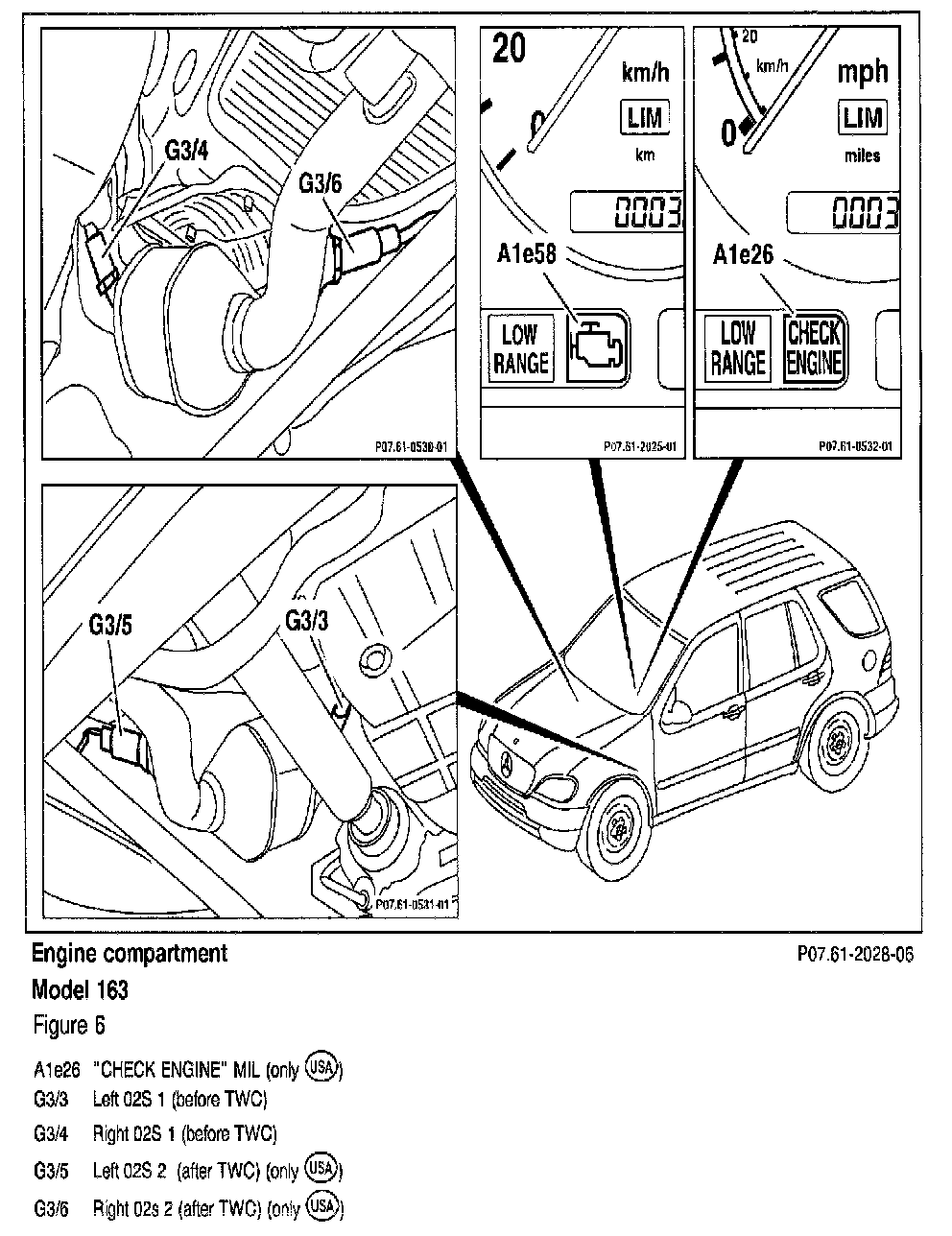

Figure 6 - Engine Compartment
